GRAPHTEC midi LOGGER GL240 User Manual page 25

Connecting to a DC Power Supply
Use the optional DC drive cable (B-514).
•
Use a power supply within the 8.5 to 26.4 VDC range.
•
For DC drive cable, please be sure to use the B-514.

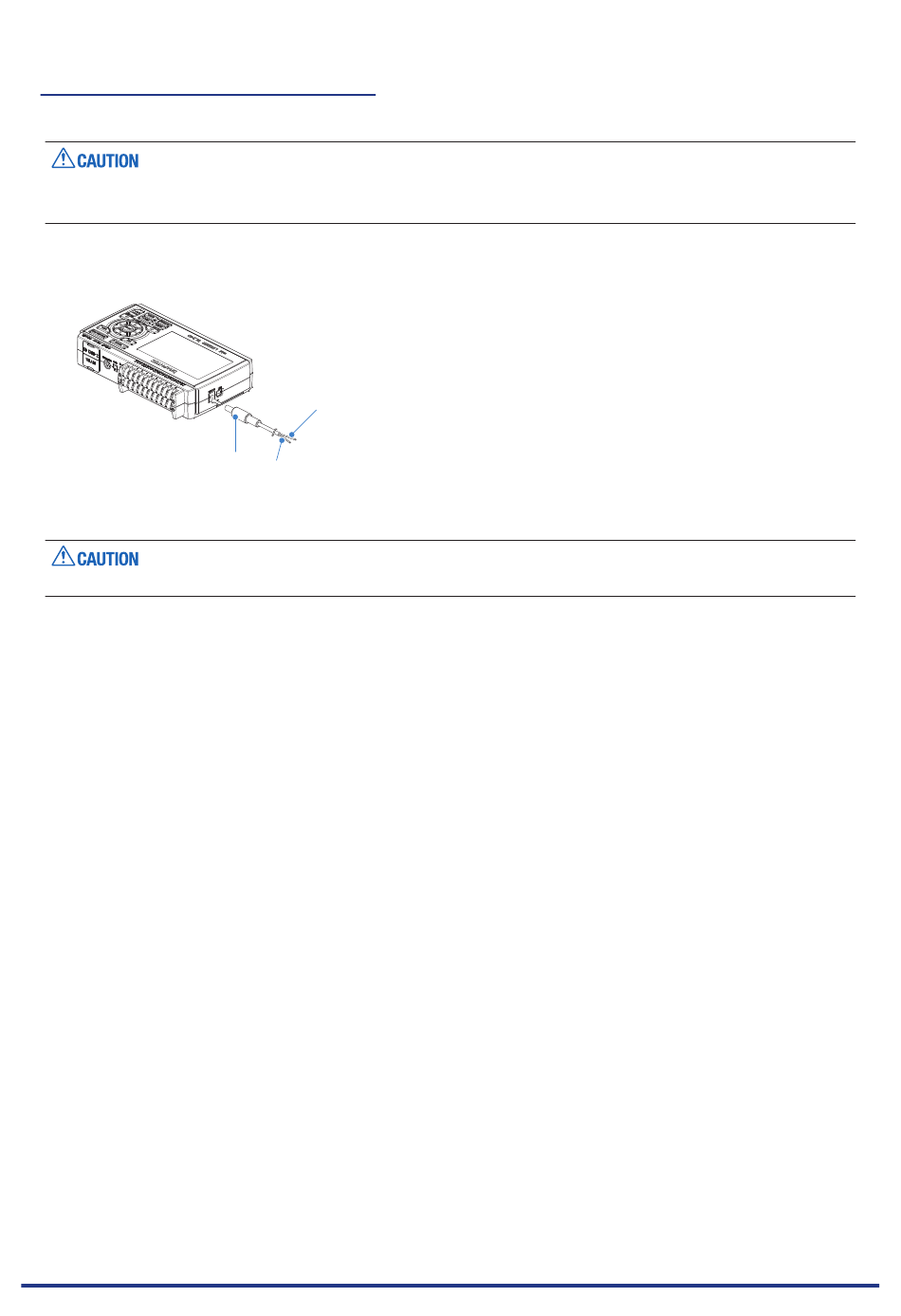

(1) Configure the tip of the DC drive cable (B-514: 2m) to enable it to be connected to the DC power supply.
(2) Connect the DC output side to the power supply connector on the GL240.
DC drive cable
(B-514: Option)
(3) Connect the DC input side to the DC power supply.
Be sure to check the polarity of the wire tips when performing wiring.
(4) Press the power switch on the GL240 to the ON side to turn on the power.
Shielded lead (- side)
White (+ side)
CHAPTER 2 Checks and Preparation
2-5
