CHAPTER 3 Settings and Measurement
<Example of operation procedure>
The following shows an operation example where a folder named "TEST" is created for captured data and
automatically saved.

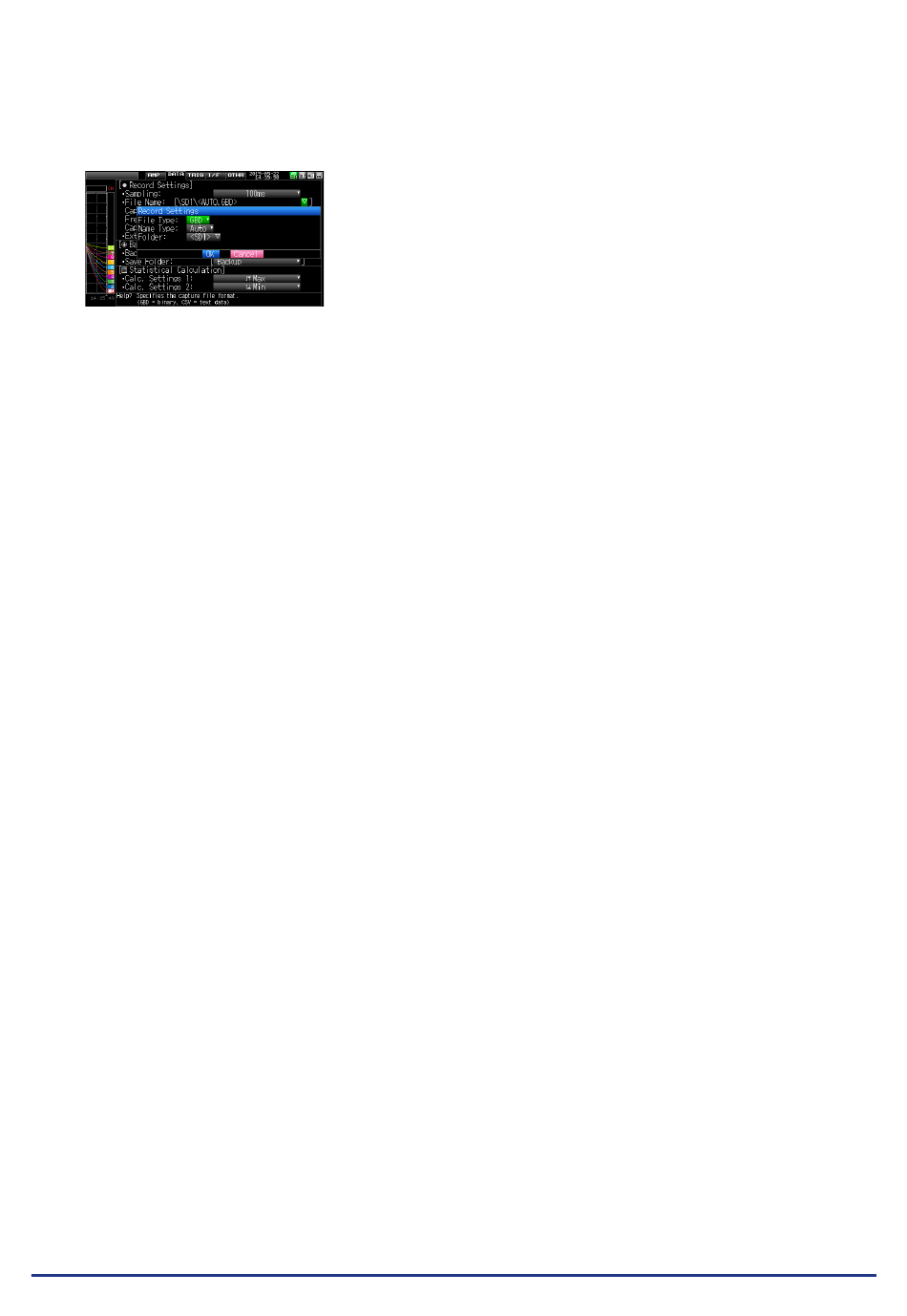

<Data capture setting menu>
(1) Select the DATA menu.
(2) Open the capturing setting menu by pressing the [ENTER] key on the "Capture destination file name" in
the Capture setting.
In this menu, set as follows:
File format : GBD
Naming method : Automatic
(3) Then, open the data saving destination menu by pressing the [ENTER] key on the "FOLDER" to specify a
data saving destination and create a folder.
(4) Create a "New folder" in the file box.
* For the careation of new folder, refer to "(9) Character string entering" described below.
Then, select the folder you created and press the [ENTER] key.
3-78
