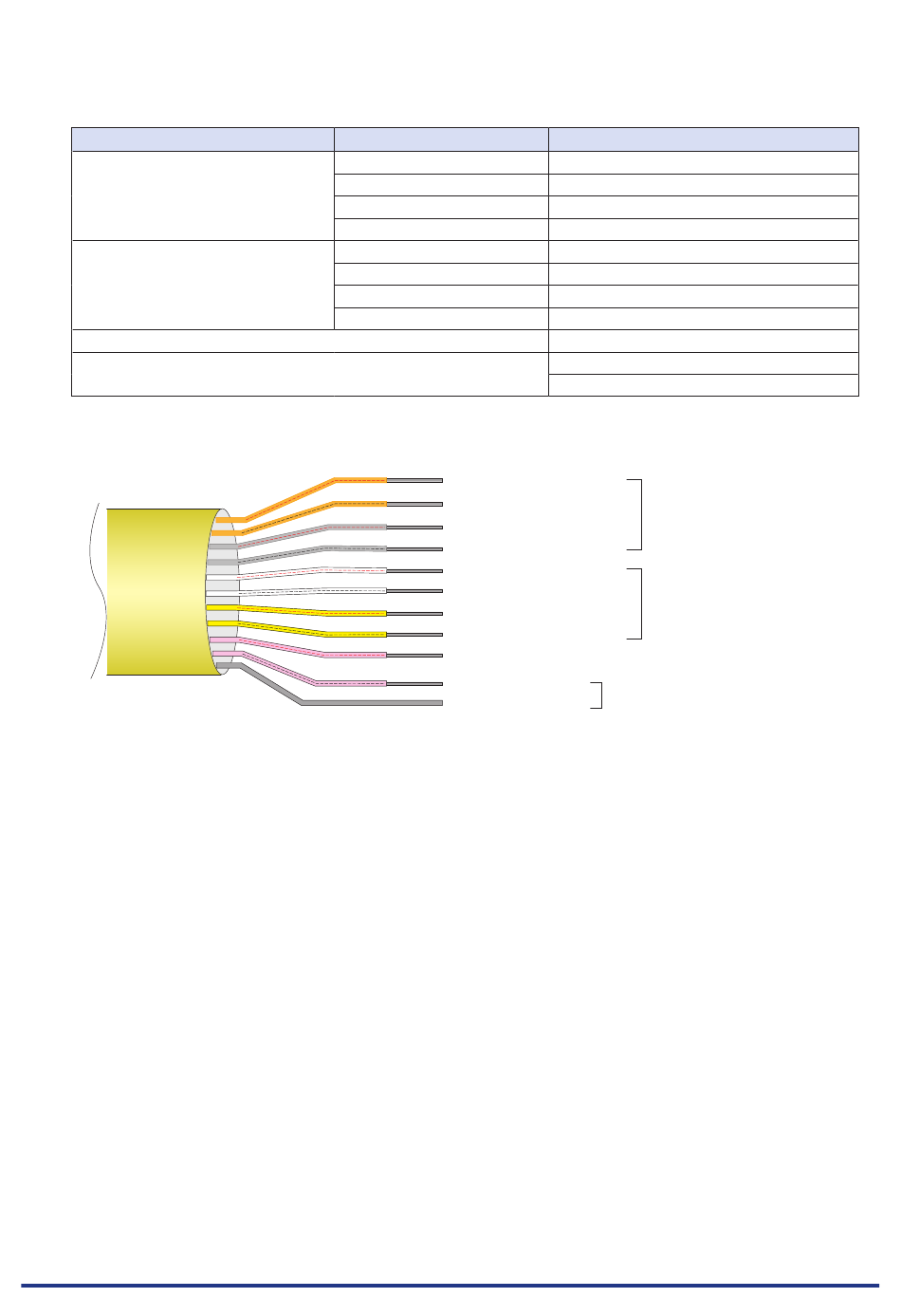

Wiring
Cable tips are bare tips. Perform wiring for the necessary functions.
Signal Name
Logic/Pulse input
Alarm output
Trigger input/External sampling input
GND
* Switch between logic and pulse.
Channel Number
1
2
3
4
1
2
3
4
Orange with red dotted line
Orange with black dotted line : 2
Grey with red dotted line
Grey with black dotted line
White with red dotted line
White with black dotted line
Yellow with red dotted line
Yellow with black dotted line : 4
Pink with red dotted line
Pink with black dotted line
Shielded
CHAPTER 2 Checks and Preparation
Wire Color
Orange with red dotted line
Orange with black dotted line
Grey with red dotted line
Grey with black dotted line
White with red dotted line
White with black dotted line
Yellow with red dotted line
Yellow with black dotted
Pink with red dotted line
Pink with black dotted line
Shielded
: 1
Logic/Pulse input
: 3
: 4
: 1
: 2
Alarm output
: 3
: Trigger input/External sampling input
GND
