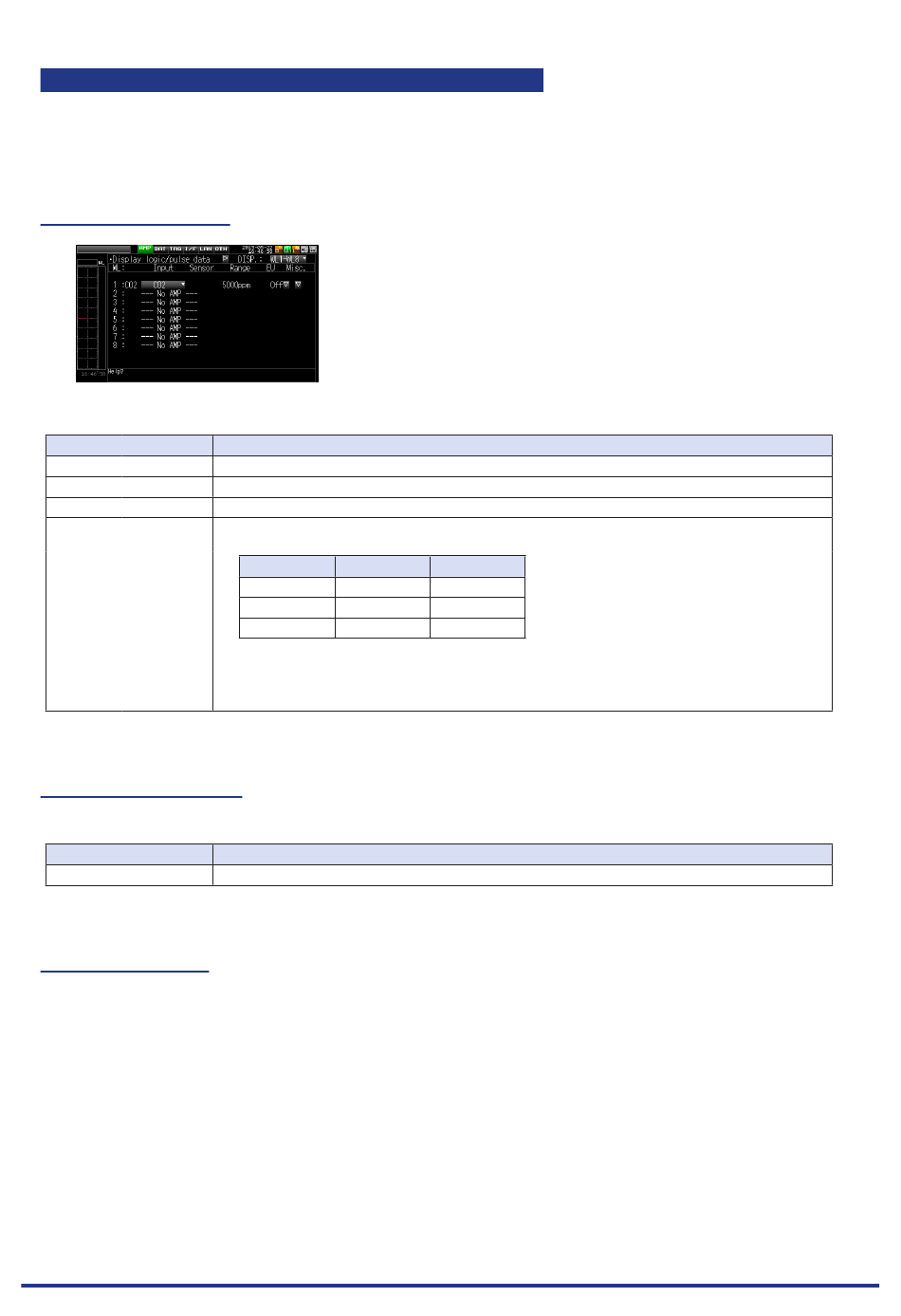

CO2 sensor of the wireless sensor setting: optional
(GL100-WL+GS-CO2)
Perform the settings for the CO2 sensor input of wireless sensors.
When the wireless sensor and CO2 sensor are connected, the setting screen is displayed.
(1)-38 Input setting
This is used to select the input conditions.
Setting
Off
1ch CO2
2ch to 4ch No AMP
5ch to 8ch No AMP
(1)-39 Range setting
The CO2 range is fixed.
Setting
CO2
(1)-40 EU setting
This is used to unit-convert the measurement signal.
Refer to "(1)-5 EU (Scaling settings)" in "3.4 Setting Menus".
The input signal is not measured. The waveform and digital display also are not performed.
Used to measure the CO2.
Used to measure the ultraviolet.
When connecting the two GS series and terminal / addapter using a branch adapter for GS, the
following combination is displayed.
Combination CH1 to 4
TH+LXUV TH
TH+CO2 TH
LXUV+CO2 LXUV
Symbols in the table are as follows:
TH: Temperature and humidity sensor
LXUV: Illumination / ultraviolet sensor
CO2: CO2 sensor
5000ppm fixed range
CHAPTER 3 Settings and Measurement
Description
CH5 to 8
LXUV
CO2
CO2
Description
