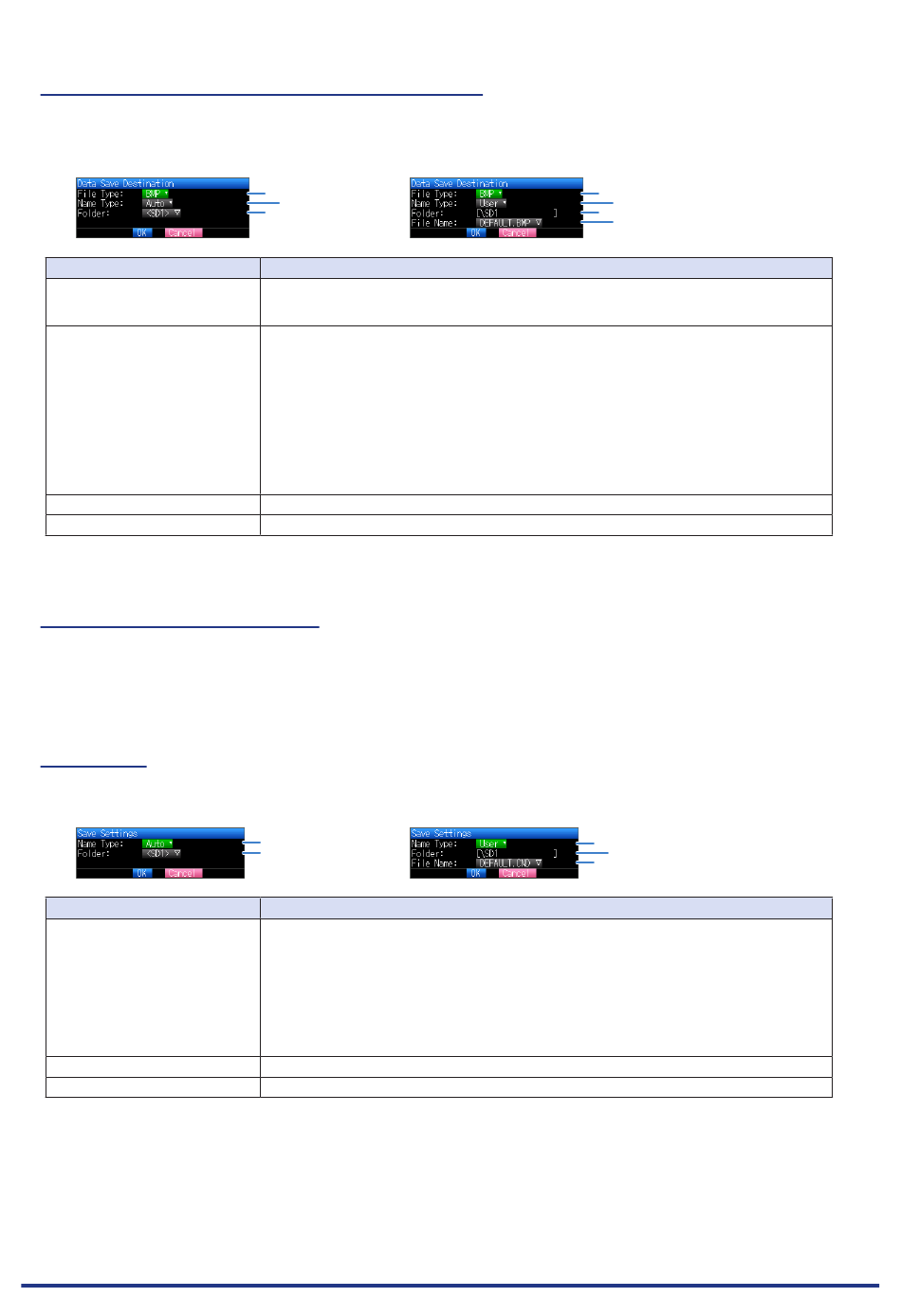

(7)-4 Specify Save Destination (Screen Copy)
Saves the data that is replaying on the screen in the internal memory (SD1) or SD memory card (SD2) as an
image file.
<If the naming method is Auto>
Setting
(1) File Type
(2) Name Type
(3) Folder
(4) File
(7)-5 Execute (Screen Copy)
Executes screen copy and saves it to an image file.
* Refer to page (7)-4 "Specify Save Destination" for details on specifying the save destination.
(7)-6 Save
Saves the setting conditions of the GL240.
<If the naming method is Auto>
Setting
(1) Name Type
(2) Folder
(3) File
<If the naming method is Arbitrary>
(1)
(2)
(3)
Sets the file format used to save data.
BMP : Saves data in bitmap file format
PNG : Saves data in ping format
Set how a data file should be named.
Auto : Automatically supplies the file name.
Example : 20150201-123456.BMP
Number part : File creation date
* The file is created on February 1,2015,12:34:56 in this example.
BMP : Data format
BMP : Bitmap file format
PNG : Ping format
Arbitrary : Data is captured to a file with an entered file name.
Sequential number : A file is created with an arbitrary file name that has been entered,
followed by a sequential number.
Specify a folder to which you want to save data. For details, refer to "(8) File box".
Specify a file to which you want to save data. For details, refer to "(8) File box".
<If the naming method is Arbitrary>
(1)
(2)
Set how a data file should be named.
Auto : Automatically supplies the file name.
Example : 20150201-123456.CND
Number part : File creation date
* The file is created on February 1,2015,12:34:56 in this example.
CND : Data format (GL240 setting file format)
Arbitrary : Data is captured to a file with an entered file name.
Sequential number : A file is created with an arbitrary file name that has been entered,
followed by a sequential number.
Specify a folder to which you want to save data. For details, refer to "(8) File box".
Specify a file to which you want to save data. For details, refer to "(8) File box".
CHAPTER 3 Settings and Measurement
(1)
(2)
(3)
(4)
Description
(1)
(2)
(3)
Description
3-75
