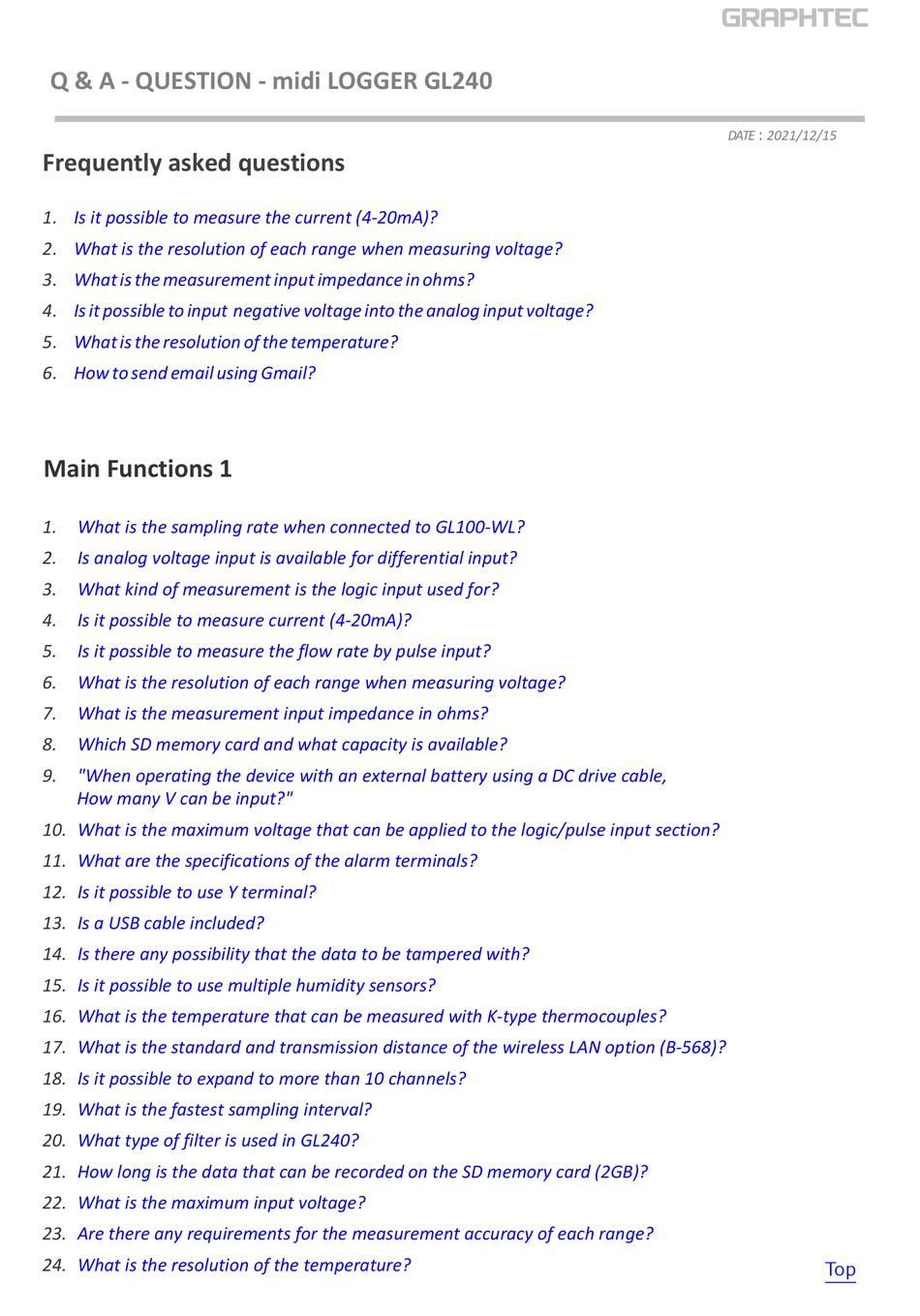

Q & A - QUESTION - midi LOGGER GL240
Frequently asked questions
1.
Is it possible to measure the current (4-20mA)?
2.
What is the resolution of each range when measuring voltage?
3.
What is the measurement input impedance in ohms?
4.
Is it possible to input negative voltage into the analog input voltage?
5.
What is the resolution of the temperature?
6.
How to send email using Gmail?
Main Functions 1
1.
What is the sampling rate when connected to GL100-WL?
2.
Is analog voltage input is available for differential input?
3.
What kind of measurement is the logic input used for?
4.
Is it possible to measure current (4-20mA)?
5.
Is it possible to measure the flow rate by pulse input?
6.
What is the resolution of each range when measuring voltage?
7.
What is the measurement input impedance in ohms?
8.
Which SD memory card and what capacity is available?
9.
"When operating the device with an external battery using a DC drive cable,
How many V can be input?"
10.
What is the maximum voltage that can be applied to the logic/pulse input section?
11.
What are the specifications of the alarm terminals?
12.
Is it possible to use Y terminal?
13.
Is a USB cable included?
14.
Is there any possibility that the data to be tampered with?
15.
Is it possible to use multiple humidity sensors?
16.
What is the temperature that can be measured with K-type thermocouples?
17.
What is the standard and transmission distance of the wireless LAN option (B-568)?
18.
Is it possible to expand to more than 10 channels?
19.
What is the fastest sampling interval?
20.
What type of filter is used in GL240?
21.
How long is the data that can be recorded on the SD memory card (2GB)?
22.
What is the maximum input voltage?
23.
Are there any requirements for the measurement accuracy of each range?
24.
What is the resolution of the temperature?
1
DATE︓2021/12/15
Top
