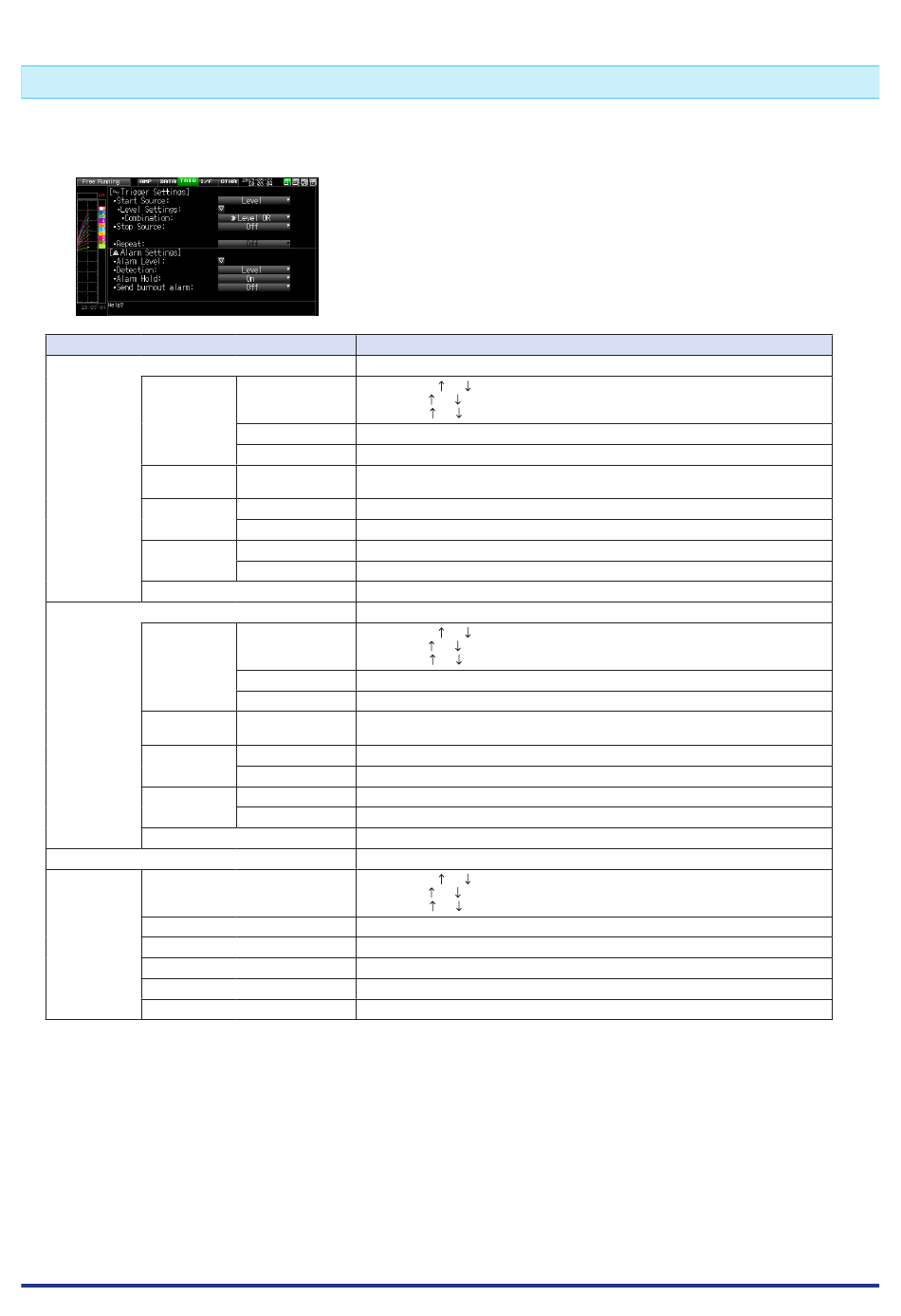

(3) TRIG settings

This is used to specify trigger conditions and alarms.
* When the GL100-WL+GS sensor is connected, the level alarm can be set as well.
Setting
Start Side Source Setting
[Level]
[Alarm]
[Date]
[Weekly]
[Time]
Stop Side Source Setting
[Level]
[Alarm
[Date]
[Weekly]
[Time]
Repeated Capturing
Alarm Level Mode
Settings
Level
Output
Detection Method
Alarm Hold
Send Burnout Alarm
Off, Level, Alarm, External Input, Date, Weekly, Time
Mode Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Combination Level OR, Level AND, Edge OR, Edge AND
Level Set numeric value
Alarm port 1, 2, 3, 4, WL1
number
Date From 2005.1.1 to 2035.12.31
Time From 0:0:0 to 23:59:59
Day of week Off or On setting for each of Sunday through Saturday
Time From 0:0:0 to 23:59:59
From 0:0:1 to 9999:59:59
Off, Level, Alarm, External Input, Date, Weekly, Time
Mode Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Combination Level OR, Level AND, Edge OR, Edge AND
Level Set numeric value
Alarm port 1, 2, 3, 4, WL1
number
Date From 2005.1.1 to 2035.12.31
Time From 0:0:0 to 23:59:59
Day of week Off or On setting for each of Sunday through Saturday
Time From 0:0:0 to 23:59:59
From 0:0:1 to 9999:59:59
Off, On
Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Set numeric value
1, 2, 3, 4, WL1
Level, Edge
Held or Not held
Sent or not sent
CHAPTER 3 Settings and Measurement
Selections available
3-49
