- Page 1 GL260 Quick Start Guide GL260-UM-802-7L GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Introduction Thank you for choosing Graphtec midi LOGGER GL260. The Quick Start Guide is to assist with the basic operations. Please refer to the USER'S MANUAL (PDF) for more details. Check the exterior condition Check the exterior of the unit to ensure that there are no cracks, defects, or any other damages before use.
- Page 3 If you have deleted the user's manual and attached software from the internal memory, please download them from our website. How to copy the stored files in USB DRIVE mode 1. Connect the AC adapter cable to the GL260 3. The GL260's internal memory is recognized while powering off, and then connect the PC by the PC and can be accessed.

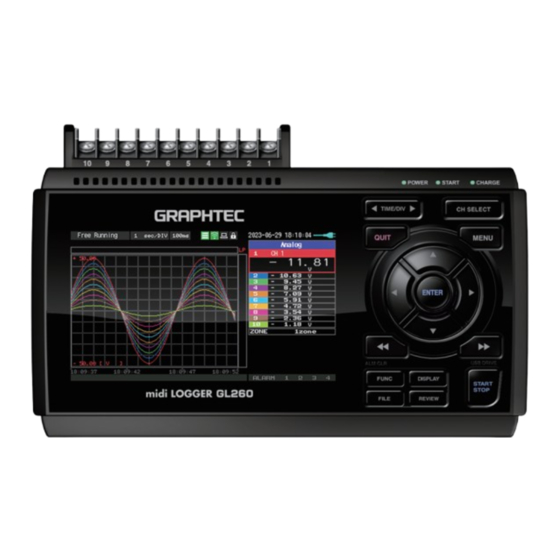

- Page 4 Name of parts Top Panel Control panel keys Operation status LED • POWER • START • CHARGE SD memory card Wireless LAN connection terminal Wireless unit (Option: when using the B-568) GND terminal External input/output terminals Power jack for humidity sensor •...
- Page 5 Connecting the Grounding Cable Connect the DC output of the AC adapter to the Use a flathead screwdriver to push the button above connector indicated as "DC LINE" on the GL260. the GND terminal while connecting the grounding cable to the GL260.
- Page 6 USB cable as shown. A-type connector B-type connector USB cable Ferrite core (Supplied) GL260 midi LOGGER complies with the EMC Directive when the supplied ferrite core is attached to a USB cable. GlobalTestSupply www. .com Find Quality Products Online at:...
- Page 7 Ex 3 : Operate GL260 with batteries (Option: B-573). Ex 4 : In the AMP settings menu, set filter to any setting other than "Off". Ex 5 : Set the sampling interval which enables GL260’s digital filter (see table below). Number of Measuring...
- Page 8 Push the [QUIT] key to cancel the settings and return to the default status. If GL260 is in a Remote (Key Lock) status and is run by a computer via a USB or WLAN interface, push the key to return to a normal operating status.
- Page 9 * For more information, refer to the User's Manual. 10. REVIEW Push the [REVIEW] key to replay recorded data. If the GL260 is in the Free Running mode, data files that have already been recorded will be displayed. If the GL260 is still recording data, the data is replayed in a 2-screen format.
- Page 10 About the Menu Screens Status message : Displays the operating status. display area Time/DIV display area : Displays the current time scale. Sampling interval : Displays the current sampling interval. display Device access : Displayed in red when accessing the Status icon display internal memory.
- Page 11 AC/Battery status : Displays the following icons to indicate AC/Battery Indicator indicator the operating status of the AC power When the AC power and the battery. supply is being used Battery power: 100 - 91% Note: Use this indicator as a guideline because remaining battery Battery power: 90 - 71% power is an estimate.
- Page 12 Install USB Driver To connect the GL260 to the computer via USB, a USB driver must be installed on the computer. The "USB Driver" and "USB Driver Installation Manual" are stored in the built-in memory of the GL260, so please install them according to the manual.
