CHAPTER 3 Settings and Measurement

3.2 Key Operation

This section describes key operation.
(4) QUIT
(11) CURSOR
(ALARM CLEAR)
(12) FILE/GROUP

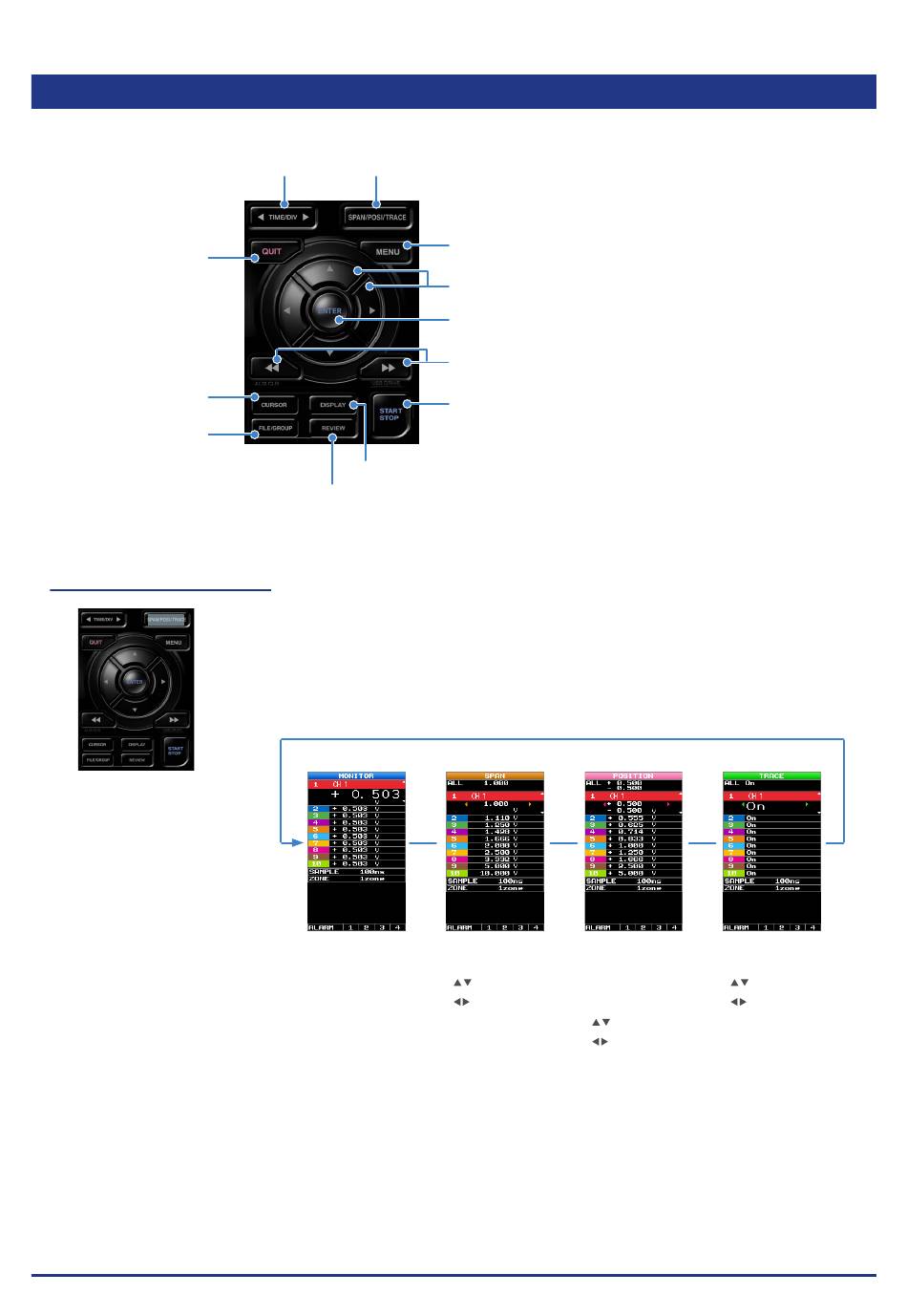

(1) SPAN/POSI/TRACE
3-8
(2) TIME/DIV (1) SPAN/POSI/TRACE
(9) DISPLAY
(10) REVIEW
Switches the information in the digital display.
Used to change the settings related to waveform display during Free Running
(when stopped), data capture and data replay.
Pressing this key will switch displays as shown below.
MONITOR
Displays digital values
(default status)
* When ALL is set, setting values for CH1 is reflected on other channels.
When CH1 is OFF, ALL cannot be set.
(3) MENU
(5) Direction Keys
(6) ENTER
(7) FAST FORWARD key (KEY LOCK)
(8) START/STOP (USB DRIVE)
SPAN POSITION
Allows changing of the Allows changing of the
span value position
(waveform amplitude) (waveform up/down
• Channel change position)
: keys • Range can be
• Amplitude change changed in units of
: keys 10%
• Change available • Channel change
: Voltage 8 steps/ : keys
Temperature 6 steps • Position change
: keys
• Change available
: 10% steps of range
TRACE
Allows turning ON/
OFF of the waveform
display
• Channel change
: keys
• ON/OFF switch
: keys
• Change available
: ON/OFF
* Data is captured even
if OFF is set.
