CHAPTER 4 Specification

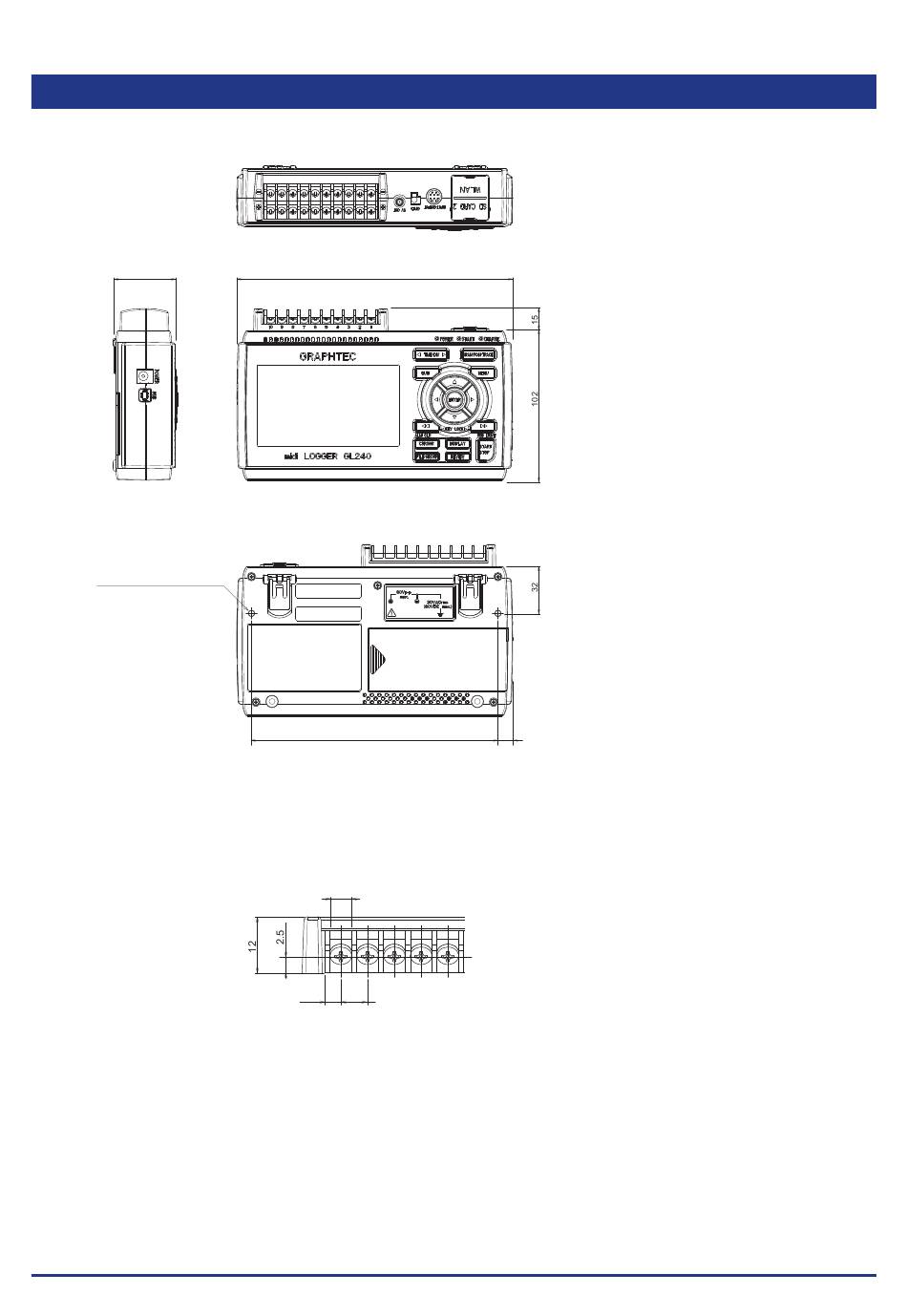

4.4 External Dimensions
(without attaching rubber protection cover)
40
2-M4 thread (L5*)
* When rubber protection cover is attached, required screw length is 8 mm (L8).
Terminals
4-10
188
168
6.2
4.5
7.62
10
Dimension precision: Error ± 3 mm
Dimension precision: Error ± 0.5 mm
Unit: mm
Unit: mm
