CHAPTER 3 Settings and Measurement
Confirmation of setting completion

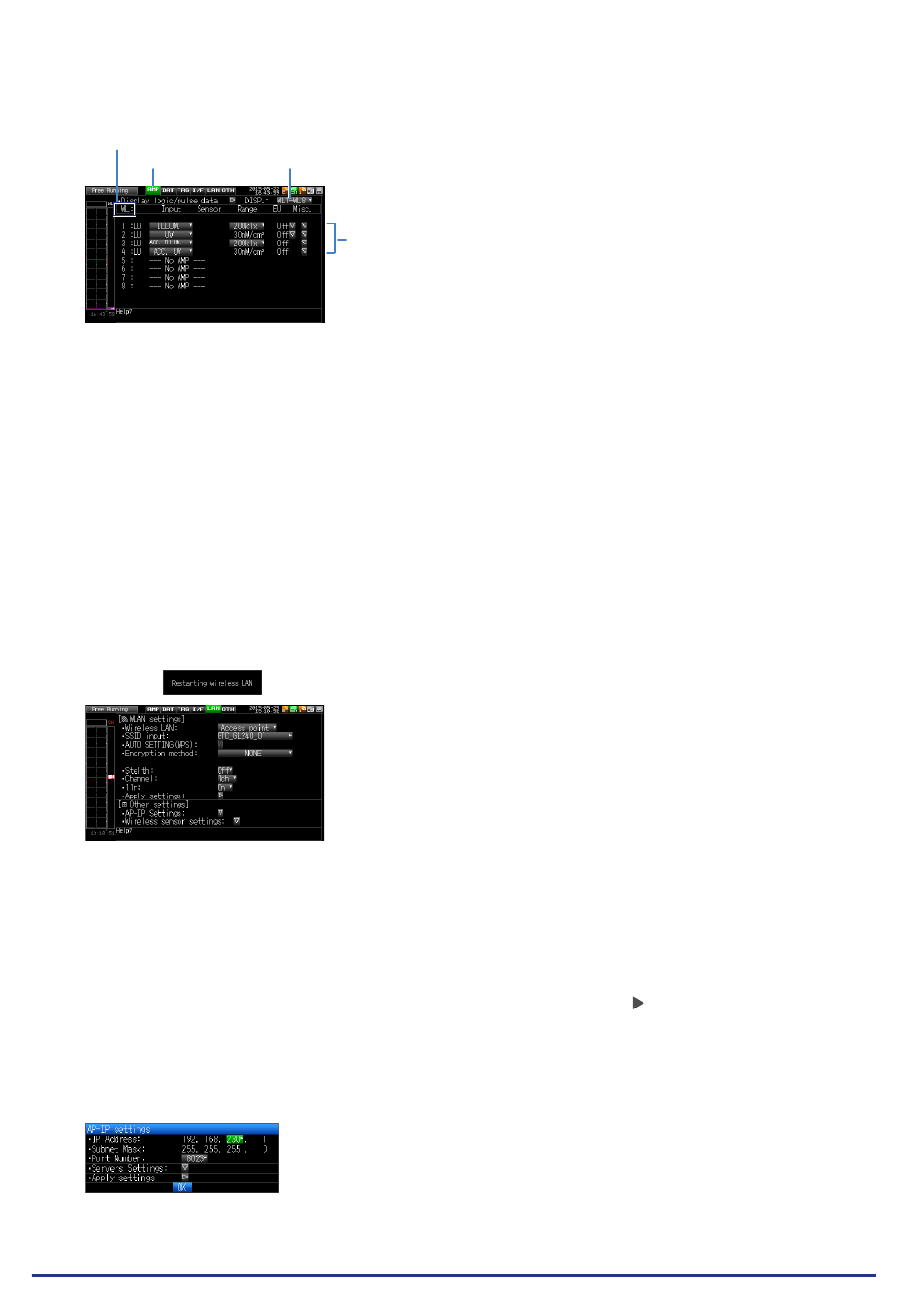

Confirm on the AMP Setting screen that the wireless sensor is recognized.
WL displayed group
AMP Setting screen
Run power cycle.
Change the settings in the following two ways.
• Open the AMP setting screen.
Change the CH1-CH10 displays to WL1-WL8 display groups.
Alternatively, press the [FILE/GROUP] key, and then select the WL1-WL8 from the channel group.
Make sure that the information of WL group is the same as those of selected wireless sensor.
<Example 2 of operation procedure>: Example of wireless sensor (GL100-WL) connection
The wireless connection method when setting the GL240 to "Access Point" and the GL100 to "Station" is
described.
[LAN setting]
(1) Set the wireless LAN to "Access point".
(2) Then, select the "Restart the wireless LAN".
When the
(3) Set the SSID of the GL240.
Enter the "GTC_GL240_01".
For details on entering the characters, refer to "(9) Text input".
(4) Set the other items.
Encryption method: None, Channel: 1ch, Stealth: Off, 11n: On
(5) After setting the above items, be sure to select the "Reflection of setting" ("
The "Wireless LAN restart" is automatically executed and then the settings is reflected.
[Other settings]
(6) Make sure the IP address of wireless LAN. When the "AP-IP setting" is selected, the following dialog is
displayed.
Set the segment of IP address and select the " Reflection of setting". The settings of subnet mask and
port number other than the segment are fixed.
3-62
Channel group switching
AMP Setting screen
is displayed and the restart is completed, the following screen is displayed.
" key) to reflect them.
