Data search CH
Mode
Level
Find Next
Find Previous
Statistical Function
calculation
Execute
between cursors
(10)-1 Move to First Data
Executing this option moves the currently selected cursor (A or B) to the start of the data.
(10)-2 Move to Last Data
Executing this option moves the currently selected cursor (A or B) to the end of the data.
(10)-3 Move to Center
Executing this option moves the currently selected cursor (A or B) to the center of the data.

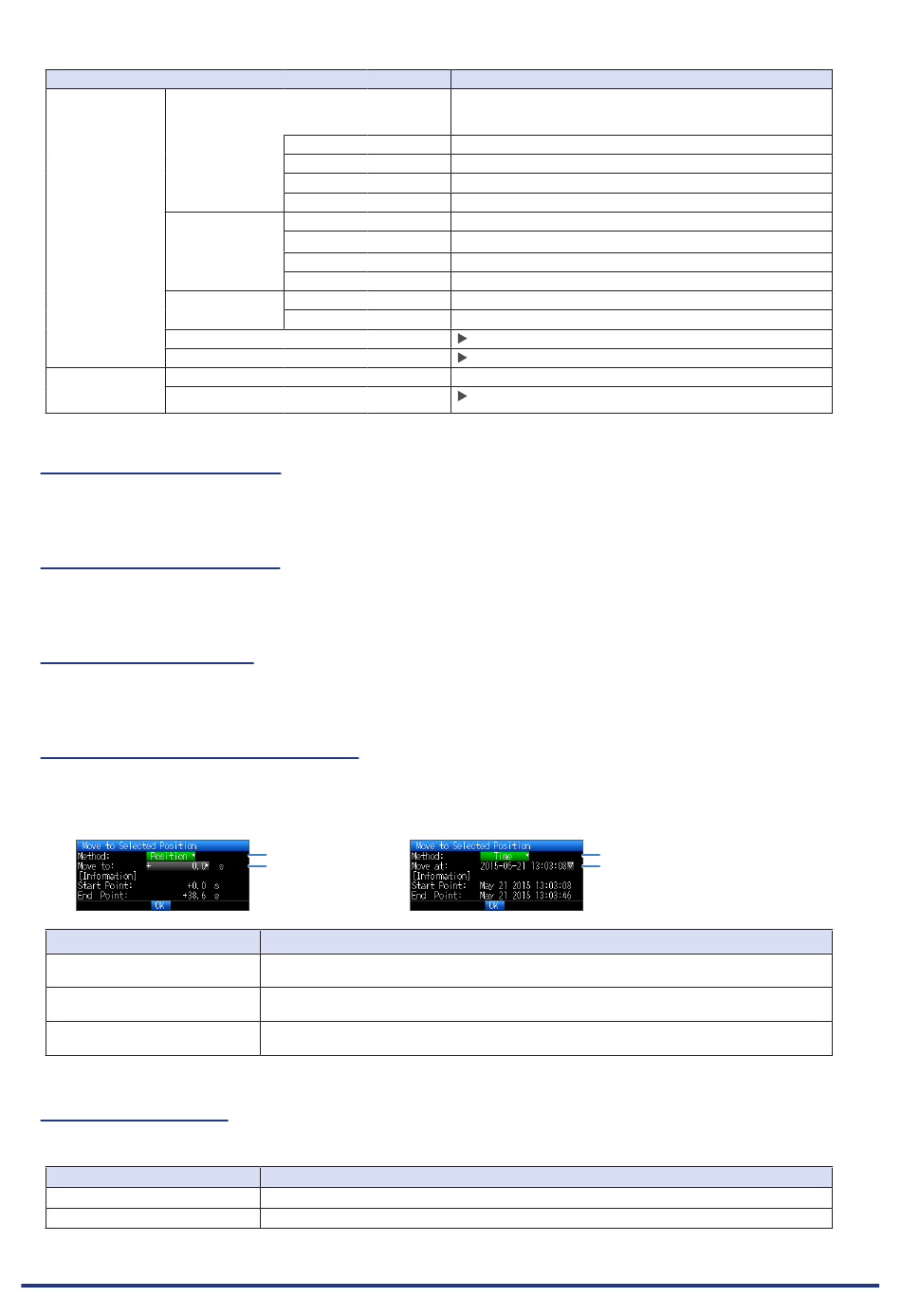

(10)-4 Move to Selected Position
Sets a position (relative position in time) or time and moves the currently selected cursor (A or B) to this
position or time.
<If the Method is Position>
Setting
(1) Method
(2) Position
(3) Time
(10)-5 Cursor Sync
Sets up the function that moves two cursors in synchronization.
Selection item
Off
On
* Cursor Synch is turned Off when you move a cursor using Move to Selected Position or perform Data Search.
Setting
[CH1 to CH10]•WL
[Logic]
[Pulse]
[Alarm]
[CH1 to CH10]•WL
[Logic]
[Pulse]
[Alarm]
[CH1 to CH10]•WL
[Pulse]
(1)
(2)
Sets the method for specifying the position to move the cursor.
Select Position or Time.
Sets the position to move the cursor. The cursor can be set from the capture start position
assumed as the Start Point 0s up to the end point value.
Sets the date and time to move the cursor. The cursor can be set from the capture start
position assumed as the Start Point date/time up to the end point value.
Cursors are not synchronized. Only the specified one cursor moves.
Two cursors move in synchronization. Cursor A is always the fulcrum.
Selections available
CH1 to 10, Logic, Pulse, Alarm
* Logic and Pulse are displayed only if the Logic Pulse
function is On in the AMP settings.
CH1-10 , WL1-8
Logic1-8
Pulse1-8
Alarm1-4, WL1
↑H, ↓L
↑H, ↓L
↑H, ↓L
Both, ↑H, ↓L
Set numeric value
Set numeric value
Press right key to execute.
Press right key to execute.
Off, Average, Max, Min, Peak, RMS
Press right key to execute.
<If the Method is Time>
Selections available
Description
CHAPTER 3 Settings and Measurement
(1)
(3)
