3. Select the high period or low period of the start bit, logical 0 bit or logical 1 bit by
selecting the associated radio button.
Note that you can apply multiple settings for each command. For example you could
change the timing for both the high and low periods of the start, 0 bit and 1 bits
simultaneously. You have to reset each timing change.Slide the slide bar to the desired
timing setting as shown in the entry box above the slide bar.

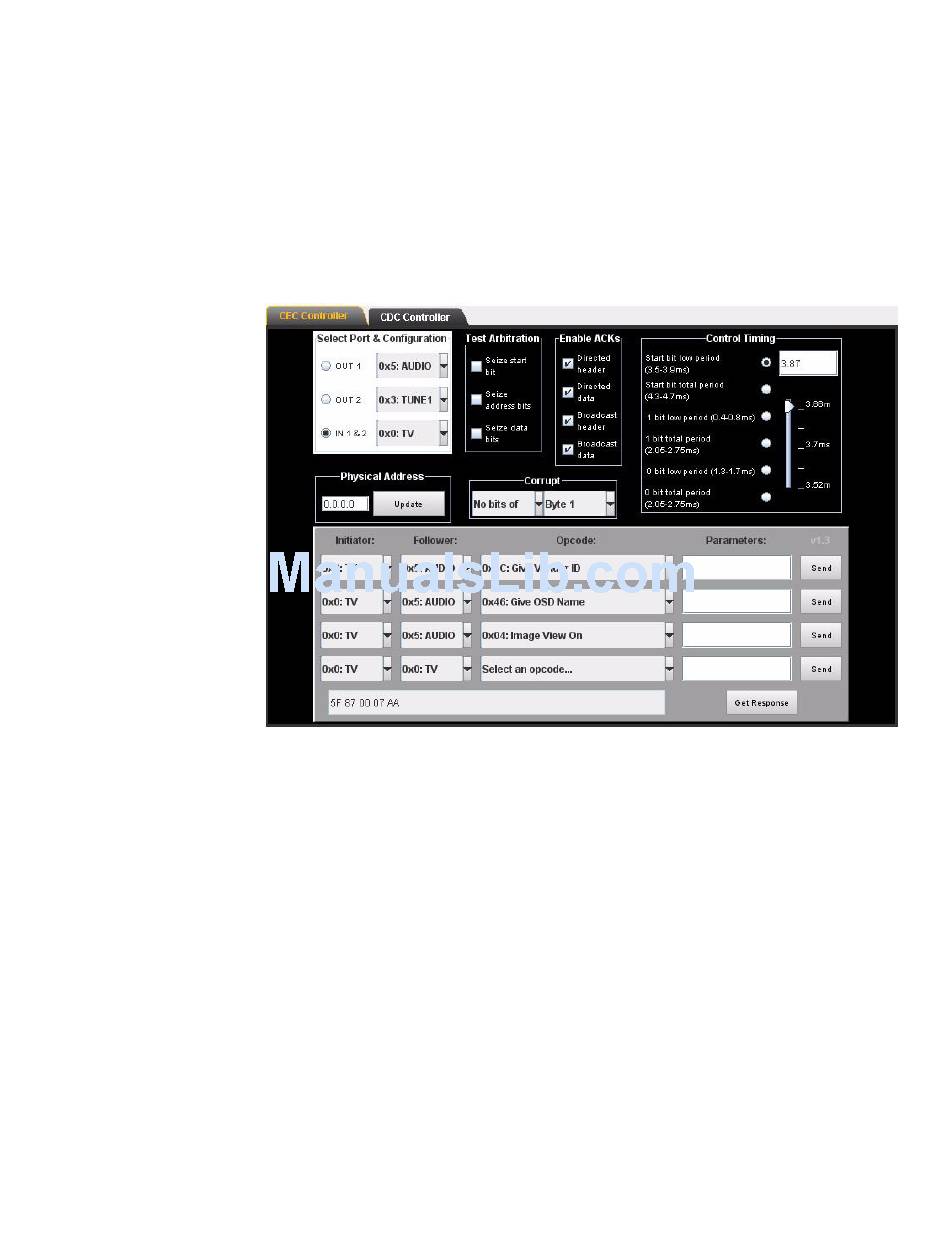

Refer to the first screen shot below which shows and example of setting the start bit
low period to 3.87ms.
Refer to the screen shot below which shows and example of setting the logical one bit
total time period to 2.157ms.
Chapter 12 CEC Interactive Troubleshooting Environment (ITE)
402
