Video interfaces
882 Video Test Instrument User Guide (Rev A.35)
This section describes the 882's video interfaces.

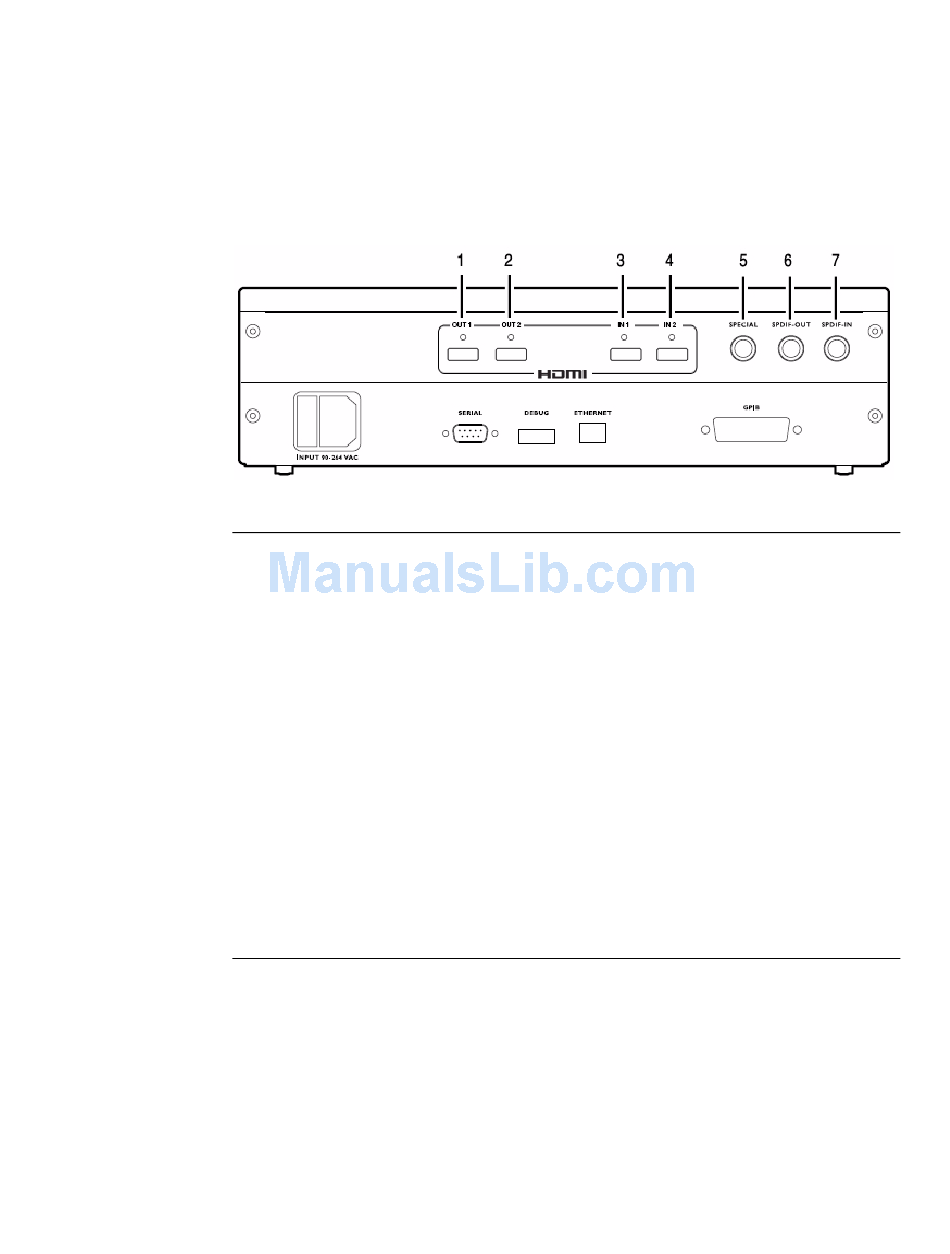

The video interfaces on the 882EA HDMI are shown below (the 882E will not have the
HDMI inputs but can have analog video outputs).
Interface
Description
1
HDMI OUT 1 connector outputs full single link HDMI 1.3 video, as well as DVI and
modern HDMI-compatible digital video signals.
2
HDMI OUT 2 connector outputs full single link HDMI 1.3 video, as well as DVI and
modern HDMI-compatible digital video signals.
3
HDMI IN 1 connector accepts full single link HDMI 1.3 video, as well as DVI and
modern HDMI-compatible digital video signals.
4
HDMI IN 2 connector accepts full single link HDMI 1.3 video, as well as DVI and
modern HDMI-compatible digital video signals.
5
SPECIAL connector provides multiple outputs, including:
• digital composite sync
• line sync
• frame sync
• movable scope trigger (probe) pulse
• pixel clock signal
6
SPDIF OUT connector outputs audio to an external receiver.
7
SPDIF IN connector inputs audio from an external source.
5
