882 Video Test Instrument User Guide (Rev A.35)

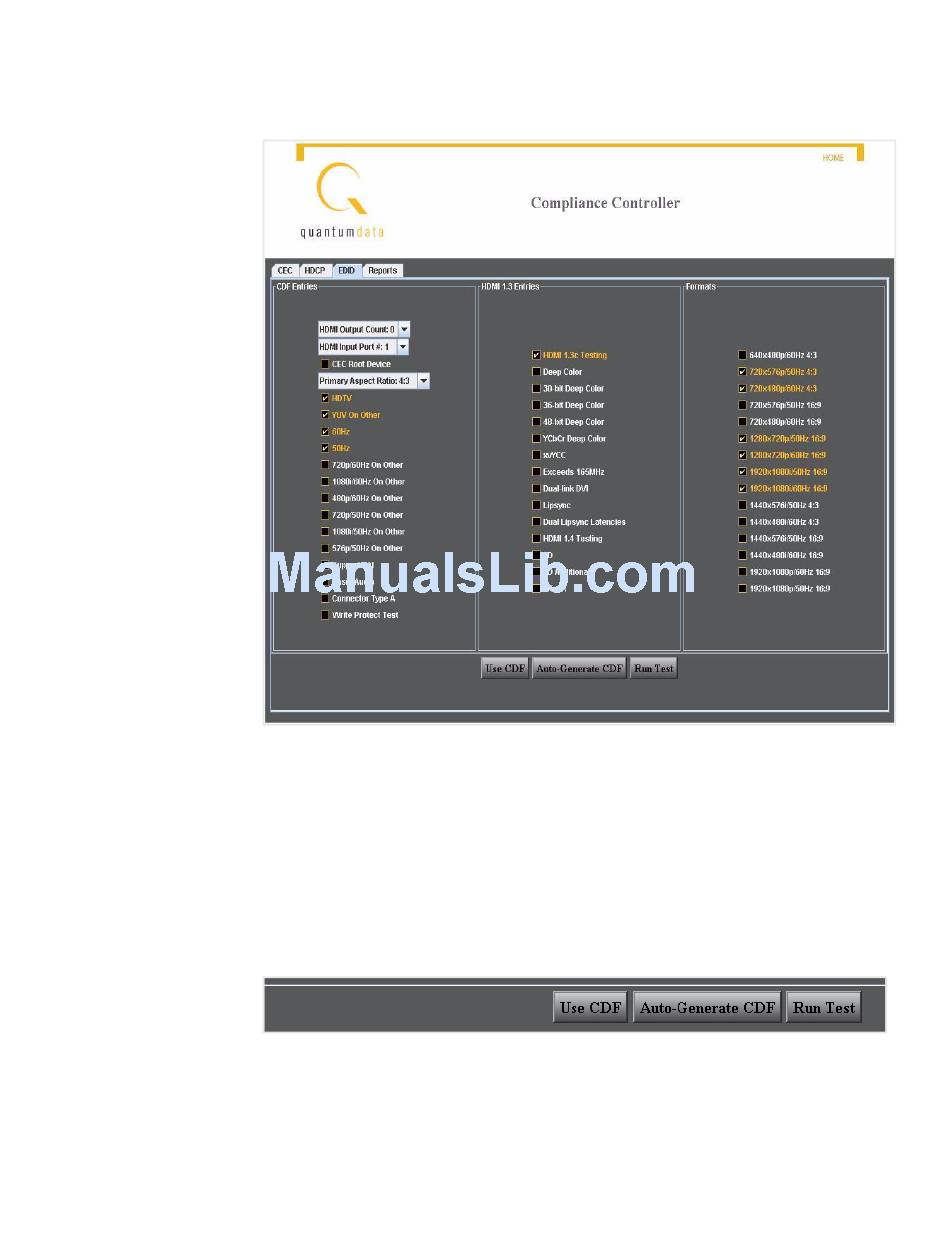

2. Lauch the Compliance Controller by clicking on the Compliance Controller link. The
Compliance Controller appears as shown below.
3. Select the EDID tab.
4. Define the capabilities declaration form for the sink device you are going to test by
selecting (checking) off the parameters that are supported by the sink device you are
testing.
Refer to
"Defining the capabilities of the display device under
information on the EDID parameters used in defining the CDF.
5. (Optional) You can expedite the CDF definition process by reading the EDID directly
from the display device under test using the Auto Generate CDF feature.
Please note however that the specifications of the display may differ from the
implementation. That is the purpose in running the test. Using the Auto Generate CDF
feature is a way of populating the CDF form with a configuration that is at least quite
similar to the specification.
test" on page 330 for
347
