Quantum Data 881 User Manual page 136

Chapter 3 Administrative Tasks
126

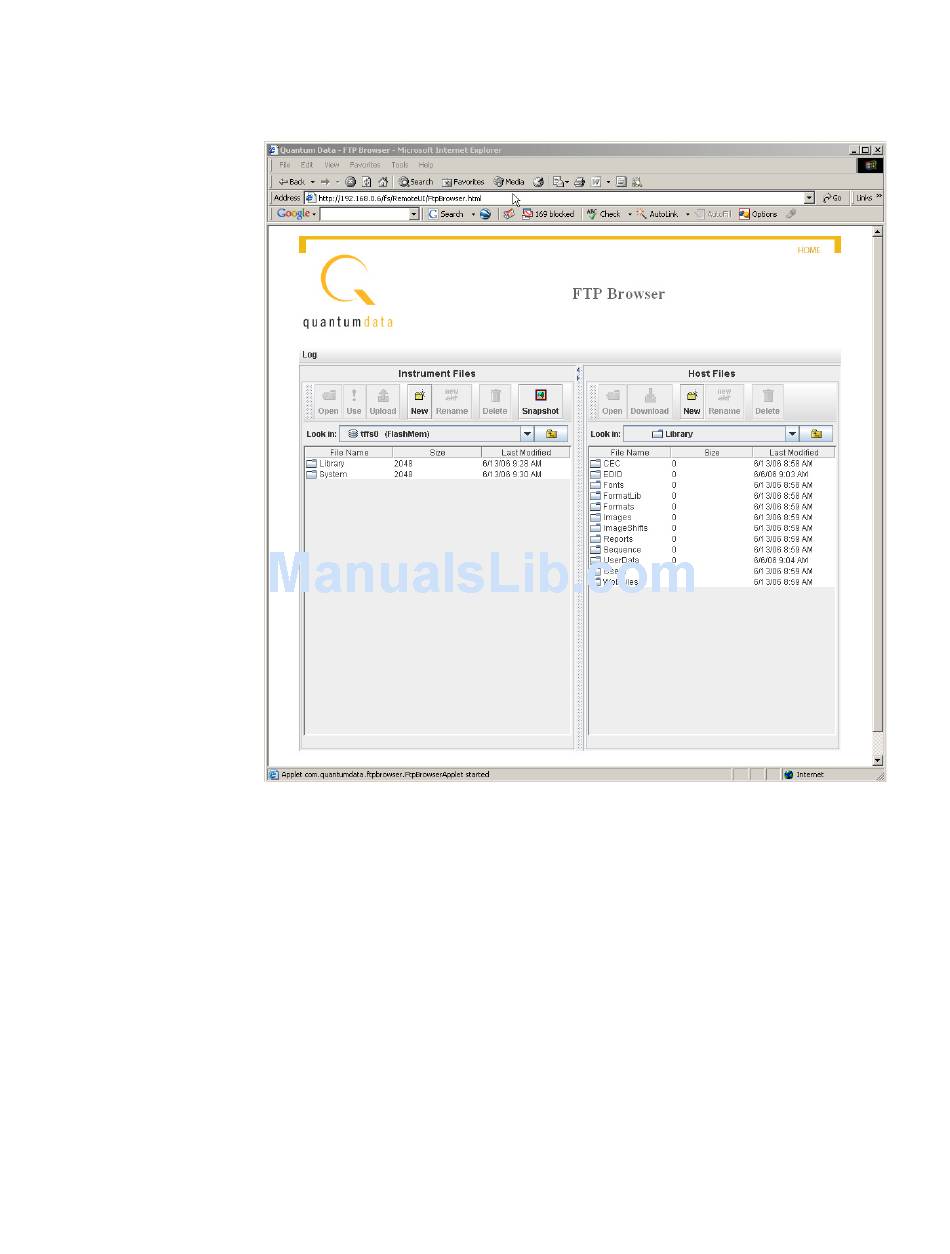

2. Access the source generator's Generator FTP Browser. See
FTP Browser" on page 23.
3. Copy all of the files in the source generator's flash memory to the PC as follows:
a. In the Instrument Files area of the Generator FTP Browser window, click the down
arrow by the Look in box and select tffs0 (FlashMem).
b. Select the system and library folders in the lower pane.
c. In the Host Files area, open the folder where you want to copy the files. To create
a new folder, click New.
d. In the Instrument Files area, click Upload. A confirmation dialog box appears.
e. Click OK to copy the files.
4. Close the Generator FTP Browser.
Note: If both generators on the Ethernet/IP network you do not have to close the
source generator FTP Browser.
"Working with the 882
