BurstTCE
Description
Appendix B Image Reference
884
Some waveform analyzers can be set to detect and display the amplitude of the peaks. A
typical amplitude waveform for a good system is shown at the bottom of the next page.

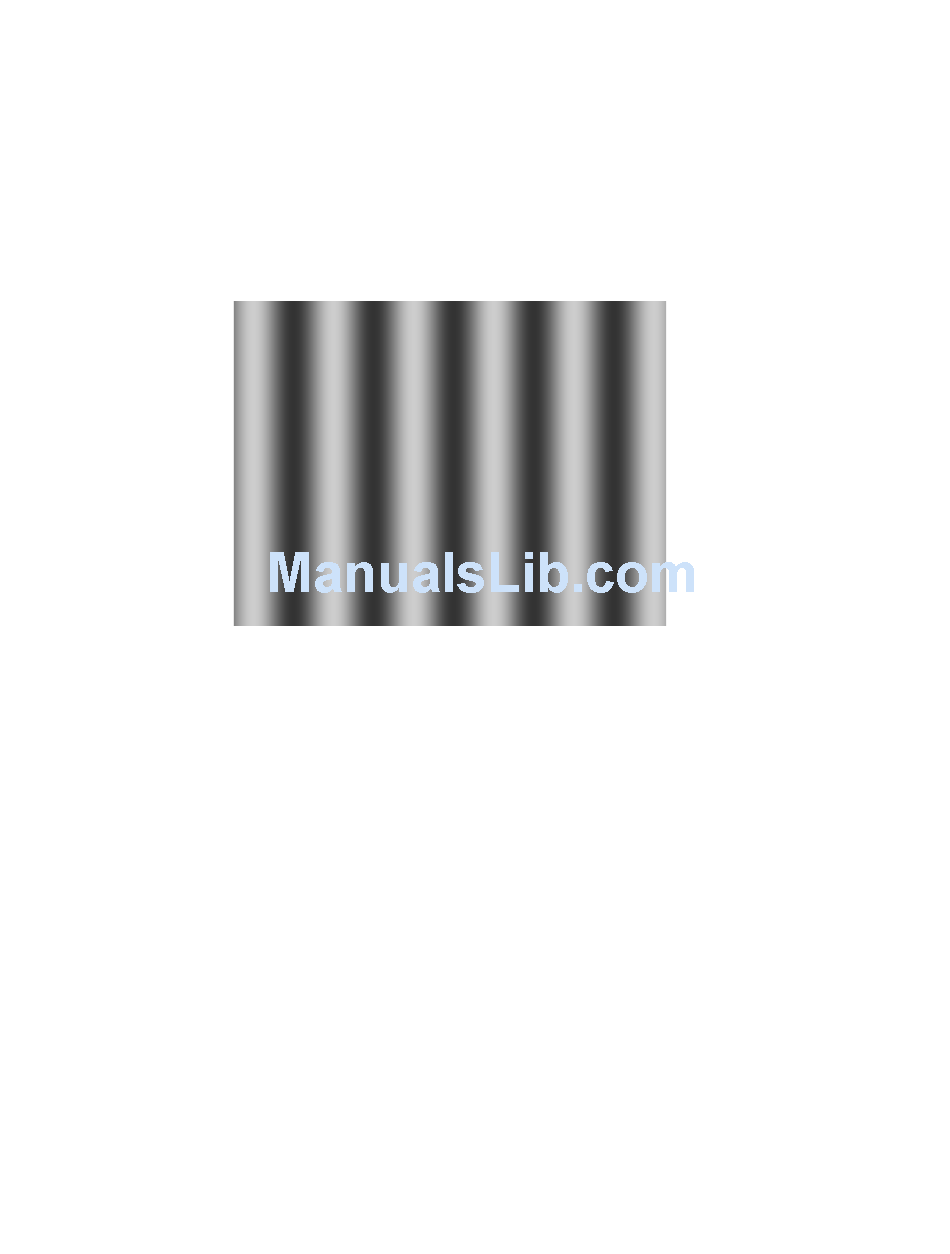

Fills screen with a 0.5 MHz frequency. This can be increased in 0.5 MHz increments by
pressing the Contents key and then the Options key. You then enable More and use the
+/- increment keys.
