AnsiGray
Description
AnsiLght
Description
882 Video Test Instrument User Guide (Rev A.35)

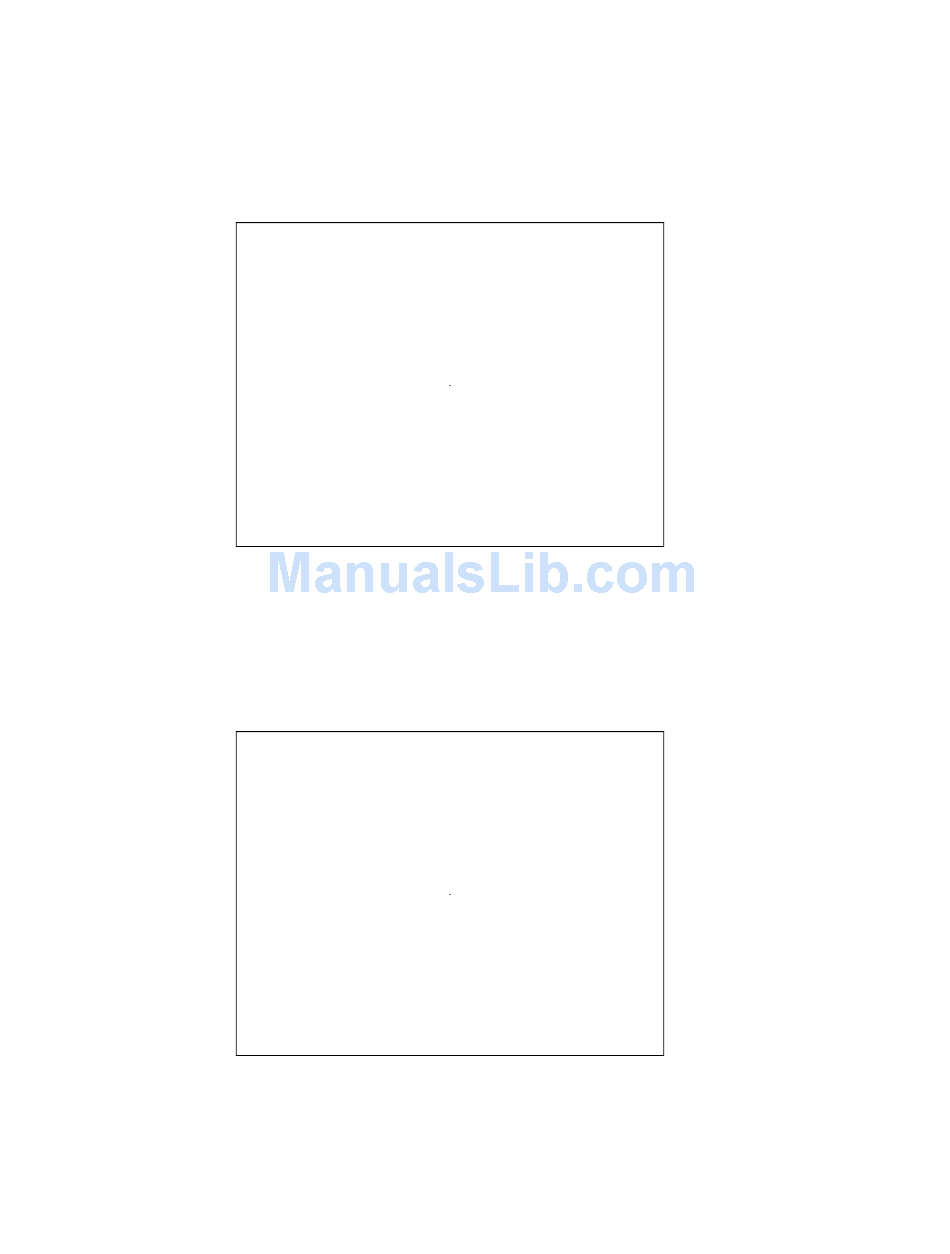

The primary version displays a white background with a small black pixel in the center fills
the active video area. A secondary version displays a black background with a small white
pixel in the center.
The primary version displays a white background with a small black pixel in the center fills
the active video area. A secondary version displays a black background with a small white
pixel in the center.
