Format Editor - Menu Buttons

882 Video Test Instrument User Guide (Rev A.35)

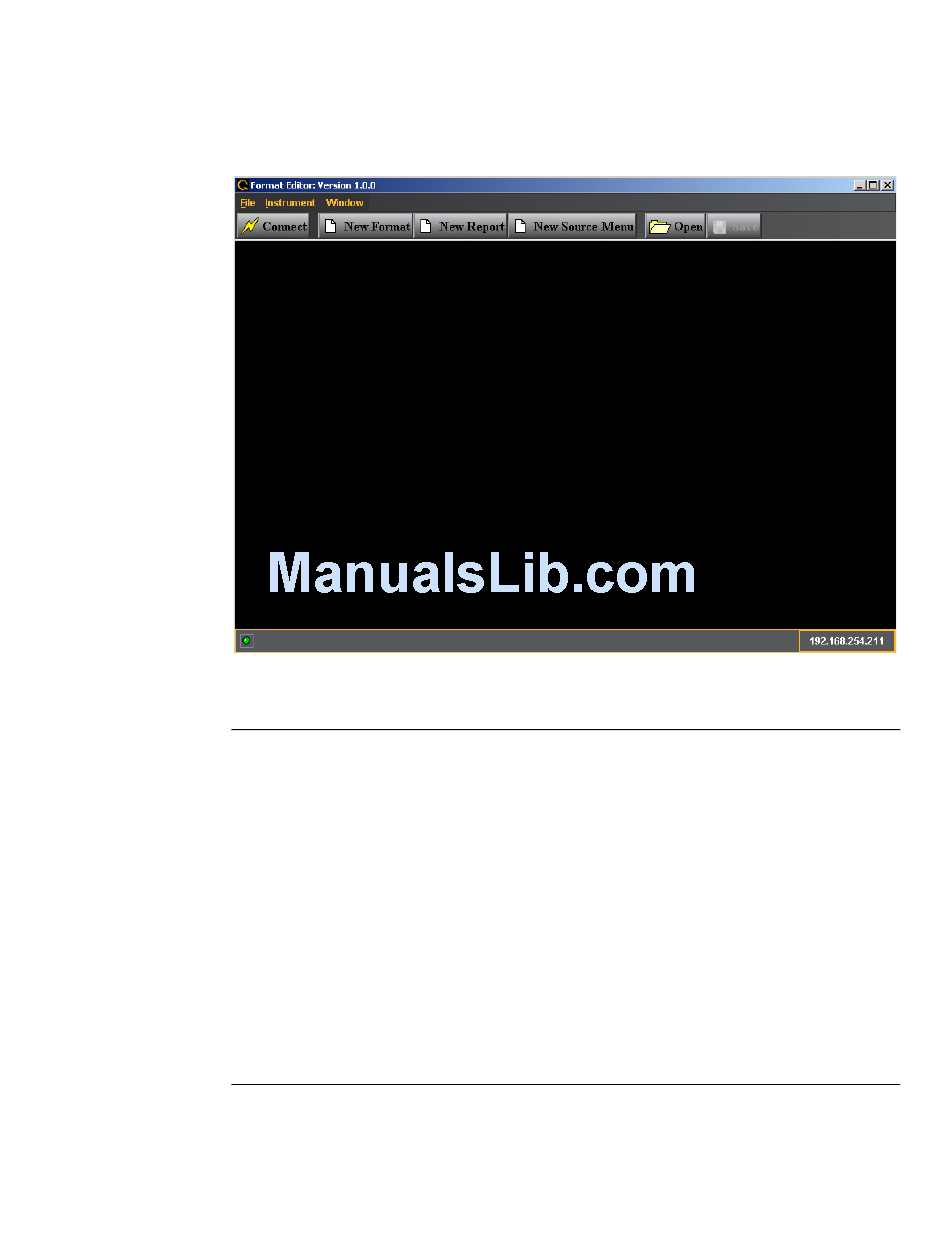

The activation buttons of the Format Editor are shown in the window below.
The following table describes the Format Editor menu buttons.
Button Description
Clicking on this button enables you to establish a connection between the
Connect
Format Editor and the 882E. A dialog pops up to enable you to enter the IP
address of the 882E you wish to connect to. This is equivalent to selecting
the Instrument Connect pull down menu.
Opens up the New Format at the Timing tab. Enables you to create new
New Format
formats. This is equivalent to selecting the New Format from the File menu.
Opens up the Report Format window. This is equivalent to selecting New
New Report
Report from the File menu. Enables you to view list of formats and their
primary parameters.
Opens up the Source Menu. This is equivalent to selecting New Source
New Source Menu
from the File menu.
Enables you to browse to and open an xml format file on your PC. This is
Open
equivalent to selecting Open from the File menu.
Enables you to save an xml format file on your PC. This is equivalent to
Save
selecting Save from the File menu.
