Flat, Flat07, Flat13, Flat20, Flat27, Flat33, Flat40, Flat47, Flat53, Flat60, Flat67,
Flat73, Flat80, Flat87, Flat93, FlatGray, Flat_01, Flat_02, Flat_03, Flat_04,
Flat_05, Flat_06, Flat_07, Flat_08, Flat_09, Flat_10, Flat_11, Flat_12, Flat_13,
Flat_14, Flat_15, Flat_16
Description
Flat_B, Flat_G, Flat_R
Description
882 Video Test Instrument User Guide (Rev A.35)

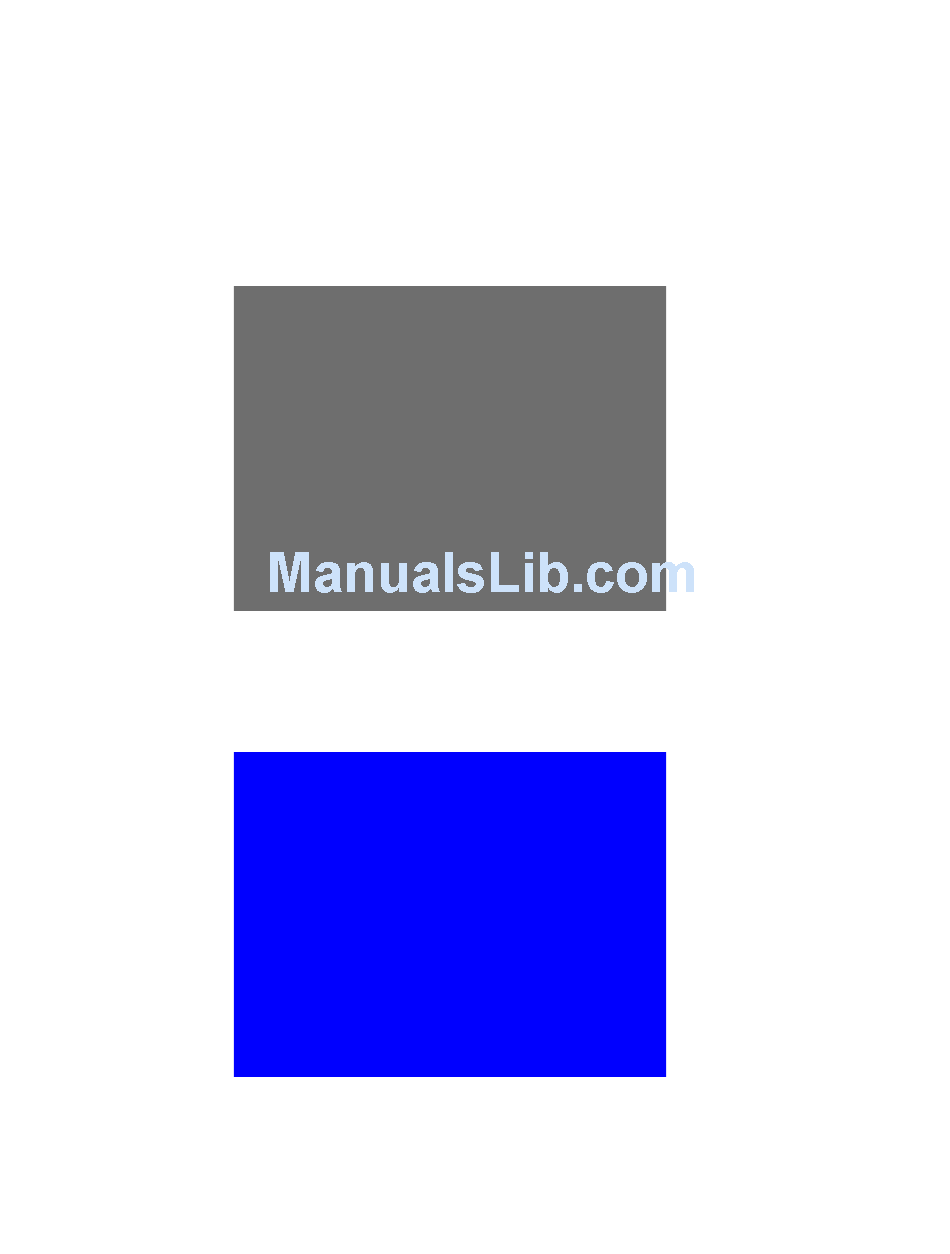

The entire active video area is filled with a shade of gray. Each image displays a different
shade of gray. The FlatGray image is shown below.
The screen is filled with blue (B), green (G) or red (R). The Flat_B image is shown below.
