Ramp_B, Ramp_G, and Ramp_R
Description
Test
Method
882 Video Test Instrument User Guide (Rev A.35)
When selected, this image is displayed.
After pressing the Contents key and then the Options key you then enable More and use
the +/- increment keys to adjust the speed.
The active video area goes from full black (+7.5 IRE) at the left edge of the screen to full

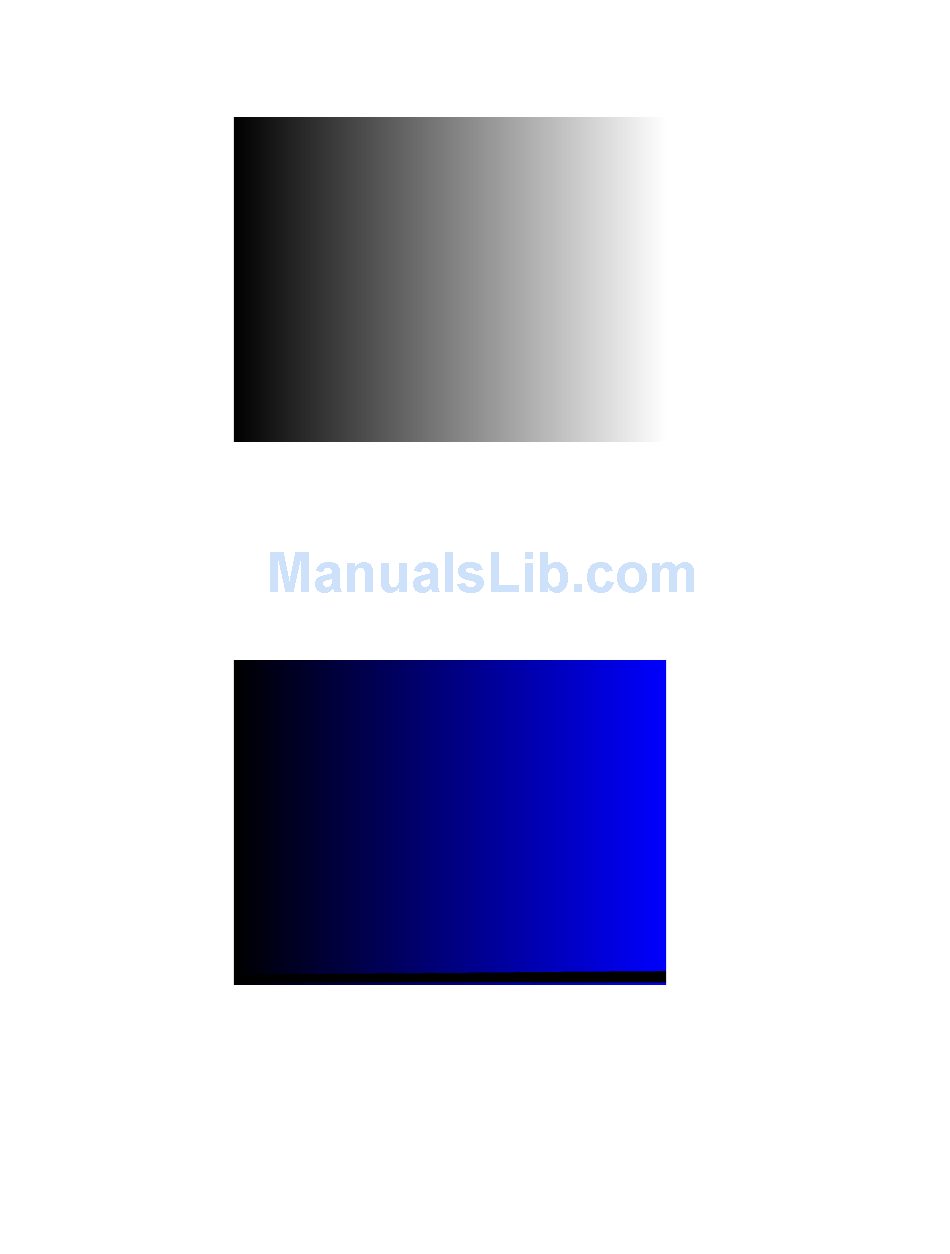

blue (_B), green (_G), or red (_R) at the right edge. The Ramp_B image is shown below.
Video gain linearity
When viewed on a TV screen, the full range of grays should be visible. There should be no
color shifts visible.
