Chapter 9 Testing HDMI Sink Devices
326
IMGU

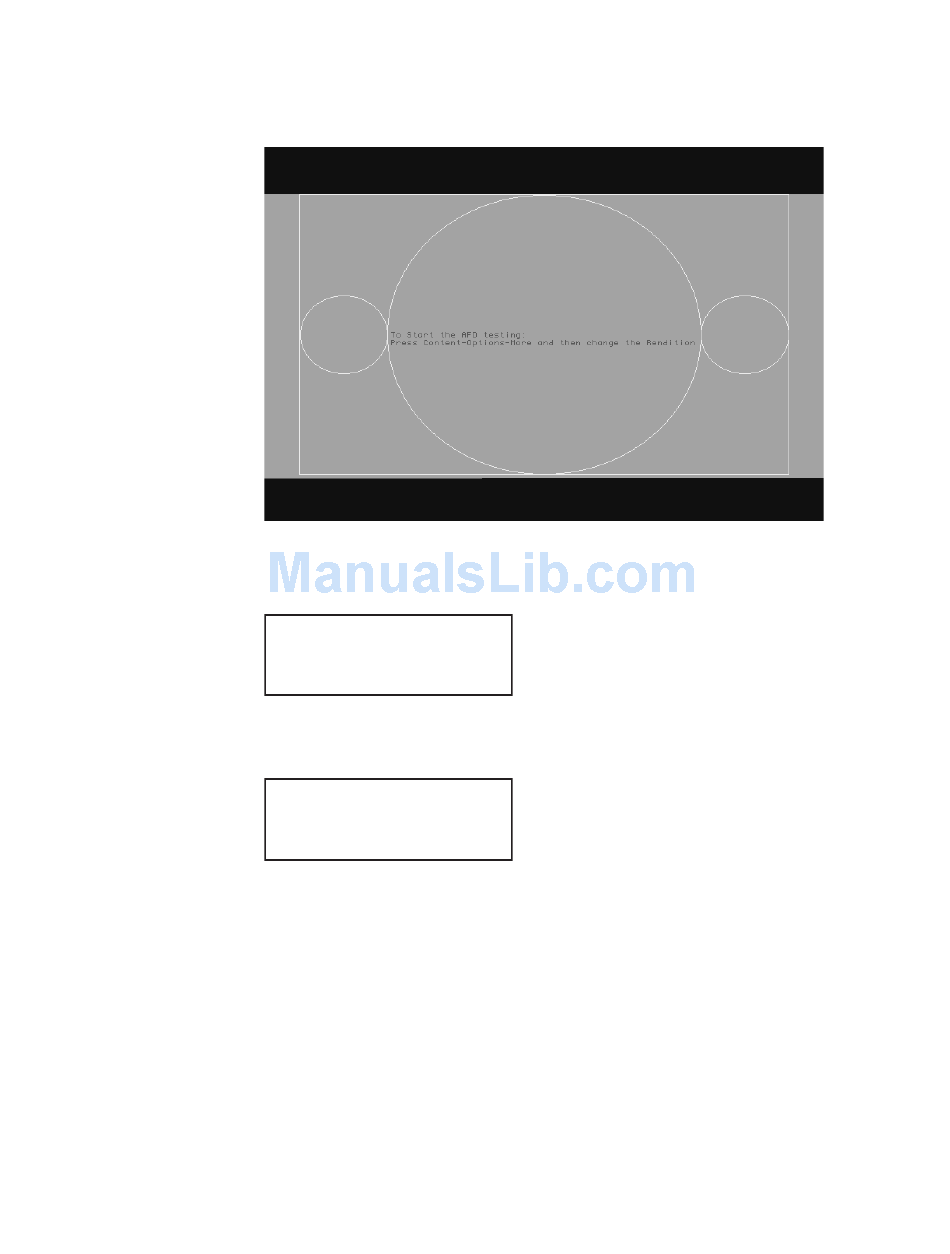

The AFDtest image appears on the connected HDMI display.
4. Enable and view image versions for the AFDtest image as follows:
a. Press the Options key. The following menu appears on the 882's display:
-More
-NoGamma
-Noise
b. Choose the More item by pressing the adjacent soft key until a + and Rendition
appears next to the item.
+More
Rendition: 000
-NoGamma
-Noise
c. Press the + key to advance through the image versions.
Note: Select the image version that corresponds to the AFD case (or code) you want
to test. See the table on page 308 for a list of the image numbers that correspond with
each AFD case.
Alternatively, to enable and view the image versions using the command line interface,
enter the following commands:
ISUB
1
// Enables sub images
IVER
1
// Specifies the first image version
IMGU
// Activates the image version
// Activates the AFDtest image
Red+
Green+
Blue+
Red+
Green+
Blue+
