882 Video Test Instrument User Guide (Rev A.35)
New Format - AFD Tab

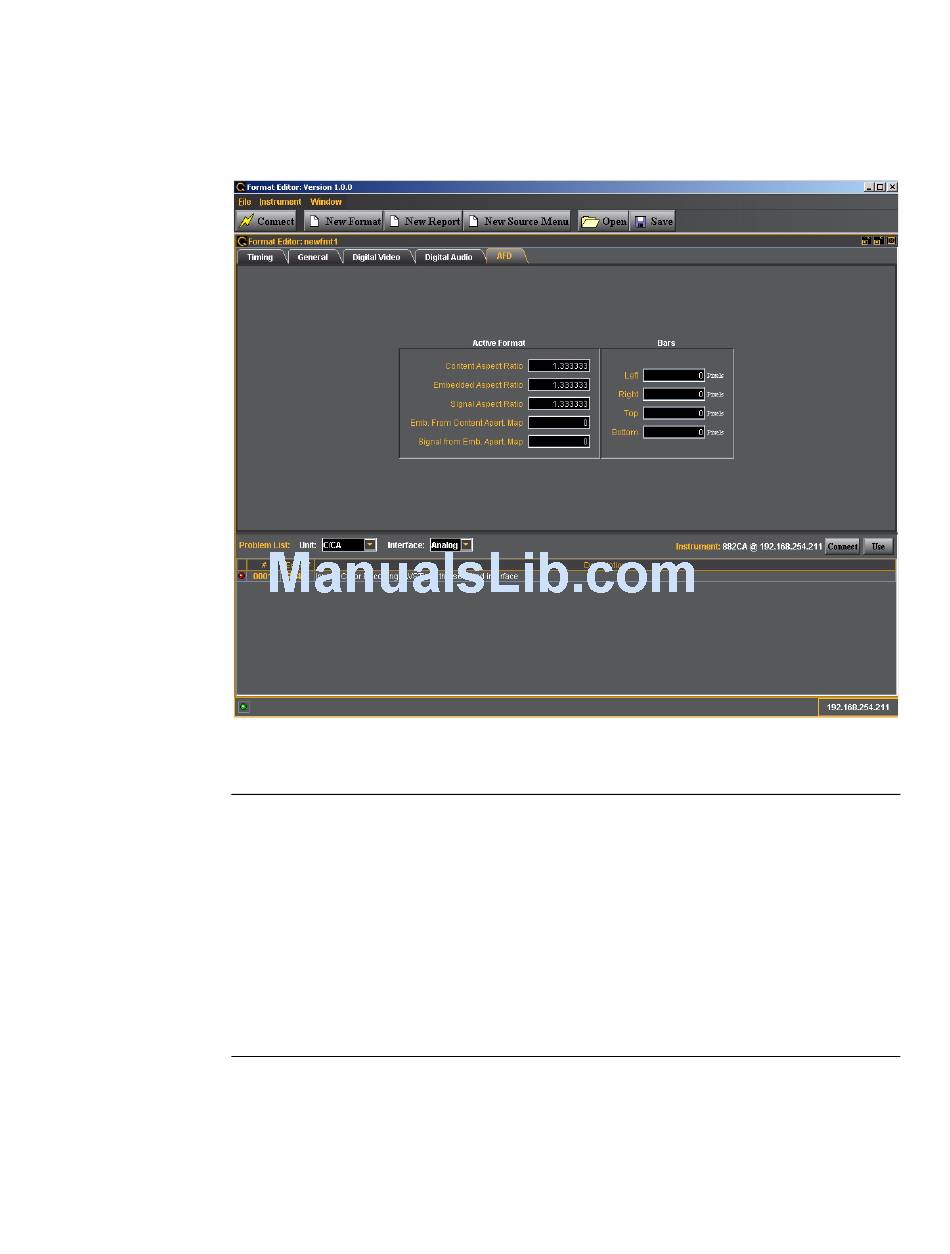

The Format Editor AFD tab is shown below. The table that follows describes each of the
fields in the tab.
The table that follows describes each of the text entry fields in the AFD tab.
Heading Field
Active Format
Content Aspect
Description / Function
Sets the aspect ratio of the source image content. The
valid parameter range is: 0.75 to 2.39.
Ratio
Parameter: CXAR.
Sets the aspect ratio of the extended image content.
Embedded
The valid parameter range is: 0.75 to 2.39.
Aspect Ratio
Parameter: EXAR.
Sets the aspect ratio of the video signal image content.
Signal Aspect
The valid parameter range is: 0.75 to 2.39.
Ratio
Parameter: SXAR.
207
