Chapter 6 Working with Formats
200
Field / Entity Entity Type
Check box
Gamma
Entry field
Check box
Pedestal
Entry field
Pull-down select
Analog Cal. Mode
Analog Color Order Pull-down select
New Format - General Tab (Bottom Panel)

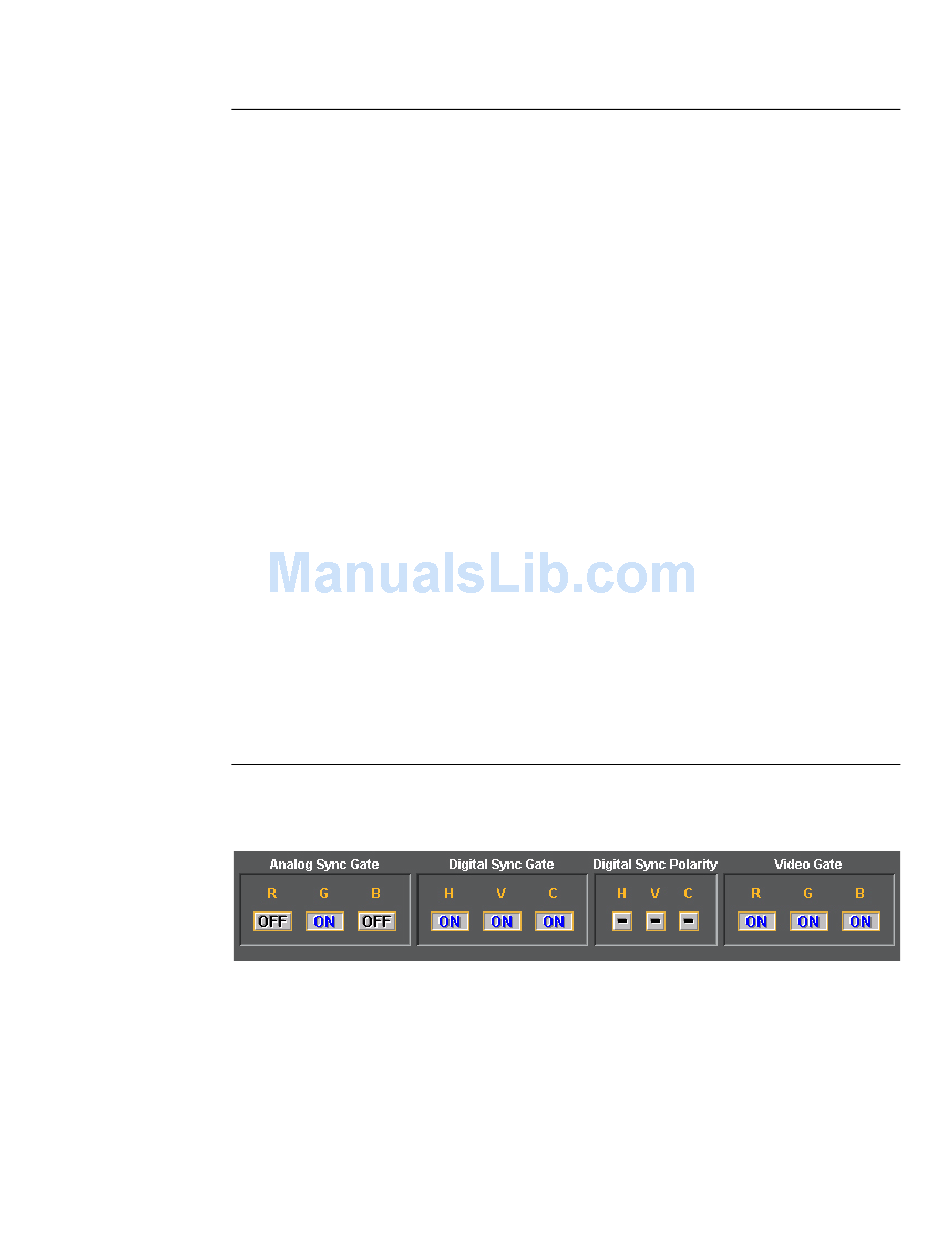

The bottom panel of the General tab in the Format Editor is shown below.
Description / Function
Enables or disables Gamma. Used with the entry field
below. Parameter: GAMC.
Enables you to set the Gamma once the Gamma check
box above is enabled (checked). The allowable ranges
of values is 0.1 to 10.0. Parameter: GAMA.
Enables or disables the Pedestal. Used with the entry
field below. Pedestal is only supported on NTSC format
types. Parameter: AVPG.
Enables you to set the Pedestal once the Pedestal
check box above is enabled (checked). The allowable
ranges of values is 0 IRE to 100 IRE. Parameter: AVPS.
Sets the analog calibration mode. Determines how the
generator tests and calibrates its analog video outputs
Parameter: AVCM. The following are the selections:
• Interpolate
• Measure Interpolate
• Measure Set Absolute
• Test Levels
Sets the mapping of the analog video colors to the video
output connections. Parameter: AVCO. The following
are the selections:
• RGB - R to R, G to G, B to B (default)
• RBG - R to R, B to G, G to B
• GRB - G to R, R to G, B to B
• GBR - G to R, B to G, G to B
• BRG - B to R, R to G, G to B
• BGR - B to R, G to G, R to B
