Appendix B Image Reference
932

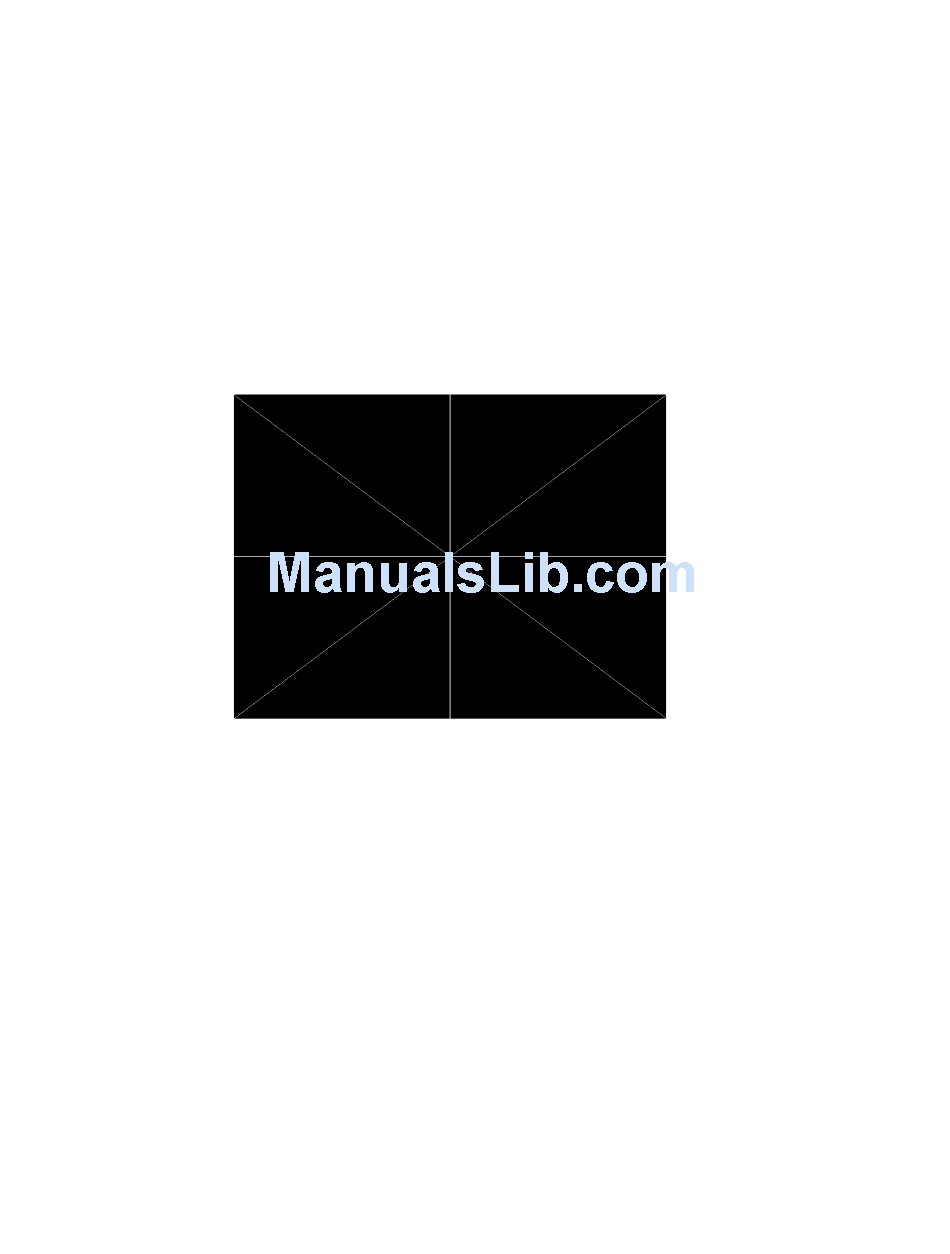

The primary version of the Outline0 image consists of a rectangular white border on a
black background. The border is one (1) pixel wide and defines the active video area. Two
(2) diagonal lines join the opposite corners. A-full size cross is centered in the image. The
horizontal line of the cross is one (1) pixel thick for formats with an odd number of active
lines and two (2) pixels thick for formats with an even number of active lines. The vertical
line of the cross is one (1) pixel thick for formats with an odd number of active pixels per
line and two (2) pixels thick for formats with an even number of active pixels.
The secondary version of these images draw black lines on a white background.
