Chapter 9 Testing HDMI Sink Devices
302
4. Select the 3D ready image from the 88x using either the front panel or the command
line:

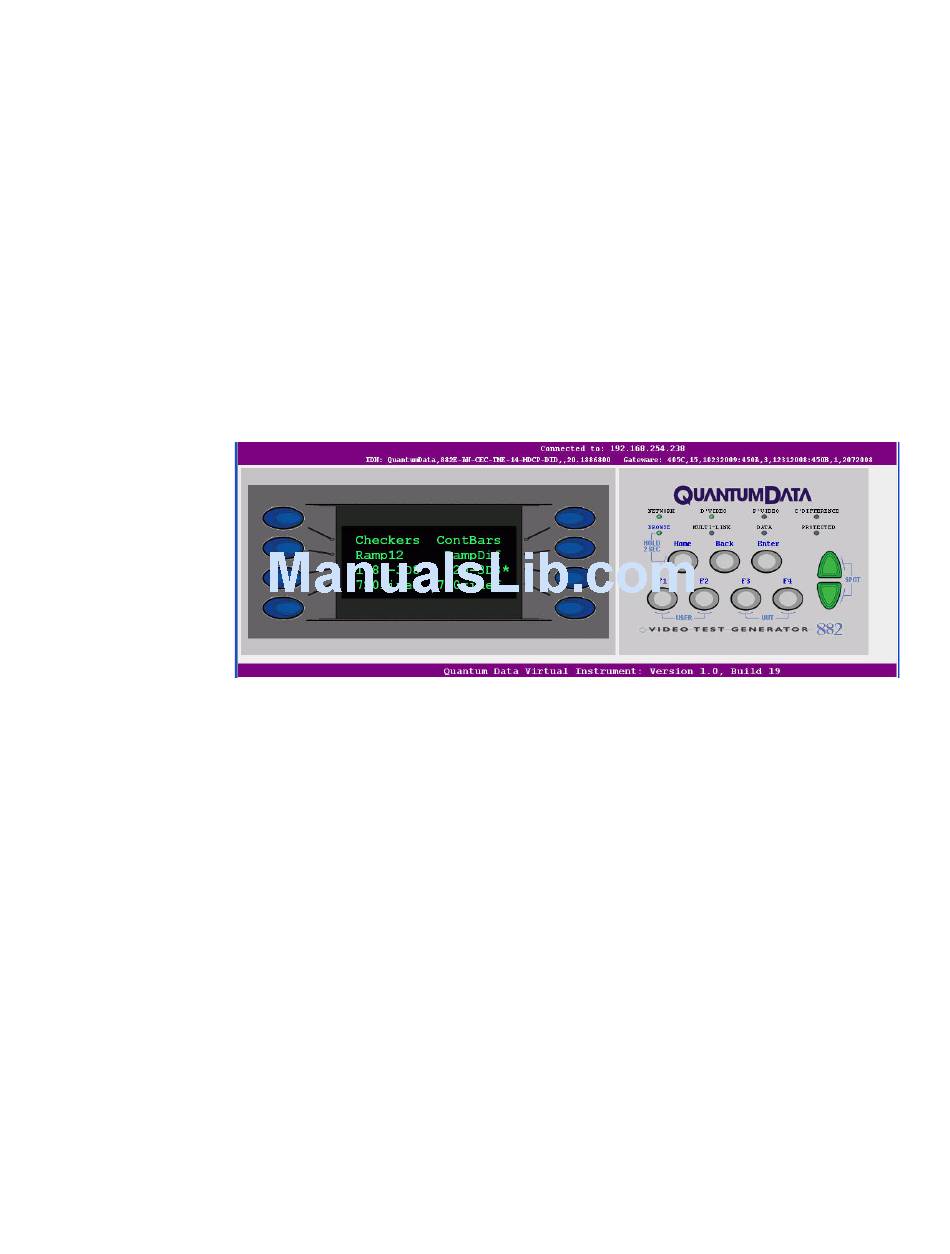

Using the Front Panel
a. Put the 88x into the Browse mode. To use the Browse mode hold the Tools key
down
b. until you see an indication on the LCD that the 88x has activated the Browse mode.
c. Select PCCard and then navigate to the Library/UserData directory
d. Select the 3D ready image using the blue button adjacent to the desired 3D ready
image in the list. Return to the Basic mode after making your selection.
When you select a 3D capable format and 3D ready image, the 88x transmits the image
out the HDMI output port and also sends the HDMI vendor specific infoframe with the
necessary 3D metadata.
Using the command line:
e. Enter the following command to load the 3D ready image:
IMGL /card0/library/UserData/720-3D8.bmp
IMGU
