882 Video Test Instrument User Guide (Rev A.35)
New Format - General Tab (Top Left Panel)

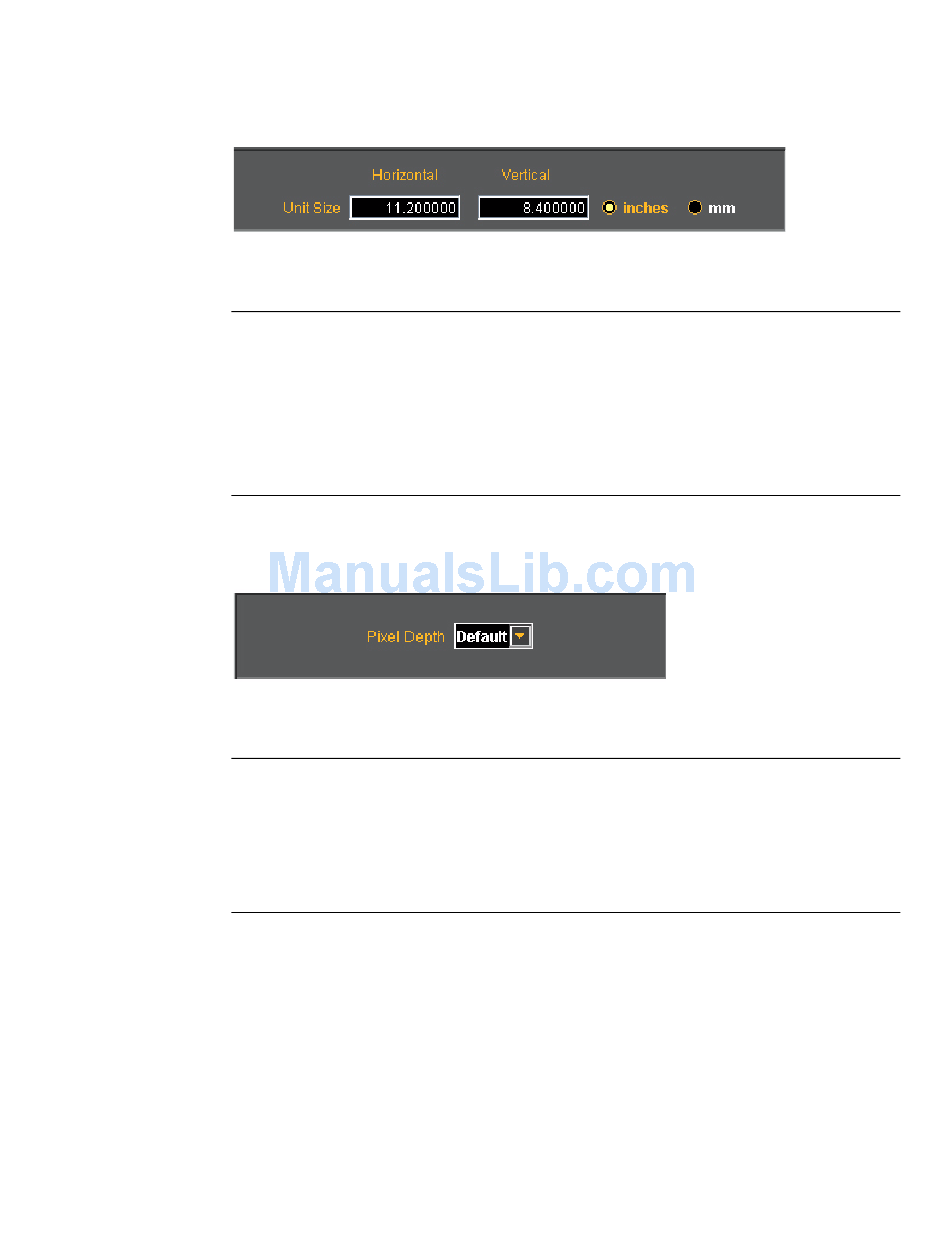

The top left panel of the General tab in the Format Editor is shown below.
The table that follows describes each of the fields in the top left panel of the General tab.
Field / Entity
Type
Entry field
Horizontal
Entry field
Vertical
Radio Buttons:
Unit Size
New Format - General Tab (Top Right Panel)
The top right panel of the General tab in the Format Editor is shown below.
The table that follows describes each of the fields in the top right panel of the General tab.
Field / Entity
Type
Pull-down menu
Pixel Depth
Description / Function
The horizontal aperture of the display under test.
The vertical aperture of the display under test.
inches Selects the unit size of the Horizontal and Vertical Size
entities to be expressed in inches.
mm Selects the unit size of the Horizontal and Vertical Size
entities to be expressed in millimeters.
Description / Function
Establishes the number of data bits that represent each
active pixel in video memory (frame buffer). Parameter:
PELD. There are three settings:
Default - uses the generator default
8 - 8 bits-per-pixel (256 colors)
24 - 24 bits-per-pixel (16,777,216 colors)
