Quantum Data 881 User Manual page 37

882 Video Test Instrument User Guide (Rev A.35)
Copying files from a 882 to a PC
To copy files from a 882 to a PC:

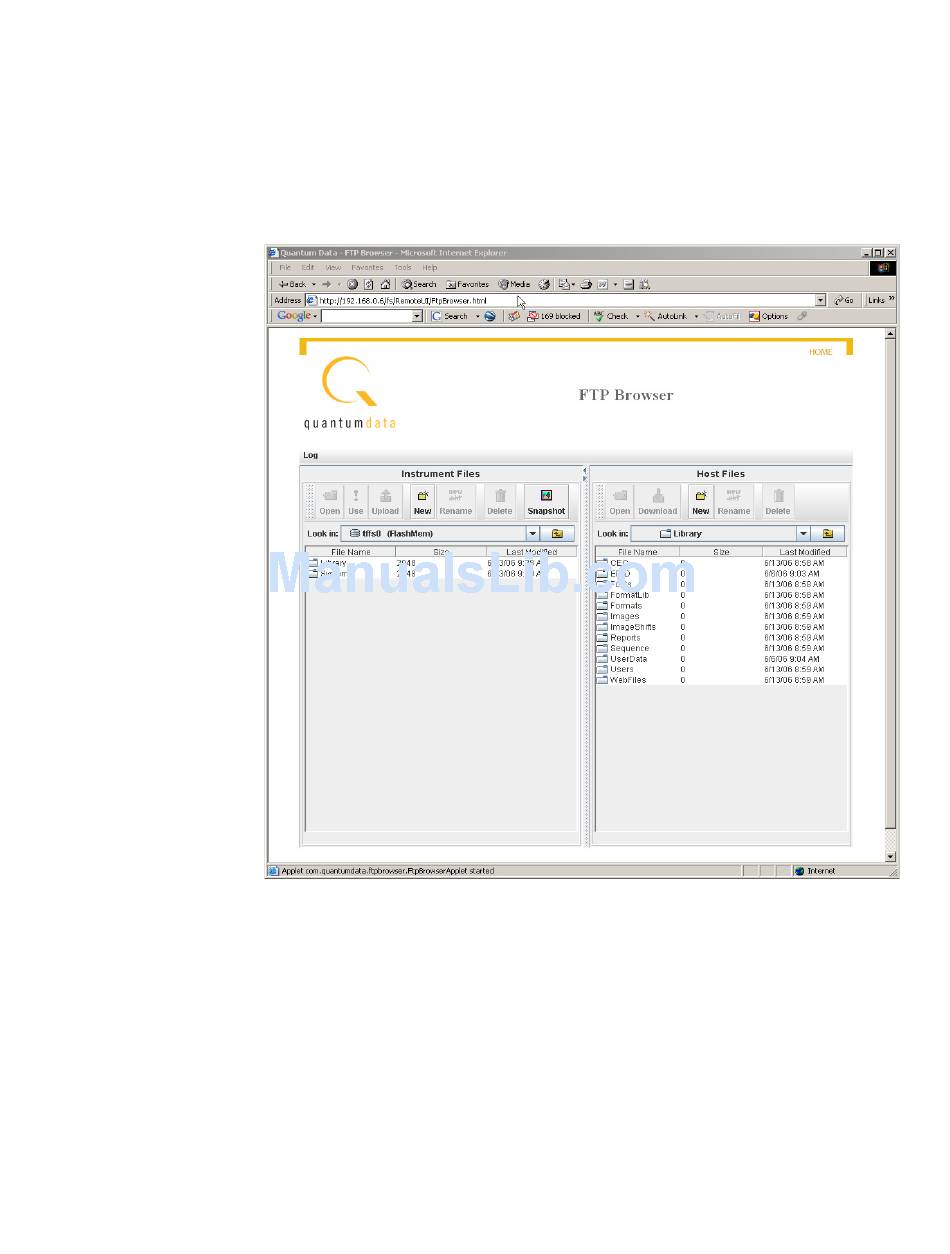

1. Access the 882's FTP browser by choosing the FTP Browser menu item from the main
web page. The 882 FTP Browser appears. The Instrument Files area shows the files
stored on the 882. The Host Files area shows the files stored on the PC.
2. In the Instrument Files area, locate and select the file or folder you want to copy as
follows.
a. In the Look in box, click the down arrow and select the medium where the file is
located. Select tffs0 for the 882's flash memory or card0 for the 882's PC card.
b. In the list of files, select the file or folder you want to copy.
3. In the Host Files area, open the destination folder where you want to copy the files.
4. In the Instrument Files area, click Upload. The Transfer Files dialog box appears.
25
