Quantum Data 881 User Manual page 256

Chapter 7 Working with Images
246
To delete a image catalog using the Generator FTP Browser:

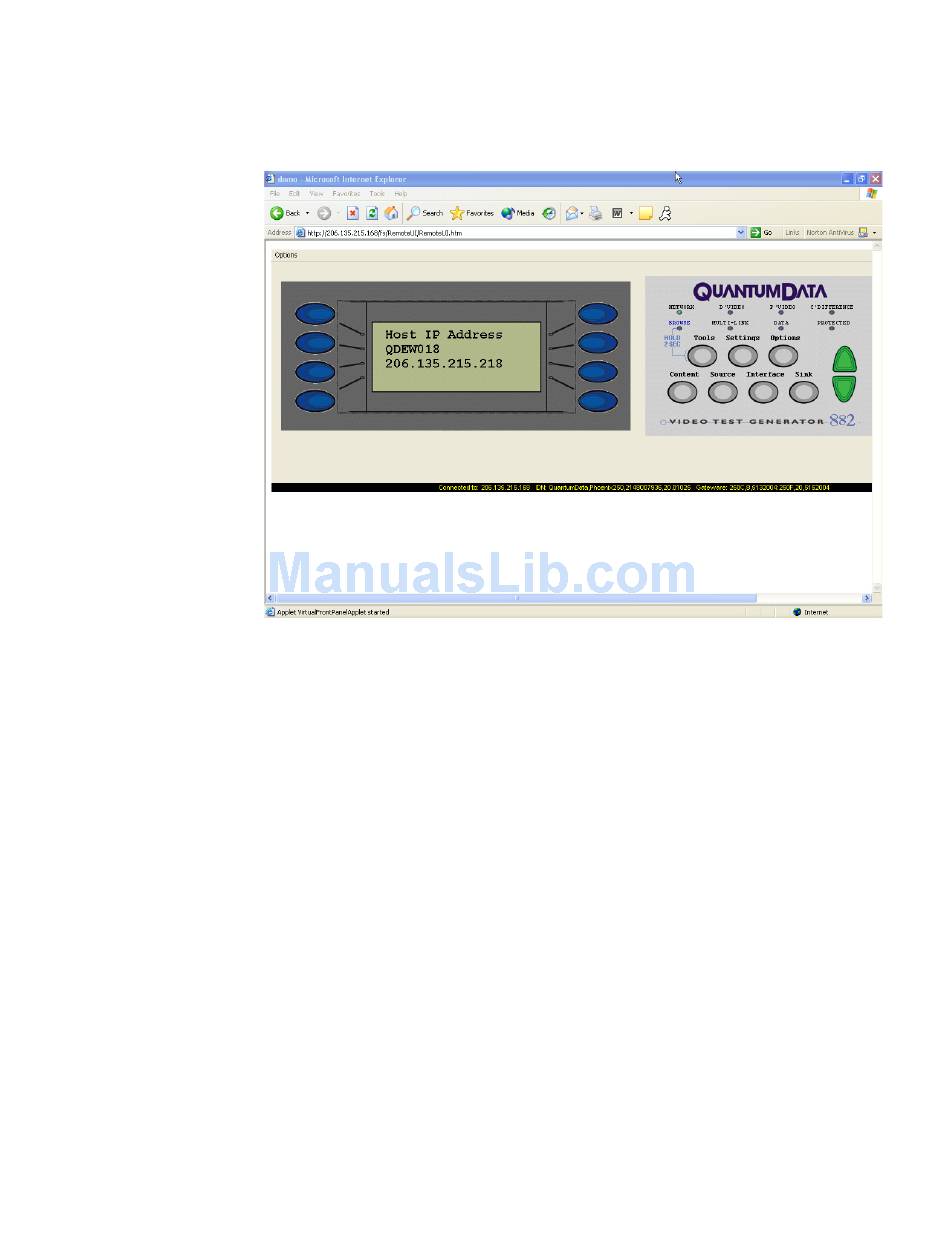

1. Access the source generator's Virtual Front Panel. See
Panel" on page 20.
2. From the Options menu (upper left corner of the Virtual Front Panel), choose the FTP
Browser menu item. The Generator FTP Browser appears.
3. In the Instrument Files area, click the down arrow by the Look in box and select tffs0.
This is the generator's flash memory.
4. Double click the Library folder, and then double click the ImageLib folder to open it.
"Working with the Virtual Front
