Ramp
Description
RampX
Description
Appendix B Image Reference
950
FMTL DMT0660; ALLU
FRGB 192 192 64

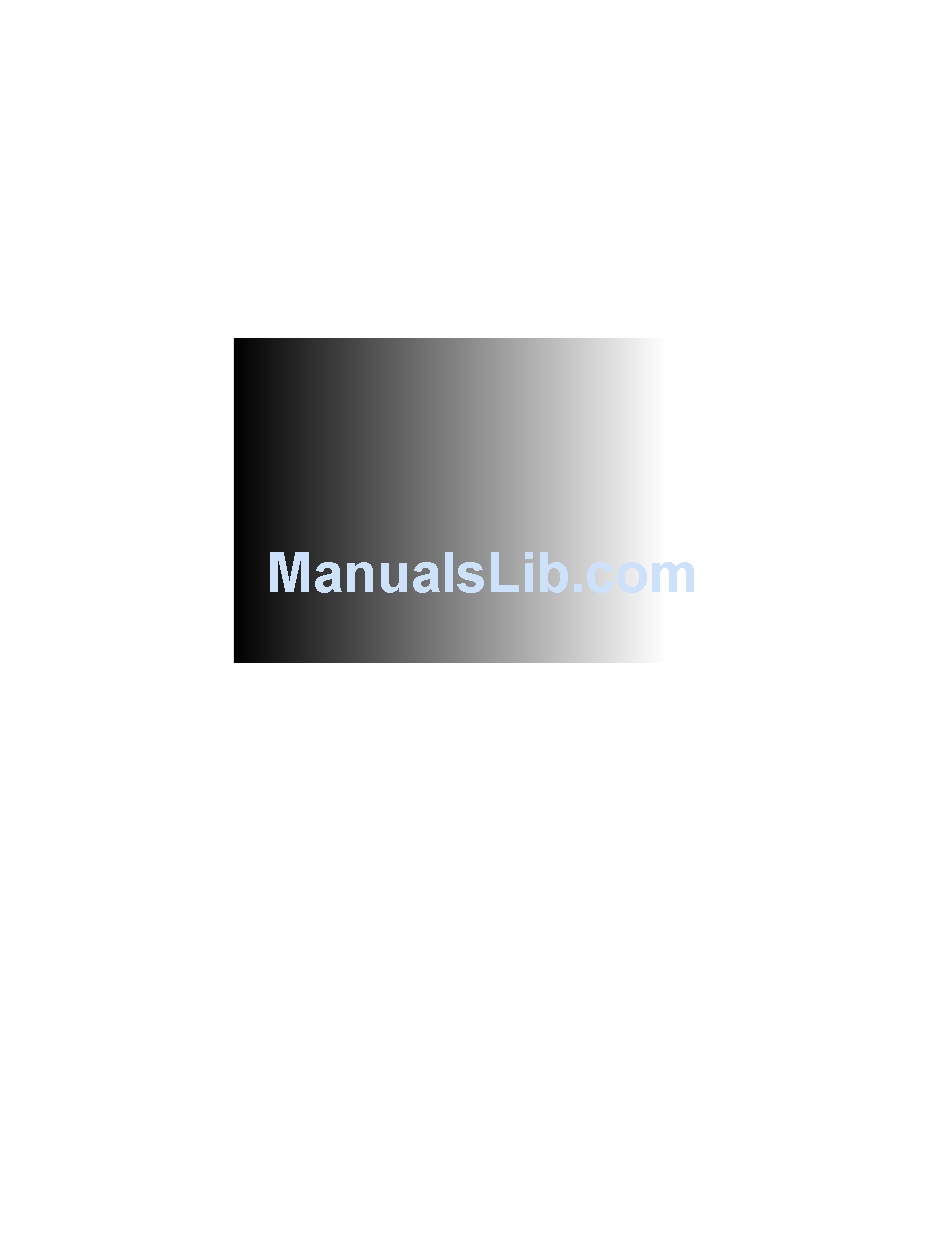

This image provides an active video area starting from full black (+7.5 IRE) at one edge of
the screen to full white (+100 IRE) at opposite end of the screen.
There are 4 versions of this image—one for each edge of the display.
When selected, this image is displayed.
After pressing the Contents key and then the Options key. You then enable More and use
the +/- increment keys to proceed through the subimages to change the image starting
point to left, right, top, or bottom.
This image provides a ramp image that continuously sweeps (moves) to the right on an
adjustable time basis.
