Chapter 6 Working with Formats
210

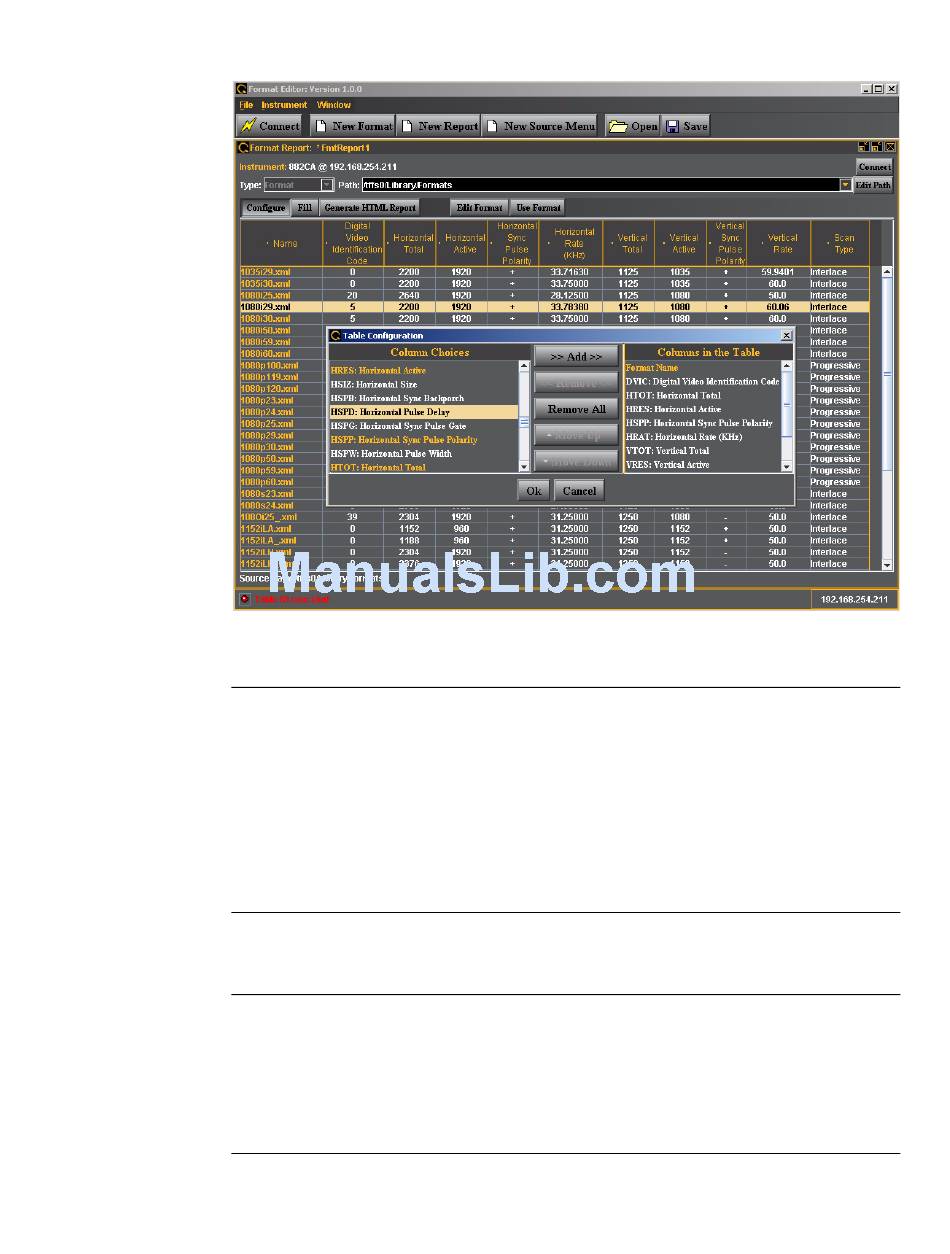

The table below describes the top selection panels for the New Report activation button
Entity Type
Status text field
Instrument
(Connection Status)
Activation Button
Connect
Pull-down menu
Type
Entry Field
Path
Activation Button
Edit Path
The table below describes the activation buttons available for the New Report screen.
Button Description / Function
Clicking on the Configure button will open up a dialog box that enables you
Configure
to configure which format parameters appear in the report and in what order.
Clicking on the Fill activation button will cause the Format Editor application
Fill / Cancel
to begin loading the formats from the list that the Path is set to. The
completion status is shown below the list. The Cancel button on the lower
right enables you to halt the filling (reading) of the formats from the list in the
directory that the path parameter is set to.
Description / Function
Shows the current connection status.
Enables you to connect to an 882 generator. When
clicked a dialog box will pop up enabling you to specify
an IP address to connect to.
Always set to Format.
The path to the directory where the list of formats used
to configure a format list.
Enables you to change the path to a list of formats.
