Verifying pixel encoding and rate support

882 Video Test Instrument User Guide (Rev A.35)
9. Click on the EDID Compliance report you wish to view.

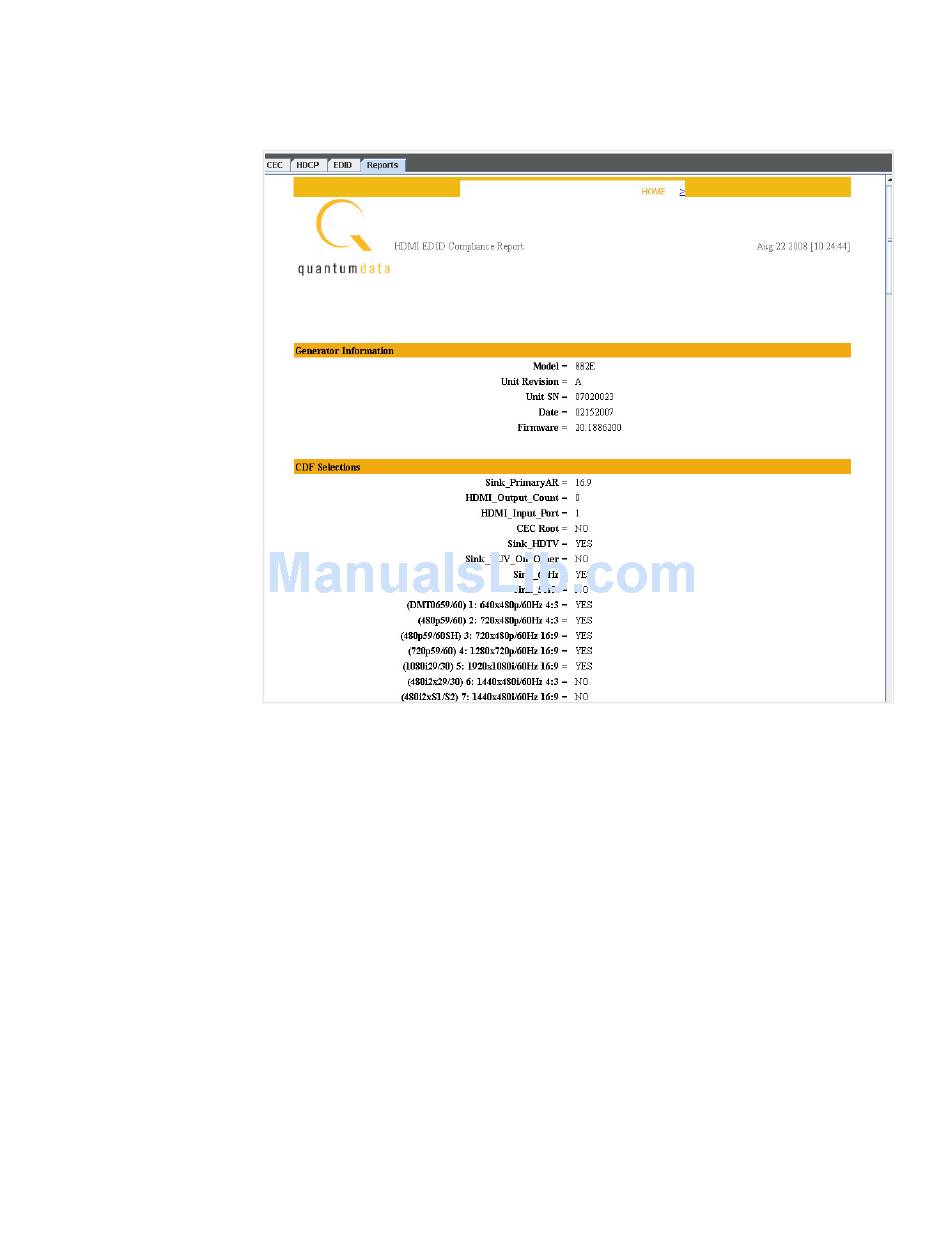

The report is display in the browser window as shown below.
For test IDs 8-19 and 8-20, visual inspection of display under test is necessary to ensure
proper support of pixel encoding sampling and minimum and maximum pixel clock rates
using different formats. Test ID 8-19 involves testing each format with both YCbCr 4:4:4
and YCbCr 4:2:2 pixel sampling, while test ID 8-20 requires testing each format listed in
the EDID at both minimum and maximum pixel clock frequencies permitted by the source
device. Pixel clock rate values are as follows:
• For 50 Hz formats, the values are 49.75 Hz and 50.25 Hz (50 Hz ± 0.5%).
• For 59.94 Hz or 60 Hz formats, the frequencies are 59.64 Hz (59.94 Hz – 0.5%) and
60.3 Hz (60Hz + 0.5%).
• The tested pixel clock frequency accuracy shall be ±0.05%
To support this testing, a list of SVD formats are provided in the Source list. For pixel
encoding testing, the format naming nomenclature used is shown below:
349
