PgBar64H, PgBar64V
Description
PgCB, PgCG, PgCR, PgCW, PgCWrgb
Description
882 Video Test Instrument User Guide (Rev A.35)
A fading tail left behind by the faster moving boxes indicates that the display may not be
suitable for viewing animated images.

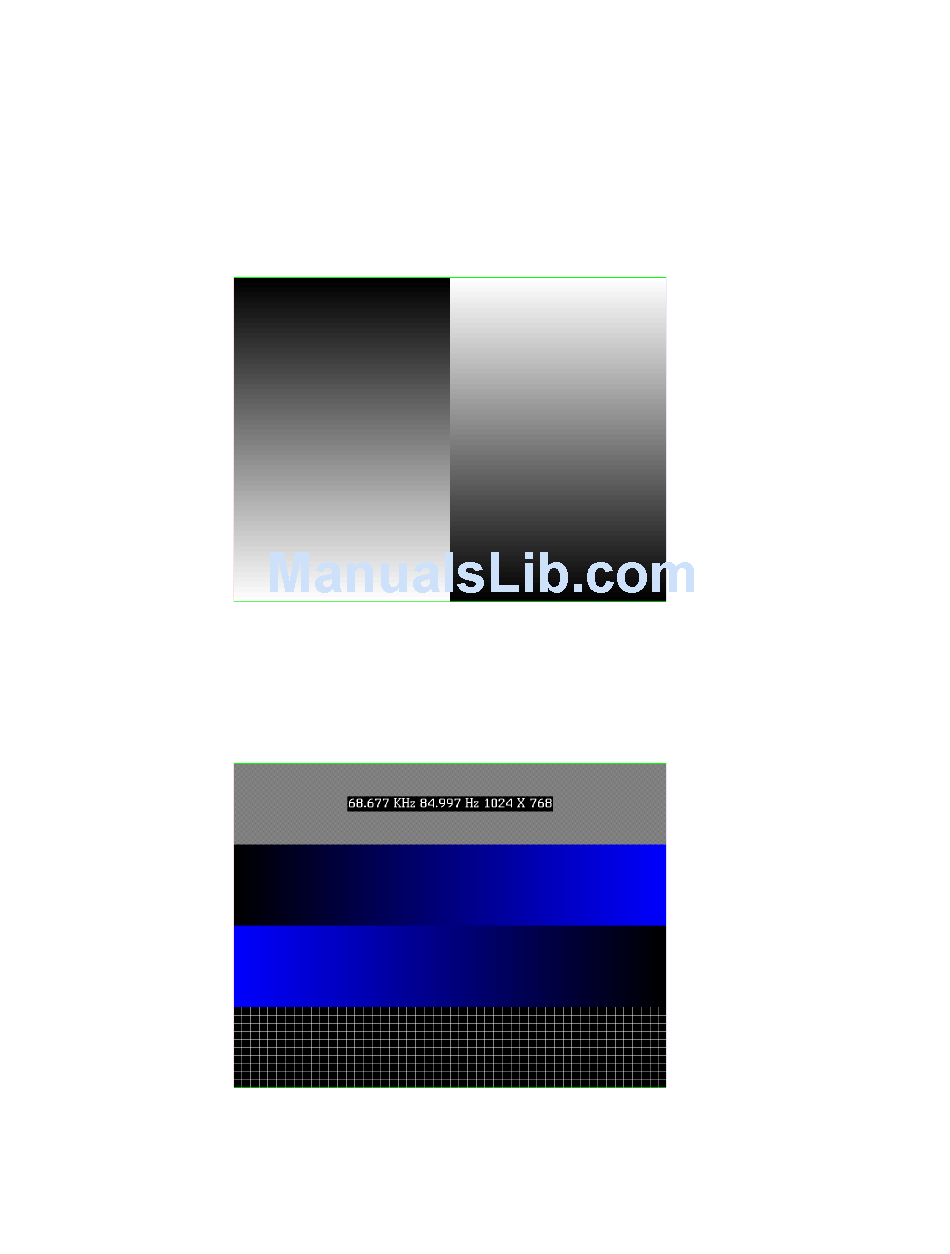

Special test image developed per customer specifications. The PgBar64H image is shown
below.
Special test image developed per customer specifications. Primary version of PgCB is
shown below. The secondary versions draw all white over the last bar.
945
