Format library
Composite television format names
882 Video Test Instrument User Guide (Rev A.35)
The generator has a built-in library of formats which are stored as XML files in any of the
generator's media. This section describes three sets of naming conventions for identifying
formats: 1) Composite television formats, 2) Component television formats, and 3)
Computer display formats. In addition, several miscellaneous naming conventions are
also described.
Composite television formats apply to RF, D2, CVBS, and S-VIDEO signal interfaces.
Composite television format names consist of a three to five character color coding
scheme indicator followed by optional characters that indicate format adjustments.

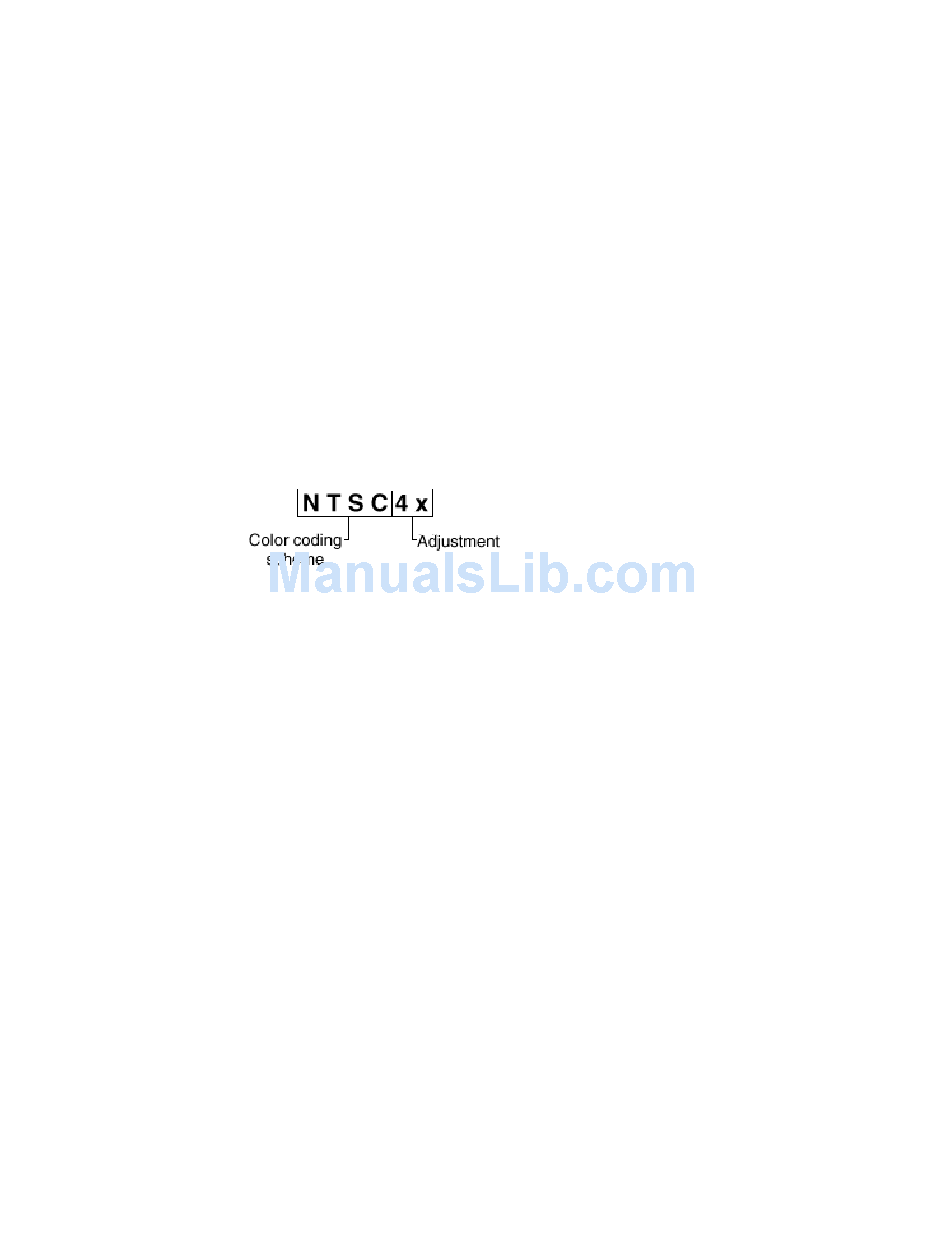

Example
Color coding schemes
•
NTSC
•
PAL
Adjustments to the format
•
4x == sampling rate is four times the color sub-carrier frequency
•
44 == NTSC with color sub-carrier frequency of 4.43361875 MHz (as opposed to 3.58)
•
# == sampling rate is reduced in order to make pixels square
•
jp == NTSC-Japan (NTSC without 7.5 IRE setup)
•
-M == PAL with 3.57561149 MHz color sub-carrier and M timing (M/PAL Brazil)
•
-N == PAL with 3.58205625 MHz color sub-carrier (N/PAL Argentina, Paraguay,
Uruguay)
•
-N == NTSC color encoding with N timing (NTSC-N)
•
-60 == PAL format that allows NTSC tape playback on PAL TV (PAL-60)
•
plusKKKK == Enhanced wide-screen PALplus TV transmission system
•
p == progressive video game signal (for example, NTSCp or PALp)
171
