TESTSETP Curve
If a user configures a custom TESTSETP array in an APOSS program (i.e. rather than using the Single Shot
Oscilloscope to configure the array automatically then a TESTSETP curve must be added to the Oscilloscope
to store the data. This will be necessary, for example, with older controllers that do not support the automa-
tic configuration of TESTSETP arrays. When the TESTSETP curve is added, the Oscilloscope will immediately
try to read the TESTSETP array from the controller. Hence, the test must already have been run and
completed and the TESTSETP array created on the controller before the TESTSETP curve is added to the
Oscilloscope.

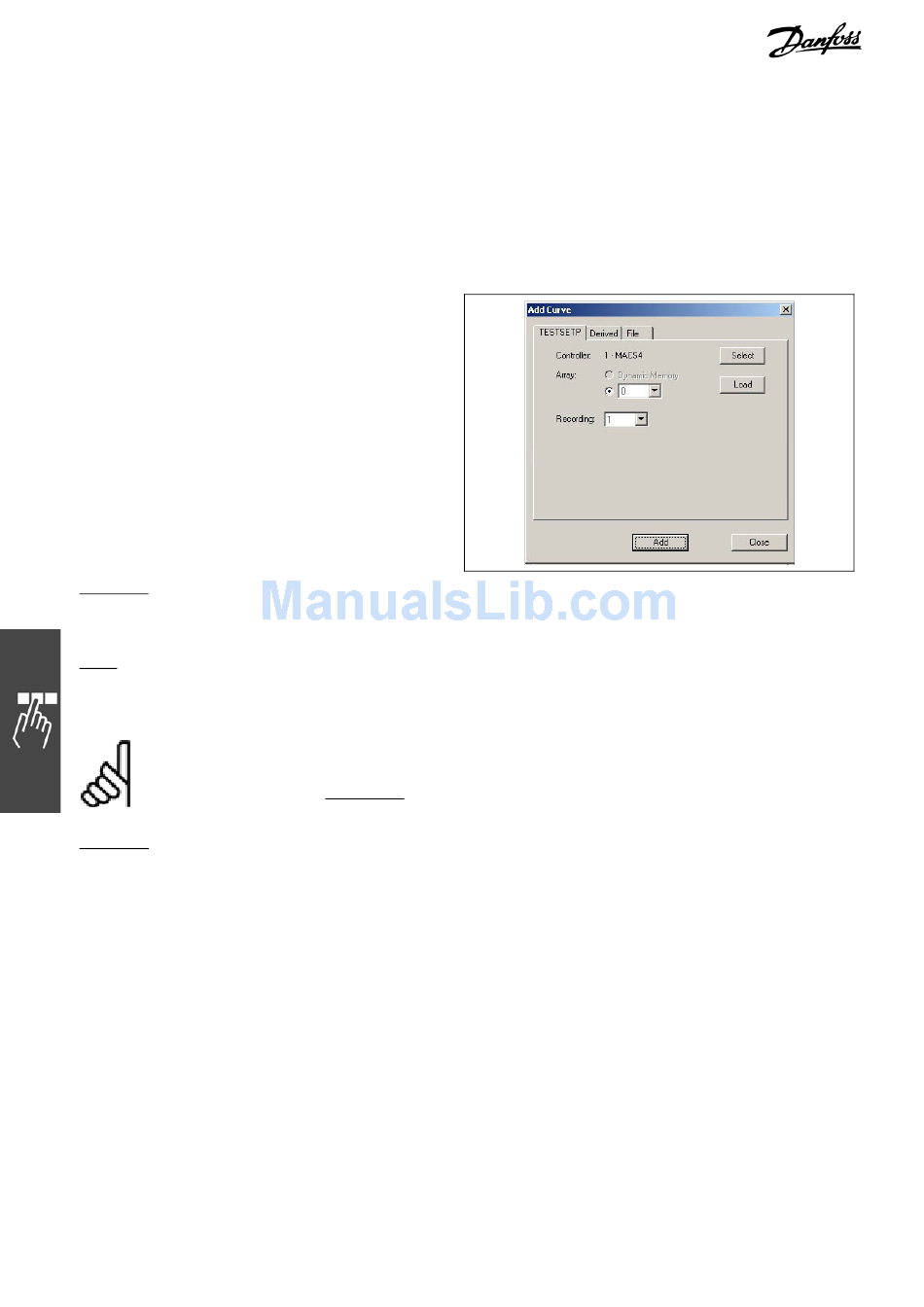

When a TESTSETP "curve" is added, the
Oscilloscope will actually add a separate curve for
each curve defined in the TESTSETP array. The first
of these curves will always be drawn with a grey
background in the "Curve Selection List".
TESTSETP curves can only be added when the
TESTSETP Oscilloscope is being used.
Controller
This is the controller containing the TESTSETP array. The → Select button can be used to choose a different
controller.
Array
The array can be loaded from either dynamic memory or from a predefined user array. Once the array
location has been specified, then the Load button must be pressed. This will cause the Oscilloscope to
upload the TESTSETP array from the controller.
NB!:
Note that Dynamic Memory will be disabled if the controller does not support dynamic memory or
if Dynamic memory does not contain a TESTSETP array.
Recording
If the TESTSETP array contains multiple recordings, then one of the recordings must be chosen. More than
one recording can be added to the Oscilloscope but a separate TESTSETP "curve" must be added for each
one.
