MCO 305 Design Guide
Select Controller – This command allows the user to select a different controller to be associated with the
selected curve. Other curves that are associated with this controller, or other controllers, are not affected.
NB!:
In some cases, multiple curves must be connected to the same controller. For example, all curves
that originate from the same TESTSETP array must be associated with the same controller since
the array comes from a single controller! In this case, the entire group of curves will be changed
when one curve is changed. The Controller and Interface columns will show the controller with which the
curve is currently associated.
Reconnect – If the controller is not currently connected or the connection has been lost, then this command
will try to reconnect to the controller.

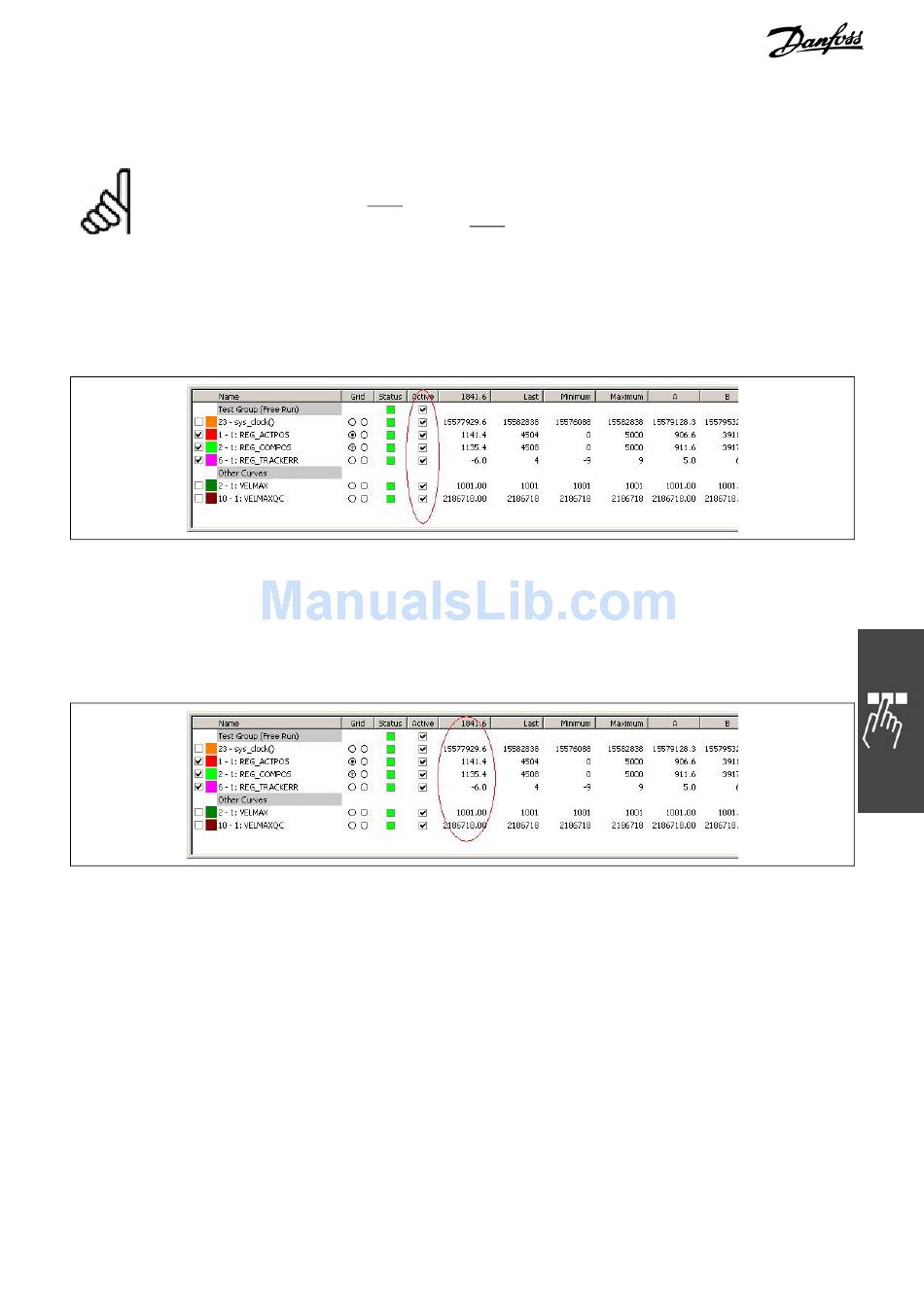

Active Column
The "Active" column will contain a checkbox for those curves that are explicitly associated with a controller.
When the box is checked, then the Oscilloscope will enable data collection for that curve. Otherwise, data
will not be collected for that curve. Clicking in the column will toggle the status of the checkbox.
Note that data is only collected by the Oscilloscope when an Oscilloscope "run" has been started. See
"Starting the Oscilloscope".
Mouse Position Column
When the mouse is moved across the Chart Window, the value of each curve at the position of the mouse is
shown in the Mouse Position column.
The column heading will contain the X coordinate (time) of the position of the mouse. If a value is shown as
"*", then the column is too narrow to display the entire value. In this case, the column can be widened by
dragging the column separator in the header with the left mouse button.
