The order in which the test program execution is started and the Oscilloscope recording is started, is not
fixed. The user is free to start the program execution and then the recording or start the recording and then
the program execution, whichever is appropriate.
At any time during the recording, any of the
can be hidden or shown in the Chart Window using the checkbox in the "Name" column, and the Chart Y-
axis can be set using the Grid column. Note that the Navigation window is not drawn and cannot be used
while recording is in progress.
Each curve has a fixed maximum number of points that can be recorded. Once this number has been
reached, then the oldest points are discarded to make room for new points. The user can change this
maximum number in the Properties → Source window.
The recording will continue until the user stops it by pressing the
NB!:
Note that this does not abort the executing program; the executing program will continue to run.
The Stop button only stops the recording of new data.
NB!:
Note that the user can abort the executing program at any time simply by switching to the APOSS
Window and pressing the [Esc] key to break the program. Aborting the program does not stop the
Oscilloscope from recording. The Oscilloscope will continue to listen for incoming PDO messages
until the Stop toolbar button is pressed.
Usage Notes for the Single Shot Oscilloscope
If multiple groups are used, then only one group per controller can be selected for recording. If a second
group is selected for the same controller, then the first group will be automatically deselected.
Start the recording as described above with the
recorded, no curves will be displayed in the Chart Window.

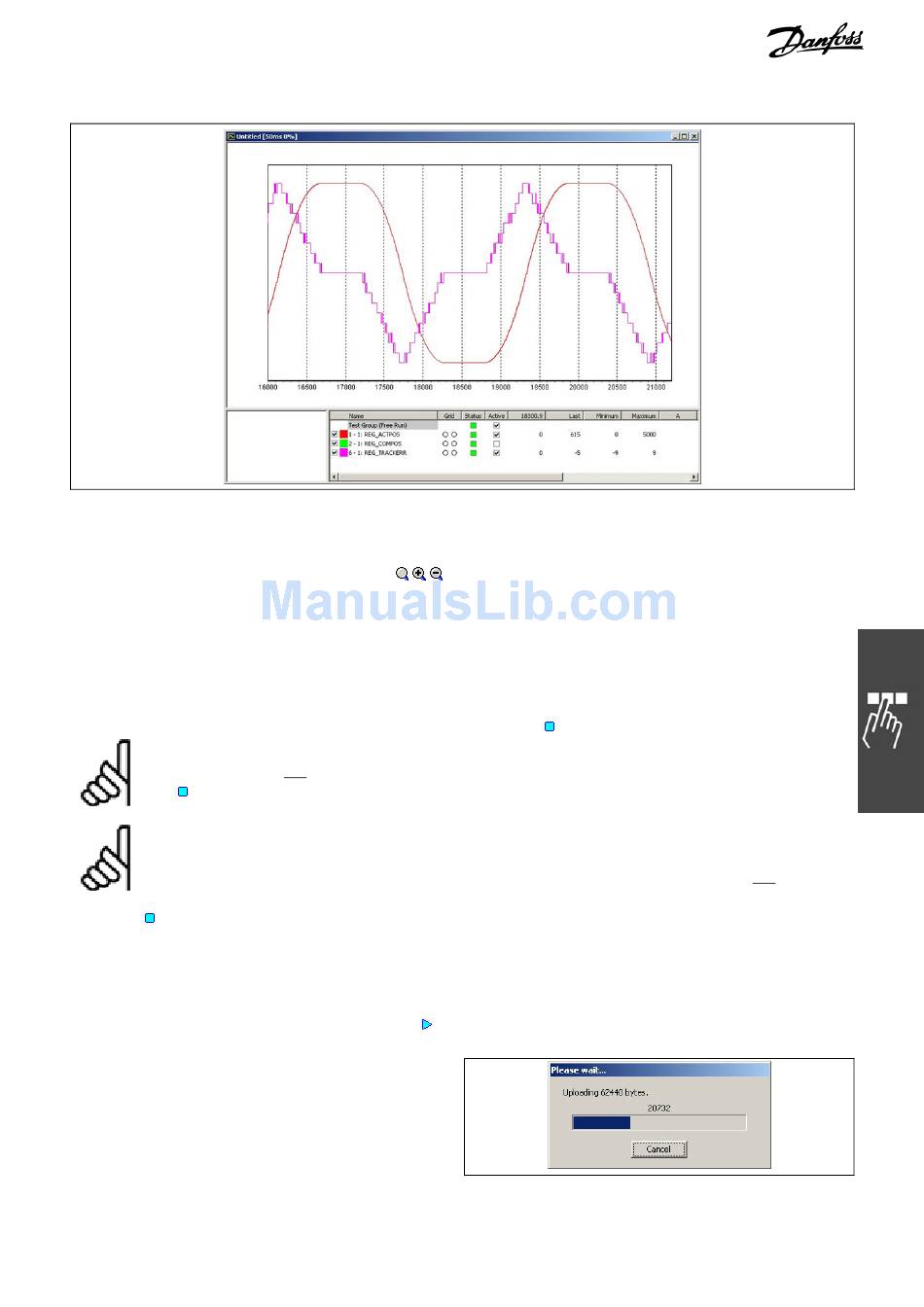

Once the recording is stopped, then a window
similar to the following will be displayed as the
TESTSETP array is uploaded to the Oscilloscope. The
curves will be displayed in the Chart Window once
the upload completes.
__ APOSS Tools __
Zoom toolbar buttons can be used, any of the curves
Start toolbar button. However, while data is being
®
