MCO 305 Design Guide

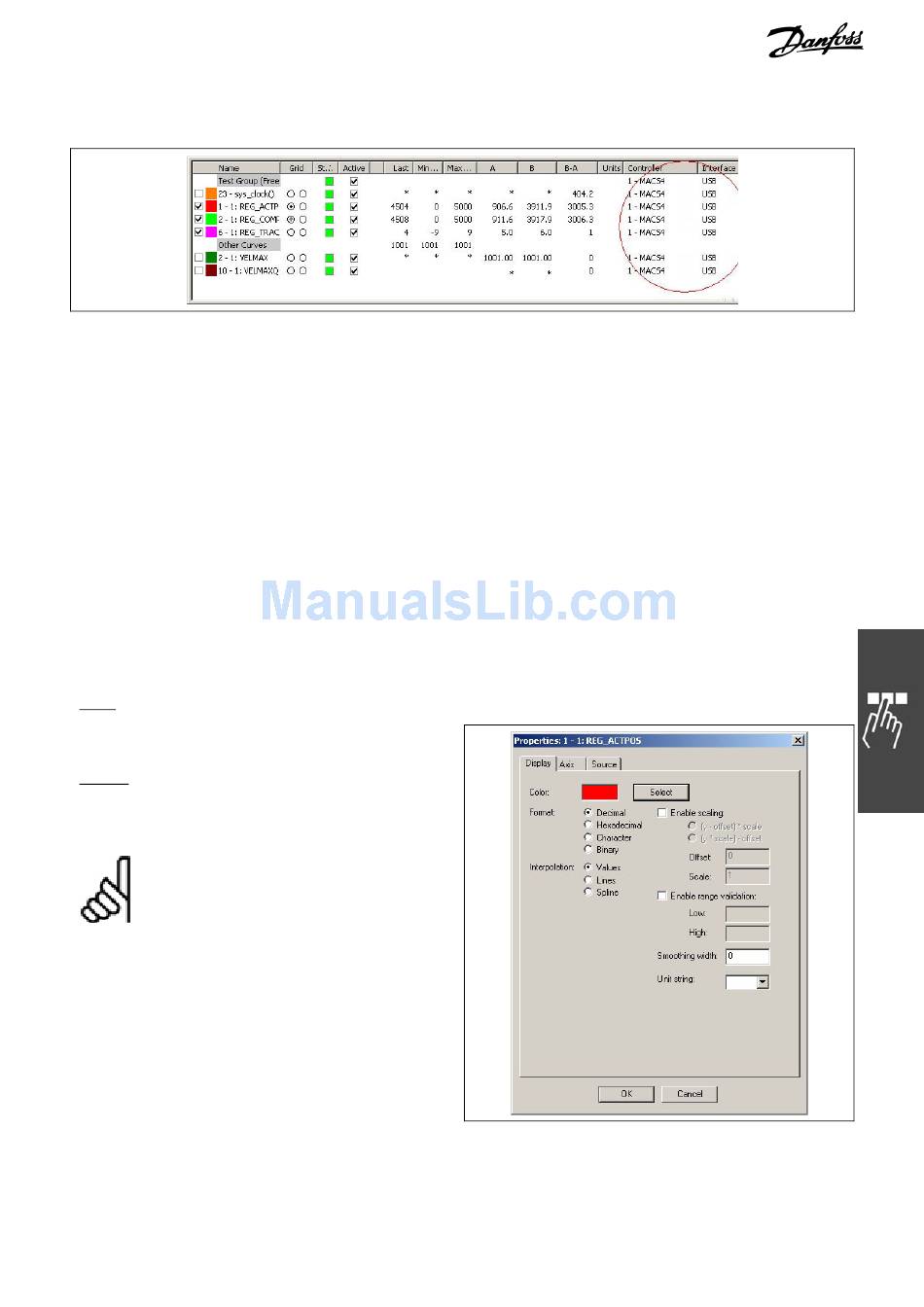

Controller and Interface Columns
If a controller is connected, then the "Controller" column will list the ID number (usually the CAN ID) and
user-assigned name of the controller associated with each curve. If a controller is not connected, then only
the ID number is shown.
The "Interface" column will list the connection interface description associated with each curve.
Modifying a Curve's Properties
Curve Properties can be viewed and modified by right-clicking on the name of the curve in the "Name"
column of the "Curve Selection List" and then selecting the Properties command. This will display a dialog
containing the following "tabs":
Display - Shows the various attributes affecting the display of the curve in the chart and the display of
values in the list. This tab will not be present if the curve is not graphical (i.e. it cannot be drawn in the
chart). For example, group headings contain no actual curve data and are never drawn.
Axis - Shows the various attributes affecting the Y-axis of the curve. This tab will also not be present if the
curve is not graphical (e.g. group headings).
Source - Shows details of where and how the data for the curve is collected.
Curve Properties: Display
Color
Click on the Select button to change the color of a
curve in the Chart Window.
Format
This setting specifies how the curve values (i.e.
mouse position, last, minimum, maximum, etc.) are
to be displayed in the "Curve Selection List".
NB!:
Note that values should not be displayed
as characters unless the controller is
actually generating character values for
that curve. If not, then blanks will usually be
displayed.
Please note that the setting of Interpolation will also
affect how curve values are displayed.
__ APOSS Tools __
®
