Page 1: Configure Media Server

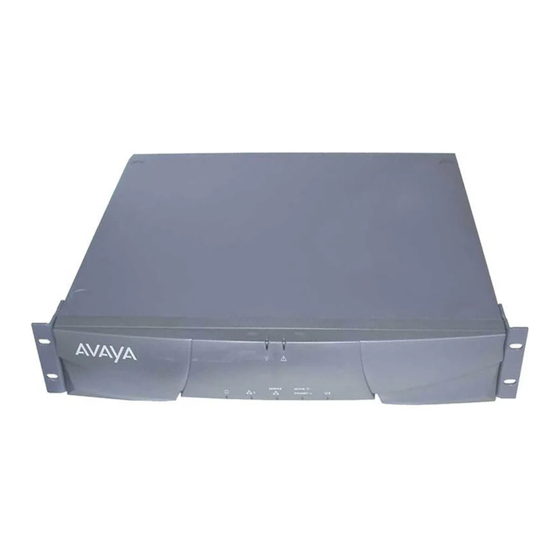

Installing the Avaya™ S8700 Media Server with Avaya™ MCC1 or SCC1 Media Gateways Release 1.2 Issue 2 October 2002...
Page 2 How to Get Help interfaces • Your Avaya-provided software applications, as well as their For additional support telephone numbers, go to the Avaya Web site: underlying hardware/software platforms and interfaces • Any other equipment networked to your Avaya products. http:/www.avaya.com/support/...
Page 3 The LASER devices operate within the following parameters: • A reorder tone is received. Avaya attests that this registered equipment is capable of providing • Maximum power output: -5 dBm to -8 dBm users access to interstate providers of operator services through the use •...
Page 4 FCC before the SDoC process ment. If this happens, the telephone company will provide advance was available. A list of all Avaya registered products may be found at: notice in order for you to make necessary modifications to maintain uninterrupted service.
Page 5: Table Of Contents
Installing the S8700 Multi-Connect Contents Contents Installing the Avaya S8700 Media Server with Avaya MCC1 or SCC1 Media Gateways • Pre-installation Setup • High level overview of installation process Install and configure the S8700 Media Server complex Customize the S8700 Media Server...
Page 6 • Connect UPS Ethernet Cables to Ethernet Switch • Configure the UPSs Duplex Reliability Configurations High/critical reliability configurations • Configure the Avaya Ethernet Switch (if used) • Customizing the Active Media Server Set up Avaya Site Administration Directly through a dedicated services port...
Page 7 Installing the S8700 Multi-Connect Contents Unpack and Inspect Auxiliary Cabinet Check Circuit Packs Correct Shipping Errors Position the Media Gateway Position the Auxiliary Cabinet (Optional) Install Auxiliary Cabinet Equipment Install Earthquake Protection for Media Gateway Install Concrete Floor Mounting Install Raised Computer Floor Mounting...
Page 8 • Installing an Avaya SCC1 Media Gateway Stack Unpack and Inspect Media Gateways Check Circuit Packs Position the Media Gateway Stacks Install Earthquake Protection for Avaya SCC1 Media Gateway 103 Ground DC power media gateways Connect Ground to DC power cabinet Connect Ground for DC power cabinet...
Page 9 Connect Stratum 3 Clock DC Power Set the Clock Options Cable the Stratum 3 Clock Install the Stratum 3 Clock Wiring • Installing the Avaya G700 Media Gateway • Cabling Media Gateways Information about Installing the Cabling • Installing the Telecommunications Cabling •...
Page 10 Installing the S8700 Multi-Connect Contents • Installation Space Requirements Sneak Fuse Panels and Emergency Transfer Units 110-Type Hardware Cable Slack Manager • Station Wiring Design Information Outlets Station Cables Closets Site Locations Satellite Locations • Station Circuit Distribution from Equipment Room...
Page 11 Contents Connect the Ethernet switch cables to IPSI circuit packs Avaya MCC1 Media Gateway Avaya SCC1 Media Gateway Connect Avaya SCC1 media gateway IPSI and maintenance circuit pack ribbon cables Program the IPSI circuit packs Using DHCP addressing Using static addressing...
Page 12 Installing the S8700 Multi-Connect Contents Avaya R300 Remote Office Communicator • Installing and Wiring Telephones Wiring Telephones Connect Telephones Connectable Telephones and Consoles Connecting a Typical Telephone Connect Adjunct Power Connect an Analog Station or 2-Wire Digital Station Analog Tie Trunk Example...
Page 13 View alarms Add INADS phone numbers Enable alarms to INADS via modem Enable alarms to INADS via SNMP Register the system • Accessing the Avaya S8700 Media Server Accessing the Avaya S8700 Media Server Directly Media Server Web Interface October 2002...
Page 14 Test Integrated Announcement Test Music-on-Hold Test Emergency Transfer (S8700 Multi-Connect only) Test Remote Access Interface Test Terminating Trunk Transmission Test the C-LAN Connectivity Test Stratum 3 Clock (if used—S8700 Multi-Connect only) Resolve Alarms LED Indicators S8700 Media Server LEDs October 2002...
Page 15 UPS LEDs Telephone Console LEDS IP Server Interface LEDs Circuit Pack LEDs DS1 Converter Circuit Pack LEDs • Troubleshooting an Installation Installing the Media Server Hardware Configuring the Media Server Hardware Installing the License and Avaya Authentication Files Index October 2002...
Page 16 Installing the S8700 Multi-Connect Contents October 2002...
Page 17: Installing The Avaya S8700 Media Server With Avaya Mcc1 Or Scc1 Media Gateways
Server with Avaya MCC1 or SCC1 Media Gateways This procedure is for installing a new Avaya™ S8700 Media Server with Avaya™ MCC1 or SCC1 Media Gateways, referred to as the S8700 Multi-Connect. As part of the procedures for configuring the various pieces of hardware, you use 3 administration interfaces: media server web interface, Avaya Site Administration interface, and a Linux command line interface.
Page 18 Installing the Avaya S8700 Media Server with Avaya MCC1 or SCC1 Media Gateways • Administration Guide for Network Connectivity—documentation providing information on network connectivity. Maintenance for the Avaya™ S8700 Media Server with G600 Media Gateway, Volumes • 1–3 (555-233-142)—documentation providing definitions of error codes and tests.
Page 19: Pre-Installation Setup
Verify that you have current translations available for download via ProVision. Verify that you have the current software, firmware, and required patches. This is not the • software, firmware, and any patches that are pre-loaded on the S8700 Media Server but what will be upgraded to after installation. •...
Page 20 Installing the Avaya S8700 Media Server with Avaya MCC1 or SCC1 Media Gateways Pre-installation Setup October 2002...
Page 21: High Level Overview Of Installation Process
Customize the S8700 Media Server This stage depends on the install and configure S8700 Media Server complex stage. It could be put off until later in the installation process. However, verifying success for some stages (connect to the customers network, install phones, connect the media gateway to server) requires that Avaya MultiVantage Software be translated and operational.
Page 22: Cable The Media Gateways
High level overview of installation process Cable the Media Gateways This stage is the physical cabling of the media gateways to wall field and patch panels. This stage generally follows installing the media gateways and is a prerequisite to installing traditional telephones.
Page 23: Download License And Avaya Authentication Files
The Avaya authentication files enable Access Security Gateway (ASG) for the services logins on the S8700 Media Server. ASG uses a challenge/response protocol to confirm the validity of a user, reducing the opportunity for unauthorized access.
Page 24: Go To The Rfa Web Site
If you are unable to access RFA using your recommended portal, try: http://rfa.avaya.com Using your SSO, log into the RFA website. Click Start RFA Application. Complete the information necessary to create and deliver license and Avaya authentication files. October 2002...
Page 25: Mount The Hardware In The Rack
Mount the Hardware in the Rack Mount the Hardware in the Rack Refer to Getting Started with Avaya S8700 Media Server for Multi-Connect Configuration. for installation information. October 2002...
Page 26: Configuring The Hardware In The Rack
Once the hardware is installed you must upgrade the software on the two media servers, configure them, install the license and Avaya authentication files, and test the connectivity to the customer’s LAN. You upgrade and configure the first media server, verify its operation, then upgrade and configure the second media server and verify its operation.
Page 27: Set Product Id
Configure Media Server 1 You must configure each media server in turn. This section covers the following tasks: • ‘‘Connect and log into the S8700 media server Web Interface’’ on page 28 • ‘‘Verify Software Version’’ on page 30 ‘‘Set media server configuration type’’ on page 31 •...
Page 28: Connect And Log Into The S8700 Media Server Web Interface
Configure Media Server 1 Connect and log into the S8700 media server Web Interface Connect the services laptop computer to the dedicated services port (default is port 2 [Eth1]) on the back of the media servers using the black crossover cable.
Page 29: Using Netscape
Configure Media Server 1 NOTE: The first time you attempt to log in, you get a Web page asking you to install a security certificate. Follow the instructions for your particular browser to accept the certificate. You can also install the certificate on your services laptop computer by following the instructions in your browsers online help.
Page 30: Using Internet Explorer
Configure Media Server 1 Using Internet Explorer Follow the instructions in the Security Alert wizard. Log in as craft. When asked "Do you want to suppress alarms?", select "no." Verify Software Version NOTE: The menu choices are in the left panel Scroll down the menu to Server Configuration and Upgrades Click View Software Version.
Page 31: Set Date And Time
When a server is first initialized and configured it is necessary to set the configuration type (IP Connect or Multi-Connect). Refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server for the proper configuration type information. Under Server Configuration and Upgrades click Configure Server to open the first page of the Configure Server process.
Page 32: Upgrade Media Server Software (If Necessary)
Review Notices screen displays. Click the Upgrade tab above and go to Upgrading Software on an Initial Installation of an Avaya S8700 Media Server to upgrade to the latest issue of software. After the software upgrade is complete, go to ‘‘Continue Server 1 configuration’’...
Page 33: Continue Server 1 Configuration
Configure Media Server 1 Continue Server 1 configuration Under Server Configuration and Upgrades click Configure Server to restart the configure server process. If a software upgrade was not performed continue on with the next step. Click through the Review Notices to get to the Select method for configuring server page.
Page 34 Configure Media Server 1 Select "Configure all services using the wizard." and click Continue to get to the Set October 2002...
Page 35 Configure Media Server 1 Server Identities: page. October 2002...
Page 36 Most of the fields are populated with default settings. Do not change the defaults unless the customer’s network administrator requests it (refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server). Fill in the fields on this and the subsequent pages: Configure Interfaces •...
Page 37: Install License And Avaya Authentication Files
Install License and Avaya Authentication Files Installing the license and Avaya authentication files is a 2-step process: ‘‘Copy license and Avaya authentication files from laptop to media server 1’’ on page 37 ‘‘Install the license and Avaya authentication files’’ on page 38...
Page 38: Install The License And Avaya Authentication Files
When all the files to be uploaded show in the fields, click Load File to upload all the files to the media server. Once the license and Avaya authentication files are uploaded to the media server, you must install them.
Page 39 Configure Media Server 1 Refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server for information on how to access a computer on the customer’s network. Connect a customer-supplied CAT5 straight-through cable from media server 1, port 4 (Eth4), to the customer’s LAN.
Page 40: Test Media Server 1 Leds
Configure Media Server 1 Under Diagnostics click Execute Ping. Type in the IP address of a computer on the network. Click Execute Ping. Verify that the ping was successful, indicating that the media server is connected to the customer’s network. Type in the host name, if DNS is administered, of a computer on the network.
Page 41: Configure Snmp Traps
Configure trap destinations only if the customer’s network administrator wants alarm notification. Refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server for host names, IP addresses, and community strings assigned to the UPSs and Ethernet switch.
Page 42 Configure Media Server 1 Click Add to add new trap destinations and community strings. Disconnect from media server 1 Unplug the CAT5 cable from the services port on the back of media server 1. October 2002...
Page 43: Connect Duplication Cables
Connect Duplication Cables How you connect the duplication cables depends on whether the media servers are installed in the same room or in separate locations. The S8700 Media Servers can be located up to 6 miles (10 kilometers) apart. Collocated media servers Connect the crossover CAT5 cable and fiber optic cable between the 2 media servers.
Page 44: Configure Media Server 2
Plug media server 2 into UPS 2 to power it up. Refer to Getting Started with the Avaya™ S8700 Media Server with MCC1 or SCC1 Media Gateway. Plug the laptop into port 2 (Eth1) on the back of media server 2 using the black crossover cable.
Page 45: Set Server Configuration Type
Click the X in the upper right-hand corner to close the configure server window when the Review Notices screen displays. Click the Upgrade tab above and go to Upgrading Software on an Initial Installation of an Avaya S8700 Media Server to upgrade to the latest issue of software. October 2002...
Page 46: Continue Server 2 Configuration
NOTE: Most of the fields are populated with default settings. Do not change the defaults unless the customer’s network administrator requests it (refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server). Set Server Identities • •...
Page 47: Update System
Connect a customer-supplied CAT5 straight-through cable from media server 1, port 4 (Eth4), to the customer’s LAN. Refer to Getting Started with the Avaya™ S8700 Media Server with MCC1 or SCC1 Media Gateway.
Page 48: Test Media Server 2 Leds
Configure Media Server 2 Under Diagnostics click Execute Ping. Type in the IP address of a computer on the network. Click Execute Ping. Verify that the ping was successful, indicating that the media server is connected to the customer’s network. Type in the host name, if DNS is administered, of a computer on the network.
Page 49: Busy Out Standby Media Server
Observe the Active/Standby and U2 LEDs on the front of the media server and the transmit LED on the duplication card on the back of the media server to ensure they are blinking. The blinking stops after about a minute. See ‘‘S8700 Media Server LEDs’’ on page 319 for more specific information.
Page 50: Connect Ups Ethernet Cables To Ethernet Switch
Connect the CAT5 straight-through cables from the UPS SNMP module to the Ethernet switch on the customer’s network. For a connectivity guide refer to Getting Started with the Avaya™ S8700 Media Server with G600 Media Gateway. Getting Started with the Avaya™ S8700 Media Server with MCC1 or SCC1 Media Gateway. October 2002...
Page 51: Configure The Upss
UPS will fail due to loss of power. Each UPS requires a unique IP address, which can be a customer-provided one or the Avaya-provided default one. Refer to the filled-out Job Aid entitled Pre-Installation Network Planning Form—S8700 Media Server: •...
Page 52 These steps are specifically for the Powerware 9125 UPS equipped with a ConnectUPS MX SNMP module. These steps use the default addresses and subnet masks for the S8700 Media Server for Multi-Connect Configuration. If other addresses are to be used they must be substituted when performing these steps.
Page 53: Duplex Reliability Configurations
Configure the UPSs NOTE: The Host Table should be empty. If not, in the following commands use a host table entry that is currently unassigned. Type HI1 198.152.254.201 and press (Sets the trap destination for this UPS 1) Enter. Type TL1 3 and press (Sets the trap level for the host, All traps) Enter.
Page 54 Configure the UPSs • Default Gateway IP address = 198.152.255.202 • Host Table trap receiver IP address = 198.152.255.202 Local network administrator supplied information as required for Get and Set • community name strings. Cable the RJ45 connector on the UPS 2 SNMP module to the next available port on the •...
Page 55: Configure The Avaya Ethernet Switch (If Used)
NOTE: These instruction apply only if using a new Avaya-supplied Avaya Ethernet switch. The SNMP subagent in the Ethernet switch must be administered so it can report alarms to the appropriate media server when the hardware experiences problems. Refer to the filled-out Job Aid entitled Pre-Installation Network Planning Form—S8700 Media Server for the proper...
Page 56 When completed, disconnect the services laptop computer from the Ethernet switch. If two Ethernet switches are present for CNA repeat steps 1 through 8 for the second switch. Refer to the Pre-Installation Network Planning Forms—S8700 Media Server for the proper addresses, masks, and community strings.
Page 57: Customizing The Active Media Server
Server Use Avaya Site Administration to administer the media server using the MultiVantage software. If you do not have Avaya Site Administration 1.11 on your computer or laptop, you must download it from the media server and install it. NOTE: You must use Avaya Site Administration 1.11 or higher to be able to administer new...
Page 58: Remotely Over The Network
On the computer launch Avaya Site Administration Click on File > New > Switch. Follow the Add Switch wizard to build a record. Give the record a name that indicates it will work with all Avaya S8700 media • servers.
Page 59: Input Translations
The following administration uses the services laptop computer connected to the active media server and uses Avaya Site Administration. If not already open, launch Avaya Site Administration. Log into the active media server as craft. Type reset system 4 and press...
Page 60: Administer And Enable The Ip Media Server Interface
Do this procedure only if the translations were not input earlier. The following administration uses the services laptop computer connected to the active media server and uses Avaya Site Administration. NOTE: This procedure enables the IPSI circuit packs and allows them to control the port networks.
Page 61: Add Ipsi Translations To Multivantage Software
An Asterisk (*) to the right of the Subnet Address field means that although a subnet address is displayed, it is not the correct one; the Avaya MultiVantage call processing software does not have the subnet information. After verifying the displayed information, submit this form with or without changes to update the Avaya MultiVantage software with the correct subnet information.
Page 62 Customizing the Active Media Server When using a DHCP server, verify that the fields associated with the Primary IPSI and Secondary IPSI (if equipped) are populated with default data.The Host: and DHCP ID: fields are set by the DHCP server. add ipserver-interface 4 Page 1 of...
Page 63: Install The Media Gateways
Designing the Avaya S8700 Media Server for Multi-Connect Configuration. Media gateways are typically installed in the same equipment room as the Avaya S8700 Media Server rack hardware; however, the media gateways can be installed in another location, including another state or country.
Page 64: Installing An Avaya Mcc1 Media Gateway
Installing an Avaya MCC1 Media Gateway Installing an Avaya MCC1 Media Gateway This section describes how to install Avaya MCC1 Media Gateways. Figure on page -64 shows a typical Avaya MCC1 Media Gateway. Typical Avaya MCC1 Media Gateway Port Carrier C...
Page 65: Unpack And Inspect Media Gateway
Check the customer’s order and the shipping packing lists to confirm all equipment is present. Check the S8700 Multi-Connect configuration adjuncts for damage and report all damage according to local shipping instructions. If any equipment is missing, report the information to your Avaya representative.
Page 66: Unpack And Inspect Auxiliary Cabinet
Ensure all circuit packs are fully inserted into the proper slots according to the System Diagram shipped with the S8700 Multi-Connect configuration. Report any discrepancies in circuit pack type or quantity to your Avaya representative. For detailed circuit pack descriptions, refer to Designing the Avaya S8700 Media Gateway for Multi-Connect Configuration.
Page 67: Correct Shipping Errors
Red-tag all defective and over-shipped equipment and return to the nearest Material Stocking Location (MSL). To contact the Avaya Order Exception group in the United States, call 1-800-772-5409. For international customers, contact your order service agent. Direct all short-shipped reports to the nearest MSL.
Page 68: Install Auxiliary Cabinet Equipment
Installing an Avaya MCC1 Media Gateway Install Auxiliary Cabinet Equipment The auxiliary cabinet allows for carrier, 23-in. (58.4 cm) rack, or panel mounting of the hardware. The following equipment is furnished with the media gateway: — • Fuse panel Distributes -48 VDC power to fused cabinet circuits —...
Page 69: Install Raised Computer Floor Mounting
‘‘Earthquake Mounting — Raised Computer Floor’’ on page NOTE: If the S8700 Multi-Connect configuration is supplied with cable ductwork, the media gateways must be level from front to rear and from side to side. They must be square with respect to each other to within ±1/8-in. (0.3 cm).
Page 70 NOTE: If the S8700 Multi-Connect configuration is supplied with cable ductwork, the media gateways must be level from front to rear and from side to side. They must be square with respect to each other to within +-1/8-in. (0.3 cm).
Page 71: Connect Ac Power And Ground
Configuration for site requirement information. CAUTION: The power circuit must be dedicated to the S8700 Multi-Connect configuration and must not be shared with other equipment and must not be controlled by a wall switch. The AC receptacle should not be located under the MDF.
Page 72: Power Requirements
Installing an Avaya MCC1 Media Gateway Power Requirements s8700 Multi-Connect configuration Power Requirements Maximum DEFINITY UL Rating Label Power Capacity Iac I n Max W I n BTU/Hr. 3245 11071.26 3276 11177.71 3120 10645.44 Power Supply Sources (J58890CE-1, J58890CE-2, and J58890CH-1) The connect AC power and ground procedures apply to the AC-powered media gateways.
Page 73: Grounding An Ac-Powered Media Gateway (J58890Ce)
Installing an Avaya MCC1 Media Gateway AC Power Sources and Plug Type Power Distribution Unit Power Sources Power Input AC power distribution Single-phase 120 VAC with 120 VAC, 60 Hz (J58890CE-1 and neutral NEMA 5-50R J58890CE-2) media Single-phase 240 VAC with...
Page 74 Installing an Avaya MCC1 Media Gateway Route the media gateway GROUND wire to the single-point ground block at the AC load center and connect. NOTE: If the media gateway is located remotely (in a separate room or building), connect the media gateway GROUND wire to an approved ground.
Page 75: Ground Ac Load Center More Than 50 Ft. (15.2 M) From Media Gateway
Installing an Avaya MCC1 Media Gateway Ground AC Load Center More Than 50 ft. (15.2 m) from Media Gateway Mount the single-point ground block to any surface between the media gateways and the AC load center single-point ground. The single-point ground block must be mounted to a non-metallic surface.
Page 76: Connect Battery Leads (J58890Ch-1)
Installing an Avaya MCC1 Media Gateway Typical Media Gateway Grounding Wiring Diagram widfspgb KLC 100297 Figure notes First Media Gateway 6 AWG (#40) (16 4 mm ) Ground Wire to Approved Ground Additional Media Gateways (if installed) AC Load Center Single-Point Ground...
Page 77: Connect Small Battery Holdover
Installing an Avaya MCC1 Media Gateway Be sure the main power to the power distribution unit is OFF. At the power distribution unit, set all carrier circuit breakers OFF. Typical Small Battery Assembly Battery connector psdfbatb RPY 061797 Connect Small Battery Holdover Connect the small battery holdover cable to J20.
Page 78: Connect Large Battery Holdover
External Alarm Cable Connect Large Battery Holdover When using large battery holdover, 1 battery media gateway is required for every S8700 Multi-Connect configuration media gateway requiring holdover. The 24-cell battery media gateway must have a float voltage of 54.2 VDC.
Page 79 ) black cable 1 AWG (50 mm ) 50 ft. (15.2 m) cable to large battery media gateway. For cables greater than 50 ft. (15.2 m), contact your Avaya representative. Ground Terminal Block To AC load center or approved single-point ground block...
Page 80: Connect Shorting Cable To J58890Ce-2
Shorting Cable (H600-442-G1) (if battery charger is not installed) Connect AC Power Set the main circuit breakers on the power distribution unit OFF. Connect media gateway AC line cords to the AC power receptacles. NOTE: Do not power up the S8700 Multi-Connect configuration at this time. October 2002...
Page 81: Connect Dc Power And Ground
Installing an Avaya MCC1 Media Gateway Connect DC Power and Ground CAUTION: Grounding of the S8700 Multi-Connect configuration shall comply with the general rules for grounding contained in Article 250 of the National Electrical Code, NFPA 70. For more information, refer to Approved Grounds.
Page 82: Install Rectifier Modules And Battery Interface Unit
Installing an Avaya MCC1 Media Gateway Typical Power and Ground for a DC power cabinet 1 AWG -48 V RTN -48 V 1 AWG -48 V RTN PN 1 -48 V 1 AWG -48 V RTN PN n 1 AWG...
Page 83: Connect Power And Ground(S)
Installing an Avaya MCC1 Media Gateway Install the first 2 RM0850HA100 Rectifier Modules (comcode 107793796) into the second and third slots of the power distribution unit. If 2 to 3 carriers are installed in the system, install a third rectifier module (N+1).
Page 84 ) black cable 1 AWG (50 mm ) 50 ft. (15.2 m) cable to large battery cabinet. For cables greater than 50 ft. (15.2 m), contact your Avaya representative. Ground Terminal Block To AC load center or approved single-point ground block...
Page 85 Installing an Avaya MCC1 Media Gateway Typical Media Gateway Grounding Wiring Diagram widfspgb KLC 100297 Figure notes First Media Gateway Additional Media Gateways (if installed) 6 AWG (#40) (16 mm2) Media Gateway GROUND Wire Single-Point Ground Block 6 AWG (#40) (16 4 mm2) Ground Wire...
Page 86: Install Coupled Bonding Conductor Wires
Connect DC Power cabinet Approved Ground NOTE: The wire must be at least as large as the largest distribution wire in the S8700 Multi-Connect configuration (required by UL). In this example 1 AWG is used. At the DC power cabinet, connect a 1 AWG (#70) (44 mm ) ground wire to the Ground Discharge Bar.
Page 87: Connect Ac Power To Dc Power Cabinet
Installing an Avaya MCC1 Media Gateway Connect AC Power to DC Power cabinet CAUTION: Power is present in the cabinet even if the AC power cable is unplugged. Turn off the main circuit breaker on the front of the cabinet when procedures require ALL power to be removed from the cabinet.
Page 88: Connect Dc Power To The Media Gateways
) black cable 1 AWG (50 mm ) 50 ft. (15.2 m) cable to large battery cabinet. For cables greater than 50 ft. (15.2 m), contact your Avaya representative. Ground Terminal Block To AC load center or approved single-point ground block Connect DC Power to the Media Gateways Be sure the main circuit breaker is OFF.
Page 89: Connect Dc Battery Cabinet To Dc Power Cabinet
AC/DC power cabinet configuration in the same equipment room with the first media gateway being DC powered and the next media gateway being AC powered. If a third media gateway is part of the S8700 Multi-Connect configuration, use the same basic connections.
Page 90: Connect Remote Power Off Cable
Installing an Avaya MCC1 Media Gateway Typical Power and Ground for a Mixed AC/DC-Powered Media Gateway -48V -48V -48V RTN Figure notes DC power supply Ground Discharge Bar Approved Ground 1 AWG up to 50 feet (15.2m) or engineered for less than 0.5 volt drop per conductor...
Page 91 Installing an Avaya MCC1 Media Gateway Route the opposite end of the wires to the EPO switch. The opposite end of the RPO cable connects to the internal relay. NOTE: The EPO switch and the auxiliary contacts (inside the EPO switch assembly) are customer-provided.
Page 92 Installing an Avaya MCC1 Media Gateway Remote Power Off Cable Connections — Part 1 psdf002i KLC 012400 Figure notes External Alarm Cable Connector RPO cable Circuit Breakers Pin 6 (-RPO) Pin 2 (+RPO) External Alarm Cable October 2002...
Page 93: Connect External Alarm Cable
Installing an Avaya MCC1 Media Gateway Remote Power Off Cable Connections — Part 2 Power Distribution Unit To Carriers A to E Shunt Relay Battery (K1) Cabinet Ground Terminal RPO Cable Auxiliary Contacts in EPO Switch 0026_3 RBP 080196 Connect External Alarm Cable Plug the external alarm cable into the connector shown in ‘‘External Alarm Cable...
Page 94: Check Commercial Power And Connect Ac Power
Installing an Avaya MCC1 Media Gateway Check Commercial Power and Connect AC Power Before powering up the S8700 Multi-Connect configuration, check the AC power using a KS-20599 digital voltmeter (DVM) (or equivalent). Set the DVM to the 250 volt range.
Page 95: Connect Fiber Optic Cables
Installing an Avaya MCC1 Media Gateway Connect Fiber Optic Cables NOTE: Always use the Cable Running List that accompanies the S8700 Multi-Connect configuration when installing fiber optic cables. The following procedure is a typical example of how to cable a S8700 Multi-Connect configuration.
Page 96: Connect High-Reliability Css-Connected Pn1
Installing an Avaya MCC1 Media Gateway Duplex- or High-Reliability CSS-Connected PN1 with 1 Switch Node cadfdup KLC 031202 Figure notes Media Gateway 1 (PN1 with 1 Switch Node) Port Networks 2 through 16 H600-278 Metallic Cable To other port networks...
Page 97: Connect Critical Reliability Css-Connected Pn1
Installing an Avaya MCC1 Media Gateway High-Reliability CSS-Connected PN1 with 1 Switch Node cadfcrr KLC 031202 Figure notes Media Gateway 1 (PN1 with 1 Switch Node) Port Network 2 through 15 H600-278 Metallic Cable To other port networks Connect Critical Reliability CSS-Connected PN1 with 1 Switch Node ‘‘Critical-Reliability CSS-Connected PN1 with 1 Switch Node’’...
Page 98 Installing an Avaya MCC1 Media Gateway Critical-Reliability CSS-Connected PN1 with 1 Switch Node cadfcrr KLC 031202 Figure notes Media Gateway 1 (PN1 with 1 Duplex Switch Node) Port Network 2 through 16 H600-278 Metallic Cable To other Port Networks October 2002...
Page 99: Installing An Avaya Scc1 Media Gateway Stack
Installing an Avaya SCC1 Media Gateway Stack Installing an Avaya SCC1 Media Gateway Stack This section describes how to install Avaya SCC1 Media Gateway stacks. ‘‘Typical Avaya SCC1 Media Gateway stack’’ on page 99 shows a typical Avaya SCC1 Media Gateway stack.
Page 100 Installing an Avaya SCC1 Media Gateway Stack Figure notes TDM Bus Terminator TDM Bus Connector TDM Bus Cable Connector SCC1 Media Gateway D TDM Cable SCC1 Media Gateway C TDM Bus Cable Connector SCC1 Media Gateway B TDM Bus Connector...
Page 101: Unpack And Inspect Media Gateways
WARNING: S8700 Multi-Connect configuration grounding must comply with the general rules for grounding contained in Article 250 of the National Electrical Code (NEC), National Fire Protection Agency (NFPA) 70, or the applicable electric code in the country containing the equipment.
Page 102: Check Circuit Packs
DANGER: If the label is different than the voltage type at the site, notify your Avaya representative immediately for a replacement power supply. Do not, under any circumstances, connect an incorrect power supply to a power source.
Page 103: Position The Media Gateway Stacks
Refer to the serial numbers and lettered designation strips in the Customer Service Document (CSD) when stacking the media gateways. If earthquake protection is required, skip to ‘‘Install Earthquake Protection for Avaya SCC1 Media Gateway’’ on page 103. Return to this section when finished.
Page 104 Installing an Avaya SCC1 Media Gateway Stack At the rear of the media gateway, remove the two hole plugs from the bottom of the media gateway. See ‘‘Media Gateway Earthquake Mounting — Rear View’’ on page 104. Insert a pencil or marker through the holes in the bottom of the media gateway and mark the floor directly beneath each hole.
Page 105 Installing an Avaya SCC1 Media Gateway Stack Figure notes Media Gateway Media Gateway Foot Nylon Insulating Washer (2 Required) Floor Plugs (Remove) Long Hex Head Bolt (2 Required) Concrete Floor Anchor Stiffener Concrete Floor Front Mounting Angle Location r781854a CJL 030896...
Page 106: Ground Dc Power Media Gateways
Ground DC power media gateways CAUTION: S8700 Multi-Connect configuration grounding shall comply with the general rules for grounding contained in Article 250 of the National Electrical Code (NEC), National Fire Protection Agency (NFPA) 70, or the applicable code at the installation site.
Page 107: Connect Dc Battery Frame Ground
Installing an Avaya SCC1 Media Gateway Stack Grounding for DC power cabinet dc_rect1 RBP 051396 Figure notes DC power cabinet To Approved Ground 1 AWG (#70) (7 mm ) Wire Ground Discharge Bar Connect DC Battery Frame Ground Cut a length of 6 AWG (#40) (4 mm ) wire long enough to reach between the DC power cabinet and the DC battery cabinet.
Page 108: Connect Dc Power Distribution Unit Ground
Installing an Avaya SCC1 Media Gateway Stack Frame Ground Wiring Between cabinet and Battery Cabinet dc_rect6 RBP 052996 Figure notes 6 AWG (#40) (4mm ) Wire Terminal Lug (Part of D-18181895) DC Battery Cabinet Pan Head Slotted Screw DC power cabinet...
Page 109: Connect Dc Power Cabinet Ground
At the DC power cabinet, connect the wire to the GROUND DISCHARGE bar. Route the wire to expansion control media gateway A and connect to the single-point ground block. Repeat for each expansion control media gateway A in the S8700 Multi-Connect configuration room. October 2002...
Page 110: Connect Dc Power
Installing an Avaya SCC1 Media Gateway Stack Ground for Media Gateway dc_rect4 RBP 032896 Figure notes 6 AWG (#40) (4 mm2) Wire Expansion Control Media Gateway A Single-Point Ground Block To Additional Expansion Control Media Gateways in Same Room DC Power Cabinet...
Page 111: Making Dc Power Connections
Installing an Avaya SCC1 Media Gateway Stack Making DC Power Connections A 30 foot (9 m) cable connects to each cabinet. A special connector on one end of the cable is plugged into the cabinet power connector. The cable must be cut to length and terminated inside the J58890R DC power cabinet.
Page 112 Installing an Avaya SCC1 Media Gateway Stack Typical DC Power Connections Figure notes Media Gateway Stack DC Power Cabinet White Wires Green Ground Wires and Black Wires Connect to the -48 VDC Return Bus -48 VDC Bus Connect White Wires to Circuit Breakers DC Power Cable (H600-436, G1) to Power Connector on Each Media Gateway.
Page 113 Installing an Avaya SCC1 Media Gateway Stack Connections Using DC Power Distribution Unit Figure notes Media Gateway Stack DC Power Cabinet DC Power Distribution Unit (position to right of the media gateway stack White Wire (connect to Circuit Breaker). See inset.
Page 114: Connect Ac Power To Dc Power Cabinet
Installing an Avaya SCC1 Media Gateway Stack DC Power Cabinet Stack — Rear pwrdist4 RBP 052896 Figure notes DC Power Cabinet Stack DC Power Cables Daisy Chained Between DC Power Cabinets Connect to -48 VDC Bus Connect to -48 VDC Return Bus...
Page 115: Connect Battery Cabinet
Installing an Avaya SCC1 Media Gateway Stack Connect Battery Cabinet CAUTION: Power is present in the media gateway even if the AC power cable is unplugged. Turn off the main circuit breaker on the front of the media gateway when procedures require ALL power to be removed from the media gateway.
Page 116: Connect Optional Battery Leads
Installing an Avaya SCC1 Media Gateway Stack Connect Optional Battery Leads To prevent the internal batteries from discharging, the Control media gateway is shipped with the battery leads disconnected. Set the circuit breakers OFF. See ‘‘Expansion Control Media Gateway Battery Location —...
Page 117: Ground And Connect Ac-Powered Media Gateways
Ground and Connect AC-Powered Media Gateways CAUTION: S8700 Multi-Connect configuration grounding shall comply with the general rules for grounding contained in Article 250 of the National Electrical Code (NEC), National Fire Protection Agency (NFPA) 70, or the applicable code at the installation site.
Page 118 Installing an Avaya SCC1 Media Gateway Stack Typical AC Power and Ground Layout — Rear r781851b CJL 030896 Figure notes Expansion Control Media Gateway A in Stack 1 Circuit Breaker AC Power Receptacle Media Gateway Stack Single-Point Ground Block 8-foot (2.5 meters) Power Cord...
Page 119: Set The Ringer Frequency
Installing an Avaya SCC1 Media Gateway Stack Set the Ringer Frequency CAUTION: When adding or replacing any hardware, be sure to ground yourself against electrostatic discharge (ESD) by wearing a grounded wrist strap. The default ringer frequency setting on the 1217A power supply for North America is 20 Hz and the international setting can be either 20 Hz or 25 Hz.
Page 120 Installing an Avaya SCC1 Media Gateway Stack Connections for Media Gateway Stacks cadfdcr KLC 031202 Figure notes AHF110 TDM Bus Terminator AHF110 TDM Bus Terminator TDM/Local Area Network (TDM/LAN) Port Media Gateway D Pinfield (Slot 17) Port Media Gateway C...
Page 121: Verify Port Media Gateway Address Plugs
Installing an Avaya SCC1 Media Gateway Stack Verify Port Media Gateway Address Plugs The address plug is a jumper field on port media gateways (J58890H) only. The address plug is located on the far right hand side of the backplane, to the right of slot 00.
Page 122: Install Rear Panels
Installing an Avaya SCC1 Media Gateway Stack Install Rear Panels Install the rear panels and loosely thread each screw. See ‘‘Rear Panel Screw Locations’’ on page 122. For un-stacked media gateways, tighten the screws securely. For a stack of media gateways, allow the screws labeled callout 4 to remain loose. These screws are tightened when the ground plates are installed.
Page 123: Install Rear Ground Plates (Media Gateways With Earthquake Protection)
Installing an Avaya SCC1 Media Gateway Stack Install Rear Ground Plates (Media Gateways with Earthquake Protection) Ground plates are installed between stacked media gateways, provide the ground connection between media gateways, provide radio frequency (RF) radiation protection, and help stabilize the media gateways.
Page 124: Install Front Ground Plates (Media Gateways With Radiation Shielding And Earthquake Protection)
Installing an Avaya SCC1 Media Gateway Stack Rear Ground Plate and Front Plate or Media Gateway Clip — Side View grdpltec LJK 031096 Figure notes Front Ground Plate or Media Gateway Clip Battery Rear Ground Plate Install Front Ground Plates (Media Gateways with...
Page 125 Installing an Avaya SCC1 Media Gateway Stack Use the front ground plate instead of the media gateway clip to attach the media gateways to each other. Use one front ground plate between two stacked media gateways. At the front of the media gateways, align the holes in the top of the front ground plate with the holes at the bottom of the upper media gateway, and insert the four screws.
Page 126: Install Media Gateway Clips (Media Gateways Without Earthquake Protection)
Installing an Avaya SCC1 Media Gateway Stack Install Media Gateway Clips (Media Gateways without Earthquake Protection) A media gateway clip is required between each pair of stacked media gateways. At the front of the media gateways, install a media gateway clip between each pair of media gateways by hooking the clip into the slot of the upper media gateway and snapping the straight leg of the clip into the slot on the lower media gateway.
Page 127: Connect S8700 Multi-Connect Configuration Cables
141. Connect the fiber optic cable. The “Inter-Cabinet Cable Running List is provided with the S8700 Multi-Connect configuration.” Each row on the list represents a cable connection. Use the running list to determine where to connect each fiber optic cable.
Page 128 Installing an Avaya SCC1 Media Gateway Stack cadfdcr KLC 031202 Figure notes AHF110 TDM Bus Terminator (Slot 17) AHF110 TDM Bus Terminator (Slot 01) TDM/Local Area Network (TDM/LAN) Pinfield (Slot 17) Port Media Gateway D TDM bus Cable (WP-91716 L3)
Page 129: Install The Stratum 3 Clock
MDF area. Position the clock cabinet in the designated location. If earthquake protection is required, skip to‘‘Install Earthquake Protection for Avaya SCC1 Media Gateway’’ on page 103 ‘‘Install Earthquake Protection for Media Gateway’’ on page 68 If earthquake protection is not required, level the cabinets and adjust and lock the cabinet stabilizing bolts to keep the cabinet from moving.
Page 130: Check And Connect Commercial Ac Power
Set all cabinet power modules OFF. Plug the AC power cable into the receptacle. Connect DC Power and Ground to Stratum 3 Clock Cabinet Provide power for the clock cabinet from the same DC power plant as the S8700 Media Server for Multi-connect configuration. Ground the clock cabinet to the DC power plant.
Page 131: Connect Clock Cabinet Grounding
Install the Stratum 3 clock Connect Clock Cabinet Grounding Measure and cut a 6 AWG (#40) (16 mm ) wire long enough to reach from the clock cabinet to the ground discharge bar in the DC power plant. Insert 1 end of the wire into the ground lug on the clock cabinet and tighten the screw. Attach the lug to the receptacle cover.
Page 132 Install the Stratum 3 clock CI Option Switch Settings Switch Function Position CC Select OFF = enable ON = disable (default) Framing Select OFF = ESF ON = D4 (default) BX.25 OFF = enable ON = disable (default) ST3 Clock Circuit Pack Option Switch Settings Switch Status/Results OFF = minor alarm never output...
Page 133: Cable The Stratum 3 Clock
Install the Stratum 3 clock NOTE: Set switches 1 and 2 according to the distance from the Stratum 3 clock to the S8700 Media Server for Multi-connect configuration. Set switch 3 to ON. Set switch 4 to OFF. Cable the Stratum 3 Clock ‘‘Typical Connections to Stratum 3 Clock’’...
Page 134 Install the Stratum 3 clock Figure notes SCC1 Cabinet (PN) Channel Service Unit (Primary) “A” Position Stratum 3 Clock “B” Position Main Distribution Frame (MDF) H600-307 Cable DS1/E1 Interface Circuit Pack H600-247 G2 Cable DS1 Tie Trunk Circuit Pack 1300 Feet (396 m) DS1 Interface Circuit Pack B25A (Male-to-Female) Cable Tone-Clock Circuit Pack...
Page 135: Install The Stratum 3 Clock Wiring
Install the Stratum 3 clock Install the Stratum 3 Clock Wiring Connect the B25A cables from the TN780 connector panel slot on the S8700 Multi-Connect configuration cabinet and the Stratum 3 Clock to the cross-connect module in the yellow field.
Page 136 Install the Stratum 3 clock Cross-Connects for Standard Reliability From: Stratum 3 Clock To: Y Cable Clock End (Primary) Connecting Connecting Lead Block Lead Block Designation Lead Color Terminal Designation Lead Color Terminal RREF1 W-BL TREF1 BL-W To: Y Cable Clock End (Secondary) RREF2 TREF2 To: Tone-Clock Carrier A...
Page 137 Install the Stratum 3 clock Cross-Connects for High or Critical Reliability From: Stratum 3 Clock To: Y Cable Clock End (Primary) Connec Connec ting ting Block Block Lead Lead Termin Lead Lead Termin Designation Color Designation Color RREF1 W-BL TREF1 BL-W To: Y Cable Clock End (Secondary)
Page 138 Install the Stratum 3 clock Cross-Connects for High or Critical Reliability From: Stratum 3 Clock To: Y Cable Clock End (Primary) Connec Connec ting ting Block Block Lead Lead Termin Lead Lead Termin Designation Color Designation Color CCA01R V-BL EXTSYN0T CCA01T BL-V EXTSYN0R...
Page 139: Installing The Avaya G700 Media Gateway
An Avaya G700 Media Gateway or an Avaya G700 Media Gateway with an S8300 Media Server configured as a Local Spare Processor (LSP) may be added to either a S8700 Multi-Connect or IP Connect configuration. To add a G700 Media Gateway, you must have a TN799DP C-LAN circuit pack installed in the MCC1, SCC1, or G600 Media Gateway.
Page 140 Installing the Avaya G700 Media Gateway Sample configuration showing an Avaya MCC1 Media Gateway with an Avaya G700 Media Gateway IPSI CLAN IP Media Processor Voice Mail cydcrbro KLC 080202 Figure notes S8700 Media Servers G700 Media Gateway connected via the LAN to the TN799DP...
Page 141: Cabling Media Gateways
Cabling Media Gateways Cabling Media Gateways This section provides both information about installing the telecommunications cabling and procedures for doing the installation. Information about Installing the Cabling • ‘‘Provisioning Plan’’ on page 143 ‘‘Main Distribution Frame (MDF) Hardware’’ on page 144 •...
Page 142: Installing The Telecommunications Cabling
Installing the Telecommunications Cabling Installing the Telecommunications Cabling ‘‘Label Expansion Control Carrier Cable’’ on page 177 ‘‘Connect Expansion Control Carrier Outputs Cable’’ on page 177 ‘‘Connect Trunk Pairs Using Concentrator Cables’’ on page 178 ‘‘Connect Trunk Pairs to Media Gateway Using Jumper Wires To Establish 3-Pair Modularity’’...
Page 143: Provisioning Plan
Provisioning Plan A provisioning plan should be completed prior to an installation. The plan determines an appropriate available port circuit on the S8700 Multi-Connect configuration for each telephone, trunk, and peripheral connection needed, and any auxiliary power for Basic Rate Interface (BRI) and certain display sets.
Page 144: Main Distribution Frame (Mdf) Hardware
110P. The 110P includes horizontal and vertical cable troughs for managing cross-connect cables. The S8700 Multi-Connect configuration is connected to the MDF with the supplied B25A male to female 25-pair cables. The cables are provided in 10-foot (3 m) and 15-foot (4.5 m) lengths.
Page 145 Main Distribution Frame (MDF) Hardware Example MDF Connections (Avaya SCC1 Media Gateway) 25-Pair Yellow Field Cable 25-Pair Cable Network Intrface 25-Pair Cable 25-Pair Cable 25-Pair Cable 12 11 10 09 08 07 06 04 03 02 01 0016_0 RBP 052396...
Page 146 Main Distribution Frame (MDF) Hardware Example MDF Connections (Avaya MCC1 Media Gateway) Port MET Line Port Tie Trunk 4 Port Tie Trunk w/ E&M Signaling Port Analog Port CO Port Data Line Port DID Port Digital Port Hybrid Port BRI...
Page 147: Mdf Cross-Connect Fields
The purple field terminates the trunk circuits from the S8700 Multi-Connect configuration with WP-90929, List 1 or 3 concentrator cables. Also, 25-pair cables can be used to terminate trunk circuits from the S8700 Multi-Connect configuration with each trunk circuit pack connecting to one 25-pair row of the 110-type terminal block.
Page 148: Main Distribution Frame
Main Distribution Frame Main Distribution Frame The preferred location of the Main Distribution Frame (MDF) is directly behind the Avaya SCC1 Media Gateway stack or the Avaya MCC1 Media Gateway. ‘‘Typical 110A-Type Terminal Blocks (SCC)’’ on page 148 shows a typical Avaya SCC1 Media Gateway installation using 110A-type terminal blocks, and ‘‘Typical 110P-Type Terminal Blocks (MCC)’’...
Page 149 Main Distribution Frame Typical 110P-Type Terminal Blocks (MCC) mccmdf KLC 060596 Figure notes Avaya MCC1 Media Gateway Station Distribution Field Z113A Cable Slack Manager Port Distribution Field 25-Pair Cable to Media Gateway Trunk/Auxiliary Field Station Cables October 2002...
Page 150: Main Distribution Frame Labels
Main Distribution Frame Labels ‘‘Label Graphic Symbols and Nomenclature’’ on page 150 shows the graphic symbols used on labels for the S8700 Multi-Connect configuration, cross-connections, information outlets, and cables. The labels are color-coded to identify S8700 Multi-Connect configuration wiring: — • Green To Central Office (CO) —...
Page 151: Off-Premises Circuit Protection
UL listed/CSA certified, or must comply with local safety standards. Sneak current protectors must have a maximum rating of 350 mA, and a minimum voltage rating of 600 V, or as required by local regulations. The following devices protect the S8700 Multi-Connect configuration from over-voltages: •...
Page 152: Sneak Fuse Panels
Sneak Fuse Panels Sneak current protection is required between the incoming RJ21X or RJ2GX network interface and the S8700 Multi-Connect configuration for both trunk and off-premise circuit packs. The Model 507B sneak current fuse panel, or equivalent, is recommended for sneak current protection.
Page 153: Cable Installation
Cable Installation Cable Installation NOTE: To route the cables from the rear of the SCC stack or MCC to the MDF, use the ‘‘Install Cable Slack Managers’’ on page 187 procedure. Also see ‘‘Cable Slack Manager’’ on page 159. This section has information about ‘‘Equipment Room Cabling Labels’’...
Page 154: Cable Routing Guidelines
Cable Installation Cable Routing Guidelines ‘‘Cable Routing to Top Terminal Blocks’’ on page 156 ‘‘Cable Routing to Bottom Terminal Blocks’’ on page 157 show typical cable routing from the media gateway to the top and bottom of the MDF, respectively. Use these guidelines when routing cables from the media gateway to the MDF.
Page 155: Trunk Cables Among Network Interface, Sneak Fuse Panel, And Media Gateway
Cable Installation Trunk Cables Among Network Interface, Sneak Fuse Panel, and Media Gateway The 1-pair of Central Office (CO) trunks are installed by the network provider in the green field. Up to 24 pairs may be terminated on each row of the 110-type terminal block. Tie trunks also appear in the green field with up to eight 3-pair trunks terminated on each row of the 110-type terminal block.
Page 156 Cable Installation Cable/Connector/Building Label Ordering Information Description Quantity Comcode 201A Labels 34 Sheets 103969994 Self-Stick Label on 25-Pair Cable Connector Cable Routing to Top Terminal Blocks r758424b MMR 052996 Figure notes Main Distribution Frame Cable Slack Manager Number 2 AC Power Cord (AC-Powered Media Cable Slack Manager Number 3 Gateways Only) Media Gateway(s)
Page 157 Cable Installation Cable Routing to Bottom Terminal Blocks r758432b MMR 052996 Figure notes Main Distribution Frame Cable Slack Manager Number 2 AC Power Cord (AC-Powered Media Cable Slack Manager Number 3 Gateways Only) Media Gateway(s) Cable Slack Manager Number 1 Building Cables (Through Cable Trunk/Auxiliary Field Trough)
Page 158: Coupled Bonding Conductor
Coupled Bonding Conductor Coupled Bonding Conductor The Coupled Bonding Conductor (CBC) connects to the single-point ground block and runs adjacent to pairs in an associated telecommunications cable. The mutual coupling between the bonding conductor and the pairs reduces potential differences in terminating equipment. The conductor consists of a 10 AWG (#25) (2.5 mm ) wire tie-wrapped to the inside wiring cable and terminated at the CBC terminal bar at the Main Distribution Frame (MDF).
Page 159: Installation Space Requirements
Installation Space Requirements Installation Space Requirements This section has information about ‘‘Sneak Fuse Panels and Emergency Transfer Units’’ on page 159 ‘‘110-Type Hardware’’ on page 159 ‘‘Cable Slack Manager’’ on page 159 Sneak Fuse Panels and Emergency Transfer Units Approximately eight inches (20 cm) of horizontal wall space is required for each column of sneak fuse panels.
Page 160: Station Wiring Design
Station Wiring Design Station Wiring Design The following hardware and cabling is used: • ‘‘Information Outlets’’ on page 160 (modular wall jacks) • ‘‘Station Cables’’ on page 160 ‘‘Closets’’ on page 161 • • Site locations Satellite locations • A brief description of each of the above listed items follows. Ordering information is not provided for station cables and information outlets.
Page 161: Closets
Station Wiring Design • 75 ft (22.86 m) • 100 ft (30.5 m) 150 ft (45.72 m) • • 200 ft (61 m) NOTE: If more than 200 ft (61 m) of 4-pair station cable is required, a 451A in-line adapter (double-ended modular female connector) is attached to the cable and a second 4-pair cable of the required length is plugged into the adapter.
Page 162: Satellite Locations
Station Wiring Design Use theZD8AJ adapter to connect a Multi-button Electronic Telephone (MET) line cord to an information outlet. The adapter interchanges pairs 3 and 4 to correspond with the pair assignments for the telephone. The line cord plugs into the adapter, and then the adapter plugs into an information outlet.
Page 163 Station Wiring Design Example of Extending 4-Pair Station Cables crdfad1 CJL 101596 Figure notes Station Cable 258A Adapter Information Outlet 4-Pair Station Cable 451A In-Line Adapter 258A and BR2580A Adapters crdfadp CJL 101596 Figure notes BR2580A Adapter 25-Pair Male Ribbon Connector 258A Adapter 4-Pair Modular Jacks (8 Pins) October 2002...
Page 164 Station Wiring Design 356A Adapter crdf356 CJL 101296 Figure notes 356A Adapter 4-Pair Modular Jacks (6 pins each, connected to 25-pair ribbon connector) Adapter Ordering Information Description Comcode 258A Adapter 102605136 BR2580A Adapter 403384720 356A Adapter 104158829 400B Adapter 103848859 400B2 Adapter 104152558 ZD8AJ Adapter...
Page 165: Station Circuit Distribution From Equipment Room
‘‘4-Pair Station Circuits’’ on page 165 • ‘‘3-Pair to 4-Pair Station Circuit Distribution’’ on page 165 • Lists of terminals that can be connected to the S8700 Multi-Connect configuration are provided ‘‘Voice and Data Terminals’’ on page 170 • •...
Page 166 Station Circuit Distribution from Equipment Room Three-pair circuits can also be run directly from the equipment room MDF to a 356A adapter as shown in ‘‘3-Pair to 4-Pair Circuit Distribution and Connectivity’’ on page 169. Four-pair station cables connect the adapter to the information outlets. Four-pair station cables can be run directly from a satellite location to the information outlets as previously described.
Page 167 Station Circuit Distribution from Equipment Room 4-Pair Run to Equipment Room or Satellite Location r764798a CJL 030796 Figure notes Station Side of MDF or Satellite Location 4-Pair Circuit Blue Field DIW Station Cable (D-Inside Wire) Information Outlet 4-Pair Run to Equipment Room or Satellite Location r758532a CJL 031196 Figure notes Part of MDF...
Page 168 Station Circuit Distribution from Equipment Room 3-Pair to 4-Pair Satellite Location Connectivity Figure notes Part of MDF Connectorized (staggered finger) Multiple 25-Pair Cable 3-Pair Connecting Blocks 4-Pair Connecting Blocks Purple Field Blue Field White Field 258A or BR2580A Adapter Patch Cord or Cross-Connect Jumpers Information Outlet To Media Gateway (3 Pair Modularity)
Page 169 Station Circuit Distribution from Equipment Room 3-Pair to 4-Pair Circuit Distribution and Connectivity r758533a CJL 031196 Figure notes Part of Main Distribution Frame B25A Cable (MDF) 3-Pair Circuits 3-Pair Connecting Blocks 356A Adapter Purple Field Information Outlet Blue Field 3-Pair Circuit in 4-Pair Wire Patch Cord or Cross-Connect Jumpers DIW Station Cable (D-Inside Wire) To Media Gateway (3-Pair...
Page 170: Voice And Data Terminals
Voice and Data Terminals Voice and Data Terminals • ‘‘Administration Terminals’’ on page 172 These voice and data terminals can connect to the S8700 Multi-Connect configuration. Voice and Data Terminals Type Multi-button Electronic Telephone (MET) sets: Voice 10, 20, 30 Button...
Page 171 Voice and Data Terminals Voice and Data Terminals Type ZE01A Expansion Module for 8434Dx Voice and Features Cordless Hybrid: Voice MDW 9000 (TransTalk 9000) MDC 9000 DCP Data interface: Data and Constellation Automatic Call Distribution (ACD) data terminal voice PassageWay interface: Data and Consoles: voice...
Page 172: Administration Terminals
MultiVantage Software is accomplished via Web interface. This requires a Netscape or Internet Explorer browser. Administration of the Avaya MultiVantage Software is accomplished via Avaya Site Administration (Avaya SA). Avaya SA is available on the S8700 Media Server. October 2002...
Page 173: Layout
Layout Layout This section has information about • ‘‘Information Outlet Locations’’ on page 173 • ‘‘Site, Satellite, and Adapter Locations’’ on page 173 ‘‘Sizing 4-Pair Station Cables’’ on page 173 • • ‘‘Sizing 25-Pair and Multiple 25-Pair Station Cables’’ on page 173 ‘‘3-Pair Station Cable Circuits’’...
Page 174: 3-Pair Station Cable Circuits
Layout Use 25-pair B25A cables to connect adapters directly to the MDF or satellite location. Staggered-finger cables, equipped with factory-installed 25-pair connectors at both ends, should be used when multiple 25-pair cables are used between the equipment room or satellite location and the adapters.
Page 175: Patch Cord/Jumper Installation And Administration
Patch Cord/Jumper Installation and Administration Patch Cord/Jumper Installation and Administration Before starting the patch cord installation, obtain a copy of the Port Assignment Record forms from the customer or marketing representative. See ‘‘Port Assignment Record Form’’ on page 175. These forms contain the port assignments and identify the extension numbers (Terminal No.) of the telephones/voice terminals.
Page 176 Patch Cord/Jumper Installation and Administration Example 3-Pair Labeling to Information Outlet crdf5pr CJL 103096 Figure notes Equipment Room D-Inside Wire Cut Down to Connecting Block Satellite Location 258A Adapter Work Location Information Outlet White Row on 110 Terminal Block Voice Terminal Purple Row on 110 Terminal Block To Port Connector on Media Gateway Blue Row on 110 Terminal Block...
Page 177: Label Expansion Control Carrier Cable
Patch Cord/Jumper Installation and Administration Example 4-Pair Labeling to Information Outlet crdf4pr CJL 102996 Figure notes Equipment Room 258A Adapter To Central Location for Terminals 1 D-Inside Wire Cut Down to through 6 Connecting Block Blue Row on 110 Terminal Block Information Outlet Purple Row on 110 Terminal Block Voice Terminal...
Page 178: Connect Trunk Pairs Using Concentrator Cables
Patch Cord/Jumper Installation and Administration Plug the connector cable in the AUX connector on the rear of the Expansion Control Carrier. Route the connector cable through the cable slack manager to the assigned 110-type terminal block in the yellow field of the trunk/auxiliary field. Connect Trunk Pairs Using Concentrator Cables ‘‘Connect Trunk Pairs Using Concentrator Cables’’...
Page 179: Connect Trunk Pairs To Media Gateway Using Jumper Wires To Establish 3-Pair Modularity
Patch Cord/Jumper Installation and Administration Connect Trunk Pairs Using Concentrator Cables NEW796 THC 031296 Figure notes Trunk/Auxiliary Field Alternate Block/Rows To Expansion Control Carrier AUX RJ21X/RJ2GX Network Interface Connector Sneak Fuse Panel Concentrator Cable (WP90929, List B25A Cable Central Office Trunks Concentrator Cable (WP90929, List Media Gateway A25D (Male-to-Male) Cable...
Page 180 Patch Cord/Jumper Installation and Administration To connect the trunk pairs to the purple field: Connect B25A cables between the network interface and the sneak fuse panels. See ‘‘3-Pair Modularity for Trunk Pairs for 1-Pair Trunks’’ on page 180. Connect A25D/B25A cables from the sneak fuse panels to the 110-type terminal block-type connecting block connectors in the green field.
Page 181: Install Cables Between Media Gateway And Mdf
Patch Cord/Jumper Installation and Administration 3-Pair Modularity for Trunk Pairs for 3-Pair Tie Trunks 1 2 3 4 5 6 7 8 9 10 11 12 18 19 20 21 22 23 24 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 r758537b MMR 031496 Figure notes...
Page 182 Patch Cord/Jumper Installation and Administration equipment is connected to the 110-type wiring block. The wiring block is pre-wired to four 25-pair female connectors mounted on the outside rear of the cabinet. Install “D” rings on the wall between the cable slack manager and the terminal/connecting blocks mounted on the MDF.
Page 183: Mount 110A- Or 110P-Type Terminal Blocks On The Wall
Patch Cord/Jumper Installation and Administration Mount 110A- or 110P-type terminal blocks on the wall The 110A-type terminal blocks can be stacked in almost any arrangement at any height or location on the wall. One arrangement is shown in ‘‘110A-Type Terminal Blocks (300-Pair)’’ on page 184.
Page 184 Patch Cord/Jumper Installation and Administration If installing another distribution field terminal block, partially install the first screw for the terminal block, on the line, 7/8-in. (2.2 cm) to the right of the previous screw. Partially install the second mounting screw 7-11/16 in. (19.5 cm) to right of the screw just installed.
Page 185: Mount 110P-Type Terminal Blocks On A Frame
Patch Cord/Jumper Installation and Administration 110P-Type Terminal Blocks (900-Pair) r758421b MMR 031496 Figure notes 4 ft (1.22 m) 7/8-in. (2.22 cm) Horizontal Line 23 in. (58.4 cm) 7.68 in. (19.5 cm) 8 ft (2.43 m) 47.5 in. (120.6 cm) AC Power Strip 5.31 in.
Page 186 Patch Cord/Jumper Installation and Administration Each 1110A2 provides the space to mount 5 terminal blocks/patch cord troughs on each side of the frame. A cable support structure, apparatus mounting 1110C1, mounts directly on top of the 1110A2 and provides support for all cables routed to and from the frame. See ‘‘Apparatus Mounting Frame Ordering Information’’...
Page 187: Install Cable Slack Managers
Holes are provided in the sides of the base for bolting cable slack manager together. Bolts and shims must be obtained locally. The S8700 Multi-Connect configuration cables will route through the cable slack manager as shown. Complete cable routing is covered later in this chapter.
Page 188: Install Sneak Fuse Panels
Patch Cord/Jumper Installation and Administration Cable Routing Through Cable Slack Manager (SCC) r758155 CJL 031496 Figure notes Top of Media Gateways Cable Slack Manager (Cover Removed) Cable Clamps Main Distribution Frame (MDF) Cable Ties (Optional) Route Cables Along Path Shown Power Cord Port Cables Cable Slack Manager...
Page 189 Patch Cord/Jumper Installation and Administration Hold the panel against the mounting surface and mark the mounting screw locations. Drill pilot holes at the marked locations and partially install a locally obtained #12 x 3/4-inch screw into the two bottom mounting slots. Slide the sneak fuse panel onto the mounting screws and tighten the screws securely.
Page 190 Patch Cord/Jumper Installation and Administration Sneak Fuse Connector Pinout Connector Pin Numbers Pair/Fuse Number 31/6 32/7 33/8 34/9 35/10 36/11 37/12 38/13 39/14 40/15 41/16 42/17 43/18 44/19 45/20 46/21 47/22 48/23 49/34 50/25 October 2002...
Page 191: Install Coupled Bonding Conductor
Cut a 10 AWG (#25) (2.5 mm ) wire long enough to reach from the S8700 Multi-Connect configuration’s single-point ground block or DC power media gateway Ground Discharge Bar to the MDF CBC block.
Page 192 Patch Cord/Jumper Installation and Administration Coupled Bonding Conductor cbc_gnd_1 PDH 062696 Figure notes 25-Pair Tip & Ring Cables to Media To Network Media Gateways Gateways Battery Plant Ground Discharge Bar Coupled Bonding Conductor (CBC) for Single-Point Ground Terminal Block Cross-Connect Ground Block Tie Wraps Main Distribution Frame (MDF) Cable Shield or Six Spare Pairs...
Page 193: Connect The Hardware
This section covers the following tasks: • ‘‘Connect the Ethernet switch cables to IPSI circuit packs’’ on page 193 • ‘‘Connect Avaya SCC1 media gateway IPSI and maintenance circuit pack ribbon cables’’ on page 199 • ‘‘Program the IPSI circuit packs’’ on page 205 ‘‘Using DHCP addressing’’...
Page 194 Connect the Hardware cadscat1 KLC 032602 Figure notes Media Gateway B Ground plate Media Gateway A Lower rear cover Upper rear cover Run the 25- or 50-m green CAT5 cable from the Ethernet switch through the media gateway, using a cable pass-thru tool. October 2002...
Page 195 Connect the Hardware M AJ M IN cadscat2 KLC 032602 Install the clamp on ferrite on the CAT5 Ethernet cable. WARNING: The ferrite must be located as close to the exit of the media gateway as possible. October 2002...
Page 196 Connect the Hardware cadscat4 KLC 032602 cadscat4 KLC 032602 Figure notes Media Gateway B Clamp on ferrite Media Gateway A WARNING: The ferrite must be located as close to the exit of the media gateway as possible. Connect the green CAT5 cable to the bottom connector on the front of the TN2312AP IPSI circuit pack in media gateway A.
Page 197 Connect the Hardware M AJ M IN Replace the rear covers and the ground plate. Dress the CAT5 Ethernet cable to exit either the left or right side of the media gateway. October 2002...
Page 198 Connect the Hardware cadscat5 KLC 032602 cadscat5 KLC 032602 Figure notes Ground Plate For high or critical reliability, repeat steps 1 through 5 for the IPSI circuit pack in media gateway B using a red CAT5 Ethernet cable. Replace the upper and lower rear covers. Replace the ground plate. October 2002...
Page 199: Connect Avaya Scc1 Media Gateway Ipsi And Maintenance Circuit Pack Ribbon Cables
Connect the Hardware Connect Avaya SCC1 media gateway IPSI and maintenance circuit pack ribbon cables Remove the ground plate, upper and lower rear covers from the SCC1 media gateway(s). cadscat1 KLC 032602 Figure notes Media Gateway B Ground plate Media Gateway A...
Page 200 Connect the Hardware Thread the ribbon through the slot on the front panel. Attach the other end of the short ribbon cable to the bottom connector on the component side of the TN775D maintenance circuit pack (red line on the bottom). October 2002...
Page 201 Connect the Hardware Push the tabs on the ends of the connector inward to lock the connector in place. Thread the ribbon through the lower slot on the faceplate of the TN775D circuit pack. For high or critical reliability configuration use the pass through tool to feed the long ribbon cable through media gateway A.
Page 202 Connect the Hardware M AJ M IN cadsrib2 KLC 032602 Plug the ribbon cable into the top connector on the component side of the TN775D maintenance circuit pack. Push the tabs on the ends of the connector inward to lock the connector in place. Thread the ribbon cable through the remaining slot on the faceplate of the TN775D circuit pack.
Page 203 Connect the Hardware cadsrib4 KLC 032602 Figure notes Media Gateway B TDM cable slot Media Gateway A Use the pass through tool to feed the long ribbon cable through media gateway B. Connect the long cable to the connector on the component side of the TN2312AP IPSI in media gateway A.
Page 204 Connect the Hardware M IN M AJ M IN M AJ M IN cadsrib3 KLC 032602 cadsrib3 KLC 032602 Fully insert the TN775D and TN2312AP circuit packs. If the CAT 5 Ethernet cables have already been run to the IPSI circuit packs replace the upper and lower rear covers.
Page 205: Program The Ipsi Circuit Packs
Using dynamic host configuration protocol (DHCP—most common) Using static IP addressing (less common) • The IPSI circuit packs associated with the S8700 Media Server for Multi-connect configurations use the DHCP method. In rare cases the S8700 Multi-connect IPSIs may use the static addressing method. October 2002...
Page 206: Using Dhcp Addressing
Connect the Hardware IPSI circuit packs associated with the S8700 Media Server for IP connect configurations always use the static addressing method. NOTE: Before beginning, read this procedure to familiarize yourself with it. With DHCP addressing there are certain sequences that need to be completed prior to a predetermined time-out interval.
Page 207 Connect the Hardware NOTE: If you have only one multi-connect configuration, the default switch ID is A, which was administered earlier. The second configuration would be B and so on. The switch ID is not the carrier letter. While the display is flashing, press the button until the switch ID (A through J) shows on the top character of the LED display.
Page 208: Using Static Addressing
Connect the Hardware All segments of the display will go dark for one second and then the Switch ID and Cabinet number will be displayed in the top three characters of the LED display. A ’V’ will be shown in the fourth character (bottom) of the display. When an address has been assigned to the IPSI by the DHCP server, the center of the ’V’...
Page 209 Connect the Hardware Connecting directly to the IPSI cadlipsi KLC 031502 Figure notes Services laptop NIC adapter cable (if necessary) PCMCIA Network Interface Card (NIC) CAT5 crossover cable to IPSI Connect the services laptop computer to the top port on the IPSI circuit pack faceplate. Click Start >...
Page 210 Connect the Hardware NOTE: The craft login used on the IPSI has a different password than the craft login used on the media servers. Log in as craft. Prompt = [IPADMIN]: Type set control interface <ipaddr><netmask>, where <ipaddr>is the customer-provided IP address and <netmask> is the customer provided subnet mask. Press Enter Type show control interface.
Page 211: Verify Connectivity To The Media Servers
Repeat for each IPSI circuit pack. Verify connectivity to the media servers The following procedure is performed from both ASA and the S8700 Media Server Web Interface while connected to the active media server. From ASA type list ipserver-interface and press Enter Verify that all ISPI circuit packs are translated.
Page 212: Enable Control Of Ipserver Interfaces
Connect the Hardware • Verify the firmware release for each TN2312AP IPSI. If upgrade is required go to Upgrade tab above to upgrade the IPSI firmware. Enable control of IPserver interfaces NOTE: The next procedure will enable the IPSI circuit packs and allow them to control the port networks.
Page 213: Separated Servers
NOTE: For more information on media servers in 2 locations, refer to the job aid entitled Server Separation—Avaya S8700 Media Server. Each server has a dedicated telephone line. Terminate the two 1MB telephone lines, one at each server, at RJ11 jack outlets.
Page 214 Connect the Hardware October 2002...
Page 215: Connecting To The Customer's Network
• Avaya™ S8700 Media Server In a typical configuration you connect to the network through a port on the back of the Avaya™ S8700 Media Server, using a standard CAT5 cable with RJ45 connectors on each end. Typically for an IP Connect configuration, you connect through port 1 (Eth0). (See ‘‘CAT5 cable...
Page 216: Tn799Dp Control Lan
Connecting to the Customer’s Network CAT5 cable connected to a port on the back of the Avaya™ S8700 Media Server Figure notes To network (S8700 IP Connect) To network (S8700 Multi-Connect) TN799DP Control LAN The TN799DP Control LAN circuit pack serves two purposes: •...
Page 217: Check Your Shipment
C-LAN circuit pack. You also need the subnet mask and default gateway. NOTE: Get this information from the network administrator or refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server. A 259A adapter for each TN799DP. • •...
Page 218: Install The Circuit Packs
Connecting to the Customer’s Network Connect one end of each DW8 cable to each 259A connector. Install a cable from the media gateway to the network through a hub or 110 (purple) wall field as required. Cable Connection for C-LAN cadlclan KLC 031802 Figure notes 259A Adapter...
Page 219: Administer The Tn799Dp
Then close the latch until it is fully engaged. Insert the TN799DP circuit packs into the port slots identified earlier. Administer the TN799DP Use Avaya Site Administration for the administration. NOTE: The customer or design team provides the actual names, IP addresses, subnet masks, and gateway addresses.
Page 220: Test The External Connection To The Lan
Press to save the information and effect the new settings. Enter Refer to the Administration for Network Connectivity for Avaya MultiVantage Software for more information on these administration steps and for the steps to administer IP Softphones and H.323 trunks.
Page 221 Connecting to the Customer’s Network Type ping ip-address nnn.nnn.nnn.nnn board UUCSS and press The variable Enter. nnn.nnn.nnn.nnn is the IP address of the TN799DP and UUCSS is the cabinet, carrier, and slot of the TN799DP C-LAN circuit pack. ping ip-address 192.168.10.21 PING RESULTS End-pt IP Port...
Page 222: The Tn2302Ap Ip Media Processor
The TN2302AP IP Media Processor provides on interface between a customer’s IP network and Avaya media gateways. This interface is used to transport voice and FAX between the media gateways and IP devices such as H.323 V2 compliant endpoints and other Avaya telephone systems.
Page 223: Install A Tn2302Ap Ip Media Processor
NOTE: Get this information from the network administrator or refer to the job aid entitled Pre-Installation Network Planning Form—S8700 Media Server. In addition to the TN2302AP IP Media Processor, you must also install and administer a C-LAN circuit pack (TN799DP). For C-LAN installation and administration, refer to ‘‘TN799DP Control LAN’’...
Page 224: Install The Circuit Packs
Connecting to the Customer’s Network TN2302AP Amphenol Adapter addfipm2 KLC 083000 Figure notes Amphenol connector to backplane To network connector corresponding to 9-pin connector for TN2302AP slot maintenance Connect the Ethernet Connect the network cable(s) to the ETHERNET connector on the TN2302AP backplane adapter(s).
Page 225: Administer The Ip Media Processor
TN2302AP IP Interface faceplate 100bT LINK TRMT Administer the IP Media Processor Use Avaya Site Administration for the administration. Log in as craft. Type list configuration all and press to verify that the MultiVantage software Enter recognizes the TN2302AP circuit packs.
Page 226 Connecting to the Customer’s Network change node-names ip Page 1 of IP NODE NAMES Name IP Address Name IP Address cognac 172.16 .19 .2 default medpro 192.168.1 prowler 192.168.1 prowler1 172.16 .19 .221 prowler2 172.16 .19 .222 prowler3 172.16 .19 .223 prowler4 172.16 .19 .224 prowler5...
Page 227: Test The External Connection To The Lan
Press to save the information and effect the new settings. Enter Refer to the Administration for Network Connectivity for Avaya MultiVantage Software for more information on these administration steps and for the steps to administer IP Softphones and H.323 trunks.
Page 228: The Tn801B Map-D Lan Gateway
Connecting to the Customer’s Network The TN801B MAP-D LAN Gateway The TN801 LAN gateway interface is part of the Multi-Application Platform DEFINITY (MAPD). It allows direct integration of a PC-based application into the configuration. The TN801 circuit pack works as the interface for solutions such as CTI, CallVisor and PC/LAN. For installation and administration information, refer to the DEFINITY ECS CallVisor ASAI DEFINITY LAN Gateway over MAPD: Installation, Administration, and Mainte- nance (555-230-114) book.
Page 229: Tn2501 Voice Over The Lan (Val)
Connecting to the Customer’s Network TN2501 Voice over the LAN (VAL) The TN2501 Voice over the LAN (VAL) is an integrated announcement circuit pack that offers up to 1 hour of announcement storage capacity. • • requires shorter backup and restore times. •...
Page 230: Installing Val
Connecting to the Customer’s Network Installing VAL NOTE: To install a TN2501AP, make sure that the system is enabled for TN2501AP (VAL) boards. If the Maximum VAL boards field on the Customer Options screen is set to 0, then you need to obtain and install a new license file before you can install the card. Installing the pack includes: •...
Page 231 Connecting to the Customer’s Network Faceplate of VAL circuit pack LINK TRMT 100M October 2002...
Page 232: Install The Tn2501Ap Circuit Pack
Connecting to the Customer’s Network Backplane Adapter addfipm2 KLC 083000 Figure notes Amphenol connector This connector is not used for VAL. RJ45 LAN cable connection 10 Mbps uses CAT3 cable. • • 100 Mbps uses CAT5 cable. Install the TN2501AP Circuit Pack WARNING: To prevent electrostatic discharge (ESD), be sure to wear a grounding strap while handling the circuit pack.
Page 233: Administer The Tn2501Ap
Administer the TN2501AP After you have installed the hardware, to support an FTP session you must administer and test the installation. Use Avaya Site Administration for this administration. Verify circuit pack location Type list configuration board board-location and press Enter The System Configuration report appears.
Page 234 This name is recognized only within the MultiVantage software and does not need to match the node name on your network. Enter the IP Address. Get this information from the network administrator or refer to the filled-out job aid entitled Pre-Installation Network Planning Forms—S8700 Media Server. Press to save the changes. Enter...
Page 235 Connecting to the Customer’s Network change ip-interfaces Page 1 of IP INTERFACES Enable Eth Pt Type Slot Code Sfx Node Name Subnet Mask Gateway Address Rgn C-LAN 01C16 TN799 C st12clan 255.255.0 172.22 .22 .254 1 MEDPRO 01E04 TN2302 st12prowler#1 255.255.0 172.22 .22 .254 1 01C08 TN2501...
Page 236: Test The Ip Connections
MS-DOS command window. Enter Type ping ipaddress, where ipaddress is a known computer on the network and press to verify connectivity. Enter Using Avaya Site Administration, type status link to test the new IP connections that you have administered. October 2002...
Page 237: Avaya R300 Remote Office Communicator
Connecting to the Customer’s Network Avaya R300 Remote Office Communicator For information on the Avaya R300 Remote Office Communicator, refer to the documentation that comes with the R300 equipment. October 2002...
Page 238 Connecting to the Customer’s Network October 2002...
Page 239: Installing And Wiring Telephones
Installing and Wiring Telephones Installing and Wiring Telephones The wiring procedures are the same for most Avaya telephones and other equipment. This task list provides wiring examples of similar installation procedures. These are examples only; actual wiring procedures may vary at each site.
Page 240: Connect Telephones
‘‘Connect Adjunct Power’’ on page 242 • • ‘‘Connect an Analog Station or 2-Wire Digital Station’’ on page 243 Connectable Telephones and Consoles The following telephones and consoles can connect to any Avaya media gateway. Connectable Telephone and Consoles Telephone and Console Models Type 2500/2554...
Page 241: Connecting A Typical Telephone
Installing and Wiring Telephones Connectable Telephone and Consoles — Continued Telephone and Console Models Type 607A Avaya Callmaster V ACD Console Digital 606A Avaya CallMaster VI ACD Console Digital Softphones: Internet Protocol (IP) Netmeeting H.323 IP Softphone CentreVu IP Agent...
Page 242: Connect Adjunct Power
Installing and Wiring Telephones 302D to 4-wire DCP Wiring TXT5 TXR5 PXT5 PXR5 302cwire RBP 040596 Figure notes 302D Attendant Console -48 VDC From Adjunct Power 4-wire Digital Line Circuit Pack Ground From Adjunct Power (Position 1C02) Connect Adjunct Power The 400B2 adapter is convenient for connecting local -48 VDC power to a modular plug.
Page 243: Connect An Analog Station Or 2-Wire Digital Station
Choose a port circuit on the port circuit pack, for example port 3. Install cross-connect jumpers to connect the pins from the 2-wire digital station to the appropriate pins on the port circuit pack. Administer using Administrator’s Guide for Avaya MultiVantage Software. October 2002...
Page 244: Analog Tie Trunk Example
Analog Tie Trunk Example This example shows how to connect analog tie trunk wiring from one IP Connect or Multi-Connect configuration to another one or any other Avaya configuration. Set the option switches on the port circuit pack (such as TN760E).
Page 245: Digital Tie Trunk Example
Names of the tie trunk leads must be determined from the manufacturer or supplier of the external trunk circuit. Administer on the Trunk Group screen on Avaya Site Administration. Refer to the Administrator’s Guide for Avaya MultiVantage Software for more details.
Page 246: Ds1 Tie Trunk Example
Installing and Wiring Telephones Digital Tie Trunk Wiring Figure notes External Trunk LO (Balanced Output Pair) Digital Trunk Circuit Pack, Position 1C06 LI (Balanced Input Pair) DS1 Tie Trunk Example Digital Signal Level 1 (DS1) tie trunks provide a 1.544 Mbps (T1) or 2.048 Mbps (E1) digital data service between two collocated configurations or between the configuration and a data network.
Page 247 247. NOTE: A 3150 CSU is shown, a 120A Integrated CSU (ICSU) may be used. Contact your Avaya representative for maximum cabling distances for the 3127 series CSU or the 120A ICSU. Typical Connections to Channel Service Unit AUX PORT COM PORT...
Page 248 Installing and Wiring Telephones DS1 Cables Connector Cable Description and Usage C6C connector cable 50-ft (15 m) shielded cable equipped with a 50-pin male connector on one end and a 15-pin male connector on the other end. Use this cable to connect a DS1 tie trunk circuit pack to a Channel Service Unit (CSU).
Page 249: Auxiliary Connector Outputs (Mcc1 And Scc1 Media Gateways Only)
Installing and Wiring Telephones Auxiliary Connector Outputs (MCC1 and SCC1 media gateways only) Connect a 25-pair cable from the AUX connector on the back of the expansion control carrier to a connecting block on the trunk/auxiliary field. ‘‘Auxiliary Lead Appearances at AUX Connector’’ on page 250 shows the Control Carrier outputs cable pinouts.
Page 250 Installing and Wiring Telephones Auxiliary Lead Appearances at AUX Connector Color Pinouts Output Power W-BL Major BL-W Minor W-BR BR-W R-BL BL-R Not Connected R-BR Not Connected BR-R Not Connected BK-BL Emergency BL-BK Transfer Relay Power BK-O O-BK BK-G G-BK BK-BR BR-BK BK-S...
Page 251 Installing and Wiring Telephones Auxiliary Lead Appearances at AUX Connector — Continued Color Pinouts Output Power Y-BR AUX Power BR-Y V-BL BL-V Not Connected Ext Alarm A Ext Alarm Return V-BR Not Connected BR-V INADS Tip INADS Ring Color designation is the main wire color and the color of the stripe on the wire. The following wire colors apply: W White BL Blue...
Page 252: Three-Pair And Four-Pair Modularity
Installing and Wiring Telephones Port Circuit Pack and Telephone Pin Designations — Continued 8510T BRI Pin on 4-wire: 2-wire: 302D, (with adjunct Analog Modular 8400-Series, 8400-Series, speaker Station, Plug 606A1 603E phone) Modem Connection 4-pin -48VDC (-48VDC) (-48VDC) -48VDC modular jack Circuit TN754C TN2181...
Page 253: Adjunct Power Connection Locations
Installing and Wiring Telephones 3-Pair and 4-Pair Modularity Figure notes Port Circuit Pack Adjunct Power Media Gateway Connector Pins Output From Information Outlet (3-Pair Modularity) (4-Pair Modularity) Main Distribution Frame (MDF) Pins Voice or Data Terminal Pins (3-Pair Modularity) Input to Information Outlet (4-Pair Modularity) Adjunct Power Connection Locations ‘‘Example Adjunct Power Connections’’...
Page 254: Attendant Console Example
Installing and Wiring Telephones Example Adjunct Power Connections cydfadjn KLC 020599 Figure notes Typical Display Telephone 100P6A Patch Cord or Jumpers Individual Power Supply (Such as Media Gateway Side of Main 1151A1 or 1151A2) Distribution Frame (MDF) Information Outlet (Modular Jack) 25-Pair Cable to Media Gateway (Analog Line Circuit Pack) 4-Pair D-Inside Wire (DIW) Cable...
Page 255: Auxiliary Power
Installing and Wiring Telephones Attendant Console Cabling Distances 24 AWG Wire 26 AWG Wire (0.5106 mm (0.4049 mm Enhanced Attendant Console (302D) Feet Meters Feet Meters With Selector Console Phantom powered Locally powered 5000 1524 3400 1037 Without Selector Console Phantom powered 1400 Locally powered...
Page 256: Hard-Wire Bridging
Dual Wiring of 2-Wire and 4-Wire Endpoints Do not simultaneously wire a 2-wire and 4-wire endpoint to the same equipment location in an MDF. The Avaya configurations use separate circuit packs to interface 2- and 4-wire endpoints. Install the Attendant Console Install the attendant console and connect the modular cord to the information outlet.
Page 257: Connect External Alarm Indicators And Auxiliary Power
Connect an external alarm output through pins 48 and 23 of the AUX connector. See ‘‘Alarm Output at AUX Connector’’ on page 257. Note which device connects to which alarm and give this information to your Avaya representative for troubleshooting purposes. Connect emergency transfer power and auxiliary power as shown in ‘‘Emergency...
Page 258: Connect Power Distribution Unit External Alarm Wires
BOD alarm leads be connected to the minor alarm device. Connect the major and minor alarm devices to the appropriate cross-connect pins on the MDF. Administer the alarms using the Administrator’s Guide for Avaya MultiVantage Software. October 2002...
Page 259 Installing and Wiring Telephones External Alarm Connector Pinout Designation Definition Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used RFA2 + Rectifier Failure (positive) RFA2 - Rectifier Failure (negative)
Page 260: Install Off-Premises Station Wiring
Installing and Wiring Telephones External Alarm Connector Pinout — Continued Designation Definition Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used...
Page 261: Off-Premises Or Out-Of-Building Stations
Install a green label on the terminal block to identify the remote location. Administer per the Administrator’s Guide for Avaya MultiVantage Software. Off-Premises or Out-of-Building Stations Out-of-building campus stations are telephones not physically located in the same building as the equipment room but located on the same property.
Page 262 Installing and Wiring Telephones Connections for 1 to 8 Out-of-Building Analog Telephones crdfobt CJL 101396 Figure notes Locally Engineered Cables and Equipment Part of Main Distribution Frame (MDF) Out-of-Building Wiring Station Side 25-Pair Connector Media Gateway Side Multi-Pair Protector Units (Primary Protectors with Heat Coils or Equivalent White Field with Sneak Current Protection)
Page 263: Off-Premises Protection Requirements
Installing and Wiring Telephones Connections to 24 Out-of-Building Telephones crdf24o CJL 101396 Figure notes Locally Engineered Cables and Out-Of-Building Analog Telephones Equipment Part of Main Distribution Frame 25-Pair Connector (MDF) Multi-Pair Protector Units (Primary Station Side Protectors with Heat Coils or Media Gateway Side Equivalent with Sneak Current White Field...
Page 264: Telephone Restrictions For Exposed Environments
Linx is equipped with replaceable fuses for sneak current protection. NOTE: The TN2181 16-port, 2-wire digital line circuit pack may not be approved for some out-of-building uses. Contact your Avaya representative for more information. The 4C3S-75 may be used only with TN754B circuit packs circuit packs. ‘‘Digital Voice Circuit Protectors’’...
Page 265 Installing and Wiring Telephones An example of this is where screw-type carbon block protectors—or other non–plug-compatible types—are in place and it is too costly to reterminate the outside plant cable on a 5-pin mounting block for only a few out-of-building terminals. Installing the ITW Linx Enhanced Protector The ITW Linx Enhanced Protector can be installed in series with existing primary protection.
Page 266: Emergency Transfer Units And Associated Telephones
Installing and Wiring Telephones Connections at Trunk/Auxiliary Field r758482b RBP 062696 Figure notes To Network Interface Facility One Pair of Wires To Control Carrier Auxiliary Connector Pair of RJ21X Network Interface Jack Emergency Transfer Units and Associated Telephones An 808A Emergency Transfer Panel mounted next to the trunk/auxiliary field provides emergency transfer capability.
Page 267: Emergency Transfer Panel And Telephone Installation Examples
Installing and Wiring Telephones 808A Emergency Transfer Panel and Telephone Installation Examples ‘‘808A Emergency Transfer Panel’’ on page 268 shows a typical 808A Emergency Transfer Panel. The 808A connects to the Main Distribution Frame (MDF) with B25A or A25B cable. The panel can be installed on any mounting frame in either a vertical or horizontal position.
Page 268 Installing and Wiring Telephones 808A Emergency Transfer Panel EMERGENCY TRANSFER PANEL POWER TRUNK/TEST SWITCHES CIRCUIT TRUNK OPTION LOOP GROUND START START BOTH SWITCHES MUST BE THROWN TO ACTIVATE TRUNK OPTION TRANSFER TEST SWITCH NORMAL ACTIVATED OPERATION TRUNK IDENTIFICATION TRUNK LINE 808A led808a LJK 040896 Figure notes...
Page 269: Install The 808A Emergency Transfer Panel
Installing and Wiring Telephones 808A Emergency Transfer Panel Mounting 808a_em LJK 042396 Figure notes 808A Emergency Transfer Panel 25-Pair Male Connector Ear for Screw Mount Circuit Start Switches Cut-Out for Snap Mount Install the 808A Emergency Transfer panel NOTE: The 808A must be installed in a location that can be accessed only by authorized personnel.
Page 270 Installing and Wiring Telephones Make cross-connections for each emergency trunk/emergency station pair. The 808A is connected to the Main Distribution Frame (MDF) by means of a B25A cable. ‘‘Connections for Telephone Used for Emergency Transfer’’ on page 273 shows the connections at the trunk/auxiliary field for a telephone used only for emergency transfer.
Page 271 Installing and Wiring Telephones Trunk/Test Switches — Continued Switch Number Circuit Number Not Used Test Switch Pin Assignments for 25-Pair Connector W-BL TTC1 Tip-PBX Trunk Circuit 1 BL-W RTC1 Ring-PBX Trunk Circuit 1 TTK1 Tip-CO Trunk Circuit 1 RTK1 Ring-CO Trunk Circuit 1 TLC1 Tip-PBX Line Port 1 RLC1...
Page 272 Installing and Wiring Telephones Pin Assignments for 25-Pair Connector — Continued G-BK RTC4 Ring-PBX Trunk Circuit 4 BK-BR TTK4 Tip-CO Trunk Circuit 4 BR-BK RTK4 Ring-CO Trunk Circuit 4 BK-S TLC4 Tip-PBX Line Port 4 S-BK RLC4 Ring-PBX Line Port 4 Y-BL TST4 Tip-Emergency Terminal 4...
Page 273 Installing and Wiring Telephones Connections for Telephone Used for Emergency Transfer 2822 EMXR 2822 ALARM MONITORS EM TRANS RELAY PWR ACC PWR r758580b MMR 042996 Figure notes To Network Interface Circuitry To Power Transfer Unit To TN747B (or Equivalent) Central Office To Control Carrier Auxiliary Trunk Circuit Pack Connector...
Page 274: Install Telephones Used Only For Emergency Transfer (Trunk/Auxiliary Field)
Installing and Wiring Telephones Connections for Telephone Used for Emergency Transfer and as Normal Extension 2820 EMXR ALARM MONITORS EM TRANS RELAY PWR ACC PWR r758582b MMR 042996 Figure notes To Network Interface Facility To TN747B (or Equivalent) Central Office Trunk Circuit Pack To Blue or White Station Distribution Field To Power Transfer Unit...
Page 275: Install Telephones Used For Emergency Transfer And As Normal Extension (Trunk/Auxiliary Field)
Installing and Wiring Telephones Connect ST leads on the yellow emergency transfer row/connecting block for each emergency transfer telephone to the assigned terminal in the blue or white station distribution field. The ST terminal leads should be terminated on the following pairs: 1, 4, 7, 10, 13, 16, 19, or 22 (the first pair of any 3-pair group).
Page 276: Install External Ringing
Wire the ringing device to the information outlet as shown in ‘‘3-Pair and 4-Pair Modularity’’ on page 276 ‘‘Example Adjunct Power Connections’’ on page 254. Administer per the Administrator’s Guide for Avaya MultiVantage Software. 3-Pair and 4-Pair Modularity Figure notes Port Circuit Pack Input to Information Outlet...
Page 277: Install The Queue Warning Indicator
Installing and Wiring Telephones Install the Queue Warning Indicator The connections for the queue warning indicator are the same as external ringing. An AC indicator (lamp) such as a 21C49 can be used in a Uniform Call Distribution/Direct Departmental Calling (UCD/DDC) queue. The lamp is connected to an information outlet.
Page 278: Installing And Wiring Telephone Power Supplies
1145B22 and 1151A1/1151A2 power supplies. These are examples only and actual wiring procedures may vary at each site. NOTE: Refer to the Installation and Adjuncts and Peripherals for Avaya MultiVantage™ DEFINITY Server to install the necessary peripheral equipment. Power supplies include ‘‘1145B22 Power Supply’’...
Page 279 Installing and Wiring Telephone Power Supplies • Read and understand all instructions. • Do not attach the power supply cord to building surfaces. For continued back-up protection and battery reliability, replace batteries every four • years. Follow all warnings and instructions marked on the products. •...
Page 280: Mounting The 1145B2/1146B2 Power Supply
Installing and Wiring Telephone Power Supplies • Do not store batteries in high temperature areas. Batteries stored in a cold environment should be protected from condensation during storage and warming. Batteries should be stabilized at room temperature prior to use after cold storage. Do not install batteries if the manufacturing date on the label indicates that the batteries are more than six months old.
Page 281 Installing and Wiring Telephone Power Supplies 1145B2/1146B2 Mounting Arrangement 1149 Battery -48V -48V On Battery Reserve 1145 Power Unit Charging Battery Output Power On Unit No. Connected To: 1-32 0003_1 PDH 062596 Figure notes Wall Mounting Plate Power Cable Battery (1149B Shown) Nonswitched Outlet (120 VAC, 20 amp or 230 VAC, 15 amp) 1146B2 Power Distribution Unit...
Page 282: Install The Wall-Mounting Plates
Installing and Wiring Telephone Power Supplies Expanded Power Distribution Unit -48V -48V 11 49 B a tte ry R T N R T N U nit N o. C on ne c te d To : -4 8V -48V R T N R T N O n B atte ry R eserve 1 14 5 Pow e r U nit...
Page 283: Mount The 1146B2 Power Distribution Unit
Installing and Wiring Telephone Power Supplies NOTE: A maximum of four power supplies can be powered from one dedicated 110 volts AC, 20 amperes (or 230 volts AC, 15 amperes) feeder. Use only nonswitched outlets (outlets not connected to a wall switch). Secure the wall mounting plates to a standard 3/4-inch (2 centimeters) thick plywood mounting board.
Page 284: Install The Expanded Power Distribution Unit
Installing and Wiring Telephone Power Supplies Back-Up Battery Rating Battery Rating 1148B 2.5 amp-hours 1149B 5 amp-hours 1147B 8 amp-hours Install the Expanded Power Distribution Unit A second power distribution unit can be installed to provide power to additional devices. CAUTION: Total power cannot exceed 275 watts.
Page 285: Power Up And Test The Power Supply
Installing and Wiring Telephone Power Supplies Power-up the 1145B2 as described on the label on the side of the unit. Power Up and Test the Power Supply The following table describes the meaning of the power supply LEDs when lit. LED Color Meaning Green...
Page 286: Reset Leds On Power Distribution Unit
Installing and Wiring Telephone Power Supplies Install cross-connect jumpers to wire from the unit (the label shows polarity) to Pins 7 and 8 of the appropriate information outlet. Route the wires through the clip provided on the unit. If a red LED is on, see ‘‘Reset LEDs on Power Distribution Unit’’...
Page 287: 1151A1 And 1151A2 Power Supplies
Installing and Wiring Telephone Power Supplies Disconnect the terminal equipment from the wall jack. If the LED goes off, the terminal equipment is faulty and must be replaced. If the LED is still lit, find and repair the short circuit in the building wiring. Reconnect the terminal equipment to the wall jack and retest terminal equipment operation.
Page 288: Using 1151A1 And 1151A2 Power Supplies
Installing and Wiring Telephone Power Supplies • Do not overload wall outlets and extension cords as this can result in the risk of line or electric shock. Disconnect the cords on this product and refer servicing to qualified service personnel •...
Page 289: P333T-Pwr Power Over Ethernet Stackable Switch
This product can be hazardous if immersed in water. To avoid the possibility of electrical • shock, do not use it near water. • The Avaya P333T-PWR switch and modules contain components sensitive to electrostatic discharge. Do not touch the circuit boards unless instructed to do so. October 2002...
Page 290: Using The P333T-Pwr Switch
G700 Media Gateway or members of the P330 stackable switching system. CAUTION: The Avaya P333T-PWR switch does not contain any user-serviceable components inside. Do not open the case. CAUTION: The P333T-PWR switch can be used only indoors and in a controlled environment.
Page 291: Connect The P333T-Pwr Switch
Connect the other end of the cable to the Ethernet port of the PC, server, router, workstation, IP telephone, switch, or hub. NOTE: Use a crossover cable when connecting the Avaya P333T-PWR switch to a switch or hub. October 2002...
Page 292 Installing and Wiring Telephone Power Supplies Check that the appropriate link (LNK) LEDs light up. October 2002...
Page 293: Completing The Installation Administration
• ‘‘Register the system’’ on page 298 Verify translations The following administration is done on a computer used to access the Avaya S8700 Media Server using Avaya Site Administration. Type list configuration all and press to view all the administered circuit packs in Enter the system.
Page 294: Upgrade The Ipsi Firmware (If Necessary)
Upgrading section for information on downloading and upgrading the IPSI firmware. Enable and disable Ethernet switch ports The following administration is done on the services laptop computer connected to the active media server using the S8700 Media Server Web Interface. October 2002...
Page 295: Back Up The Media Server To Pcmcia Flashcard
Completing the Installation Administration Under Miscellaneous, click Enable/Disable Ethernet Switch Ports to enable the Ethernet ports being used and to disable the unused Ethernet ports Back up the media server to PCMCIA flashcard The following administration is done on a computer used to access the active media server using the media server Web interface.
Page 296: Release Busied Out Media Server
Completing the Installation Administration NOTE: Customer’s may want to back up using another method. Select Local PC card as the backup method. Click Backup now to back up all data to the PCMCIA flashcard. Release busied out media server Disconnect from the active server and reconnect to the standby media server. Under Server, click Release Server to release the standby media server from busyout mode.
Page 297: Add Inads Phone Numbers
NOTE: Do these steps only if the customer has a maintenance contract with Avaya. The following administration is done on a computer used to access the active Avaya S8700 Media Server using an MS-DOS command line interface. Click Start > Run to open the Run dialog box Type telnet 192.11.13.6 and press...
Page 298: Register The System
If used, verify that alarm origination via modem is still enabled. Register the system Follow the existing process and procedures to register the Avaya™ S8700 Media Server. Let customers know what the default LAN security settings are; they may want to change them after installation.
Page 299: Accessing The Avaya S8700 Media Server
Accessing the Avaya S8700 Media Server To administer the Avaya S8700 Media Server, you must be able to access it. Personal computers and services laptop computers equipped with a network PCMCIA card and Avaya Site Administration and a Web browser are the primary support access for S8700 Media Server initialization, aftermarket additions, and continuing maintenance.
Page 300: Media Server Web Interface
• Media server Web interface for server-specific administration. • Linux shell interface for server-specific administration. Avaya Site Administration for Avaya MultiVantage software commands (usable on the • active media server only) A command line interface in Telnet or terminal emulation window for Avaya •...
Page 301: Avaya Site Administration
Accessing the Avaya S8700 Media Server Remotely over the Network You can access the Avaya S8700 Media Server from any computer connected through the LAN. However, make sure the LAN security settings allow remote access. To access either media server, use the IP address assigned to the media server you want to access.
Page 302: Accessing The Avaya S8700 Media Server Remotely Over A Modem
CHAP secret key. Use craft (ignore the password field) You need to configure your computer to access the S8700 Media Servers. Refer to the job aid entitled Pre-Installation Information—S8700 Media Server...
Page 303: Finding The Active Media Server Ip Address
Scroll down until you see the Server IP address. This is the IP address for the media server you are connected to.l Installing Avaya Site Administration If you do not have Avaya Site Administration on your computer, make sure your PC or laptop first meets the minimum requirements described in ‘‘Minimum requirements to run Avaya Site Administration’’...
Page 304: From The Avaya Site Administration Cd
On the computer launch Avaya Site Administration Click on File > New > Switch. Follow the Add Switch wizard to build a record. Give the record a name that indicates it will work with all Avaya S8700 media • servers.
Page 305 Telnet session. Avaya Site Administration also supports a whole range of other features, including the GEDI and Data Import. For more information refer to the Help, Guided Tour, and Show Me accessed from the Avaya Site Administration Help menu.
Page 306: Testing The Complete Configuration
"Testing Port Network Equipment" for information regarding the LED status indicators for the media servers, Avaya Ethernet switch(es), UPSs, and different circuit packs. NOTE: Circuit pack positions are usually given by cabinet, carrier, and slot. They may also be given by port.
Page 307: Testing Port Network Equipment
Port Network Status Screen for Cabinet 1—S8700 Multi-Connect". Verify these service states: Field Service State TDM Bus A TDM Bus B Tone/Clock Sample Port Network Status Screen for Cabinet 1—S8700 Multi-Connect status port-network 1 PORT NETWORK STATUS Major Minor Warning Carrier PN Control FIBER-...
Page 308: Check Circuit Pack Configuration
Enter Verify the screen displays list configuration similar to "Sample System Configuration Screen — Page 4, S8700 Multi-Connect". Make sure the software is communicating with each circuit pack (except power supply circuit packs). Do not attempt to correct any problems until after the diagnostic tests that you run later in the configuration tests.
Page 309: Test The Ipsi Circuit Pack
Enter components within the IPSI circuit pack. Verify the screen displays Test Results screen similar to "Sample IPSI 01A Test Results Screen — Page 1, S8700 Multi-Connect". — Sample IPSI 01A Test Results Screen Page 1, S8700 Multi-Connect...
Page 310: Test Expansion Interface Circuit Packs (S8700 Multi-Connect Only)
Multi-Connect". This example is for board 2a01. If any result is FAIL, check the connections for the fiber optic link. Repeat Steps 1 and 2 for each Expansion Interface circuit pack. Sample Test Results for Expansion Interface Board 2A01—S8700 Multi-Connect TEST RESULTS Port Maintenance Name Alt.
Page 311: Test Expansion Interface Exchange For Each
Command successfully completed Type status port-network number <1-64> and press Enter A screen similar to "Sample of Port Network Status after Expansion Link is Set—S8700 Multi-Connect" displays. Verify that the MODEs of the expansion links have changed. If any problems are indicated, check the TDM cables and the inter-cabinet cables (ICC) in the associated port network.
Page 312 Testing the Complete Configuration Sample of Port Network Status before Expansion Link is Set—S8700 Multi-Connect status port-network PORT NETWORK STATUS Major Minor Warning Carrier PNC Status PN Alarms Alarms Alarms Locs Active Standby Conn Endpoints Mode A-PNC 01D01-AT02A active A-PNC 01C01-AT01A active...
Page 313: Testing Telephones And Other Equipment
The tests are acceptance tests and provide some assurance that the Avaya S8700 Media Server for IP Connect Configuration will perform properly after installation and administration.
Page 314: Test Selector Console
Testing the Complete Configuration Each row of lamps on the console lights and goes dark in sequence from top to bottom. Press Start and listen for dial tone. The green lamp associated with Idle Call Appearance lights up. The Position Available lamp goes dark. Dial number associated with a working telephone.
Page 315: Test Music-On-Hold
Test the communication link between the media server and the remote access interface and verify the alarm notification process. Make a remote test from the remote interface to the Avaya S8700 Media Server and a local test from the Avaya S8700 Media Server to the remote interface.
Page 316: Test Terminating Trunk Transmission
Testing the Complete Configuration Test Terminating Trunk Transmission The Terminating Trunk Transmission Test provides for extension number access to 3 tone sequences that can be used for trunk transmission testing from the distant end of the trunks. Type change system-parameters maintenance and press and go to screen 2.
Page 317: Test Stratum 3 Clock (If Used-S8700 Multi-Connect Only)
Testing the Complete Configuration Test Stratum 3 Clock (if used—S8700 Multi-Connect only) These procedures test the ability of the Stratum 3 clock to correctly provide timing and alarms to the media server. CAUTION: The following procedures are destructive to DS1 data and should not be attempted while DS1 facilities are active.
Page 318: Resolve Alarms
Alarms are communicated to users and technicians by entries in the alarm and sys logs and the lighting of LEDs located on the attendant console, on all circuit packs, and, optionally, on customer-designated telephones. More detailed information is available here for: "S8700 Media Server LEDs" • • "Avaya Ethernet Switch LEDs"...
Page 319: S8700 Media Server Leds
"DS1 Converter Circuit Pack LEDs" "SPAN LEDs" • • "IP Server Interface LEDs" S8700 Media Server LEDs The media server has the LEDs shown in "LEDs on front and back of media server": LEDs on front and back of media server...
Page 320 NOTE: The U2 LED is controlled by the S8700 Media Server but does not have an assigned function. The other LEDs are exclusively under hardware control so will not flash during the test. Refer to the OEM user documentation that comes with the media server for information on those LEDs.
Page 321: Avaya Ethernet Switch Leds
The GREEN LEDs to the right of the fiber optic cable indicate that the cables are connected correctly. Avaya Ethernet Switch LEDs The Avaya Ethernet Switch P333T has the LEDs shown in ‘‘LEDs on Avaya P333T Ethernet switch’’ on page...
Page 322: Telephone Console Leds
Testing the Complete Configuration LEDs on Powerware 9125 UPS ledlups KLC 030102 Figure notes Normal mode indicator Off button Battery mode indicator On button Bypass mode indicator Bar graph indicators Test/Alarm reset button Alarm indicators After plugging the UPS in, all the LEDs flash briefly. After a self test, the Normal mode LED flashes, indicating that the UPS is in Standby mode.
Page 323: Ip Server Interface Leds
Testing the Complete Configuration Terminal Alarm Notification Terminal Alarm Notification is an optional feature that displays several types of alarms on telephones with administered feature buttons or the attendant console. A maximum of 10 digital and/or hybrid telephones may be used. When an alarm occurs, the green status LED associated with the assigned button is in a steady state.
Page 324 Testing the Complete Configuration TN2312AP circuit pack faceplate Figure notes Slot for ribbon cable (not used) Recessed programming button LED display Yellow LED (clock status) Red LED Services Ethernet port Green LED Network Ethernet port Amber LED October 2002...
Page 325 Testing the Complete Configuration LED display on the IPSI circuit pack—static address Figure notes IPSI has a static IP address IPSI has connectivity and an IP address The display also indicates connectivity (see "LED display indicating connectivity status"). October 2002...
Page 326: Circuit Pack Leds
Testing the Complete Configuration LED display indicating connectivity status Figure notes Connectivity Status IPSI is connected to media server IPSI has an IP address Laptop computer is connected to IPSI services port Circuit Pack LEDs Typically, each circuit pack has 3 LEDs on the front panel. The "Circuit Pack LEDs"...
Page 327: Ds1 Converter Circuit Pack Leds
Testing the Complete Configuration Circuit Pack LEDs on Faceplate Figure notes Alarm LED (Red) Latch Pin Test LED (Green) Locking Lever Busy LED (Yellow) DS1 Converter Circuit Pack LEDs Eleven LEDs provide an indication of the state of the "TN1654 DS1 Converter Circuit Pack LEDs"...
Page 328 Testing the Complete Configuration TN1654 DS1 Converter Circuit Pack LEDs Figure notes Alarm LED (Red) STATUS LEDs Test LED (Green) SPAN LEDs Busy LED (Yellow) The yellow LED is used to indicate the state of the fiber interface, the fiber channel, the control channel, and the communications link to the SPE in the following manner and order of priority.
Page 329 Testing the Complete Configuration SPAN LEDs The 4 SPAN LEDs indicate the status of the 4 T1/E1 facilities. A SPAN LED is in one of the following states: Solid on yellow: Facility is operational and alarm free. • • Blinking yellow for 2 seconds, off 0.1 seconds: Facility is operational and alarm free AND is carrying the control channel (facility A or B only).
Page 330 Testing the Complete Configuration October 2002...
Page 331: Troubleshooting An Installation
Troubleshooting an Installation Troubleshooting an Installation This section provides some simple strategies for troubleshooting an installation of an S8700 Media Server. It focuses on possible problems when • ‘‘Installing the Media Server Hardware’’ on page 331 ‘‘Configuring the Media Server Hardware’’ on page 332 •...
Page 332: Configuring The Media Server Hardware
- Make sure you are using the correct IP address: 192.11.13.6 - Make sure you are using the correct login and password. - Make sure your browser is configured correctly. Refer to the job aid entitled Pre-Installation Information—S8700 Media Server. Can’t access MultiVantage software - Make sure you are using the correct IP address: 192.11.13.6...
Page 333: Installing The License And Avaya Authentication Files
Can’t access media server remotely - Make sure in the LAN security settings that "input to server" is checked for telnet, https (Web access), and def-sat (Avaya Site Adminstration access). The LAN settings can be changed on the Web interface with a direct connection to the media server.
Page 334 Troubleshooting an Installation October 2002...
Page 335: Index
Installing the S8700 Multi-Connect Index Index adapter 258A, 356A, BR2580A, ZD8AJ Numerics 451A extender adapters TN2302AP Amphenol adapter 110A-type terminal blocks (SCC) address plugs, cabinet 110P-type terminal blocks (MCC) adjunct power 110P-type terminal blocks, frame-mounting connection locations 110-type hardware administer...
Page 336 Installing the S8700 Multi-Connect Index cabling labels cabling layout Cajun P333T Ethernet switch configuring LEDs back up media server security alert back-up battery calling queue battery carbon block protectors connecting off-premises connections mounting CE marks battery cabinet, connecting to DC power cabinet...
Page 337 Installing the S8700 Multi-Connect Index connections DS1 converter circuit pack LEDs network DS1 tie trunks, wiring duplicated media server interchange connector testing 259A duplication cables console connecting attendant, testing selector, testing control carrier cable labels control carrier outputs cable control carrier outputs cable, installing...
Page 338 Installing the S8700 Multi-Connect Index installing on media server Avaya authentication file license file installing patch cords and jumpers installing PPN cabinet G700 installing sneak fuse panels installing installing the MDF ground installing trunk cables coupled bonding conductor integrated announcement...
Page 339 PCMCIA dirve MDF cabling on S8700 Media Server MDF connections, multicarrier cabinet PCMCIA flashcard MDF connections, single-carrier cabinet to back up S8700 Media Server files MDF cross-connect fields pin designations MDF hardware port circuit packs and telephones MDF labels playback announcement, testing...
Page 340 Installing the S8700 Multi-Connect Index PPN cabinets security certificate cabinet location install, Internet Explorer pre-installation setup install, Netscape primary protectors selector console off-premises connections selector console, testing programmable circuit packs server separation TN2302AP collocated media server protection, electromagnetic separated media server...
Page 341 Installing the S8700 Multi-Connect Index T1 CSU, and DS1 tie trunk uniform call distribution T1/E1 status LEDs testing queue warning indicator TDM bus uninterruptible power supply service state configure TDM bus cables TDM, testing LEDs telephone calls security alert making test calls...
Page 342 Installing the S8700 Multi-Connect Index October 2002...
