Attaching a Cutter Pen

WARNING: To avoid injury, do not touch the pen tip after the plotter is turned on.
WARNUNG: Um das Risiko einer Verletzung herabzusetzen, sollten Sie niemals das messer
berühren während der Schneidplotter arbeitet.

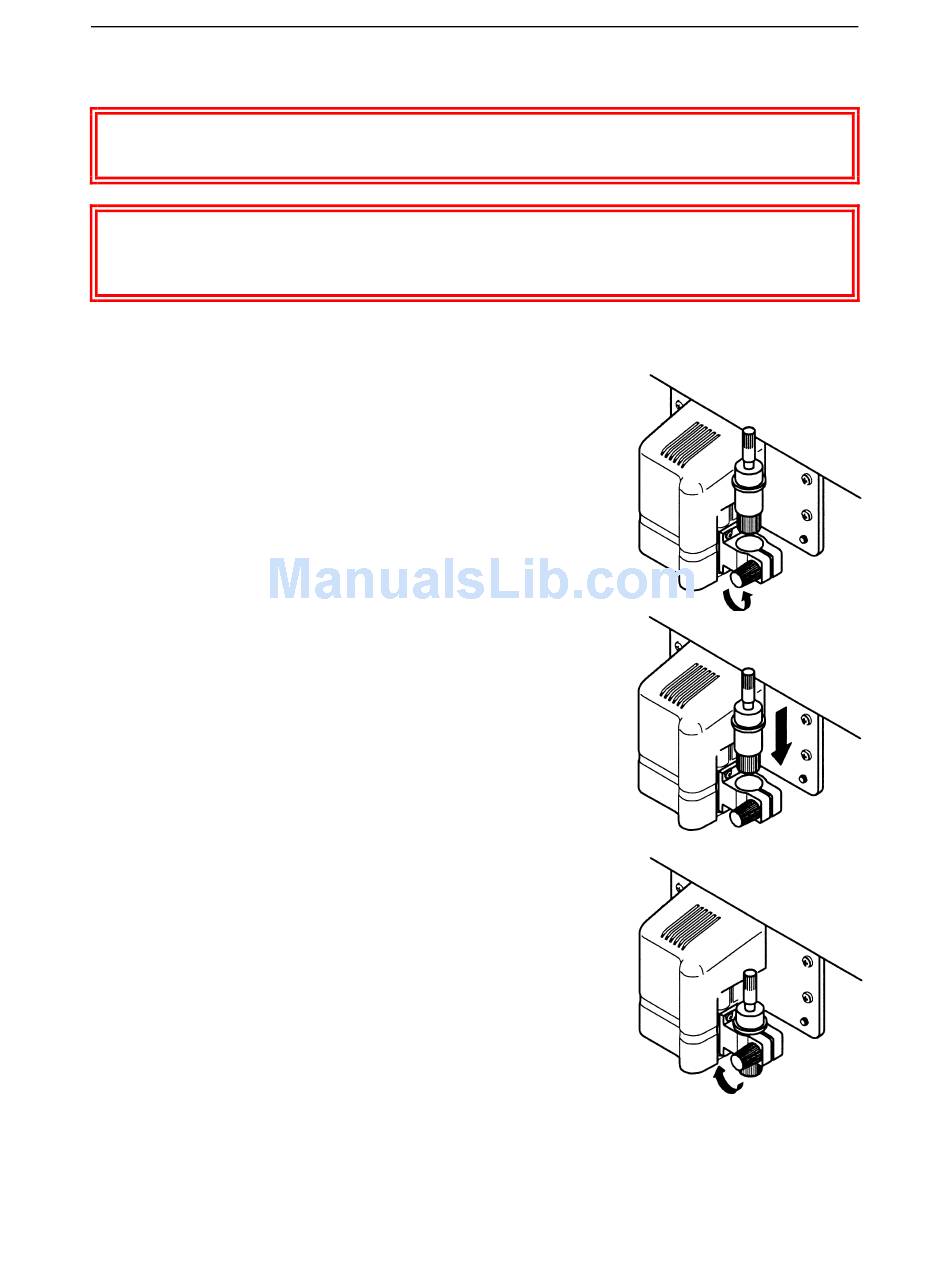

Follow the procedure below to attach a cutter pen to the pen carriage
1. Make sure the pen holder screw is loose.
2. While holding the pen holder upward, push the cutter pen all
the way into the holder until its rim contacts the pen stopper.
3. When the pen as been properly mounted, tighten the screw.
Special Precautions ♦ SP - 3
