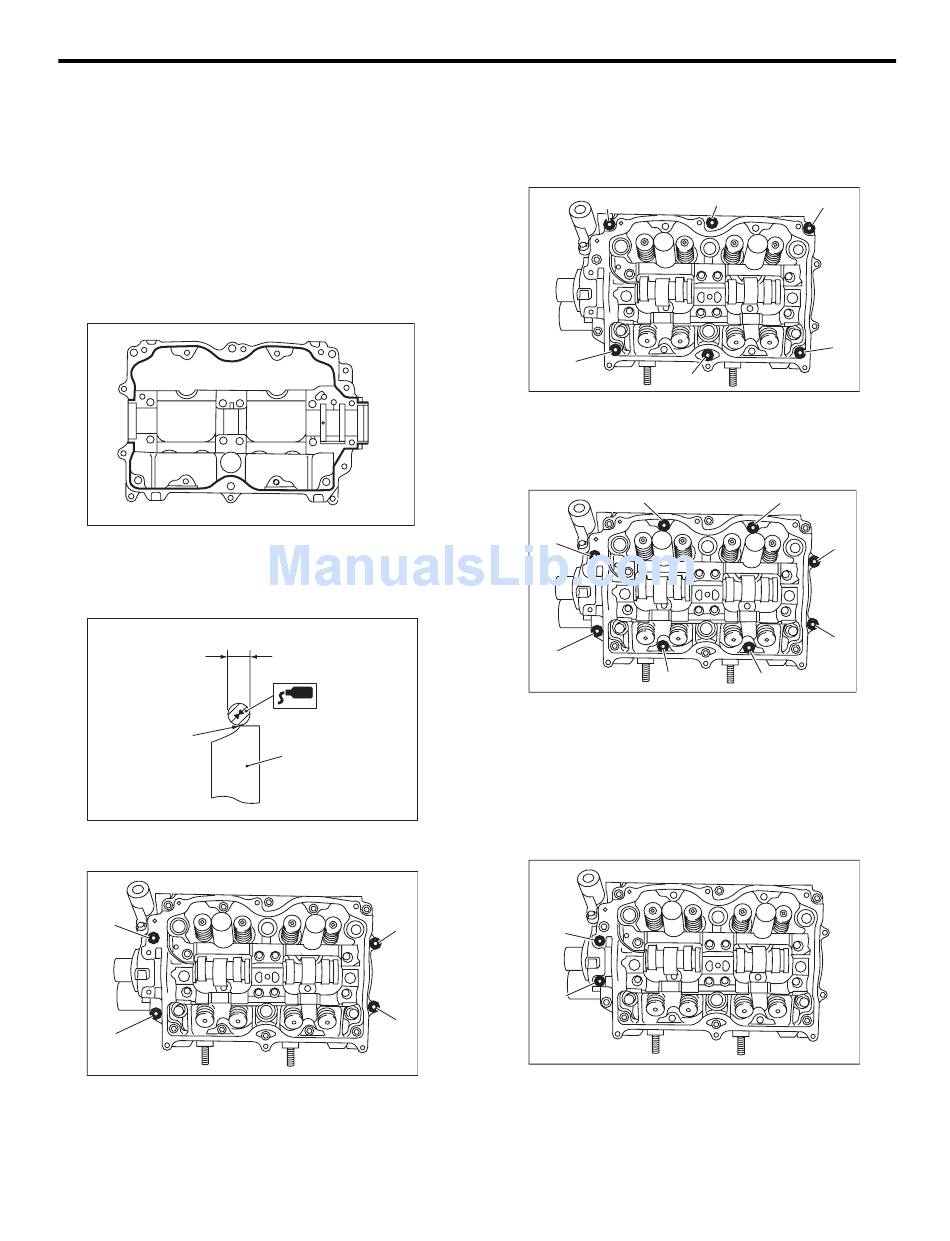

B: INSTALLATION
1) Apply a thin coat of engine oil to camshaft jour-
nals, and install the camshaft.
2) Install the camshaft cap.
(1) Apply liquid gasket to the mating surfaces of
camshaft cap.
NOTE:
Install within 5 min. after applying liquid gasket.
Liquid gasket:
THREE BOND 1217G (Part No. K0877Y0100)
or equivalent
NOTE:
Apply a coat of liquid gasket of 3 mm (0.12 in) in di-
ameter (A) along the edge (B) of camshaft cap (C)
mating surface.
(A)
(B)
(2) Temporarily tighten the bolts (a) through (d)
in alphabetical sequence.
(c)
(d)
(3) Install the valve rocker assembly. <Ref. to
ME(H4SO)-58, INSTALLATION, Valve Rocker
Assembly.>
Camshaft
ME-02710
(C)
ME-00265
(a)
(b)
ME-02711
ME(H4SO)-61
(4) Tighten the TORX
phabetical sequence using the ST.
ST 499497000 TORX
Tightening torque:
18 N·m (1.8 kgf-m, 13.3 ft-lb)
(g)
(j)
(5) Tighten the bolts (k) through (r) in alphabet-
ical sequence.
Tightening torque:
9.75 N·m (1.0 kgf-m, 7.2 ft-lb)
(k)
(q)
(r)
(n)
(6) Tighten the bolts (s) and (t) in alphabetical
sequence.
NOTE:
• Use a new seal washer.
• Install and tighten the seal washer to the bolt.
Tightening torque:
9.75 N·m (1.0 kgf-m, 7.2 ft-lb)
(s)
(t)
MECHANICAL
®
bolts (e) through (j) in al-
®
PLUS
(e)
(i)
(h)
(f)
ME-02712
(m)
(o)
(p)
(l)
ME-02713
ME-02714
