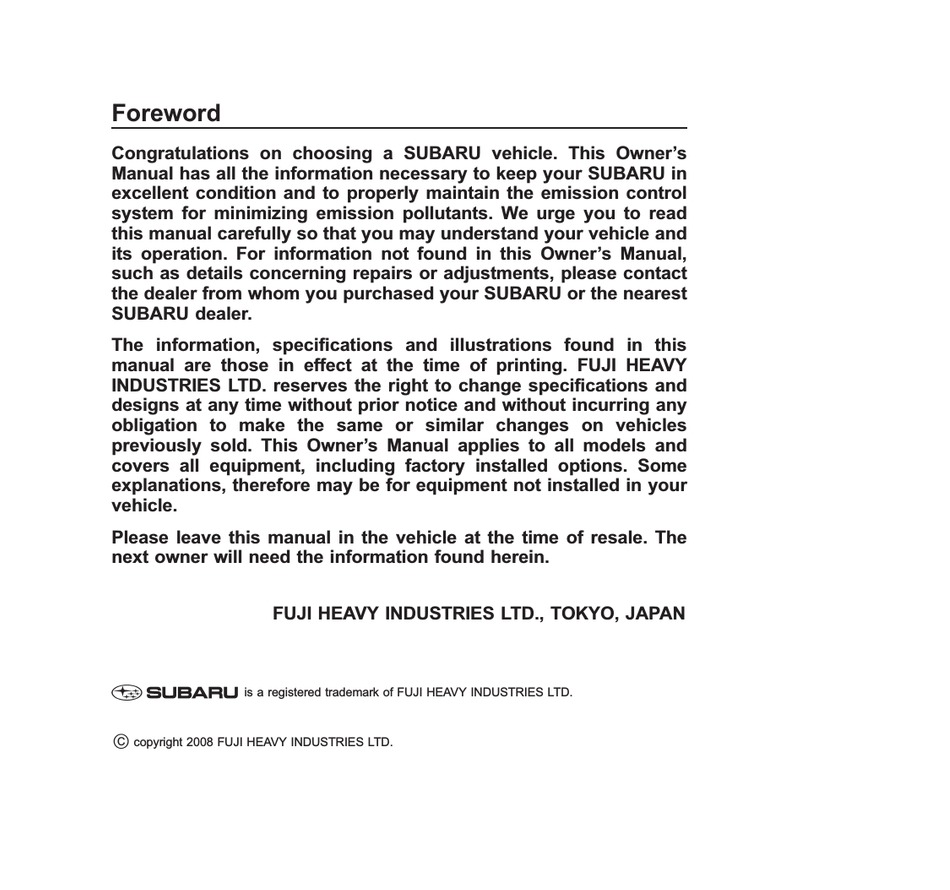

Foreword
Congratulations on choosing a SUBARU vehicle. This Owner's
Manual has all the information necessary to keep your SUBARU in
excellent condition and to properly maintain the emission control
system for minimizing emission pollutants. We urge you to read
this manual carefully so that you may understand your vehicle and
its operation. For information not found in this Owner's Manual,
such as details concerning repairs or adjustments, please contact
the dealer from whom you purchased your SUBARU or the nearest
SUBARU dealer.
The information, specifications and illustrations found in this
manual are those in effect at the time of printing. FUJI HEAVY
INDUSTRIES LTD. reserves the right to change specifications and
designs at any time without prior notice and without incurring any
obligation to make the same or similar changes on vehicles
previously sold. This Owner's Manual applies to all models and
covers all equipment, including factory installed options. Some
explanations, therefore may be for equipment not installed in your
vehicle.
Please leave this manual in the vehicle at the time of resale. The
next owner will need the information found herein.
FUJI HEAVY INDUSTRIES LTD., TOKYO, JAPAN
is a registered trademark of FUJI HEAVY INDUSTRIES LTD.
*
C
copyright 2008 FUJI HEAVY INDUSTRIES LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2009 Tribeca and is the answer not in the manual?

Questions and answers

Related Manuals for Subaru 2009 Tribeca

Summary of Contents for Subaru 2009 Tribeca

  • Page 1 Foreword Congratulations on choosing a SUBARU vehicle. This Owner’s Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation.

  • Page 3: Seat, Seatbelt And Srs Airbags

    Warranties & Warranties for U.S.A. All SUBARU vehicles distributed by Subaru of America, Inc. and sold at retail by an authorized SUBARU dealer in the United States come with the following warranties: SUBARU Limited Warranty Emission Control Systems Warranty Emissions Performance Warranty...

  • Page 4: Starting And Operating

    This chapter informs you how to keep your SUBARU looking good. Chapter 11: Maintenance and service This chapter informs you when you need to take your SUBARU to the dealer for scheduled maintenance and informs you how to keep your SUBARU running properly.

  • Page 5: Vehicle Symbols

    Vehicle symbols There are some of the symbols you may see on your vehicle. For warning and indicator lights, refer to “Warning and indicator lights” in the illustrated index section in this chapter. Mark Name WARNING CAUTION Passengers’ windows lock Fuel Front fog lights Parking lights...
  • Page 6 Mark Name Rear window defogger/Out- side mirror defogger Air recirculation Outside air Engine oil Washer Door lock (transmitter) Door unlock (transmitter) Rear gate (transmitter) Power folding mirror Safety precautions when driving & Seatbelt and SRS airbag WARNING All persons in the vehicle should fasten their seatbelts BEFORE the vehicle starts to move.

  • Page 7: Child Safety

    & Child safety WARNING Never hold a child on your lap or in your arms while the vehicle is moving. The passenger cannot protect the child from injury in a collision, because the child will be caught between the passen- ger and objects inside the vehi- cle.

  • Page 8: Drinking And Driving

    gine exhaust system to prevent engine exhaust gas from enter- ing the vehicle. Never run the engine in a closed space, such as a garage, except for the brief time needed to drive the vehicle in or out of it. Avoid remaining in a parked vehicle for a lengthy time while the engine is running.

  • Page 9: Driving With Pets

    & Modification of your vehicle CAUTION Your vehicle should not be modified other than with genuine SUBARU parts and accessories. Other types of modifications could affect its performance, safety or durability, and may even violate governmental regulations.

  • Page 10: California Proposition 65

    handle. Never restrain pets or pet carriers in the front passenger’s seat. For further information, consult your veterinarian, local animal protection society or pet shop. & Tire pressures WARNING Driving at high speeds with exces- sively low tire pressures can cause the tires to deform severely and to rapidly become hot.

  • Page 11: Table Of Contents

    Table of contents Seat, seatbelt and SRS airbags Keys and doors Instruments and controls Climate control Audio Interior equipment Starting and operating Driving tips In case of emergency Appearance care Maintenance and service Specifications Consumer information and Reporting safety defects Index...
  • Page 12 Illustrated index & Exterior Engine hood lock release (page 11-4) Headlight switch (page 3-26) Bulb replacement (page 11-41) Wiper switch (page 3-34) Moonroof (page 2-24) Roof rail (if equipped) (page 8-13) Door locks (page 2-4) Tire pressure (page 11-25) Flat tires (page 9-6) 10) Tire chains (page 8-11) 11) Fog light switch (page 3-32) 12) Tie-down hooks (page 9-15)
  • Page 13 Rear gate (page 2-22) Rear wiper switch (page 3-35) Rear window defogger button (page 3-37) Fuel filler lid and cap (page 7-3) Child safety locks (page 2-19) Tie-down hooks (page 9-15) Bulb replacement (page 11-41) Towing hook (page 9-15) – CONTINUED –...
  • Page 14 & Interior ! Passenger compartment area Seatbelt (page 1-16) Lower anchorages for child restraint system (page 1-38) Center console (page 6-6) Front seat (page 1-2) Second-row seat (page 1-7) Third-row seat (page 1-13)
  • Page 15 Cargo area light (page 6-2) Dome lights (page 6-2) Rear center seatbelt (page 1-23) Sun visors (page 6-4) Map light (page 6-3) Top tether anchorages (rear seat/ second-row seat) (page 1-41) Top tether anchorages (third-row seat) (page 1-41) – CONTINUED –...
  • Page 16 Selector lever (page 7-13) Hazard warning flasher switch (page 3-5) Multi function display (page 3-23) Glove box (page 6-5) Audio (page 5-1) Climate control (page 4-1) Cup holder (page 6-7)

  • Page 17: Instrument Panel

    & Instrument panel Door locks (page 2-4) Illumination brightness control (page 3-28) Remote control mirror switch (page 3-40) Power folding mirror switch (if equipped) (page 3-41) Windshield wiper deicer (page 3-36) Traction Control system OFF switch (page 7-26) Headlight beam leveler (if equipped) (page 3-29) Light control switch (page 3-26) Combination meter (page 3-5)
  • Page 18 & Light control and wiper control levers/switches Parking light switch (page 3-32) Windshield wiper (page 3-33) Mist (page 3-34) Windshield washer (page 3-35) Rear window wiper and washer switch (page 3-35) Wiper intermittent time control switch (page 3-34) Wiper control lever (page 3-34) Light control switch (page 3-26) Fog light switch (page 3-32) 10) Headlight ON/OFF (page 3-26)

  • Page 19: Combination Meter

    & Combination meter ! U.S.-spec. vehicles Temperature gauge (page 3-9) Tachometer (page 3-7) Speedometer (page 3-6) Fuel gauge (page 3-8) Trip meter and odometer (page 3-6/page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-7) Selector lever/Gear position indicator (page 3-20) –...
  • Page 20 ! Except U.S.-spec. vehicles Temperature gauge (page 3-9) Tachometer (page 3-7) Speedometer (page 3-6) Fuel gauge (page 3-8) Trip meter and odometer (page 3-6/page 3-7) Trip meter A/B selection and trip meter reset knob (page 3-7) Selector lever/Gear position indicator (page 3-20)
  • Page 21 & Warning and indicator lights Mark Name Page Driver’s seatbelt warning 3-10 light Front passenger’s seat- 3-10 belt warning light SRS airbag system 3-11 warning light CHECK ENGINE warn- ing light/Malfunction indi- 3-12 cator lamp Charge warning light 3-13 Oil pressure warning light 3-13 AT OIL TEMP warning 3-13...

  • Page 22: Cargo Area

    & Cargo area ! 7-seater models Jack handle (page 9-19) Maintenance tools (page 9-19) Jack (page 9-19) Spare tire (page 9-5)
  • Page 23 ! 5-seater models Jack handle (page 9-19) Jack (page 9-19) Maintenance tools (page 9-19) Spare tire (page 9-5)

  • Page 24: Function Settings

    A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Contact the nearest SUBARU dealer for details. If your vehicle is equipped with a genuine SUBARU navigation system, the settings for some of these functions can be changed using the monitor.
  • Page 25 *SRS airbag (Supplemental Restraint 1-13 System airbag)... 1-14 Your vehicle’s SRS configuration ... 1-15 SUBARU advanced frontal airbag system ... SRS side airbag and SRS curtain airbag... 1-16 SRS airbag system monitors... 1-17 SRS airbag system servicing ... Precautions against vehicle modification ...

  • Page 26: Front Seats

    Seat, seatbelt and SRS airbags Front seats WARNING Never adjust the seat while driv- ing to avoid the possibility of loss of vehicle control and of personal injury. Before adjusting the seat, make sure the hands and feet of rear seat passengers or luggage are clear of the adjusting mechan- ism.

  • Page 27: Power Seat

    tions. For instructions and precau- tions concerning child restraint sys- tems, refer to the “Child restraint systems” section in this chapter. & Power seat ! Forward and backward adjustment To adjust the seat forward or backward, move the control switch forward or back- ward.

  • Page 28: Seat Height Adjustment (Driver's Seat)

    Seat, seatbelt and SRS airbags switch. ! Seat height adjustment (driver’s seat) To adjust the seat height, pull up or push down the rear end of the control switch. & Memory function (driver’s seat – if equipped) Two of your favorite seat positions can be registered.

  • Page 29: Head Restraint Adjustment

    When any trouble or a malfunc- tion occurs during the retrieval of the seat position, stop the retrie- val of the seat position using any of the control switches for man- ual adjustment, seat memory set button, seat memory registered button 1 or 2.

  • Page 30: Lumbar Support

    If your vehicle is involved in a rear-end collision, have an authorized SUBARU dealer in- spect the active head restraints. The active head restraints may not operate in the event the vehicle experiences only a slight impact in the rear.

  • Page 31: Rear Seats (5-Seater Models)/ Second-Row Seats (7-Seater Models)

    When the vehicle’s interior is warmed enough or before you leave the vehicle, be sure to turn the switch off. CAUTION There is a possibility that people with delicate skin may suffer slight burns even at low tempera- tures if they use the seat heater for a long period of time.

  • Page 32: Forward And Backward Adjustment

    Seat, seatbelt and SRS airbags injure passengers in the event of a sudden stop or accident. & Forward and backward ad- justment ! 5-seater models Pull the lever upward and slide the seat to the desired position. Then release the lever and move the seat back and forth to make sure that it is securely locked into place.

  • Page 33: Reclining The Seatback

    & Reclining the seatback WARNING To prevent the passenger from slid- ing under the seatbelt in the event of a collision, always put the seatback in the upright position while the vehicle is in motion. Also, do not place objects such as cushions between the passenger and the seatback.
  • Page 34 1-10 Seat, seatbelt and SRS airbags may result in serious injury in the event of a hard braking or an impact. 1. Slide the seat or seat pair to its rearmost position. 2. Lower the head restraint to its lowest position.

  • Page 35: Head Restraint Adjustment

    Raise the seatback of the center seat while taking care not to trap your hands or other parts of the body between the center seat and window-side seat. NOTE Holder With the seatback folded, attach the tongue plate of each rear/second-row seatbelt to the corresponding holder.

  • Page 36: Center Seat

    1-12 Seat, seatbelt and SRS airbags To lower: Push the head restraint down while pressing the release button on the top of the seatback. The head restraint should be adjusted so that the center of the head restraint is closest to the top of the occupant’s ears. When the seats are not occupied, lower the head restraints to improve rearward visibility.

  • Page 37: Third-Row Seat (7-Seater Models)

    Third-row seat (7-seater models) WARNING Seatbelts provide maximum re- straint when the occupant sits well back and upright in the seat. Do not put cushions or any other materials between occupants and seatbacks or seat cushions. If you do so, the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen will increase, and both can...

  • Page 38: Folding Down The Seatback

    1-14 Seat, seatbelt and SRS airbags Before driving the vehicle, adjust the fore/ aft position of the second-row seat, raise the seatback, and make sure the seatback is securely locked in position. ! To get out from the third-row seat Raise the lever from the third-row seat.

  • Page 39: Head Restraint Adjustment

    NOTE Holder Before folding or raising the seat- back of the third-row seat, confirm that the seatbelt is flat against the sidewall at the lower point and the webbing is attached to the holder. When raising the seatback of the third-row seat, if the seatbelt catches on the seatback, hold the belt forward of the seatback while latching the...

  • Page 40: Seatbelts

    1-16 Seat, seatbelt and SRS airbags CAUTION The head restraint is not intended to be used at the lowest position. Before sitting on the seat, raise the head restraint to an appropriate position depending on your sitting height. Seatbelts & Seatbelt safety tips WARNING All persons in the vehicle should fasten their seatbelts BEFORE...

  • Page 41: Expectant Mothers

    THE SRS AIRBAG. According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing positions. For instructions and precautions concerning the child restraint system, refer to the “Child restraint systems” section in this chapter.

  • Page 42: Seatbelt Warning Light And Chime

    1-18 Seat, seatbelt and SRS airbags Retractor (ALR) mode. When the child restraint system is re- moved, make sure that the retractor is restored to the Emergency Locking Re- tractor (ELR) function by allowing the seatbelt to retract fully. For instructions on how to convert the retractor to the ALR mode and restore it to the ELR mode, refer to the “Installing child restraint systems with A/ELR seatbelt”...

  • Page 43: Fastening The Seatbelt

    If the seatbelt warning device for front passenger’s seat still does not function correctly after taking relevant corrective actions described above, immediately contact your SUBARU dealer for an inspection. & Fastening the seatbelt WARNING Never use a belt that is twisted or reversed.

  • Page 44: Front Seatbelts

    1-20 Seat, seatbelt and SRS airbags WARNING Never place the shoulder belt under the arm or behind the back. If an accident occurs, this can increase the risk or severity of injury. CAUTION Metallic parts of the seatbelt can become very hot in a vehicle that has been closed up in sunny weath- er;...

  • Page 45: Unfastening The Seatbelt

    ! Adjusting the front seat shoulder belt anchor height The shoulder belt anchor height should be adjusted to the position best suited for the driver/front passenger. Always adjust the anchor height so that the shoulder belt passes over the middle of the shoulder without touching the neck.
  • Page 46 1-22 Seat, seatbelt and SRS airbags 4. To make the lap part tight, pull up on the shoulder belt. 5. Place the lap belt as low as possible on your hips, not on your waist. ! Adjusting the shoulder belt anchor height (rear seats of 5-seater mod- els/second-row seats of 7-seater models)
  • Page 47 NOTE Holder With the seatback folded, attach the tongue plate of each rear/second-row seatbelt to the corresponding holder. Do the same also before someone gets into the third-row seat. ! Rear center seatbelt (5-seater mod- els)/second-row center seatbelt (7- seater models) Center seatbelt tongue plate Connector (tongue) Connector (buckle)
  • Page 48 1-24 Seat, seatbelt and SRS airbags WARNING Be sure to fasten both tongue plates to the respective buckles. If the seatbelt is used only as a shoulder belt (with the connector’s tongue plate not fastened to the connec- tor’s buckle on the right-hand side), it cannot properly restrain the wear- er in position in an accident, possi- bly resulting in serious injury or...
  • Page 49 4. Insert the center seatbelt tongue plate in the center seatbelt buckle marked “CENTER” on the left-hand side until it clicks. 5. To make the lap part tight, pull up on the shoulder belt. And place the lap belt as low as possible on your hips, not on your waist.
  • Page 50 1-26 Seat, seatbelt and SRS airbags 2. With the belt held by hand, allow the retractor to roll up the belt slowly. You should hold the webbing end and guide it back into the retractor while it is rolling up. Neatly store the tongue plate in the recess on the ceiling and then insert the con- nector (tongue) plate into the slot located...

  • Page 51: Seatbelt Maintenance

    4. To make the lap part tight, pull up on the shoulder belt. 5. Place the lap belt as low as possible on your hips, not on your waist. ! Unfastening the seatbelt Push the button on the buckle. NOTE Holder Before folding or raising the seat- back of the third-row seat, confirm that...

  • Page 52: Front Seatbelt Pretensioners

    SUBARU dealer. When replacing seat- belt retractor assemblies, use only genuine SUBARU parts. If either front seatbelt does not...

  • Page 53: System Monitors

    SRS airbag system. Immediately take your vehi- cle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS airbags will operate improperly (e.g.

  • Page 54: System Servicing

    SUBARU dealer as soon as possible. & Precautions against vehicle modification Always consult your SUBARU dealer if you want to install any accessory parts to your vehicle. CAUTION Do not perform any of the following modifications.

  • Page 55: Child Restraint Systems

    Child restraint systems While riding in the vehicle, infants and small children should always be placed in an infant or child restraint system in one of the rear seating positions recommended in this Owner’s Manual. You should use an infant or child restraint system that meets Federal Motor Vehicle Safety Standards or Canada Motor Vehi- cle Safety Standards, is compatible with...

  • Page 56: Where To Place A Child Restraint System

    & Where to place a child re- straint system The following are SUBARU’s recommen- dations on where to place a child restraint system in your vehicle. A: Front passenger’s seat You should not install a child restraint...

  • Page 57: Choosing A Child Restraint System

    chorages) provided. Some types of child restraints might not be able to be secured firmly due to projection of the seat cushion. In this seating position, you should use only a child restraint system that has a bottom base that fits snugly against the contours of the seat cushion and can be securely retained using the seatbelt.

  • Page 58: Installing Child Restraint Systems With A/Elr Seatbelt

    1-34 Seat, seatbelt and SRS airbags & Installing child restraint sys- tems with A/ELR seatbelt WARNING Child restraint systems and seat- belts can become hot in a vehicle that has been closed up in sunny weather; they could burn a small child.
  • Page 59 8. Push and pull the child restraint system forward and from side to side to check if it is firmly secured. Sometimes a child restraint can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt.
  • Page 60 1-36 Seat, seatbelt and SRS airbags 5. Insert the tongue plate into the buckle until you hear a click. 6. Take up the slack in the lap belt. 7. Pull out the seatbelt fully from the retractor to change the retractor over from the Emergency Locking Retractor (ELR) to the Automatic Locking Retractor (ALR) function.

  • Page 61: Installing A Booster Seat

    Refer to “Top tether anchorages” for additional instructions. 11. To remove the child restraint system, press the release button on the seatbelt buckle and allow the belt to retract completely. The belt will return to the ELR mode. NOTE When the child restraint system is no longer in use, remove it and restore the ELR function of the retractor.

  • Page 62: Installation Of Child Restraint Systems By Use Of Lower And Tether Anchorages (Latch)

    1-38 Seat, seatbelt and SRS airbags 5. To remove the booster seat, press the release button on the seatbelt buckle and allow the belt to retract. WARNING Never use a belt that is twisted or reversed. In an accident, this can increase the risk or severity of injury to the child.
  • Page 63 Your vehicle is provided with child restraint system anchors as follows: Four lower anchorages (bars) and three upper anchorages (tether an- chorages) on the rear seat (5-seater model)/second-row seat (7-seater model) Lower anchorages for child restraints are provided in the following locations: 5-seater models: on the rear seats 7-seater models: on the second-row seats...
  • Page 64 1-40 Seat, seatbelt and SRS airbags seatback. Each lower anchorage is located where the seat cushion meets the seatback. CAUTION When you install a child restraint system, follow the manufacturer’s instructions supplied with it. After installing the child restraint system, check to ensure that it is held securely in position.

  • Page 65: Top Tether Anchorages

    If you have any question concerning this type of child restraint system, ask your SUBARU dealer. & Top tether anchorages Your vehicle is equipped with three top tether anchorages (five in the 7-seater...
  • Page 66 1-42 Seat, seatbelt and SRS airbags ! To hook the top tether ! Rear seat (5-seater models)/Second- row seat (7-seater models) 1. Raise the head restraint to the highest position at the seating position where the child seat has been installed using the seatbelt or lower anchorages;...
  • Page 67 ! Third-row seat (7-seater models) CAUTION 1. Lower the head restraint to its lowest Do not route the top tether over the position. head restraint. It may happen that the top tether cannot be fastened tightly. 2. Open the lid of the cargo area, then remove the covers for the anchorages.

  • Page 68: Srs Airbag (Supplemental Restraint System Airbag)

    1-44 Seat, seatbelt and SRS airbags CAUTION Do not pass the top tether under the head restraint. The top tether will touch the head restraint and the resulting slack will prevent its se- cure installation. CAUTION Do not use the top tether with the head restraint in a raised position, otherwise the top tether cannot be fastened tightly.
  • Page 69 These SRS airbags are designed only as a supplement to the primary protec- tion provided by the seatbelt. The system also controls front seatbelt pretensioners. For operation instructions and precautions concerning the seatbelt pretensioner, refer to the “Front seatbelt pretensioners” section in this chapter. WARNING To obtain maximum protection in the event of an accident, the...
  • Page 70 1-46 Seat, seatbelt and SRS airbags WARNING Put children aged 12 and under in a rear seat properly restrained at all times. The SRS airbag de- ploys with considerable speed and force and can injure or even kill children, especially if they are 12 years of age and under and are not restrained or improperly restrained.
  • Page 71 ! Components Airbag control module (including impact and rollover sensors) Frontal airbag module (driver’s side) Frontal airbag module (front passenger’s side) Front sub sensor (left-hand side) Front sub sensor (right-hand side) Side airbag module (driver’s side) Side airbag module (front passenger’s side) Side airbag sensor (center pillar left-hand side)

  • Page 72: Subaru Advanced Frontal Airbag System

    1-48 Seat, seatbelt and SRS airbags & SUBARU advanced frontal airbag system Your vehicle is equipped with a SUBARU advanced frontal airbag system that com- plies with the new advanced frontal airbag requirements in the amended Federal Motor Vehicle Safety Standard (FMVSS) No.
  • Page 73 WARNING Never hold a child on your lap or in your arms. The SRS airbag deploys with considerable force and can injure or even kill the child. WARNING The SRS airbag deploys with con- siderable speed and force. Occu- pants who are out of proper position when the SRS airbag deploys could suffer very serious injuries.
  • Page 74 SRS frontal airbag even when the driver’s SRS frontal airbag deploys. This is normal. Observe the following precautions. Failure to do so may prevent the SUBARU advanced frontal airbag system from functioning correctly or cause the system to fail.
  • Page 75 Do not remove or disassemble the front passenger’s seat. Do not install any accessory (such as an audio amplifier) other than a genuine SUBARU accessory under the front pas- senger’s seat. Do not place anything (shoes, umbrel- la, etc.) under the front passenger’s seat.
  • Page 76 1-52 Seat, seatbelt and SRS airbags ! Conditions in which front passen- ger’s SRS frontal airbag is not activated The front passenger’s SRS frontal airbag will not be activated when any of the following conditions are met regarding the front passenger’s seat: The seat is empty.
  • Page 77 Owner’s Manual and immediately contact your SUBARU dealer for an inspection. NOTE When a child who has outgrown a child restraint system or a small adult is seated in the front passenger’s seat,...
  • Page 78 SUBARU advanced air- bag system. If you have any questions, you may contact the following SUBARU distributors: <Continental U.S., Alaska and the District...
  • Page 79 The SUBARU advanced frontal airbag system is designed to determine the activation or deactivation condition of the front passenger’s SRS frontal airbag depending on the total load on the front passenger’s seat monitored by the front passenger’s occupant detection system weight sensor.
  • Page 80 1-56 Seat, seatbelt and SRS airbags ! Examples of accidents in which the driver’s/driver’s and front passen- ger’s SRS frontal airbag(s) will most likely deploy. A head-on collision against a thick con- crete wall at a vehicle speed of 12 to 19 mph (20 to 30 km/h) or higher activates only the driver’s SRS frontal airbag or both driver’s and front passenger’s SRS frontal...
  • Page 81 ! Examples of the types of accidents in which deployment of the driver’s/driver’s and front passenger’s SRS frontal airbag(s) is unlikely to occur. 1-57 Seat, seatbelt and SRS airbags The vehicle strikes an object, such as a telephone pole or sign pole. The vehicle slides under the load bed of a truck.

  • Page 82: Srs Side Airbag And Srs Curtain Airbag

    1-58 Seat, seatbelt and SRS airbags ! Examples of the types of accidents in which the driver’s/driver’s and front passenger’s SRS frontal airbag(s) will basically not deploy. The driver’s and front passenger’s SRS frontal airbags are designed basically not to deploy if the vehicle is struck from the side or from behind, or if it rolls onto its side or roof, or if it is involved in a low- speed frontal collision.
  • Page 83 curtain airbag does not operate for third- row seat occupants. WARNING The SRS side airbag and SRS curtain airbag are designed as only a supplement to the primary protec- tion provided by the seatbelt. They do not do away with the need to fasten seatbelts.
  • Page 84 1-60 Seat, seatbelt and SRS airbags WARNING Never allow a child to kneel on the front passenger’s seat facing the side window or to wrap his/ her arms around the front seat seatback. In the event of an accident, the force of the SRS side airbag deployment could injure the child seriously be- cause his/her head or arms or...
  • Page 85 A hands-free microphone or other accessory in such a loca- tion could be propelled through the cabin with great force by the curtain airbag, or it could prevent correct deployment of the curtain airbag. In either case, the result could be serious injuries. WARNING Do not hang coat hangers or other hard or pointed objects on the coat...
  • Page 86 1-62 Seat, seatbelt and SRS airbags left and right center pillars and rear wheel houses. In addition, the rollover sensor is inside the airbag control module. If a center pillar impact sensor senses an impact force above a predetermined level in a side collision, the control module causes both the SRS side airbag and curtain airbag on the impacted side to...

  • Page 87: Seat, Seatbelt And Srs Airbags

    ! Example of the type of accident in which the SRS side airbag will most likely deploy. A severe side impact near the front seat activates the SRS side airbag. 1-63 Seat, seatbelt and SRS airbags – CONTINUED –...
  • Page 88 1-64 Seat, seatbelt and SRS airbags ! Examples of the types of accidents in which the SRS curtain airbag will most likely deploy. A severe side impact near the front seat or the rear seat activates the SRS curtain airbag. The vehicle rolls onto its side or the roof.
  • Page 89 ! Examples of the types of accidents in which it is possible that the SRS side airbag and the SRS curtain airbag will deploy. 1-65 Seat, seatbelt and SRS airbags Hitting a curb, edge of pavement or hard surface Falling into or jumping over a deep hole Landing hard or vehicle falling It is possible that the SRS side and curtain airbags will deploy if a serious impact...
  • Page 90 1-66 Seat, seatbelt and SRS airbags ! Examples of the types of accidents in which the SRS side airbag is unlikely to deploy. The vehicle is involved in an oblique side-on impact. The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
  • Page 91 ! Examples of the types of accidents in which the SRS curtain airbag is unlikely to deploy. 1-67 Seat, seatbelt and SRS airbags The vehicle is involved in an oblique side-on impact. The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
  • Page 92 1-68 Seat, seatbelt and SRS airbags ! Examples of the types of accidents in which the SRS side airbag and SRS curtain airbag will basically not deploy. The vehicle is involved in frontal collision with another vehicle (moving or station- ary).

  • Page 93: Srs Airbag System Monitors

    SRS airbag system. Immediately take your vehi- cle to your nearest SUBARU dealer to have the system checked. Unless checked and properly repaired, the seatbelt pretensioners and/or SRS airbags will operate improperly (e.g.

  • Page 94: Srs Airbag System Servicing

    In the event that the SRS airbag is deployed, replacement of the system should be performed only by an author- ized SUBARU dealer. When the compo- nents of the SRS airbag system are replaced, use only genuine SUBARU parts.
  • Page 95 SUBARU er operation of the SRS airbag accessory parts to the side body. system. Always consult your SUBARU dealer if you want to install any accessory parts on your vehicle. Seat, seatbelt and SRS airbags CAUTION...
  • Page 96 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 97 Keys ... Key number plate ... Immobilizer ... Security ID plate... Security indicator light ... Key replacement ... Door locks ... Locking and unlocking from the outside ... Locking and unlocking from the inside ... Battery drainage prevention function ... Power door locking switches ...

  • Page 98: Keys And Doors

    Keys and doors Keys Master key Submaster key Valet key Key number plate Security ID plate Three types of keys are provided for your vehicle. Master key, submaster key and valet key. The master key and submaster key fit all locks on your vehicle.

  • Page 99: Immobilizer

    Immobilizer The immobilizer system is designed to prevent an unauthorized person from starting the engine. Only keys registered with your vehicle’s immobilizer system can be used to operate your vehicle. Even if an unregistered key fits into the ignition switch and can be turned to the “START” position, the engine will automatically stop after several seconds.

  • Page 100: Security Indicator Light

    If the security indicator light does not flash, the immobilizer system may be malfunc- tioning. If this occurs, contact your SUBARU dealer as soon as possible. In case an unauthorized key is used (e.g. an imitation key), the security indicator light illuminates.

  • Page 101: Locking And Unlocking From The Inside

    Locking without the key To lock the door from the outside without the key, rotate the lock lever rearward and then close the door. Locking without the key To lock the door from the outside using the power door locking switch, push the “ ” sides of the switch and then close the door.

  • Page 102: Battery Drainage Prevention Function

    The operational/non-operational setting of this function can be changed by a SUBARU dealer. Contact the nearest SUBARU dealer if you would like to change the setting. NOTE When leaving the vehicle, please make sure that all doors and the rear gate are completely closed.

  • Page 103: Key Lock-In Prevention Function

    This function’s operational/non-opera- Keys and doors tional setting can be changed by a SUBARU dealer. Contact a SUBARU dealer for details. NOTE When leaving the vehicle, make sure you are holding the key before locking...

  • Page 104: Remote Keyless Entry System

    Keys and doors Remote keyless entry system CAUTION Do not expose the transmitter to severe shocks, such as those experienced as a result of drop- ping or throwing. Do not take the transmitter apart except when replacing the bat- tery. Do not get the transmitter wet.

  • Page 105: Locking The Doors

    & Locking the doors Press the “ ” button to lock all doors and rear gate. An electronic chirp will sound once and the turn signal lights will flash once. If any of the doors or the rear gate is not fully closed, an electronic chirp will sound five times and the turn signal lights will flash five times to alert you that the doors...

  • Page 106: Vehicle Finder Function

    Map light: OFF position Dome light: DOOR position Cargo area light: DOOR position A SUBARU dealer can change the illumi- nation period setting of the interior lights in accordance with your preference. Contact the nearest SUBARU dealer for details.
  • Page 107 swallow them. When the transmitter battery begins to get weak, transmitter range will begin to decrease. Replace the battery as soon as possible. To replace the battery: 1. Remove the screw on the key head. 2. Open the key head using a flat-head screwdriver.

  • Page 108: Replacing Lost Transmitters

    2-12 Keys and doors 6. Replace with a new battery (Type CR1620 or equivalent) making sure to install the new battery with the negative (−) side facing up. 7. Put together the transmitter case by fitting the hooks on both sides of the case. 8.
  • Page 109 LOCK (2) Insert the key into the ignition switch, then turn it from the “LOCK” position to the “ON” position 10 times within 15 seconds. NOTE When you complete step (2), an electronic tone will sound once, a buzzer will continue to sound and the interior light will continue to flash until the transmitter codes are completely registered.
  • Page 110 2-14 Keys and doors 6. When you have finished entering the number, push the “ ” side of the locking switch within 5 seconds. NOTE An electronic tone will sound. If you push the “ ” side of the locking switch when more than 5 seconds have passed, an error will occur.

  • Page 111: Alarm System

    Your vehicle’s alarm system has been set for activation at the time of shipment from the factory. You can set the system for deactivation yourself or have it done by your SUBARU dealer. & System operation The alarm system will give the following alarms when triggered: The vehicle’s horn will sound and the...

  • Page 112: If You Have Accidentally Triggered The Alarm System

    NOTE You may have the above setting change done by your SUBARU dealer. & If you have accidentally trig- gered the alarm system ! To stop the alarm Do any of the following operations: Press any button on the remote trans- mitter.

  • Page 113: Disarming The System

    The 30-second standby time can be eliminated if you prefer. Have it per- formed by your SUBARU dealer. The system is in the standby mode for a 30-second period after locking the doors with the remote transmitter. The security indicator light will flash at short intervals during this period.

  • Page 114: Passive Arming

    DOORS MUST BE MANUALLY LOCKED. ! To enter the passive mode If you wish to program the passive arming mode, have it done by your SUBARU dealer. ! Arming the system CAUTION In passive mode, the system will...

  • Page 115: Tripped Sensor Identification

    30 seconds. If you desire, your SUBARU dealer can connect them and set them for activation or deactivation. NOTE The shock sensors are not always...

  • Page 116: Windows

    2-20 Keys and doors Windows & Power windows WARNING To avoid serious personal injury caused by entrapment, you must do the following. When operating the power win- dows, be extremely careful to prevent anyone’s fingers, arms, neck or head from being caught in the window.
  • Page 117 To close: Pull the switch up lightly and hold it. The window will close as long as the switch is held. ! Operating the passengers’ windows To open: Push the appropriate switch down and hold it until the window reaches the desired position.

  • Page 118: Rear Gate

    2-22 Keys and doors ! Passengers’ side switches Front passenger’s window switch Open Close Rear passengers’ window switches Open Close To open: Push the switch down and hold it until the window reaches the desired position. To close: Pull the switch up and hold it until the window reaches the desired position.
  • Page 119 To close: Lower the rear gate slowly and push down firmly until the latch engages. The rear gate can be lowered easily if you pull it down holding the recessed grip. NOTE WARNING Should the rear gate be unable to be To prevent dangerous exhaust unlocked due to a discharged battery, a gas from entering the vehicle,...

  • Page 120: Moonroof (If Equipped)

    2-24 Keys and doors Moonroof (if equipped) WARNING Never let anyone’s hands, arms, head or any objects protrude from the moonroof. A person could be seriously injured if the vehicle stops suddenly or turns sharply or if the vehicle is in- volved in an accident.

  • Page 121: Sliding Function

    NOTE One-touch operation does not take place when the moonroof is raised or lowered. Push the switch continuously to raise or lower the moonroof. & Sliding function Open/Close switch Open Close Push the “Open/Close” switch rearward to open the moonroof. The sun shade will also be opened together with the moon- roof.
  • Page 122 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 123: Instruments And Controls

    Clock ... 3-11 Outside temperature indicator ... Low outside temperature warning ... 3-12 Multi function display (vehicles without a 3-12 genuine SUBARU navigation system)... 3-13 Current fuel consumption ... 3-13 Average fuel consumption ... 3-13 Driving range on remaining fuel ...
  • Page 124 Instruments and controls Light control switch ... 3-26 Headlights... High/low beam change (dimmer)... Headlight flasher ... Daytime running light system ... Turn signal lever ... 3-28 Illumination brightness control ... 3-28 Headlight beam leveler (if equipped) ... 3-29 For 5-seater models ... For 7-seater models ...

  • Page 125: Ignition Switch

    Ignition switch WARNING Never turn the ignition switch to “LOCK” while the vehicle is being driven or towed because that will lock the steering wheel, preventing steering control. And when the engine is turned off, it takes a much greater effort than usual to steer.

  • Page 126: Acc

    Instruments and controls & Acc In this position the electrical accessories (radio, accessory power outlet, etc.) can be used. & ON This is the normal operating position after the engine is started. & START CAUTION Do not turn the ignition switch to the “START”...

  • Page 127: Hazard Warning Flasher

    Hazard warning flasher The hazard warning flasher is used to warn other drivers when you have to park your vehicle under emergency conditions. The hazard warning flasher works with the ignition switch in any position. To turn on the hazard warning flasher, push the hazard warning button on the instrument panel.

  • Page 128: Speedometer

    Instruments and controls meter needles and gauges when the ignition switch is turned to the “ON” position. To change the current setting, press the trip knob for at least 2 seconds. : Activated : Deactivated With the function deactivated, the combi- nation meter illuminates as follows: 1.

  • Page 129: Double Trip Meter

    “ ”. If the trip meter shows “ ”, immediately contact the nearest SUBARU dealer and have the vehicle communication system inspected. NOTE If you press the trip knob while the trip meter is showing “...

  • Page 130: Fuel Gauge

    Instruments and controls pointer of the tachometer in the red zone. In this range, fuel injection will be cut by the engine control module to protect the engine from overrev- ving. The engine will resume run- ning normally after the engine speed is reduced below the red zone.

  • Page 131: Front Passenger's Seat Belt Warning Light

    & Temperature gauge Normal operating range The temperature gauge shows engine coolant temperature when the ignition switch is in the “ON” position. The coolant temperature will vary in accordance with the outside temperature and driving conditions. We recommend that you drive moderately until the pointer of the temperature gauge reaches near the middle of the range.

  • Page 132: Vehicle Dynamics Con Trol Warning Light/Traction

    : Windshield washer fluid warning light : Door open warning light If any lights do not illuminate, it indicates a burned-out bulb or a malfunction of the corresponding system. Consult your authorized SUBARU dealer for repair. & Seatbelt warning light and chime Your vehicle is equipped with a seatbelt warning device at the driver’s and front...

  • Page 133: Srs Airbag System Warning Light

    If still the seatbelt warning device for front passenger’s seat does not function cor- rectly after taking relevant corrective ac- tions described above, immediately con- tact your SUBARU dealer for an inspec- tion. 3-11 Instruments and controls &...

  • Page 134: Front Passenger's Frontal Airbag On And Off Indicators

    2 seconds. After that, one of the indicators illuminates depending on the status of the front passenger’s SRS frontal airbag determined by the SUBARU ad- vanced frontal airbag system monitoring. If the front passenger’s SRS frontal airbag is activated, the passenger’s frontal airbag ON indicator will illuminate while the OFF indicator will remain off.

  • Page 135: Charge Warning Light

    ! Automatic transmission control system warning If the light flashes after the engine starts, it may indicate that the automatic transmis- sion control system is not working prop- erly. Contact your nearest SUBARU deal- er for service immediately. – CONTINUED –...

  • Page 136: Rear Differential Oil Temperature Warning Light

    Park the vehicle for several minutes. After the light turns off, you can start driving. If the light does not turn off, contact the nearest SUBARU dealer for service. NOTE If the tire pressures are not correct and/or the tires are not all the same...

  • Page 137: Abs Warning Light

    Should the warning light illuminate stea- dily after blinking for approximately one minute, have the system inspected by your nearest SUBARU dealer as soon as possible. WARNING If this light does not illuminate briefly after the ignition switch is...

  • Page 138: Brake System Warning Light

    If this occurs, immediately stop the vehicle at the nearest safe place and check the brake fluid level. If the fluid level is below the “MIN” mark in the reservoir, do not drive the vehicle. Have the vehicle towed to the nearest SUBARU...

  • Page 139: Low Fuel Warning Light

    3. Release the parking brake. If both warning lights turn off, the EBD system may be malfunctioning. Drive carefully to the nearest SUBARU dealer and have the system inspected. 4. If both warning lights illuminate again and remain illuminated after the engine...

  • Page 140: Windshield Washer Fluid Warning Light

    The Vehicle Dynamics Control system is probably malfunctioning under any of the following conditions. Have your vehicle checked at a SUBARU dealer immedi- ately. The light does not illuminate when the ignition switch is turned to the “ON”...

  • Page 141: Security Indicator Light

    The Vehicle Dynamics Control system is probably malfunctioning under the follow- ing condition. Have your vehicle checked at a SUBARU dealer as soon as possible. The light does not turn off even after the lapse of several minutes (the engine has warmed up) after the engine has started.

  • Page 142: Sport Mode Indicator Light

    If the indicator light does not flash, it may indicate that immobilizer system may be malfunctioning. Contact your nearest SUBARU dealer immediately. In the event that an unauthorized key (for example, an unauthorized duplicate) is used, the security indicator light illumi- nates.

  • Page 143: Cruise Control Set Indicator Light

    SUBARU dealer. & Cruise control set in- dicator light The cruise control set indicator light illuminates when the ignition switch is turned to the “ON” position and turns off after approximately 3 seconds.

  • Page 144: Outside Temperature Indicator

    3-22 Instruments and controls Outside temperature indica- NOTE If your vehicle is equipped with a genuine SUBARU navigation system, refer to the Owner’s Manual supple- ment for the navigation system. U.S.-spec. vehicles Except U.S.-spec. vehicles The outside temperature indicator shows the outside temperature in a range from −22 to 122 F (−30 to 50 C) when the...

  • Page 145: Multi Function Display (Vehicles Without A Genuine Subaru Navigation System)

    SUBARU navigation system) NOTE If your vehicle is equipped with a genuine SUBARU navigation system, refer to the Owner’s Manual supple- ment for the navigation system. A liquid-crystal display is used in the multi function display. You will find its indications hard to see if you wear polarized glasses.

  • Page 146: Average Fuel Consumption

    3-24 Instruments and controls & Average fuel consumption U.S.-spec. vehicles Except U.S.-spec. vehicles This indication shows the average rate of fuel consumption since the trip meter was last reset. Pressing the trip knob toggles the indica- tion between the average fuel consump- tion corresponding to the A trip meter indication and the average fuel consump- tion corresponding to the B trip meter...

  • Page 147: Journey Time

    that can be driven taking into account the amount of fuel remaining in the tank and the average rate of fuel consumption. When the low fuel warning light illumi- nates, the driving range indication flashes for 5 seconds. (The display first switches to the driving range indication if it was originally giving some other indication.) U.S.-spec.

  • Page 148: Instruments And Controls

    3-26 Instruments and controls display is giving an indication other than the journey time, the display switches to the journey time, flashes for 5 seconds, and returns to its original indication each time a complete hour has elapsed. NOTE The journey time is reset when the ignition switch is turned to the “LOCK”...

  • Page 149: High/Low Beam Change (Dimmer)

    & High/low beam change (dim- mer) To change from low beam to high beam, push the turn signal lever forward. When the headlights are on high beam, the high beam indicator light “ ” on the combina- tion meter also illuminates. To switch back to low beam, pull the lever back to the detent position.

  • Page 150: Turn Signal Lever

    3-28 Instruments and controls Turn signal lever To activate the right turn signal, push the turn signal lever up. To activate the left turn signal, push the turn signal lever down. When the turn is finished, the lever will return automatically. If the lever does not return after cornering, return the lever to the neutral position by hand.

  • Page 151: Headlight Beam Leveler (If Equipped)

    3-29 Instruments and controls Headlight beam leveler (if equipped) Adjust the headlight beam level with the following dial positions according to the number of passengers and load condition: – CONTINUED –...

  • Page 152: For 5-Seater Models

    3-30 Instruments and controls & For 5-seater models Dial position Number of front seat occupants 1 or 2 Not applicable Not applicable Not applicable Number of rear seat Load in the luggage occupants compartment area No load No load Not applicable Not applicable Not applicable Not applicable...

  • Page 153: For 7-Seater Models

    & For 7-seater models Dial position Number of front seat occupants 1 or 2 Not applicable Number of 2nd seat Number of 3rd seat occupants occupants Not applicable Not applicable 3-31 Instruments and controls Load in the luggage Trailer towing compartment area No load No load...

  • Page 154: Parking Light Switch

    3-32 Instruments and controls Parking light switch The parking light switch operates regard- less of the ignition switch position. By pushing the front end of this switch, following lights will illuminate. – Parking lights – Front and rear side marker lights –...

  • Page 155: Wiper And Washer

    In road film. Keep the washer button areas where water freezes in depressed at least for 1 second so that winter, use SUBARU Windshield washer solution will be sprinkled all Washer Fluid or the equivalent. Refer to the “Windshield washer over the windshield or rear window.

  • Page 156: Windshield Wiper And Washer Switches

    3-34 Instruments and controls Grease, wax, insects or other mate- rial on the windshield or the wiper blades results in jerky wiper operation and streaking on the glass. If you cannot remove those streaks after operating the washer or if the wiper operation is jerky, clean the outer sur- face of the windshield or rear window and the wiper blades using a sponge or...

  • Page 157: Rear Window Wiper And Washer Switch

    When the wiper switch is in the “ ” position, turn the dial to adjust the operat- ing interval of the wiper. The operating interval can be adjusted in nine steps. The intermittent operation interval varies depending on the vehicle speed in any of the adjustment steps (longer when the vehicle speed is low;...

  • Page 158: Windshield Wiper Deicer

    “Acc” or “ LOCK” position. If deicing is not complete, you have to push the button to turn the deicer on again. Your SUBARU dealer can set your wind- shield wiper deicer for continuous opera- tion. Contact your SUBARU dealer for details.

  • Page 159: Rear Window Defogger Button

    “LOCK” position. If defrosting or defogging is desired when you restart your vehicle, you have to push the button to turn it on again. Your SUBARU dealer can set your rear window defogger for continuous opera- tion. Contact your SUBARU dealer for details.

  • Page 160: Mirrors

    3-38 Instruments and controls Mirrors Always check that the inside and outside mirrors are properly adjusted before you start driving. & Inside mirror The inside mirror has a day and night position. Pull the tab at the bottom of the mirror toward you for the night position.

  • Page 161: Compass Calibration

    other similar items. Periodically wipe the sensors clean using a piece of dry soft cotton cloth or an applicator. ! Compass calibration 1. For optimum calibration, switch off all nonessential electrical accessories (rear window defogger, heater/air conditioning system, spotlight, etc.) and ensure all doors are shut.

  • Page 162: Remote Control Mirror Switch

    3-40 Instruments and controls ! Remote control mirror switch The remote control mirrors operate only when the ignition switch is in the “ON” or “Acc” position. 1. Turn the knob to the “L” side to adjust the left-hand mirror or to the “R” side to adjust the right-hand mirror.

  • Page 163: Tilt Steering Wheel

    ! Power folding mirror switch (Latin American models, if equipped) Power folding mirror switch The power folding mirror switch operates only when the ignition switch is in the “ON” or “Acc” position. To fold the outside mirrors, push the power folding mirror switch.

  • Page 164: Horn

    3-42 Instruments and controls 5. Make sure that the steering wheel is securely locked by moving it up and down. Horn To sound the horn, push the horn pad.

  • Page 165: Climate Control

    Ventilator... Air flow ... Ventilator ... Automatic climate control system ... Control panel ... Rear air conditioner (if equipped)... Temperature sensors... Operating tips for heater and air conditioner... 4-10 Cleaning ventilator grille... Efficient cooling after parking in direct sunlight ... Climate control Lubrication oil circulation in the refrigerant circuit...

  • Page 166: Climate Control

    Climate control Ventilator & Air flow...
  • Page 167 Climate control ! Air flow mode selection – CONTINUED –...

  • Page 168: Ventilator

    Climate control & Ventilator ! Center ventilators Move the tab up and down or right and left to adjust the flow direction. ! Side ventilators Open Close Move the tab up and down or right and left to adjust the flow direction. To open the ventilator, turn the side grille open/close wheel upward.

  • Page 169: Automatic Climate Control System

    Automatic climate control system NOTE Operate the automatic climate con- trol system when the engine is running. The blower fan rotates at a low speed when the engine coolant tem- perature is low. For efficient defogging or dehumidify- ing in cold weather, press the “A/C” button.

  • Page 170: Off Button

    Climate control ! OFF button The Automatic Climate Control system turns off (the air conditioner compressor and fan turn off) when the “OFF” button is pressed. When the “OFF” button is pressed, the outside air introduction mode (air inlet selection OFF) is automatically selected. ! Temperature control dial Driver’s side Passenger’s side...

  • Page 171: Fan Speed Control Dial

    – Defroster button To defrost or dehumidify the windshield and front door windows, push the defros- ter button “ ”. When the “ ” button is pushed, outside air is drawn into the passenger compartment, air flow is direc- ted towards the windshield and front door windows, and the indicator light on the button illuminates.

  • Page 172: Air Flow Mode Selection Button

    Climate control ! Air flow mode selection button Select the desired air flow mode by pushing the air flow mode selection button. The selected air flow mode is shown on the center of the dial. (Ventilation): Air flows through the instrument panel outlets.

  • Page 173: Temperature Sensors

    position. The fan speed of the rear air conditioner can be adjusted using the rear air conditioner dial behind the center console. The fan speed can be adjusted in four steps by turning the dial. Turn the dial to the “OFF” position to stop the fan. NOTE When the “A/C”...

  • Page 174: Operating Tips For Heater And Air Conditioner

    Check the air conditioner unit for refriger- ant leaks, hose conditions, and proper operation each spring. Have your SUBARU dealer perform this check. & Cooling and dehumidifying in high humidity and low tem- perature weather conditions Under certain weather conditions (high relative humidity, low temperatures, etc.) a...

  • Page 175: Air Filtration System

    Under extremely dusty conditions, the filter should be replaced more fre- quently. It is recommended that you have your filter checked or replaced by your SUBARU dealer. For replacement, we recommend the use of a genuine SUBARU air filter kit. Replacement schedule:...
  • Page 176 4-12 Climate control 4. Remove the air filter cover by detach- ing the five clips. 5. Unhook the air filter and draw it out. 6. Replace the air filter with a new one. 7. Install the air filter cover. 8. Install the glove box. 9.
  • Page 177 CAUTION Contact your SUBARU dealer if the following occurs, even if it is not yet time to change the filter: – Reduction of the air flow through the vents. – Windshield gets easily fogged or misted. NOTE The filter can influence the air condi- tioning, heating and defroster perfor- mance if not properly maintained.
  • Page 178 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 179: Audio

    Antenna system ... Printed antenna... FM reception ... satellite radio reception (if equipped)... Installation of accessories... Audio set ... Type A audio set ... Type B audio set ... Type A audio set (if equipped) ... Radio operation... Compact disc player operation ... Type B audio set (if equipped)...

  • Page 180: Antenna System

    Audio Antenna system & Printed antenna CAUTION Do not use sharp instruments or window cleaner containing abra- sives to clean the inner surface of the window on which the antenna is printed. Doing so may damage the antenna printed on the window. The antenna is printed on the inner surface of the rear window glass.
  • Page 181 You may experience problems in receiving satellite radio signals in the follow- ing situations. If you are driving northward in a coastal area You will notice that the XM satellite radio antenna is fixed to the upper right hand corner of your windscreen. The signal comes from the south and may not be able to reach the antenna in some circumstances when you are driving north.

  • Page 182: Type A Audio Set

    Audio set Your SUBARU may be equipped with one of the following audio sets. See the pages indicated in this section for operating details.

  • Page 183: Type A Audio Set (If Equipped)

    Type A audio set (if equipped) The audio set will operate only when the ignition switch is in the “Acc” or “ON” position. & Radio operation Audio (1) Satellite radio mode button (2) FM AM mode button (3) Auxiliary unit and Rear seat entertain- ment button (4) Tuning button (5) AUDIO button...
  • Page 184 Audio ! To change tone and balance control modes Each brief press of the “TONE BAL” button (9) changes control modes in the following sequence starting from volume control mode. (When the radio is first turned on, the control mode is in the volume control.) The “TONE BAL”...

  • Page 185: Manual Tuning

    Control mode (range of le- vels) Turn counterclockwise Bass control (−6 to +6) For less bass sound Midrange control (−6 to +6) For less midrange sound Treble control (−6 to +6) For less treble sound Fader control (R9 to F9) To increase rear speaker vo- lume and decrease front speak- er volume...

  • Page 186: Selecting Preset Stations

    ! Satellite radio mode (if equipped) To receive satellite radio, it is necessary to install the SUBARU genuine satellite receiver (optional part) and to enter into a contract. For details, please contact your SUBARU dealer.
  • Page 187 A service fee is required to receive the XM service. For more information, contact your SUBARU dealer or XM w w w. x m r a d i o . c o m o r c a l l 1 - 8 0 0 - XMRADIO (1-800-967-2346) for U.S.

  • Page 188: Display Selection

    5-10 Audio 2. Press the “SCAN” button (8) or the “TUNE TRACK” button (4) to select the channel. 3. Press one of the preset buttons (10) for more than 1.5 seconds to store the channel. If the button is pressed for less than 1.5 seconds, the preceding selection will remain in memory.

  • Page 189: Compact Disc Player Operation

    & Compact disc player operation 5-11 Audio (1) CD button (2) Track button (3) AUDIO button (4) Seek and Folder button (5) Random button (6) Repeat button (7) Scan button (8) Eject button ! To playback a compact disc ! When CD is not in the player Hold a disc with a finger in the center hole while gripping the edge of the disc, then insert it in to the slot (with the label side...
  • Page 190 5-12 Audio If you insert a disc that cannot be played by the player, “CHECK DISC” will appear on the display and the player will revert to the previously selected mode. The player is designed to be able to play music CD-Rs and music CD-RWs, but it may not be able to play certain ones.

  • Page 191: Random Playback

    ! Repeating ! To repeat the currently playing track/ file (track) To repeat a track/file (track), briefly press the “RPT” button (6) while the track/file (track) is playing. The display will show “RPT”, and the track/file (track) will be repeated. To cancel the track/file (track) repeat-play mode: Press the “RPT”...
  • Page 192 5-14 Audio NOTE Random playback will be cancelled if you perform any of the following steps: Press the “RPT” button Press the “SCAN” button Press the “ ” button Select the radio mode Press the “RSE AUX” button Press the “ ”...
  • Page 193 5-15 Audio If the disc is left ejected for more than approximately 15 seconds after the ignition switch is turned to the “LOCK” position, a disc protection function will operate, automatically reloading the disc. In this case, the disc is not played. ! Display selection (MP3 disc) If you press the “AUDIO”...

  • Page 194: Type B Audio Set (If Equipped)

    5-16 Audio Type B audio set (if equipped) The audio set will operate only when the ignition switch is in the “Acc” or “ON” positions. & Radio operation (1) Satellite radio mode button (2) FM AM mode button (3) Auxiliary unit and Rear seat entertain- ment button (4) Tuning button (5) AUDIO button...
  • Page 195 5-17 Audio ! To change tone and balance control modes Each brief press of the “TONE BAL” button (9) changes control modes in the following sequence starting from volume control mode. (When the radio is first turned on, the control mode is in the volume control.) The “TONE BAL”...
  • Page 196 5-18 Audio Control mode (Range of le- vels) Turn counterclockwise Bass control (−6 to +6) For less bass sound Midrange control (−6 to +6) For less midrange sound Treble control (−6 to +6) For less treble sound Fader control (R9 to F9) To increase rear speaker vo- lume and decrease front speaker volume...
  • Page 197 ! Satellite radio mode (if equipped) To receive satellite radio, it is necessary to install the SUBARU genuine satellite receiver (optional part) and to enter into a contract. For details, please contact your SUBARU dealer.
  • Page 198 A service fee is required to receive the XM service. For more information, contact your SUBARU dealer or XM w w w. x m r a d i o . c o m o r c a l l 1 - 8 0 0 - XMRADIO (1-800-967-2346) for U.S.
  • Page 199 2. Press the “SCAN” button (8) or the “TUNE TRACK” button (4) to select the channel. 3. Press one of the preset buttons (10) for more than 1.5 seconds to store the channel. If the button is pressed for less than 1.5 seconds, the preceding selection will remain in memory.

  • Page 200: Built In Cd Changer Operation

    5-22 Audio & Built in CD changer operation (1) CD button (2) Track button (3) AUDIO button (4) Seek and Folder button (5) Random button (6) Repeat button (7) Scan button (8) Eject button (9) Disc select button (10) Load button NOTE Be sure to insert a disc with the label side up.
  • Page 201 ! How to insert a CD(s) ! Inserting a CD 1. Briefly press the “LOAD” button (10). If the magazine in the player has an idle position where you can insert a disc, the disc number indicator associated with the idle position will blink.

  • Page 202: Forward Direction

    5-24 Audio ! When there are CDs loaded: Press a desired one of the disc select buttons (9) the disc number indicator of which steadily lights up. The player will then start playback of the selected CD, beginning with the first track. If a disc that the player cannot read has been loaded, “CHECK DISC”...
  • Page 203 Press the disc select button Select the radio mode Press the “RSE AUX” button Press the “ ” or “ ” side of the “SEEK FLDR” button (MP3 disc) Turn off the power of the audio equipment. Turn the ignition switch to the “LOCK”...
  • Page 204 5-26 Audio next one in the following sequence. If you accidentally press the button and cancel the random mode, press it again to reselect the random mode. Random playback will be cancelled if you perform any of the following steps: Press the “RPT”...

  • Page 205: Audio Control Buttons

    ! How to unload CDs from the player ! Ejecting a CD from the player Of the discs loaded, you can select and remove only one disc. 1. Use the disc select button (9) to select the disc to be ejected. 2.

  • Page 206: Volume Control Buttons

    The audio display will show “MUTE”. If you press the button again, the original sound volume will return and “MUTE” turns off. NOTE If your vehicle is equipped with a genuine SUBARU navigation system, the display will show “ ”.

  • Page 207: Aux Unit Operation

    Aux unit operation By connecting a commercial audio pro- duct to the vehicle, such as a portable audio player, you can hear its sound via the vehicle’s speaker. Connect the portable audio player and push the “RSE AUX” button. For the audio input terminal, a stereo mini pin plug (3.5 ) can be connected.

  • Page 208: Precautions To Observe When Handling A Compact Disc

    5-30 Audio Precautions to observe when handling a compact disc Use only compact discs (CDs, CD-Rs and CD-RWs) that have the mark shown in the following illustration. Also, some compact discs cannot be played. You cannot use a DualDisc in the CD player.
  • Page 209 there are deposits, wipe the disc surface from the center outward with a dry, soft cloth. Be sure not to use a hard cloth, thinner, benzine, alcohol, etc. Do not use any disc that is scratched, deformed, or cracked. Also, do not use any disc that has a non-standard shape (for example, a heart shape).
  • Page 210 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 211 Interior light ... Dome light ... Cargo area light ... Rear gate light ... Map light... Automatic ambient light for center console area (if equipped)... Sun visors ... Sun visor extension plate ... Vanity mirror with light ... Storage compartment ... Glove box ...

  • Page 212: Interior Equipment

    Refer to “Remote keyless entry system” in chapter 2 for detailed information. The setting of the period for which the light stays on can be changed by a SUBARU dealer. Contact the nearest SUBARU dealer for details.

  • Page 213: Rear Gate Light

    Refer to “Remote keyless entry system” in chapter 2 for detailed information. The setting of the period for which the light stays on can be changed by a SUBARU dealer. Contact the nearest SUBARU dealer for details.

  • Page 214: Sun Visors

    Interior equipment Sun visors To block out glare, swing down the visors. To use the sun visor at a side window, swing it down and move it sideways. & Sun visor extension plate With the sun visor positioned over the side window, you can use the sun visor extension plate to prevent glare through the gap between the sun visor and center...

  • Page 215: Storage Compartment

    To use the vanity mirror, swing down the sun visor and open the vanity mirror cover. The light beside the vanity mirror illumi- nates when the mirror cover is opened. NOTE Use of the vanity mirror light for a long period of time while the engine is not running can cause battery discharge.

  • Page 216: Center Console Box

    Interior equipment & Center console box The center console box has a two-layer structure consisting of an upper compart- ment and a lower compartment. ! Upper compartment Upper compartment lock release Pull up the upper compartment lock release to open the upper compartment. ! Lower compartment Lower compartment lock release Pull up the lower compartment lock...

  • Page 217: Rear Console

    & Rear console The rear console is located in the back of the center console box. Pull it out to use it. & Overhead console To open the console, push on the lid lightly and it will automatically open. CAUTION When your vehicle is parked in the sun or on a warm day, the inside of the overhead console heats up.

  • Page 218: Rear Seat (5-Seater Models)/Second-Row Seat (7-Seater Models) Passenger's Cup Holder

    Interior equipment The dual cup holder is built into the center console near the selector lever. To access the cup holder, push the release button. & Rear seat (5-seater models)/ Second-row seat (7-seater models) passenger’s cup holder A dual cup holder is built in the armrest. CAUTION When a cup containing a beverage is in the cup holder, do not slide or...

  • Page 219: Bottle Holders

    Bottle holders CAUTION Do not pick up a bottle from the bottle holder or put a bottle in the holder while you are driving, as this may distract you and lead to an accident. When placing a beverage in a door pocket, make sure it is capped.
  • Page 220 6-10 Interior equipment Electrical power (12V DC) from the battery is available at any of the outlets when the ignition switch is either in the “Acc” or “ON” position. You can use an in-vehicle use electrical appliance by connecting it to an outlet. When both outlets are used at the same time, the total power consumption of the electric appliances must be 120W or less.

  • Page 221: Coat Hook

    compartment) and the lid. It is also possible to pass the cord through a groove in the lid and up to the center console (upper compartment). Coat hook A coat hook is attached to each of the passenger hand grips for the seat listed in the following.

  • Page 222: Shopping Bag Hook

    6-12 Interior equipment Shopping bag hook CAUTION Do not hang items on the shopping bag hook that weigh 11 lbs (5 kg) or more. A shopping bag hook is attached to each side of the cargo area. Floor mat A retaining pin is located on the driver’s side of the vehicle next to the fuel filler door release.

  • Page 223: Cargo Area Cover (If Equipped)

    Cargo area cover (if equipped) The cargo area cover is provided for covering the cargo area and to protect its contents from direct sunlight. This cover is detachable to make room for additional cargo. & Using the cover Holder Insert the seat belt webbing to the holder of the third-row seat.

  • Page 224: To Remove The Cover

    6-14 Interior equipment & To remove the cover 1. Rewind the cover. 2. Pull either sleeve on the end of the cover housing to shorten the cover’s length. 3. Take it off the retainer. & To install the cover housing 1.

  • Page 225: Convenient Tie-Down Hooks

    Convenient tie-down hooks CAUTION The convenient tie-down hooks are designed only for securing light cargo. Never try to secure cargo that exceeds the capacity of the hooks. The maximum load capacity is 44 lbs (20 kg) per hook. The cargo area is equipped with four tie- down hooks so that cargo can be secured with a luggage net or ropes.

  • Page 226: 7-Seater Models

    6-16 Interior equipment & 7-seater models Hang the hook provided on the underside of the lid on the rear edge of the roof to keep the lid open. HomeLink® Wireless Control System (if equipped) HomeLink® buttons Indicator light Hand-held transmitter* * Not part of your vehicle’s remote keyless entry system but of a HomeLink®-compatible device.

  • Page 227: Garage Door Opener Programming In The U.s.a

    NOTE garage door opener or other device. Make sure that people and objects are out of the way Wireless Control System for the de- of the garage door opener or sired devices, retain the hand-held other device to prevent potential transmitters for further programming harm or damage.

  • Page 228: Programming Rolling-Code-Protected Garage Door Openers In The U.s.a

    6-18 Interior equipment 4. Using both hands, simultaneously push the hand-held transmitter button and the desired HomeLink® button. DO NOT release the buttons until step 5 has been completed. 5. Hold down both buttons until the HomeLink® indicator light flashes, first slowly then rapidly.

  • Page 229: Programming For Entrance Gates And Garage Door Openers In Canada

    Training button 2. Press the training button on the garage door opener motor head unit (which activates the “training light” on the unit). Proceed to step 3 within 30 seconds. 3. Inside the vehicle, firmly press and release the HomeLink® button that was programmed in the section above.

  • Page 230: Programming Other Devices

    6-20 Interior equipment opener by pressing the programmed HomeLink® button. & Programming other devices To program other devices such as door locks, home lighting and security systems, contact HomeLink at www.homelink.com or call 1-800-355-3515. & Operating the HomeLink® Wireless Control System Once programmed, the HomeLink®...

  • Page 231: Rear View Camera (If Equipped)

    Do not disassemble or modify the camera, switch or wiring. If smoke comes out or you smell a strange odor, stop using the rear view camera immediately. Contact your SUBARU dealer for an inspection. Continued use may result in accident, fire or electric shock. CAUTION...

  • Page 232: Position Of Rear View Camera

    To operate other screens, set the selector lever to a position other than “R”. (vehicles with a genuine SUBARU navigation system) & Viewing range on the screen ! Viewing range on the screen Range of view...
  • Page 233 Image from camera The area from the rear end of the bumper can be viewed. Areas at both ends of the bumper cannot be viewed. CAUTION The range that can be viewed with the rear view camera is limited. Always be sure to check with your eyes when moving backward and proceed slowly.

  • Page 234: Distance Marker (Help Line)

    6-24 Interior equipment Image from camera The image from the rear view camera looks shorter than the actual distance. & Distance marker (help line) The distance marker (help line) is a guide to help you realize the actual distance from the screen. Vehicle width line (oblique vertical line) Approx.
  • Page 235 ! When there is an upward slope at the back 3 feet (1 m) The distance on the screen looks farther than the actual distance. ! When there is a downward slope at the back 3 feet (1 m) The distance on the screen looks nearer than the actual distance.
  • Page 236 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 237: Cruise Control Indicator Light

    Fuel ... Fuel requirements ... Fuel filler lid and cap... State emission testing (U.S. only)... Preparing to drive ... Starting the engine... Stopping the engine... Remote engine start system (dealer option) ... Starting your vehicle ... Remote start safety features ... Entering the vehicle while it is running via remote start...

  • Page 238: Starting And Operating

    CHECK ENGINE warning light/Mal- function indicator lamp may illuminate. If this happens, return to your authorized SUBARU dealer for service. If it is determined that the condition is caused by the type of fuel used, repairs may not be covered by your warranty.

  • Page 239: Fuel Filler Lid And Cap

    SUBARU. In addition, some gasoline suppliers are now producing reformulated gasolines, which are designed to reduce vehicle emissions. SUBARU approves the use of reformulated gasoline. If you are not sure what the fuel contains, you should ask your service station...
  • Page 240 Starting and operating WARNING Before opening the fuel filler cap, first touch the vehicle body or a metal portion of the fuel pump or similar object to discharge any static electricity that may be present on your body. If your body is carry- ing an electrostatic charge, there is a possibility that an electric spark could ignite the fuel, which could...

  • Page 241: State Emission Testing (U.s. Only)

    Immediately put fuel in the tank tell your inspection or service station in whenever the low fuel warning advance not to place your SUBARU light illuminates. Engine misfires AWD vehicle on a two-wheel dynam- as a result of an empty tank ometer.
  • Page 242 There are some states that use four-wheel dynamometers in their testing programs. When properly used, that equipment will not damage an AWD SUBARU vehicle. Under no circumstances should the rear wheels be jacked off the ground, nor should the driveshaft be disconnected for state emission testing.

  • Page 243: Preparing To Drive

    “START” position without depressing the accelerator pedal. (4) If the engine still refuses to start, contact your nearest SUBARU dealer for assistance. 6. Confirm that all warning and indicator – CONTINUED –...

  • Page 244: Stopping The Engine

    Starting and operating lights have turned off after the engine has started. The fuel injection system auto- matically lowers the idle speed as the engine warms up. While the engine is warming up, make sure that the selector lever is at the “P” or “N”...

  • Page 245: Starting Your Vehicle

    & Starting your vehicle The remote engine start system is acti- vated by pressing the “ ” button twice within 3 seconds on your remote engine start transmitter. The system will check certain pre-conditions before starting, and if all safety parameters are correct, the engine will start within 5 seconds.

  • Page 246: Pre-Heating Or Pre-Cooling The Interior Of The Vehicle

    7-10 Starting and operating transmitter within a few seconds immedi- ately following remote engine start shut- down. & Pre-heating or pre-cooling the interior of the vehicle Before exiting the vehicle, set the tem- perature controls to the desired setting and operation. After the system starts the vehicle, the heater or air-conditioning will activate and heat or cool the interior to your setting.

  • Page 247: System Maintenance

    sing the brake pedal repeatedly will toggle the feature ON or OFF each time. 7. To exit the remote transmitter and feature programming mode, turn the igni- tion switch to the “LOCK” position, remove the key from the ignition switch and test operation of the remote transmitter(s) and horn confirmation feature.

  • Page 248: Automatic Transmission

    7-12 Starting and operating on the old batteries before removing them to ensure that the new batteries are inserted properly (battery “+” should be pointed away from the transmitter circuit board on both batteries). 3. Carefully snap the case halves back together, then test the remote engine start system.

  • Page 249: Selector Lever

    collected and stored in memory to allow the transmission to shift at the most appropriate times for the current condition of your vehicle. Optimized shifting will be restored as the vehicle continues to be driven for a while. & Selector lever : With the brake pedal depressed, shift while pressing the button in.

  • Page 250: Selector Lever Reverse Inhibiting Function

    7-14 Starting and operating switch to the “ON” position. You will then be able to move the selector lever to the “P” position. WARNING Do not drive the vehicle with the selector lever in the “N” (Neutral) position. Engine braking has no effect in this condition and the risk of an accident is consequently in- creased.

  • Page 251: Selection Of Manual Mode

    “P” position while pressing the release button. If the selector lever re- verse inhibiting function fails, have the vehicle inspected by the nearest SUBARU dealer. & Selection of manual mode With the vehicle either moving or station- ary, move the selector lever from the “D”...

  • Page 252: Maximum Speeds

    7-16 Starting and operating The transmission does not automa- tically shift up in the manual mode. Perform gearshifts in accordance with road conditions so that the tachometer needle does not enter the red zone. If the engine speed reaches a predeter- mined level, a fuel-cut function will operate.

  • Page 253: Sport Mode

    “R” position. Always set the parking brake when parking your vehicle. Do not hold the vehicle with only the transmission. Do not keep the vehicle in a stationary position on an uphill grade by using the “D” position. Use the brake instead. The engine may, on rare occasions, knock when the vehicle rapidly acceler- ates or rapidly pulls away from a standstill.

  • Page 254: Power Steering

    “N” position while pressing the release button. 6. Remove the screwdriver from the hole. Depress the brake pedal and start the engine. Take your vehicle to the nearest SUBARU dealer immediately to have the system repaired. Power steering CAUTION Do not hold the steering wheel at the fully locked position left or right for more than 5 seconds.

  • Page 255: Brake System

    a loss of control of the vehicle. Keep driving straight ahead while gradually reducing speed. Then slowly pull off the road to a safe place. & Brake system ! Two separate circuits Your vehicle has a dual circuit brake system. Each circuit works diagonally across the vehicle.

  • Page 256: Abs (Anti-Lock Brake System)

    7-20 Starting and operating mediately have your vehicle inspected by the nearest SUBARU dealer. ABS (Anti-lock Brake Sys- tem) WARNING Always use the utmost care in driving – overconfidence because you are driving with an ABS equipped vehicle could easily lead to a serious accident.

  • Page 257: Abs Warning Light

    The warning light illuminates dur- ing driving. If these occur, have the ABS system repaired at the first available oppor- tunity by your SUBARU dealer. NOTE If the warning light behavior is as described in the following, the ABS system may be considered normal.

  • Page 258: Electronic Brake Force Distribution (Ebd) System

    5. If the brake fluid level is not below the “MIN” mark, the EBD system may be malfuntioning. Drive carefully to the near- est SUBARU dealer and have the system inspected. 6. If the brake fluid level is below the “MIN”...

  • Page 259: Vehicle Dynamics Control System

    If the light remains system illuminated, have the brakes in- spected by a SUBARU dealer immediately. If at all in doubt about whether Always use the utmost care in the brakes are operating prop- driving –...
  • Page 260 7-24 Starting and operating cornering and/or an evasive maneuver, the Vehicle Dynamics Control system adjusts the engine’s output and the wheels’ respective braking forces to help maintain traction and directional control. Traction Control Function The traction control function is designed to prevent spinning of the driving wheels on slippery road surfaces, thereby helping to maintain traction and directional control.

  • Page 261: Vehicle Dynamics Control System Monitor

    The following situations could indicate a malfunction of the Vehicle Dynamics Control system; if any should occur, we recommend that you have an authorized SUBARU dealer carry out an inspection of the system at the first available opportu- nity. The warning light does not illuminate when the ignition key is turned to the ON position.

  • Page 262: Traction Control System Off Switch

    SUBARU dealer carry out an inspection of those systems at the first available oppor- tunity. NOTE...

  • Page 263: Tire Pressure Monitoring System (Tpms)

    the Traction Control system. When the switch is pressed again to reactivate the Traction Control system OFF indicator light “ ” turns off. With the Traction Control system deacti- vated, traction enhancement offered by Traction Control system is unavailable. Therefore you should not deactivate the Traction Control system except under above-mentioned situations.
  • Page 264 TPMS is unable to monitor all cluding interference that may cause four road wheels. Contact your undesired operation. SUBARU dealer as soon as possible Changes or modifications not ex- for tire and sensor replacement and/ pressly approved by the party respon- or system resetting.

  • Page 265: Parking Your Vehicle

    Parking your vehicle WARNING Never leave unattended children or pets in the vehicle. They could accidentally injure themselves or others through inadvertent op- eration of the vehicle. Also, on hot or sunny days, the tempera- ture in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to them.

  • Page 266: Cruise Control

    7-30 Starting and operating When parking on a hill, always turn the steering wheel. When the vehicle is headed up the hill, the front wheels should be turned away from the curb. When facing downhill, the front wheels should be turned into the curb. Cruise control Cruise control enables you to maintain a constant vehicle speed without holding...

  • Page 267: To Temporarily Cancel The Cruise Control

    vehicle reaches the desired speed. 3. Push the control lever downward in the “SET/COAST” direction and release it. Then release the accelerator pedal. At this time, the cruise control set indicator light is illuminated on the combination meter. The vehicle will maintain the desired speed.

  • Page 268: To Change The Cruising Speed

    7-32 Starting and operating & To change the cruising speed ! To increase the speed (by control lever) Push the control lever upward in the “RES/ ACC” direction and hold it until the vehicle reaches the desired speed. Then, release the control lever.

  • Page 269: Cruise Control Indicator Light

    ! To decrease the speed (by brake pedal) 1. Depress the brake pedal to release cruise control temporarily. 2. When the speed decreases to the desired speed, press the control lever downward in the “SET/COAST” direction once. Now the desired speed is set and the vehicle will keep running at that speed without depressing the accelerator pedal.
  • Page 270 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 271 New vehicle break-in driving – the first 1,000 miles (1,600 km) ... Fuel economy hints ... Engine exhaust gas (carbon monoxide)... Catalytic converter ... Periodic inspections ... Driving in foreign countries ... Driving tips for AWD vehicles ... On-pavement and off road driving... Winter driving ...

  • Page 272: Driving Tips

    Driving tips New vehicle break-in driving – the first 1,000 miles (1,600 The performance and long life of your vehicle are dependent on how you handle and care for your vehicle while it is new. Follow these instructions during the first 1,000 miles (1,600 km): Do not race the engine.

  • Page 273: Catalytic Converter

    (misfiring, back- firing or incomplete combustion), have your vehicle checked and repaired by an authorized SUBARU dealer. Do not apply undercoating or rust prevention treatment to the heat shield of catalytic converter and the exhaust sys- tem.

  • Page 274: Periodic Inspections

    Driving tips Periodic inspections To keep your vehicle in the best condition at all times, always have the recom- mended maintenance services listed in the maintenance schedule in the “War- ranty and Maintenance Booklet” per- formed at the specified time or mileage intervals.

  • Page 275: On-Pavement And Off Road Driving

    By shifting power between the front and rear wheels, SUBARU AWD can also provide added traction during accelera- tion, and added engine braking force during deceleration.
  • Page 276 If you do take your SUBARU off-road, certain common sense precautions such as the following should be taken: Make certain that you and all of your passengers are wearing seatbelts.

  • Page 277: Winter Driving

    “Warranty and Mainte- nance Booklet”. Remember that damage done to your SUBARU while operating it off-road and not using common sense precautions such as those listed above is not eligible for warranty coverage.

  • Page 278: Before Driving Your Vehicle

    Do not use engine antifreeze or other substitutes because they may damage the paint of the vehicle. SUBARU Windshield Washer Fluid con- tains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing tem- perature varies according to how much it is diluted, as indicated in the following table.

  • Page 279: Driving On Snowy And Icy Roads

    If your SUBARU is not going to be used for an extended period, it is best to have the fuel tank filled to capacity.

  • Page 280: Corrosion Protection

    8-10 Driving tips seasons you could have snow and sub- zero temperatures. Blades of this type give superior wiping performance in snowy conditions. Be sure to use blades that are suitable for your vehicle. CAUTION During high-speed driving, non- freezing type wiper blades may not perform as well as standard wiper blades.

  • Page 281: Loading Your Vehicle

    & Tire chains CAUTION Tire chains cannot be used on tires listed in the following because of lack of clearance between the tires and vehicle body. All model: P255/55R18 tires & Rocking the vehicle If you must rock the vehicle to free it from snow, sand, or mud, depress the accel- erator pedal slightly and move the selector lever back and forth between “D”...

  • Page 282: Vehicle Capacity Weight

    8-12 Driving tips CAUTION Do not carry spray cans, containers with flammable or corrosive liquids or any other dangerous items inside the vehicle. NOTE For better fuel economy, do not carry unneeded cargo. & Vehicle capacity weight The load capacity of your vehicle is determined by weight, not by available cargo space.

  • Page 283: Roof Rails And Crossbar (If Equipped)

    adjusted by relocating luggage inside the vehicle. Even if the total weight of your luggage is lower than the vehicle capacity weight, either front or rear GAW may exceed the GAWR, depending on the distribution of the luggage. When possible, the load should be evenly distributed throughout the vehicle.
  • Page 284 8-14 Driving tips ! Installing carrying attachments on the crossbars When installing any carrying attachment such as a bike carrier, ski carrier, kayak carrier, cargo basket, etc. on the cross- bars, follow the manufacturer’s instruc- tions and make sure that the attachment is securely fixed to the crossbars.
  • Page 285 3. The crossbar with the 150 LBS Load Label attached onto it is the front crossbar. An arrow is marked on the back of the front crossbar for correct installation. Install the front crossbar so that the arrow faces the front of the vehicle. 12 in (300 mm) 4.

  • Page 286: Roof Molding And Crossbar (If Equipped)

    8-16 Driving tips 6. Adjust the alignment of the crossbar on the roof rails, and if available, use a T- 30 torx® bit and torque wrench and tighten the T-30 torx® head screws to 30 to 35 lbf·in (3.4 to 4.0 N·m, 0.35 to 0.41 kgf·m) of torque (or tighten securely with the torx®...
  • Page 287 road hazard due to loss of cargo could result. When using the roof crossbar kit, make sure that the total weight of the crossbars, carrying attach- ment and cargo does not exceed the maximum load limit. Over- loading may cause damage to the vehicle and create a safety hazard.

  • Page 288: Trailer Hitch (If Equipped)

    8-18 Driving tips Trailer hitch (if equipped) Trailer hitch WARNING Never exceed the maximum weight specified for the trailer hitch. Exceeding the maximum weight could cause an accident resulting in serious personal in- juries. Permissible trailer weight changes depending on the situa- tion.
  • Page 289 3. Insert the safety pin into the hitch pin securely. 4. Pull the ball mount to make sure it does not come off the hitch receiver. Hitch ball installation point Hooks for safety chains 5. Use only a hitch ball that is appropriate for the ball mount and your trailer.

  • Page 290: When You Do Not Tow A Trailer

    Seek the advice of your SUBARU dealer to assist you in purchasing a hitch and other necessary towing equipment appropriate for your vehicle. In addition, be sure to follow the...
  • Page 291 ble. ! Total trailer weight Total trailer weight The total trailer weight (trailer weight plus its cargo load) must never exceed the maximum weight shown in the following table. Vehicle without cooling kit Conditions When towing a trailer without brakes. When towing a trailer with brakes.
  • Page 292 8-22 Driving tips ! Gross Vehicle Weight (GVW) and Gross Vehicle Weight Rating (GVWR) Gross Vehicle Weight The Gross Vehicle Weight (GVW) must never exceed the Gross Vehicle Weight Rating (GVWR). Gross Vehicle Weight (GVW) is the combined total of the weight of the vehicle, driver, passengers, luggage, trailer hitch, trailer tongue load and any other optional equipment installed on your vehicle.

  • Page 293: Trailer Hitches

    ! Tongue load Tongue load WARNING If the trailer is loaded with more weight in the back of trailer’s axle than in the front, the load is taken off the rear axle of the towing vehicle. This may cause the rear wheels to skid, especially during braking or when vehicle speed is reduced dur- ing cornering, resulting in over-...

  • Page 294: Connecting A Trailer

    Choose a proper hitch for your vehicle and trailer. The use of a genuine SUBARU trailer hitch is recommended. A genuine SUBARU hitch is available from your SUBARU dealer. If use of a non-genuine hitch is unavoid- able, be sure the hitch is suited to your vehicle and trailer.

  • Page 295: Side Mirrors

    To ensure the trailer lights are connected properly, please consult your SUBARU dealer. Check for proper operation of the turn signals, the brake lights and parking lights each time you hitch up.

  • Page 296: Trailer Towing Tips

    8-26 Driving tips & Trailer towing tips CAUTION Never exceed 45 mph (72 km/h) when towing a trailer in hilly country on hot days. When towing a trailer, steering, stability, stopping distance and braking performance will be dif- ferent from normal operation. For safety’s sake, you should employ extra caution when towing a trailer and you should never...

  • Page 297: Driving On Grades

    If the ABS warning light illuminates while the vehicle is in motion, stop towing the trailer and have repairs performed immediately by the nearest SUBARU dealer. ! Driving on grades Before going down a steep hill, slow...
  • Page 298 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 299: In Case Of Emergency

    If you park your vehicle in an emergency... Spare tire ... Removing the spare tire ... Re-storage of spare tire ... Temporary spare tire... Flat tires... Changing a flat tire... Tire pressure monitoring system (TPMS) ... Jump starting ... 9-12 How to jump start...

  • Page 300: If You Park Your Vehicle In An Emergency

    In case of emergency If you park your vehicle in an emergency The hazard warning flasher should be used in day or night to warn other drivers when you have to park your vehicle under emergency conditions. Avoid stopping on the road. It is best to safely pull off the road if a problem occurs.

  • Page 301: Removing The Spare Tire

    the “Temporary spare tire” section in this chapter for instructions and precautions. & Removing the spare tire 1. Take the wheel nut wrench and exten- sion out of the tool bag. Refer to the “Maintenance tools” section in this chap- ter.

  • Page 302: Re-Storage Of Spare Tire

    In case of emergency and pull it through the center of the temporary spare tire. 9. After the temporary spare tire is removed from the cable, the cable must be wound up completely by turning the hoist nut shaft clockwise until you hear a clicking sound.

  • Page 303: Temporary Spare Tire

    This indicates the tire pressure monitoring system (TPMS) is un- able to monitor all four road wheels. Contact your SUBARU dealer as soon as possible for tire and sensor replacement and/ or system resetting. – CONTINUED –...

  • Page 304: Flat Tires

    In case of emergency CAUTION Never use any temporary spare tire other than the original. Using other sizes may result in severe mechan- ical damage to the drive train of your vehicle. The temporary spare tire is smaller and lighter than a conventional tire and is designed for emergency use only.
  • Page 305 Always turn off the engine before raising the flat tire off the ground using the jack. Never swing or push the vehicle supported with the jack. The jack can come out of the jacking point due to a jolt and this can result in a severe accident.
  • Page 306 In case of emergency Chrome plated wheels 7. Insert the tip (wrapped in vinyl tape or a cloth) of a flat-head screwdriver into the slot between the wheel and cap. Use it to remove the cap. (Only vehicle equipped with chrome plated wheels) 8.
  • Page 307 13. Before putting the spare tire on, clean the mounting surface of the wheel and hub with a cloth. 14. Put on the spare tire. Replace the wheel nuts. Tighten them by hand. WARNING Do not use oil or grease on the wheel studs or nuts when the spare tire is installed.
  • Page 308 9-10 In case of emergency 17. Use the wheel nut wrench to securely tighten the wheel nuts to the specified torque, following the tightening order in the illustration. Wheel nuts tightening torque for tem- porary spare tire: 74 to 89 lbf·ft (100 to 120 N·m, 10 to 12 kgf·m) This torque is equivalent to applying the following load on the edge of the wheel...

  • Page 309: Tire Pressure Monitoring System (Tpms)

    TPMS is unable to monitor all four road wheels. Contact your 9-11 In case of emergency SUBARU dealer as soon as possible for tire and sensor replacement and/ or system resetting. Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a malfunction of the tire pressure sensors.

  • Page 310: Jump Starting

    9-12 In case of emergency Jump starting WARNING Battery fluid is SULFURIC ACID. Do not let it come in contact with the eyes, skin, clothing or the vehicle. If battery fluid gets on you, thoroughly flush the exposed area with water immediately. Get medical help if the fluid has entered your eyes.
  • Page 311 9-13 In case of emergency (1) Connect one jumper cable to the positive (+) terminal on the discharged battery. (2) Connect the other end of the jumper cable to the positive (+) term- inal of the booster battery. (3) Connect one end of the other cable to the negative (−) terminal of the booster battery.

  • Page 312: Engine Overheating

    9-14 In case of emergency 5. Start the engine of the vehicle with the booster battery and run it at moderate speed. Then start the engine of the vehicle that has the discharged battery. 6. When finished, carefully disconnect the cables in exactly the reverse order. Engine overheating WARNING Never attempt to remove the radia-...

  • Page 313: Towing

    If towing is necessary, it is best done by your SUBARU dealer or a commercial towing service. Observe the following procedures for safety. & Towing and tie-down hooks The towing hooks should be used only in an emergency (e.g., to free a stuck vehicle...
  • Page 314 9-16 In case of emergency 3. Screw the towing hook into the thread hole until the threads can no longer be seen. 4. Tighten the towing hook securely using a jack handle. After towing, remove the towing hook from the vehicle and stow it in the tool bag. Fit the towing hook cover on the bumper.

  • Page 315: Using A Flat-Bed Truck

    4. Tighten the towing hook securely using a wheel nut wrench. After towing, remove the towing hook from the vehicle and stow it in the tool bag. Put the thread hole cover on the rear bumper. WARNING Do not use the towing hook except when towing your vehicle.

  • Page 316: Towing With All Wheels On The Ground

    9-18 In case of emergency & Towing with all wheels on the ground WARNING Never turn the ignition switch to the “LOCK” position while the vehicle is being towed because the steering wheel and the direc- tion of the wheels will be locked. Remember that the brake booster and power steering do not func- tion when the engine is not...

  • Page 317: Maintenance Tools

    3. Unlock the rear gate by moving the lever to the right. 4. Open the rear gate from outside by raising the rear gate handle. Maintenance tools Your vehicle is equipped with the following maintenance tools: Screwdriver Towing hook (eye bolt) Wheel nut wrench Extension 9-19...
  • Page 318 9-20 In case of emergency For how to use the jack, refer to the “Flat tires” section in this chapter.

  • Page 319: Appearance Care

    Exterior care ... 10-2 Washing... Waxing and polishing ... Cleaning aluminum wheels ... Corrosion protection... 10-4 Most common causes of corrosion ... To help prevent corrosion... Appearance care Cleaning the interior... 10-2 Seat fabric ... 10-3 Leather seat materials... 10-3 Synthetic leather upholstery...

  • Page 320: Exterior Care

    10-2 Appearance care Exterior care & Washing CAUTION When washing the vehicle, the brakes may get wet. As a result, the brake stopping distance will be longer. To dry the brakes, drive the vehicle at a safe speed while lightly pressing the brake pedal to heat up the brakes.

  • Page 321: Waxing And Polishing

    When in doubt, it is always best to contact your SUBARU dealer or an auto paint specia- list. NOTE Be careful not to block the windshield washer nozzles with wax when waxing the vehicle.

  • Page 322: Corrosion Protection

    Contact your SUBARU dealer to perform this kind of maintenance and treatment if you need assistance. Repair chips and scratches in the paint as soon as you find them.

  • Page 323: Cleaning The Interior

    If your SUBARU is to be parked for a long time in bright sunlight, it is recommended that the seats and headrests be covered, or the windows shaded, to prevent fading or shrinkage.

  • Page 324: Navigation Monitor (If Equipped)

    10-6 Appearance care & Navigation monitor (if equipped) To clean the navigation monitor, wipe it with a silicone cloth or with a soft cloth. If the navigation monitor is extremely dirty, clean it with a soft cloth moistened with neutral detergent then carefully wipe off any remaining detergent.

  • Page 325: Maintenance And Service

    Maintenance schedule ... Maintenance precautions... Before checking or servicing in the engine compartment... When you do checking or servicing in the engine compartment while the engine is running... Engine hood ... Engine compartment overview... Engine oil... Checking the oil level ... Changing the oil and oil filter...
  • Page 326 Maintenance and service Windshield wiper blade rubber ... Rear window wiper blade assembly ... Rear window wiper blade rubber... Battery... Fuses ... Main fuse ... Installation of accessories... Replacing bulbs ... Headlights (vehicles with HID headlights)... Headlights (vehicles without HID headlights) ...

  • Page 327: Maintenance Schedule

    Maintenance precautions When maintenance and service are re- quired, it is recommended that all work be done by an authorized SUBARU dealer. If you perform maintenance and service by yourself, you should familiarize yourself with the information provided in this section on general maintenance and service for your SUBARU.

  • Page 328: Before Checking Or Servicing In The Engine Compartment

    NEVER use a circuit tester for these wiring. If your SRS airbag or seatbelt pretensioner needs service, con- sult your nearest SUBARU deal- & Before checking or servicing in the engine compartment WARNING Always stop the engine and set the parking brake firmly to pre- vent the vehicle from moving.
  • Page 329 3. Release the secondary hood release located under the front grille by moving the lever toward the left. 4. Lift up the hood. To close the hood: 1. Lower the hood to a point approxi- mately 20 in (50 cm) from the closed position and then give the hood a strong push down to make it drop.

  • Page 330: Fuse Box (Page

    11-6 Maintenance and service Engine compartment overview Air cleaner element (page 11-14) Power steering fluid reservoir (page 11-19) Differential gear oil level gauge (page 11-17) Automatic transmission fluid level gauge (page 11-15) Brake fluid reservoir (page 11-20) Fuse box (page 11-38) Battery (page 11-37) Windshield washer tank (page 11-32) Radiator cap (page 11-11)

  • Page 331: Engine Oil

    1 quart per 1,200 miles or 1 liter per 2,000 kilometers, we recommend that you contact your SUBARU dealer. & Checking the oil level Check the engine oil level at each fuel stop.

  • Page 332: Changing The Oil And Oil Filter

    11-8 Maintenance and service Be careful not to spill engine oil when adding it. If oil touches the exhaust pipe, it may cause a bad smell, smoke, and/or a fire. If engine oil gets on the exhaust pipe, be sure to wipe it off. If you check the oil level just after stopping the engine, wait a few minutes for the oil to drain back into the oil pan before checking...

  • Page 333: Recommended Grade And Viscosity

    8. Clean the rubber seal seating area of the bottom of engine and install the oil filter by hand turning. Be careful not to twist or damage the seal. 9. Tighten the oil filter by the amount indicated in the following table after the seal makes contact with the bottom of engine.

  • Page 334: Recommended Grade And Viscosity Under Severe Driving Conditions

    When adding oil, different brands may be used together as long as they are the same API classification and SAE viscosity as those recommended by SUBARU. SAE viscosity number and applicable temperature 5W-30 is recommended. Engine oil viscosity (thickness) affects fuel economy.

  • Page 335: Cooling System

    , u s e o n l y SUBARU Super Coolant. If the SUBARU Super Coolant is diluted with another brand or type, the maintenance interval is shortened to that of the mixing coolant.

  • Page 336: Changing The Coolant

    The alcohol contained in the engine coolant may damage the paint surface. ! Changing the coolant Always add genuine SUBARU cooling system conditioner whenever the coolant is replaced. Change the engine coolant and add genuine SUBARU cooling system condi-...
  • Page 337 SUBARU cooling system conditioner in the radiator. Add genuine SUBARU cooling system condi- tioner until the coolant level reaches the filler neck. Do not pour the coolant too quickly, as this may lead to insufficient air bleeding and trapped air in the system.

  • Page 338: Air Cleaner Element

    CAUTION When replacing the air cleaner ele- ment, use a genuine SUBARU air cleaner element. If it is not used, there is the possibility of causing a negative effect to the engine.

  • Page 339: Spark Plugs

    However, replacement of the belt should be done according to the main- tenance schedule in the “Warranty and Maintenance Booklet”. Consult your SUBARU dealer for replacement. If a belt is loose, cracked, or worn, contact your SUBARU dealer. 11-15...

  • Page 340: Recommended Fluid

    & Recommended fluid Use one of the following types of auto- matic transmission fluid. Genuine SUBARU Automatic Transmis- sion Fluid Type-HP IDEMITSU ATF HP Castrol Transmax J NOTE Using any non-specified type of auto- matic transmission fluid could result in damage inside the transmission.

  • Page 341: Front Differential Gear Oil

    Front differential gear oil & Checking the oil level Yellow handle 1. Park the vehicle on a level surface and stop the engine. 2. Pull out the level gauge, wipe it clean, and insert it again. Upper level Lower level 3.

  • Page 342: Rear Differential Gear Oil

    If the vehicle requires frequent refilling, there may be an oil leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. & Recommended grade and viscosity Each oil manufacturer has its own base oils and additives. Never use different brands together.

  • Page 343: Power Steering Fluid

    Power steering fluid & Checking the fluid level SAE viscosity No. and applicable tempera- ture The power steering fluid expands greatly as its temperature rises; the fluid level differs according to fluid temperature. Therefore, the reservoir tank has two different checking ranges for hot and cold fluids.

  • Page 344: Recommended Fluid

    If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer. CAUTION Never use different brands of brake fluid together. Also, avoid...

  • Page 345: Recommended Brake Fluid

    Lightly pull the brake pedal up with one finger to check the free play with a force of less than 2 lbf (10 N, 1 kgf). If the free play is not within proper specification, contact your SUBARU deal- – CONTINUED –...

  • Page 346: Checking The Brake Pedal Reserve Distance

    If you hear this scraping noise each time you apply the brake pedal, have the brake pads serviced by your SUBARU dealer as soon as possible. & Breaking-in of new brake pads and linings When replacing the brake pad or lining, use only genuine SUBARU parts.

  • Page 347: Parking Brake Stroke

    (approximately 67 lbf, 300 N, 30 kgf). If the parking brake pedal stroke is not within the specified range, have the brake system checked and adjusted at your SUBARU dealer. 11-23 Maintenance and service Tires and wheels &...

  • Page 348: Tire Pressure Monitoring System (Tpms)

    In this event, go to a SUBARU dealer to have the system inspected as soon as possible. While the vehicle is driven, friction be- tween tires and the road surface causes the tires to warm up.

  • Page 349: Tire Inspection

    Tire Pressure Monitoring System checked at a SUBARU dealer as soon as possi- ble. If this light illuminates while driving, never brake suddenly and keep driving straight ahead while gradu- ally reducing speed.
  • Page 350 11-26 Maintenance and service Check the tire pressures when the tires are cold. Use a pressure gauge to adjust the tire pressures to the values shown on the tire placard. The tire placard is located on the door pillar on the driver’s side. Driving even a short distance warms up the tires and increases the tire pressures.

  • Page 351: Wheel Balance

    If you suspect that the wheels are not correctly balanced, have them checked and adjusted by your SUBARU dealer. Also have them adjusted after tire repairs and after tire rotation. NOTE...

  • Page 352: Wear Indicators

    11-28 Maintenance and service & Wear indicators New tread Worn tread Tread wear indicator Each tire incorporates a tread wear indicator, which becomes visible when the depth of the tread grooves decreases to 0.071 in (1.8 mm). A tire must be replaced when the tread wear indicator appears as a solid band across the tread.

  • Page 353: Tire Replacement

    You are advised to replace the tires with new ones that are identical to those fitted as standard equip- ment. For safe vehicle operation, SUBARU recommends replacing all four tires at the same time. 11-29 Maintenance and service...

  • Page 354: Aluminum Wheels

    11-30 Maintenance and service WARNING Use only those wheels that are specified for your vehicle. Wheels not meeting specifications could interfere with brake caliper opera- tion and may cause the tires to rub against the wheel well housing dur- ing turns. The resulting loss of vehicle control could lead to an accident.

  • Page 355: Chrome Plated Wheels (If Equipped)

    SUBARU parts designed for aluminum wheels. Chrome plated wheels (if equipped) The length of the wheel nut wrench CAUTION There are 2 types of wheel nut wrenches that apply to different lengths.

  • Page 356: Windshield Washer Fluid

    In areas where water freezes in winter, use an anti-freeze type windshield washer fluid. SUBARU Windshield Washer Fluid contains 58.5% methyl alcohol and 41.5% surfactant, by volume. Its freezing tem- perature varies according to how much it is diluted, as indicated in the following table.

  • Page 357: Replacement Of Wiper Blades

    If you cannot eliminate the streaking even after following this method, replace the wiper blades using the following proce- dures. Be sure to use genuine SUBARU wiper blade rubbers as replacements. & Windshield wiper blade as- sembly 1. Raise the windshield wiper arm on the driver’s side.

  • Page 358: Windshield Wiper Blade Rubber

    11-34 Maintenance and service Stopper 3. Remove the wiper blade assembly by holding its pivot area and pushing it in the direction shown by the arrow while de- pressing the wiper blade stopper. 4. Install the wiper blade assembly to the wiper arm.

  • Page 359: Rear Window Wiper Blade Assembly

    3. Align the claws of the metal support with the grooves in the rubber and slide the blade rubber assembly into the metal support until it locks. Stopper 4. Be sure to position the claws at the end of the metal support between the stoppers on the rubber as shown.
  • Page 360 11-36 Maintenance and service 1. Pull out the end of the blade rubber assembly to unlock it from the plastic support. 2. Pull the blade rubber assembly out of the plastic support. Metal spines 3. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber.

  • Page 361: Battery

    Battery WARNING Before beginning work on or near any battery, be sure to extinguish all cigarettes, matches, and light- ers. Never expose a battery to an open flame or electric sparks. Batteries give off a gas which is highly flammable and explosive. For safety, in case an explosion does occur, wear eye protection or shield your eyes when work-...

  • Page 362: Fuses

    11-38 Maintenance and service Fuses CAUTION Never replace a fuse with one hav- ing a higher rating or with material other than a fuse because serious damage or a fire could result. The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment.

  • Page 363: Main Fuse

    6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs. 11-39 Maintenance and service Main fuse Main fuse box...

  • Page 364: Installation Of Accessories

    11-40 Maintenance and service Installation of accessories Always consult your SUBARU dealer before installing fog lights or any other electrical equipment in your vehicle. Such accessories may cause the electronic system to malfunction if they are incor- rectly installed or if they are not suited for...

  • Page 365: Replacing Bulbs

    11-41 Maintenance and service Replacing bulbs – CONTINUED –...

  • Page 366: Headlights (Vehicles With Hid Headlights)

    For replacement of the head- 12V-27W 1156(W27W) light bulbs (low-beam and high- 12V-16W beam), removal and installation of 12V-5W (W5W) the headlight assemblies, and re- 12V-5W 168(W5W) moval of headlight-assembly com- ponents, contact your SUBARU dealer. CAUTION WARNING...

  • Page 367: Headlights (Vehicles Without Hid Headlights)

    NOTE If headlight aiming is required, con- sult your SUBARU dealer for proper adjustment of the headlight aim. It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary.

  • Page 368: Parking Light (Right-Hand Side)

    11-44 Maintenance and service ! High beam light bulbs Right-hand side 1. Use a screwdriver to undo the clips on the air intake duct, then remove the air intake duct. (right-hand side) Left-hand side 2. Use a screwdriver to remove the secured clip of the washer tank.

  • Page 369: Front Turn Signal Light (Right-Hand Side)

    NOTE Contact your SUBARU dealer for the bulb replacement of the left-hand side. & Front fog light It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary. – CONTINUED –...

  • Page 370: Rear Combination Lights

    11-46 Maintenance and service & Rear combination lights 1. Remove the two covers by inserting the tip of a flat-head screwdriver. 2. Using a Phillips screwdriver, remove the upper and lower screws. Then, slide the rear combination light assembly rear- ward and remove it from the vehicle.

  • Page 371: Back-Up Light/Tail Light

    & Back-up light/Tail light 1. Use a flat-head screwdriver to remove the light cover from the rear gate trim. Tail light Back-up light 2. Turn the bulb socket counterclockwise and remove it. 3. Pull the bulb out of the bulb socket and replace it with a new one.

  • Page 372: Dome Light

    11-48 Maintenance and service 1. Wrap a flat-head screwdriver in vinyl tape or cloth, insert it into the gap between the license plate light assembly and the rear gate. 2. Carefully pry the light assembly to remove it. 3. Remove the bulb socket from the license plate light assembly by turning it counterclockwise.

  • Page 373: Map Light

    2. Turn the bulb until the flat surfaces at its ends are aligned vertically. Pull the bulb straight downward to remove it. 3. Install a new bulb. 4. Reinstall the lens. & Map light 1. Remove the lens by prying the edge of the lens with a flat-head screwdriver.

  • Page 374: Door Step Light

    3. Install a new bulb. 4. Reinstall the lens. & Door step light It may be difficult to replace the bulbs. Have the bulbs replaced by your SUBARU dealer if necessary. & Cargo area light 1. Remove the cargo area light assembly by prying the edge of the light with a flat- head screwdriver.

  • Page 375: Specifications

    Specifications ... 12-2 Dimensions... Engine ... Electrical system... Capacities ... Tires ... Wheel alignment ... Fuses and circuits ... 12-2 Fuse panel located in the passenger compartment ... 12-2 Fuse panel located in the engine 12-3 compartment ... 12-3 Bulb chart... 12-3 Vehicle identification ...
  • Page 376 12-2 Specifications Specifications These specifications are subject to change without notice. & Dimensions Overall length Overall width Overall height Without roof rail With roof rail Wheel base Tread Front Rear Ground clearance & Engine Engine model Engine type Displacement cc (cu-in) Bore Stroke in (mm) Compression ratio...

  • Page 377: Specifications

    & Electrical system Battery type and capacity (5HR) Alternator Spark plugs & Capacities Fuel tank Engine oil Transmission fluid Front differential gear oil Rear differential gear oil Power steering fluid Engine coolant & Tires Tire size Wheel size Pressure Front Rear Rear at trailer towing Temporary spare tire...

  • Page 378: Wheel Alignment

    12-4 Specifications & Wheel alignment Front Rear Camber Front Rear 0 in (0 mm) 0.0787 in (2 mm) 0 00’ −0 31’...

  • Page 379: Fuses And Circuits

    Fuses and circuits & Fuse panel located in the passenger compartment 12-5 Specifications Fuse Fuse Circuit panel rating Trailer hitch connector Empty Door locking 7.5A Front wiper deicer relay Moonroof 7.5A Combination meter 7.5A Remote control rear view mirrors Seat heater relay Combination meter Integrated unit Stop light...
  • Page 380 12-6 Specifications Fuse Fuse Circuit panel rating Cargo socket Position light Tail light Rear combination light Empty Illumination Seat heaters Back-up light Headlight right side re- 7.5A Empty 7.5A Starter relay Air conditioner Rear window defogger relay coil Rear wiper Rear window washer Audio unit airbag...

  • Page 381: Fuse Panel Located In The Engine Compartment

    & Fuse panel located in the engine compartment 12-7 Specifications Fuse Fuse Circuit panel rating Vehicle dynamics control unit Console socket Headlight (right side) Headlight (left side) Backup Horn Rear window defogger Fuel pump Automatic transmission control unit 7.5A Engine control unit Turn and hazard warning flasher Parking switch...

  • Page 382: Bulb Chart

    12-8 Specifications Bulb chart Description Wattage High beam headlight 12V-65W Low beam headlight Vehicles with HID light 12V-35W Vehicles without HID light 12V-55W Fog light 12V-55W 12V-28/8W Front turn signal/Parking light 12V-5W Parking/Front side marker light Rear combination light Rear turn signal light 12V-27W Brake/tail 12V-27/8W...

  • Page 383: Vehicle Identification

    Vehicle identification 12-9 Specifications Vehicle identification number Certification and bar code label Tire inflation pressure label Vehicle identification number plate Model number label Emission control label Fuel label...
  • Page 384 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...

  • Page 385: Consumer Information And Reporting Safety Defects

    Consumer information and Reporting safety defects For U.S.A..13-2 Tire information ... 13-2 Tire labeling ... Recommended tire inflation pressure... Glossary of tire terminology ... Tire care – maintenance and safety practices... Vehicle load limit – how to determine... Determining compatibility of tire and vehicle load capacities ...

  • Page 386: For U.s.a

    13-2 Consumer information and Reporting safety defects For U.S.A. The following information has been compiled according to Code of Federal Regulations “Title 49, Part 575”. Tire information & Tire labeling Many markings (e.g. Tire size, Tire Identification Number or TIN) are placed on the sidewall of a tire by tire manufacturers.
  • Page 387 Example: (6) Load Index: A numerical code which specifies the maximum load a tire can carry at the speed indicated by its speed symbol, at maximum inflation pressure. For example, “104” means 1,984 lbs (900 kg), “100” means 1,764 lbs (800 kg), “90”...

  • Page 388: Uniform Tire Quality Grading

    13-4 Consumer information and Reporting safety defects ! Maximum load rating The load rating at the maximum permissible weight load for this tire. For example, “MAX. LOAD 730 kg (1609 LBS) @ 300 kPa (44 PSI) MAX. PRESS.” WARNING Maximum load rating applies only to the tire, not to the vehicle.

  • Page 389: Recommended Tire Inflation Pressure

    & Recommended tire inflation pressure ! Recommended cold tire inflation pressure Recommended cold tire inflation pressure for your vehicle’s tires is as follows, Tire size Wheel size Pressure Front Rear Rear at trailer towing Temporary spare tire Size Pressure Consumer information and Reporting safety defects P255/55R18 104H 8 JJ 33 psi (230 kPa, 2.3 kgf/cm...

  • Page 390: Glossary Of Tire Terminology

    13-6 Consumer information and Reporting safety defects ! Vehicle placard The vehicle placard is affixed to the driver’s side B-pillar. Example: The vehicle placard shows original tire size, recommended cold tire inflation pressure on each tire at maximum loaded vehicle weight, seating capacity and loading infor- mation.

  • Page 391: Tire Care - Maintenance And Safety Practices

    whitewall, bears white lettering or bears manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on the other side- wall of the tire, or The outward facing sidewall of an asymmetrical tire that has a particular side that must al- ways face outward when mount- ing on a vehicle.

  • Page 392: Vehicle Load Limit - How To Determine

    13-8 Consumer information and Reporting safety defects tires every 7,500 miles (12,000 km). Rotating the tires involves switch- ing the front and rear tires on the right-hand side of the vehicle and similarly switching the front and rear tires on the left-hand side of the vehicle.
  • Page 393 Calculate the available load ca- pacity by subtracting the total weight from the vehicle capacity weight of 1,157 lbs (525 kg). The result of step 2 shows that a further 121 lbs (55 kg) of cargo can be carried. Consumer information and Reporting safety defects Example 1B For example, if a person weighing 176 lbs (80 kg) now enters the...
  • Page 394 13-10 Consumer information and Reporting safety defects vehicle is 1,157 lbs (525 kg), which is indicated on the vehicle placard with the statement “The combined weight of occupants and cargo should never exceed 525 kg or 1,157 lbs”. For example, the vehicle has one occupant weighing 165 lbs (75 kg) plus cargo weighing 705 lbs (320 kg).

  • Page 395: Determining Compatibility Of Tire And Vehicle Load Capacities

    The total weight now exceeds the capacity weight by 105 lbs (48 kg), so the cargo weight must be reduced by 105 lbs (48 kg) or more. & Determining compatibility of tire and vehicle load capaci- ties The sum of four tires’ maximum load ratings must exceed the max- imum loaded vehicle weight (“GVWR”).

  • Page 396: Uniform Tire Quality Grading Standards

    13-12 Consumer information and Reporting safety defects The resulting figure equals the available amount of cargo and luggage load capacity. For exam- ple, if the “XXX” amount equals 1,400 lbs (635 kg) and there will be five- 150 lbs (68 kg) passengers in your vehicle, the amount of avail- able cargo and luggage load capa- city is 650 lbs.

  • Page 397: Temperature A, B, C

    cified government test surfaces of asphalt and concrete. A tire marked C may have poor traction perfor- mance. WARNING The traction grade assigned to this tire is based on straight- ahead braking traction tests, and does not include accel- eration, cornering, hydroplan- ing, or peak traction charac- teristics.

  • Page 398: Reporting Safety Defects (U.s.a.)

    However, NHTSA cannot become involved in individual problems between you, your dealer, or Subaru of America, Inc. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov;...

  • Page 399: Index

    Index...
  • Page 400 14-2 Index ABS (Anti-lock Brake System) ... 7-20 Warning light ... 3-15, 7-21 Accessories... 5-4, 11-40 Accessory power outlet... 6-9 Active head restraint... 1-5 Air cleaner element ... 11-14 Air filtration system... 4-11 Air flow ... 4-2 Air flow mode selection... 4-3 Alarm system ...
  • Page 401 Cargo area Cover ... 6-13 Light... 6-2 Tie-down hooks ... 6-15 Catalytic converter ... 8-3 Center Console ... 6-6 Ventilators ... 4-4 Changing Flat tire ... 9-6 Oil and oil filter ... 11-8 Charge warning light ... 3-13 CHECK ENGINE warning light/Malfunction indicator lamp...
  • Page 402 14-4 Index Open warning light ... 3-17 Step light ... 11-50 Drive belts... 11-15 Driving All-Wheel Drive warning light ... 3-18 Car phone/cell phone ... 7 Drinking ... 6 Drugs ... 6 Foreign countries ... 8-4 Pets ... 7 Snowy and icy roads ... 8-9 Tips...
  • Page 403 GAWR (Gross Axle Weight Rating) ... 8-12 Glove box ... 6-5 GVWR (Gross Vehicle Weight Rating) ... 8-12 Hazard warning flasher ... 3-5, 9-2 Head restraint adjustment Front seat ... 1-5 Rear (5-seater models)/Second-row (7-seater models) ... 1-11 Third-row ... 1-15 Headlight Beam leveler ...
  • Page 404 14-6 Index Cargo area... 6-2, 11-50 Control switch... 3-26 Dome ... 6-2, 11-48 Door step... 11-50 Front fog... 3-32 Ignition switch... 3-4 License plate ... 11-47 Map ... 6-3, 11-49 Rear combination... 11-46 Rear gate... 6-3 Vanity mirror ... 6-4 Vanity Mirror ...
  • Page 405 Power Door locking switch ... 2-6 Outside mirrors ... 3-41 Seat ... 1-3 Steering ... 7-18 Steering fluid ... 11-19 Windows... 2-20 Precautions against vehicle modification ... 1-30, 1-70 Preparing to drive ... 7-7 Printed antenna ... 5-2 Rear Air conditioner ... 4-8 Combination lights...
  • Page 406 14-8 Index Rocking the vehicle ... 8-11 Roof molding and crossbar ... 8-16 Roof rail and crossbar ... 8-13 Safety Precautions when driving ... 4 Symbol ... 2 Warnings ... 2 Seat Fabric... 10-5 Heater ... 1-6 Memory function ... 1-4 Seatbelt ...
  • Page 407 Temporary spare tire ... 9-5 Tether (child restraint system) ... 1-38, 1-41 Tie-down hooks ... 9-15 Tilt steering wheel ... 3-41 Tire Chains... 8-11 Inspection ... 11-25 Pressures and wear ... 11-25 Replacement ... 11-29 Rotation ... 11-28 Types ... 11-23 Tire pressure monitoring system (TPMS)...

  • Page 408: Windshield Washer Fluid

    14-10 Index Low fuel... 3-8, 3-17 Low tire pressure ... 3-14 Oil pressure ... 3-13 Rear differential oil temperature ... 3-14 Seatbelt ... 1-18, 3-10 SRS airbag system ... 3-11 Vehicle Dynamics Control ... 3-18, 7-25 Windshield washer fluid ... 3-18 Warranties ...
  • Page 409 — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 410 134...

  • Page 411: Gas Station Reference

    & Fuel Use unleaded gasoline with an octane rating of 87 AKI or higher. & Fuel octane rating This octane rating is the average of the Research Octane and Motor Octane numbers and is commonly referred to as the Anti Knock Index (AKI).
