DTC "C16" (P0500): Speed Sensor

Detected Condition and Possible Cause
Detected Condition
The speed sensor signal is not input to ECM for more
than 3 sec. during the engine is running at 5 000 r/min
or more.
NOTE
If SDS is used, P0500 is indicated.

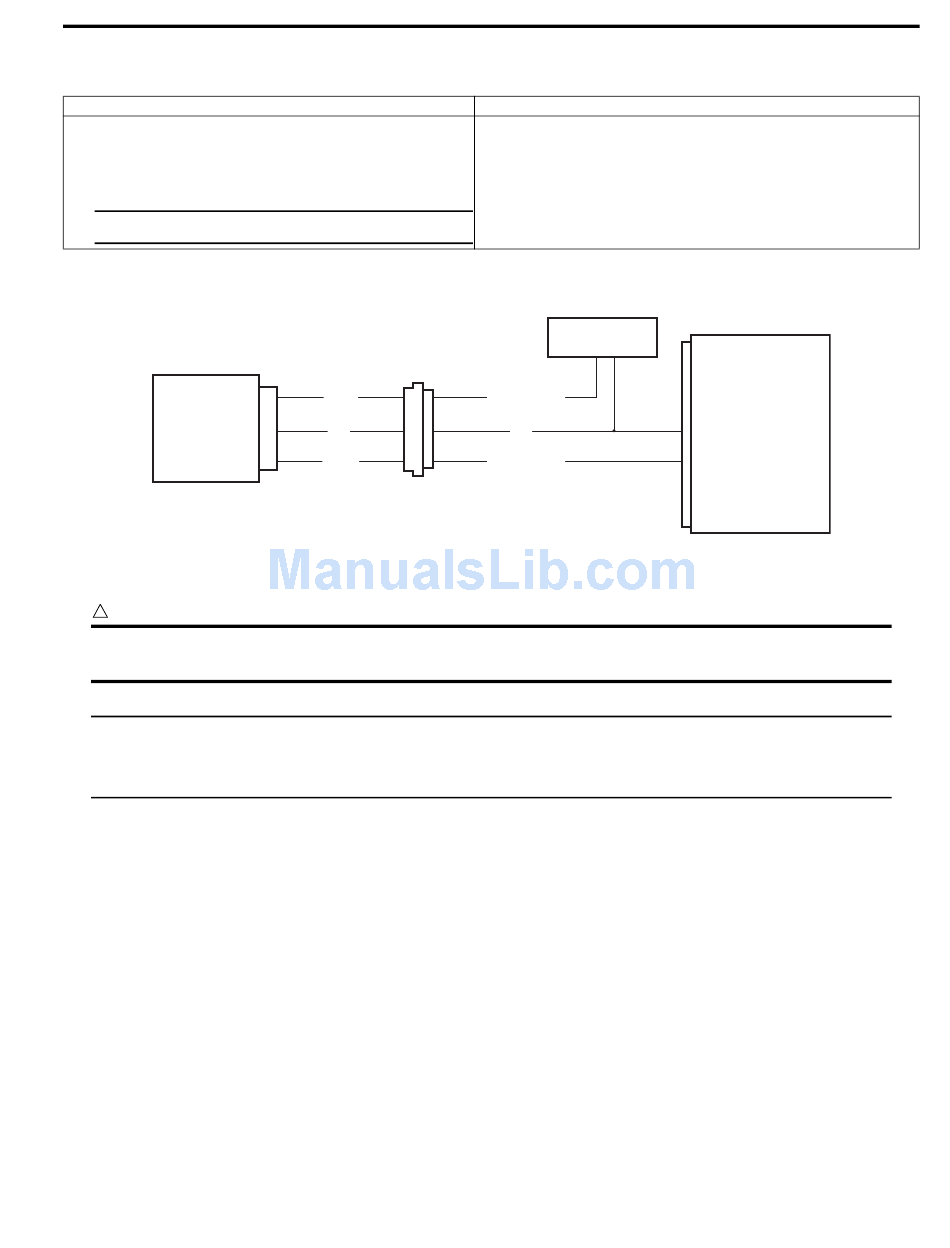

Wiring Diagram
Speed sensor
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent the terminal damage or terminal bend.
NOTE
• After repairing the trouble, clear the DTC using SDS tool. Refer to "Use of SDS Diagnosis Reset
Procedures (Page1A-15)".
• Refer to "Use of SDS Diagnosis Reset Procedures (Page1A-15)"
• Speed sensor circuit open or short.
• Metal particles or foreign material being attached on the
speed sensor.
• Speed sensor malfunction.
• ECM malfunction.
O/R
O/R (12 V)
P
B/W
B/W (GND)
Engine General Information and Diagnosis:
Possible Cause
Speedometer
P
1A-36
B705H11104020
ECM
(33)
Speed sensor
I705H1110122-02
