1A-17 Engine General Information and Diagnosis:
SDS Check
Using SDS, take the sample of data from the new motorcycle and at the time of periodic maintenance at your
dealership.
Save the data in the computer or by printing and filing the hard copies. The saved of filed data are useful for
troubleshooting as they can be compared periodically with changes over time or failure conditions of the motorcycle.
For example, when a motorcycle is brought in for service but the troubleshooting is difficult, comparison with the
normal data that have been saved or filed can allow the specific engine failure to be determined.
• Remove the upper meter panel. Refer to "Upper Meter Panel Removal and Installation in Section 9D (Page9D-13)".
• Set up the SDS tool. Refer to "Use of SDS Diagnostic Procedures (Page1A-14)".
Special tool
: 09904–41010 (SDS set)
: 99565–01010–008 (CD-ROM Ver.8)
NOTE
• Before taking the sample of data, check and clear the Past DTC.
• A number of different data under a fixed condition as shown below should be saved or filed as
sample.

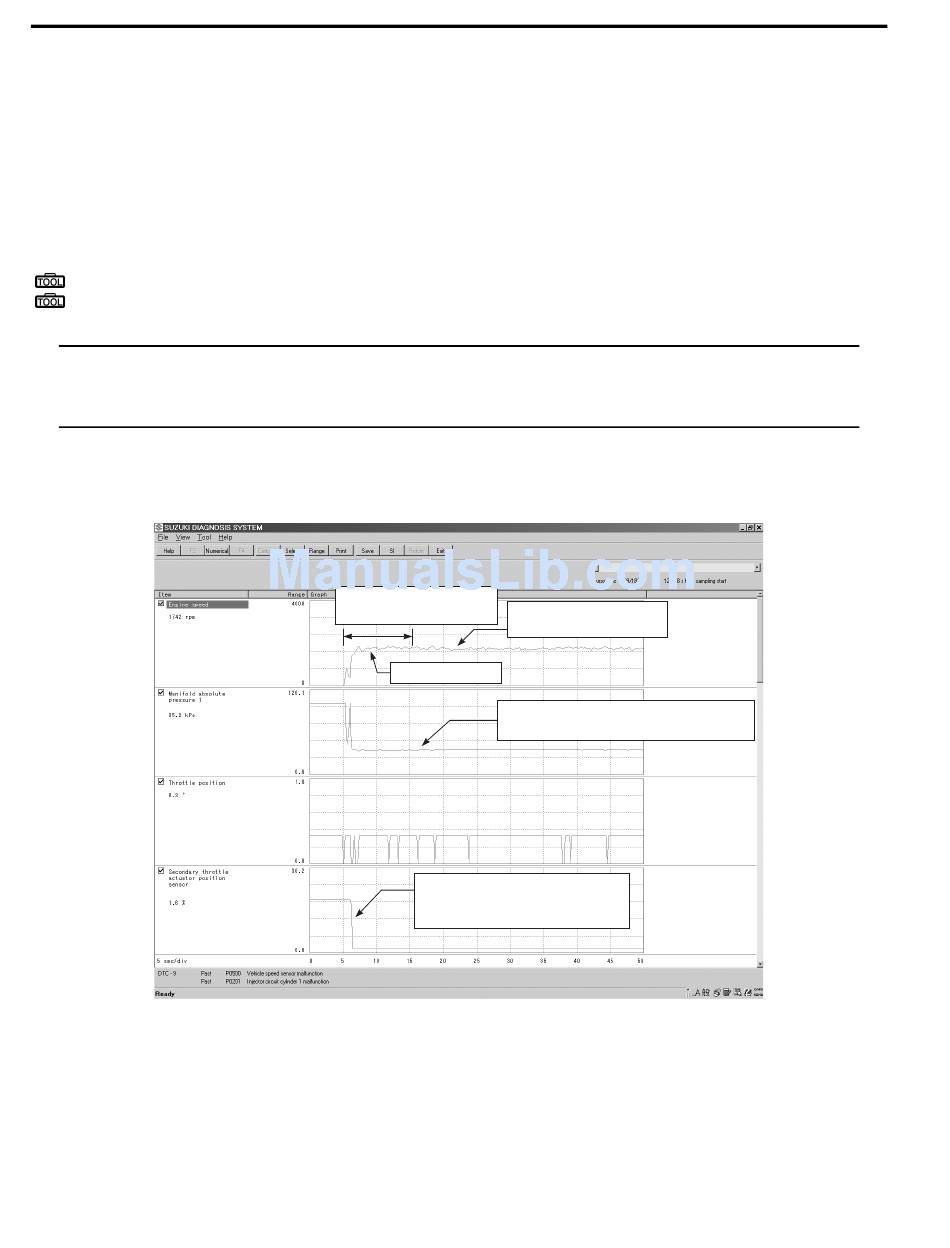

Sample
Data sampled from cold starting through warm-up
Check the fast idle time.
Check the engine r/min.
Approx. XX sec.
Fast idle section
Check the manifold absolute pressure.
Check the secondary throttle
valve operation in according
with the engine r/min.
XX r/min
XX kPa
