0A-7 General Information:

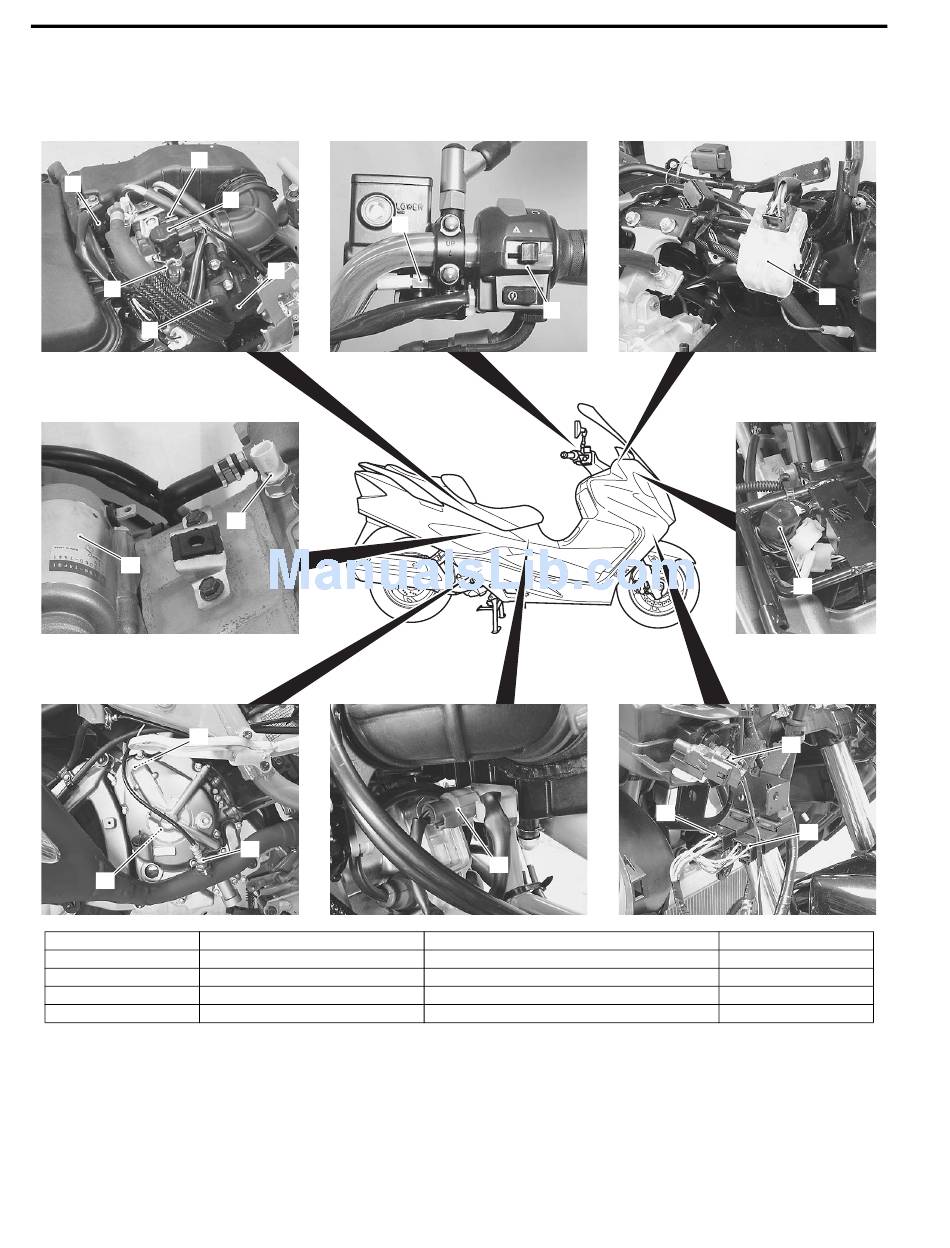

Electrical Components Location
2
1
4
5
19
15
16
1. Fuel injector
2. IAP sensor
3. ISC valve
4. TP sensor
5. STP sensor
Component Location
3
6
18
17
6. STVA
7. Front brake switch
8. Right handlebar switch
9. Starter relay
10. Mode select switch coupler
7
8
14
11. Ambient air temperature sensor
12. Brake-lock relay
13. Fuel pump relay
14. IAT sensor
15. CKP sensor
B705H10103001
9
10
11
13
12
I705H1010005-04
16. Generator
17. HO2 sensor
18. ECT sensor
19. Starter motor
