Devices View Of The System Memory Map; System Memory Address Space As Viewed From An Expander Bridge (Pxb/Gxb) - Intel 460GX Software Developer’s Manual

4.3

Devices View of the System Memory Map

Figure 4-1
invalid accesses at the expander bridge level, since different expander bridge devices are allowed
to access different regions. For example, PXBs are allowed to access other logical PCI segments
and GXBs are not. The SAC does not perform special checking to prevent this, and therefore the
expander bridges must be set up by firmware accordingly. An exception to this rule can be made if
the request is being routed to the system bus rather than directly to memory. For instance, accesses
above the Top of Memory are not blocked at the PXB level, but instead cause a BINIT# in the SAC
because they are guaranteed to go through the SAC's decode logic since the PXB routes these
accesses to the system bus
Note: Figure 4-1
a PXB (GXBs are only allowed to initiate accesses directed to system memory) and directed to one
of the nx32M logical PCI segments (this segment can be anywhere except below the compatibility
PCI bus). Parallel segment peer accesses are not permitted anywhere below 1 MB, not even to the
VGA region. This means that if VGA is relocated below a GXB, a server management card on one
of the PCI buses in the system can no longer access the VGA range.

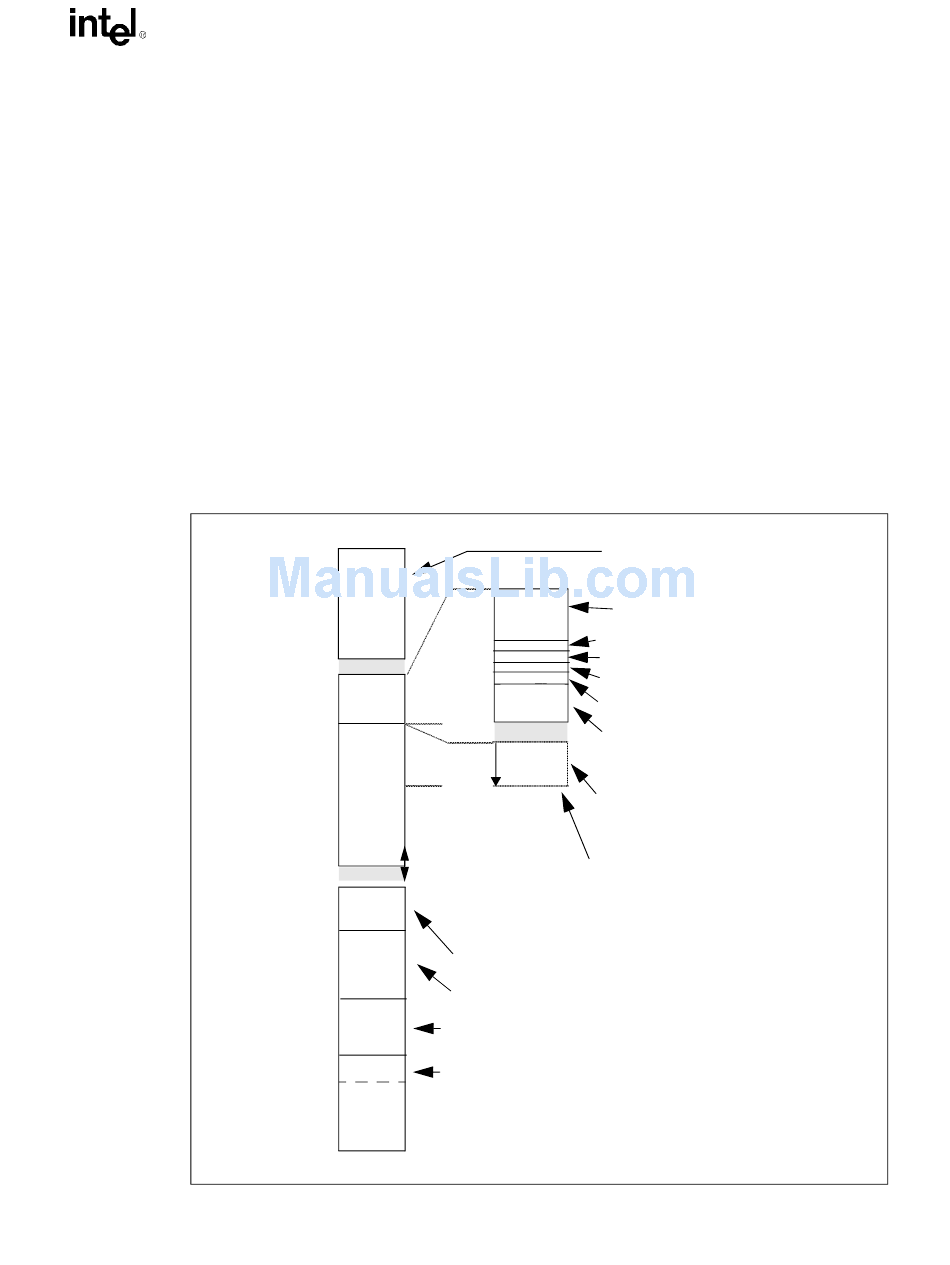

Figure 4-4. System Memory Address Space as Viewed from an Expander Bridge (PXB/GXB)
Intel® 460GX Chipset Software Developer's Manual
shows an Expander Bridge device's view of system memory. The goal is to prevent
shows that parallel segment peer-to-peer accesses are only supported when initiated by
FFF_FFFF_FFFF
FFFF_FFFF
System
Memory
FF00_0000
1_0000_0000
Firmware, FEC0_0000
Processor & 32
Chipset
MB
Specific
FE00_0000
FE00_0000 -
System
(n x 32M)
Memory
10_0000
System
Firmware
F_0000
C, D, and E
Segments
C_0000
if enabled as memory GAP (directed to a logical PCI segment),
VGA
Memory all PXB's must ignore and all GXBs must ignore in the PCI stream
but BINIT# after GART (allows AGP card to "talk to itself" in that region)
A_0000
512K-640K if enabled as a memory GAP (directed to the compatibility PCI bus),
all PXB's must ignore and all GXB's must BINIT# after GART
DOS
Region
The term "ignore" from a PCI perspective means do not assert DEVSEL#;
instead allow request to master abort
0
All remaining regions are mapped to main memory and are always forwarded inbound
Notes: using the "memory" route encoding
PXB accesses above the Top of Memory
Top of Memory
are routed as if to peer and therefore
go through the SAC decode and cause
a BINIT#; GXB must cause a BINIT#
after the GART
PXB must ignore
High
GXB must BINIT# after GART
System Firmware
PXB must ignore; GXB must BINIT# after GART
4G-16M to 4G-17M
4G-17M to 4G-18M
PXB/GXB allow to interrupt delivery area
4G-18M to 4G-19M
PXB defaults to memory so SAC must trap;
4G-19M to 4G-20M
GXB must BINIT# after GART
Chipset
PXB must ignore; GXB must BINIT# after GART
Specific
PXB allows (only recommended to use
from compatibility bus for server management)
GXB must BINIT# after GART
n x 32M
PCI Gaps
PXBs may support peer-to-peer; accesses
to the PXB's own PCI bus must be ignored;
accesses to other PCI buses can be directed
to the system bus so the SAC forwards
them to the targeted peer bus
GXBs can not allow peer-to-peer; accesses
to the GXB's own PCI bus must be ignored
(allows AGP card to "talk to itself" in that)
region); accesses to any PCI bus that are found
after the GART must cause a BINIT#
if enabled as memory GAP (directed to a logical PCI segment),
all PXB's must ignore and all GXBs must BINIT# after GART
if enabled as memory GAP (directed to the compatibility PCI bus),
all PXB's must ignore and all GXBs must BINIT# after GART
System Address Map
