2
INSTALLATION AND CONNECTIONS

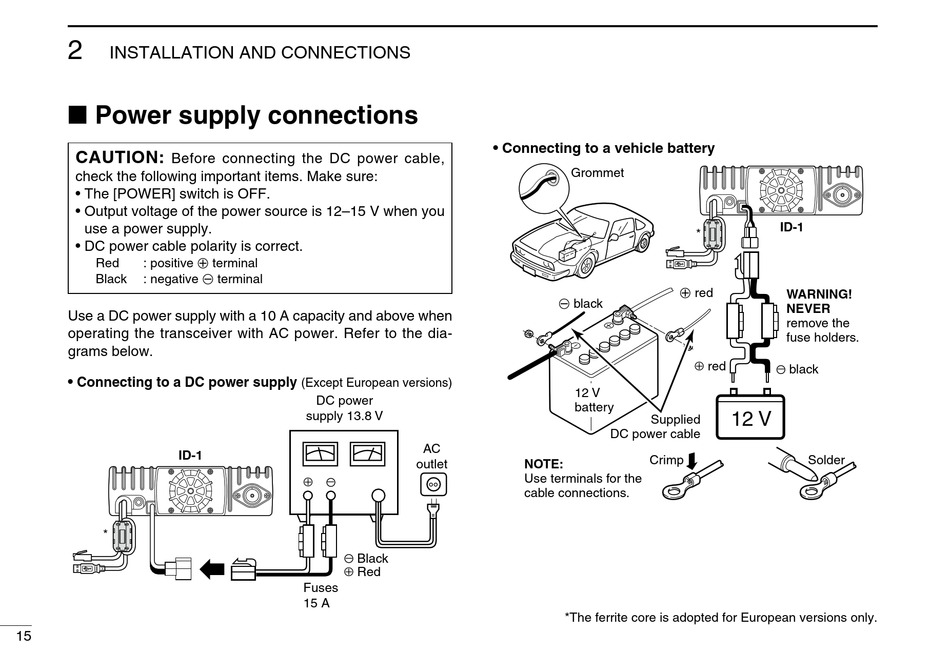

■ Power supply connections

CAUTION:
Before connectng the DC power cable,
check the followng mportant tems. Make sure:
• The [POWER] swtch s OFF.
• Output voltage of the power source s 12–15 V when you
use a power supply.
• DC power cable polarty s correct.
: postve + termnal
Red
: negatve _ termnal
Black
Use a DC power supply wth a 10 A capacty and above when
operatng the transcever wth AC power. Refer to the da-
grams below.
• Connecting to a DC power supply
ID-1
*
15
(Except European versons)
DC power
supply 13.8 V
AC
outlet
−
⊕
−
Black
⊕
Red
Fuses
15 A
• Connecting to a vehicle battery
Grommet
_ black
12 V
battery
Supplied
DC power cable
Crimp
NOTE:
Use terminals for the
cable connections.
*The ferrte core s adopted for European versons only.
ID-1
*
+ red
WARNING!
NEVER
remove the
fuse holders.
⊕
red
−
black
12 V
Solder
