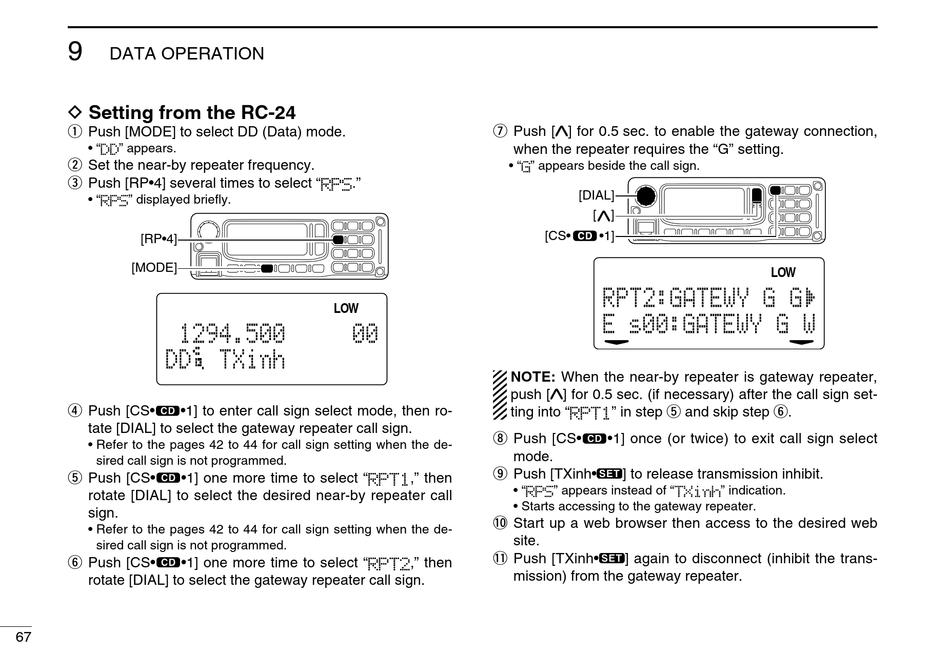

Icom ID-1 Instruction Manual page 74

9
DATA OPERATION
D Setting from the RC-24
q Push [MODE] to select DD (Data) mode.
• "DD" appears.
w Set the near-by repeater frequency.
e Push [RP•4] several tmes to select "RPS."
• "RPS" dsplayed brefly.
[RP•4]
[MODE]
1294.500
DD
r Push [CS• •1] to enter call sgn select mode, then ro-
tate [DIAL] to select the gateway repeater call sgn.
• Refer to the pages 42 to 44 for call sgn settng when the de-
sred call sgn s not programmed.
t Push [CS• •1] one more tme to select "RPT1," then
rotate [DIAL] to select the desred near-by repeater call
sgn.
• Refer to the pages 42 to 44 for call sgn settng when the de-
sred call sgn s not programmed.
y Push [CS• •1] one more tme to select "RPT2," then
rotate [DIAL] to select the gateway repeater call sgn.
67
LOW
00
TXinh
u Push [ ] for 0.5 sec. to enable the gateway connecton,
when the repeater requres the "G" settng.
• "G" appears besde the call sgn.
[DIAL]
[ ]
[CS• •1]
RPT2:GATEWY
E s00:GATEWY
NOTE: When the near-by repeater s gateway repeater,
push [ ] for 0.5 sec. (f necessary) after the call sgn set-
tng nto "RPT1" n step t and skp step y.
i Push [CS• •1] once (or twce) to ext call sgn select
mode.
o Push [TXnh• ] to release transmsson nhbt.
• "RPS" appears nstead of "TXinh" ndcaton.
• Starts accessng to the gateway repeater.
!0 Start up a web browser then access to the desred web
ste.
!1 Push [TXnh• ] agan to dsconnect (nhbt the trans-
msson) from the gateway repeater.
LOW
G Gå
G W
