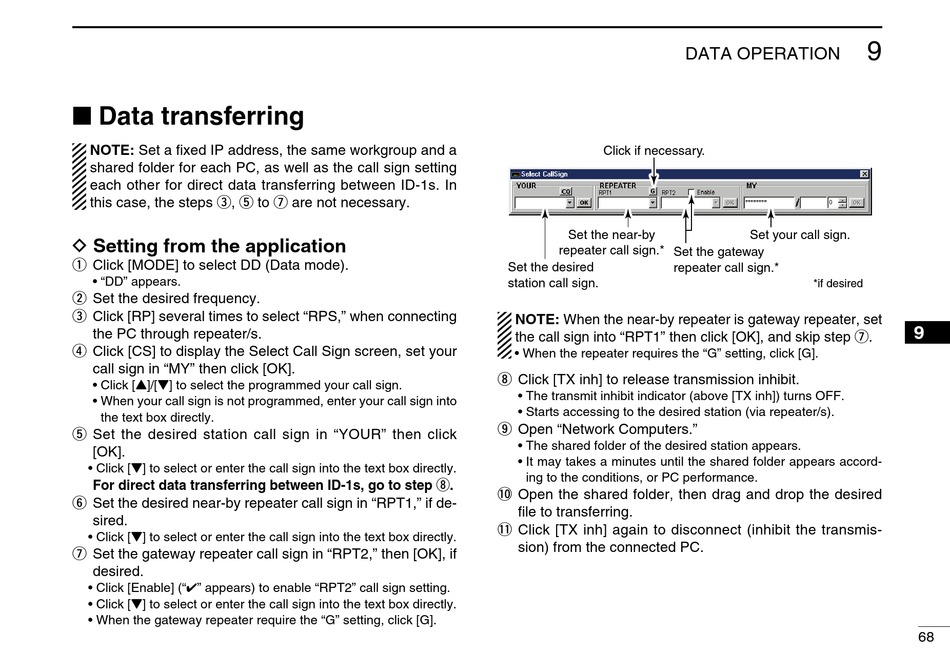

■ Data transferring
NOTE: Set a fixed IP address, the same workgroup and a
shared folder for each PC, as well as the call sgn settng
each other for drect data transferrng between ID-1s. In
ths case, the steps e, t to u are not necessary.
D Setting from the application
q Clck [MODE] to select DD (Data mode).
• "DD" appears.
w Set the desred frequency.
e Clck [RP] several tmes to select "RPS," when connectng
the PC through repeater/s.
r Clck [CS] to dsplay the Select Call Sgn screen, set your
call sgn n "MY" then clck [OK].
• Clck [Y]/[Z] to select the programmed your call sgn.
• When your call sgn s not programmed, enter your call sgn nto
the text box drectly.
t Set the desred staton call sgn n "YOUR" then clck
[OK].
• Clck [Z] to select or enter the call sgn nto the text box drectly.
For direct data transferring between ID-1s, go to step i.
y Set the desred near-by repeater call sgn n "RPT1," f de-
sred.
• Clck [Z] to select or enter the call sgn nto the text box drectly.
u Set the gateway repeater call sgn n "RPT2," then [OK], f
desred.
• Clck [Enable] ("✔" appears) to enable "RPT2" call sgn settng.
• Clck [Z] to select or enter the call sgn nto the text box drectly.
• When the gateway repeater requre the "G" settng, clck [G].
Click if necessary.
Set the near-by
repeater call sign.*
Set the gateway
Set the desired repeater call sign.*
station call sign.
NOTE: When the near-by repeater s gateway repeater, set
the call sgn nto "RPT1" then clck [OK], and skp step u.
• When the repeater requres the "G" settng, clck [G].
i Clck [TX nh] to release transmsson nhbt.
• The transmt nhbt ndcator (above [TX nh]) turns OFF.
• Starts accessng to the desred staton (va repeater/s).
o Open "Network Computers."
• The shared folder of the desred staton appears.
• It may takes a mnutes untl the shared folder appears accord-
ng to the condtons, or PC performance.
!0 Open the shared folder, then drag and drop the desred
file to transferrng.
!1 Clck [TX nh] agan to dsconnect (nhbt the transms-
son) from the connected PC.
DATA OPERATION
Set your call sign.
*if desired
