1
PANEL DESCRIPTION

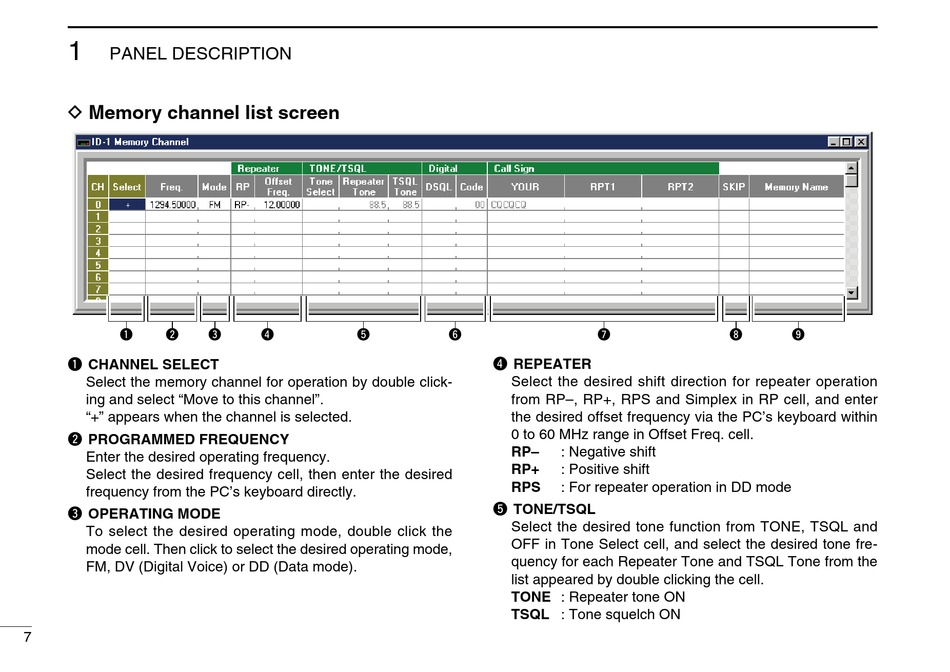

D Memory channel list screen
q w
q CHANNEL SELECT
Select the memory channel for operaton by double clck-
ng and select "Move to ths channel".
"+" appears when the channel s selected.
w PROGRAMMED FREQUENCY
Enter the desred operatng frequency.
Select the desred frequency cell, then enter the desred
frequency from the PC's keyboard drectly.
e OPERATING MODE
To select the desred operatng mode, double clck the
mode cell. Then clck to select the desred operatng mode,
FM, DV (Dgtal Voce) or DD (Data mode).
7
e r t y u
r REPEATER
Select the desred shft drecton for repeater operaton
from RP–, RP+, RPS and Smplex n RP cell, and enter
the desred offset frequency va the PC's keyboard wthn
0 to 60 MHz range n Offset Freq. cell.
RP– : Negatve shft
RP+
: Postve shft
RPS : For repeater operaton n DD mode
t TONE/TSQL
Select the desred tone functon from TONE, TSQL and
OFF n Tone Select cell, and select the desred tone fre-
quency for each Repeater Tone and TSQL Tone from the
lst appeared by double clckng the cell.
TONE : Repeater tone ON
TSQL : Tone squelch ON
i o
